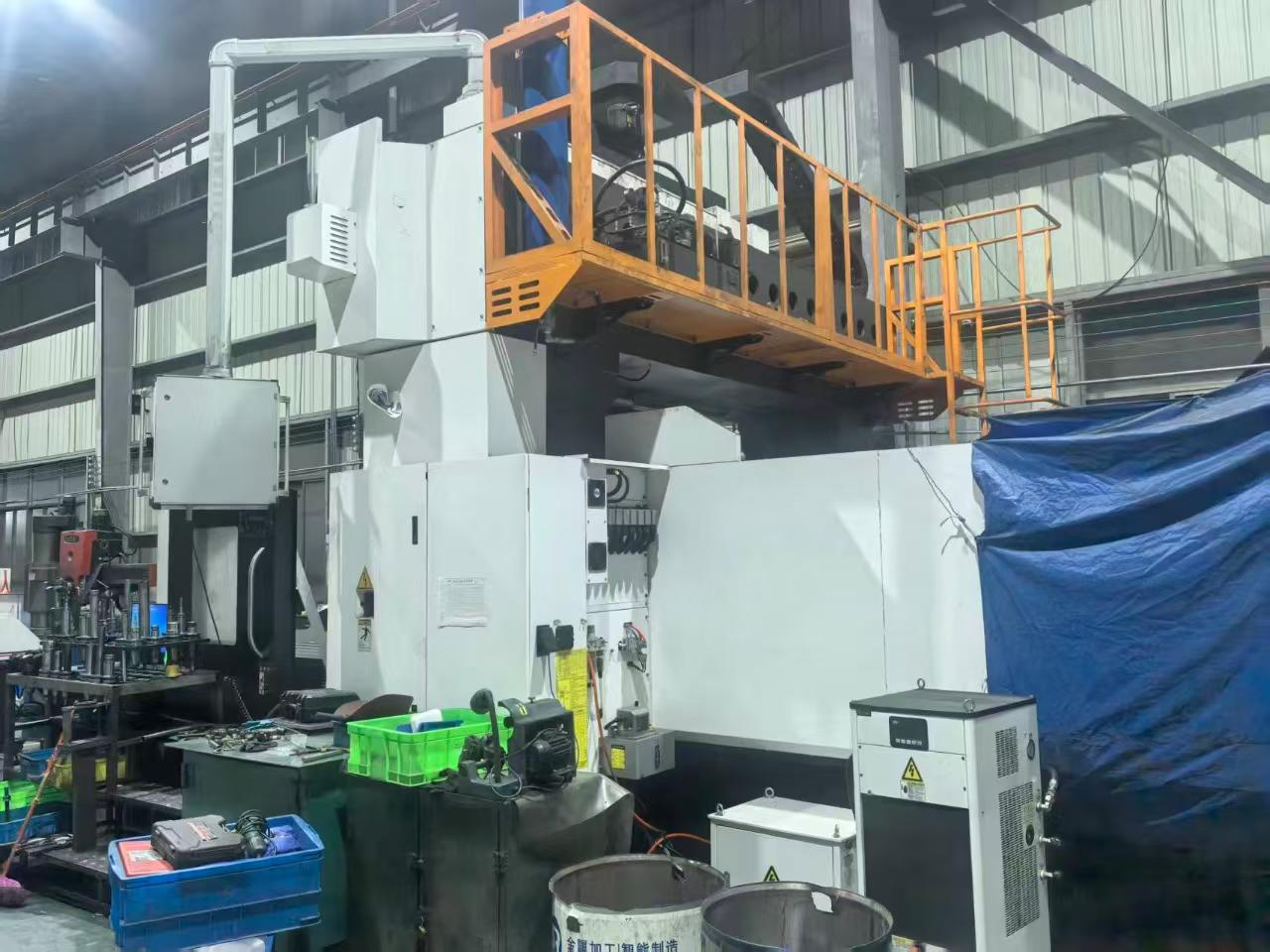

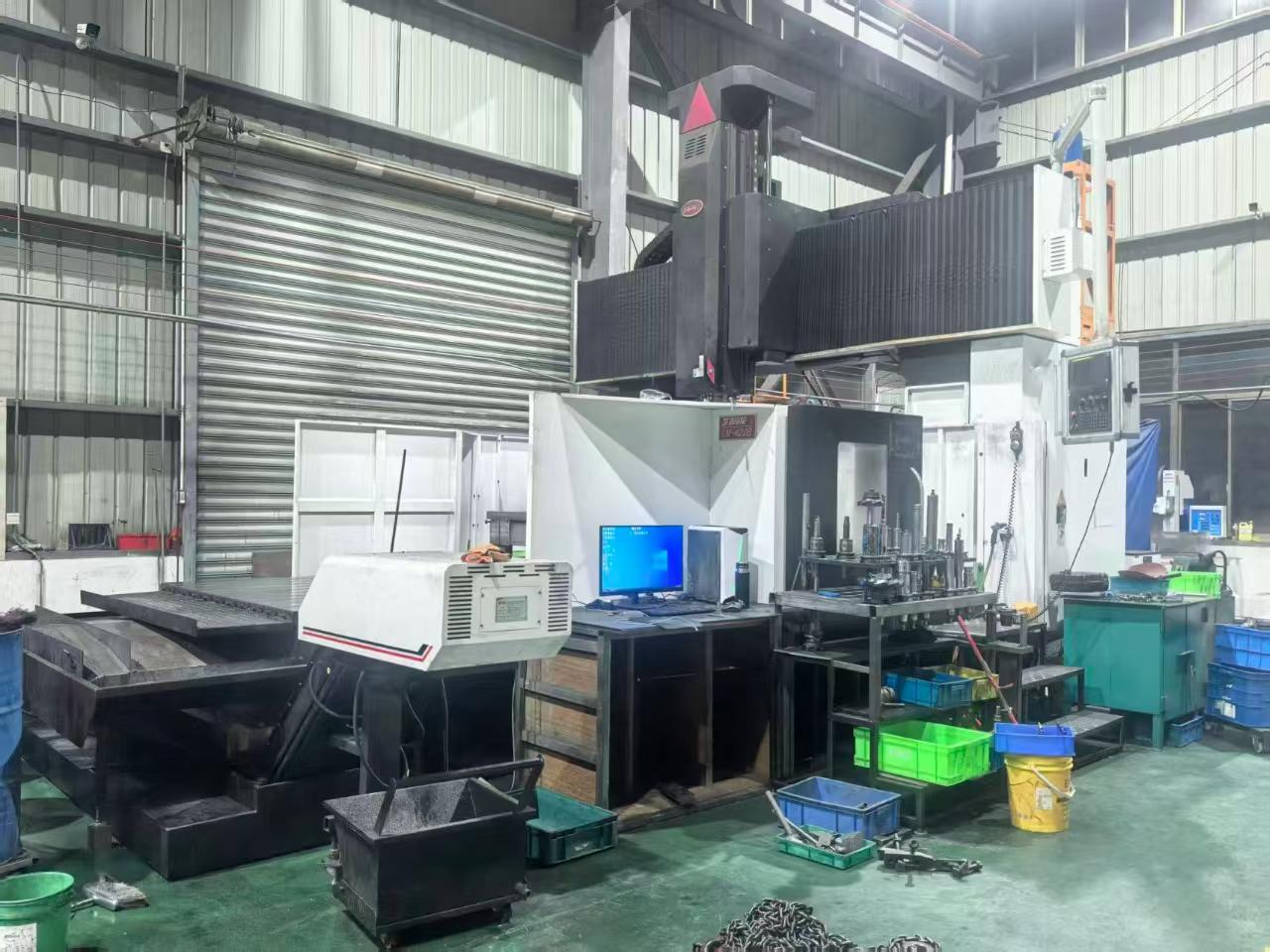

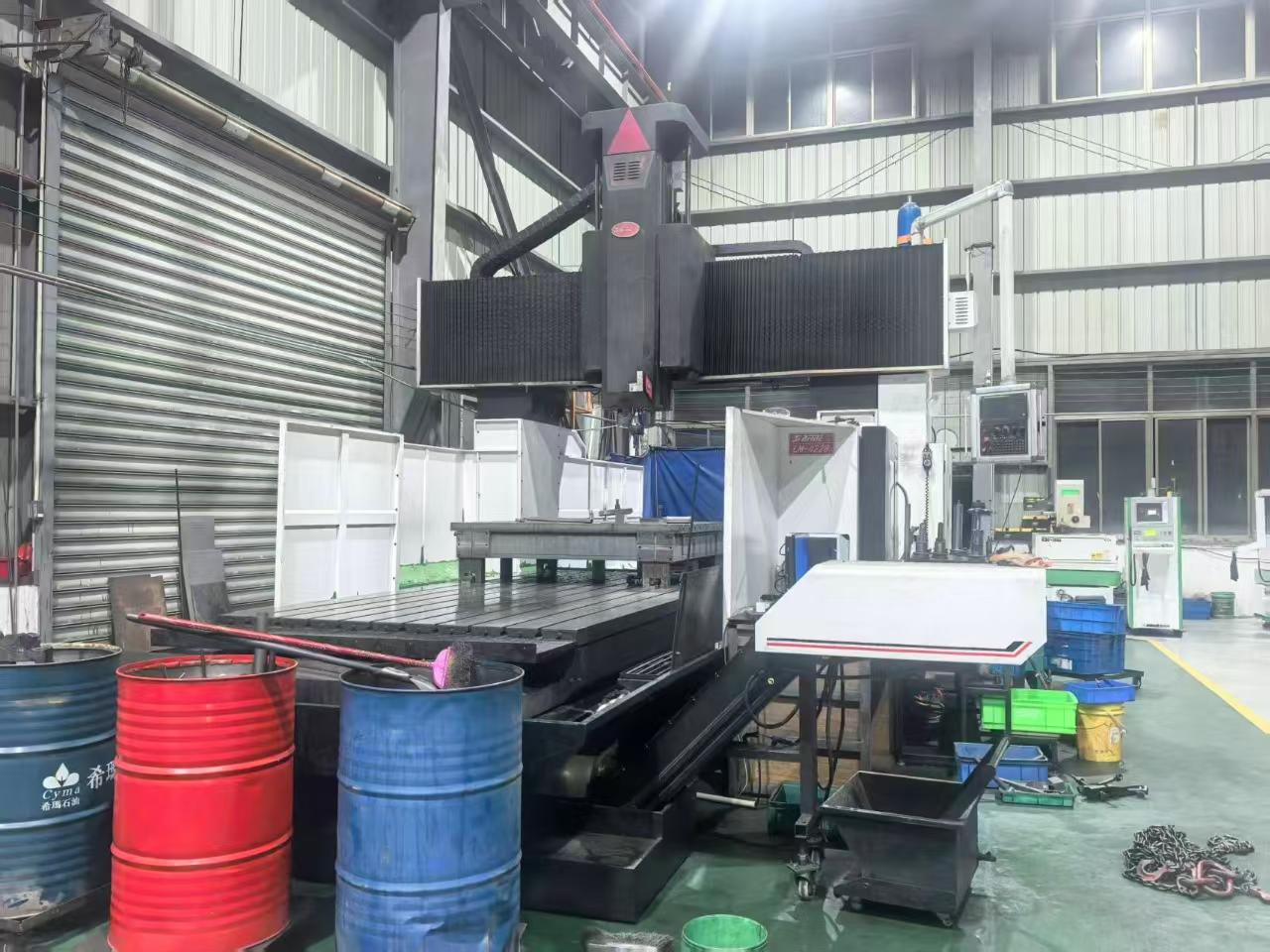

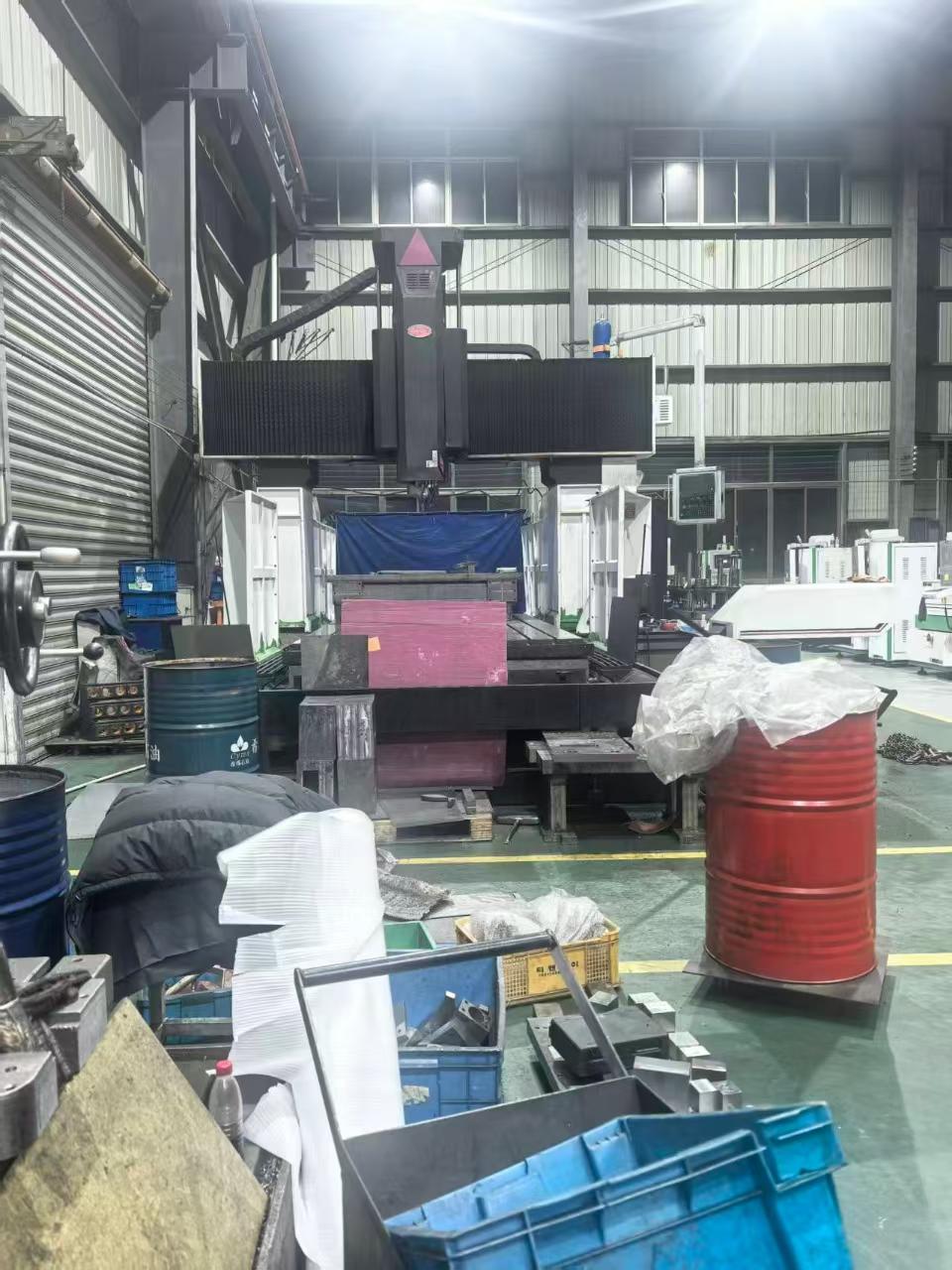

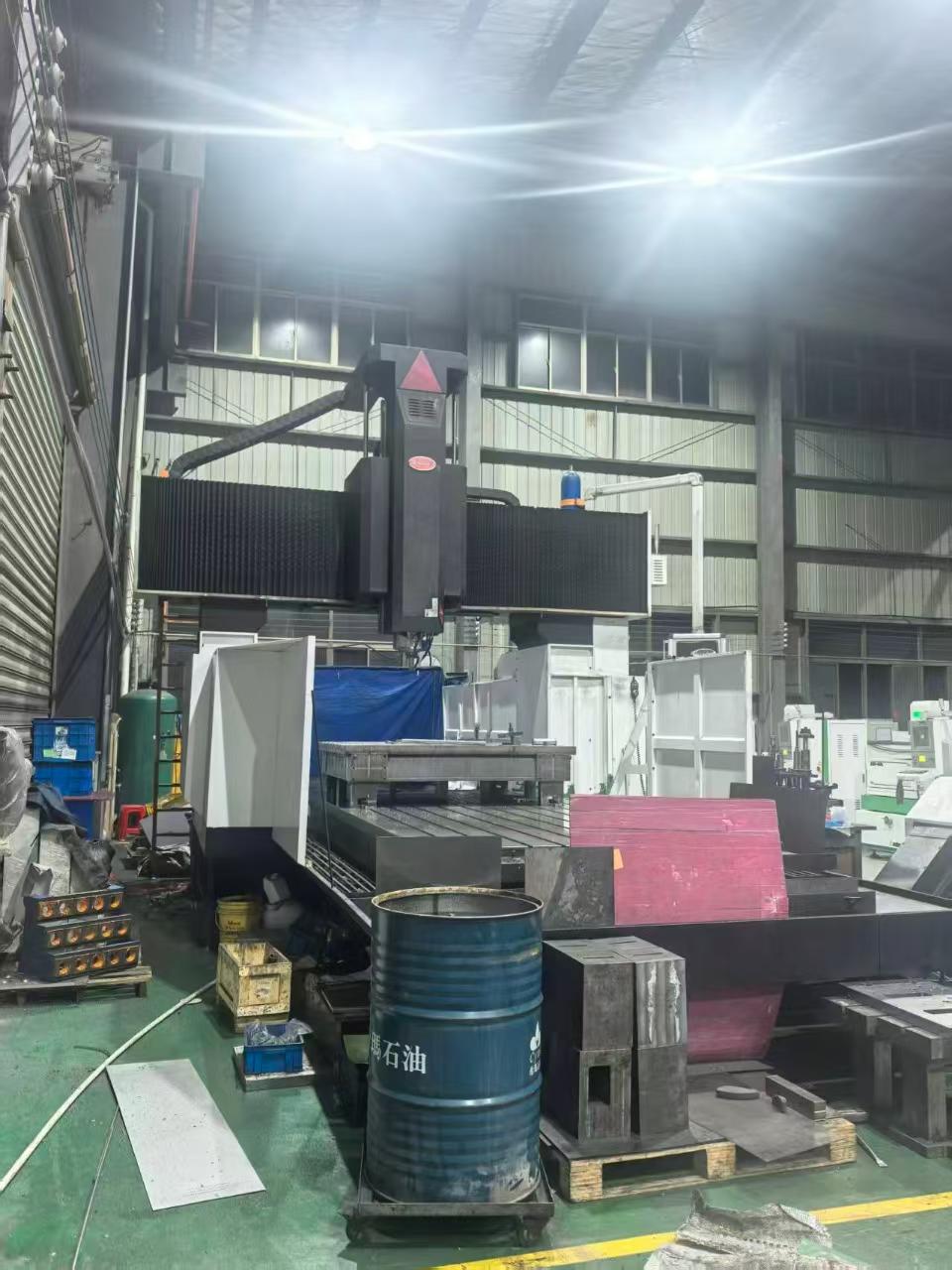

Used Qiaofeng LM-4228 CNC Gantry Milling Machine with Fanuc MF-Plus Control
Arrived, almost new Qiaofeng LM-4228 CNC gantry milling machine, three-axis heavy-duty roller linear guideways.
- Machine Code
- PM260720
- Year
- 2000
- Location
- China
- Usage Hours
- On request
Accessories
Hydraulic unit, dual screw chip conveyor, chain chip conveyor
Main Specifications
| Spindle speed | 6000 rpm |
|---|---|
| X/Y/Z travel | 4300/3200/1000 mm |
| Worktable size | 4000 x 2000 mm |
| Door width | 2880 mm |
| Door height | 1750 mm |
| Spindle nose to table | 1650 mm |
| Spindle taper | BT50 |
| Machine Type | CNC Gantry Milling Machine |
| Brand | Qiaofeng |
| Model | LM-4228 |
| Condition | Almost new |
| Guideway Configuration | Three-axis heavy-duty roller linear guideways |
| X-axis Guideway | 55 mm width roller linear guideway |
| Z-axis Guideway | 65 mm width roller linear guideway |
| Spindle Type | Gear head spindle |

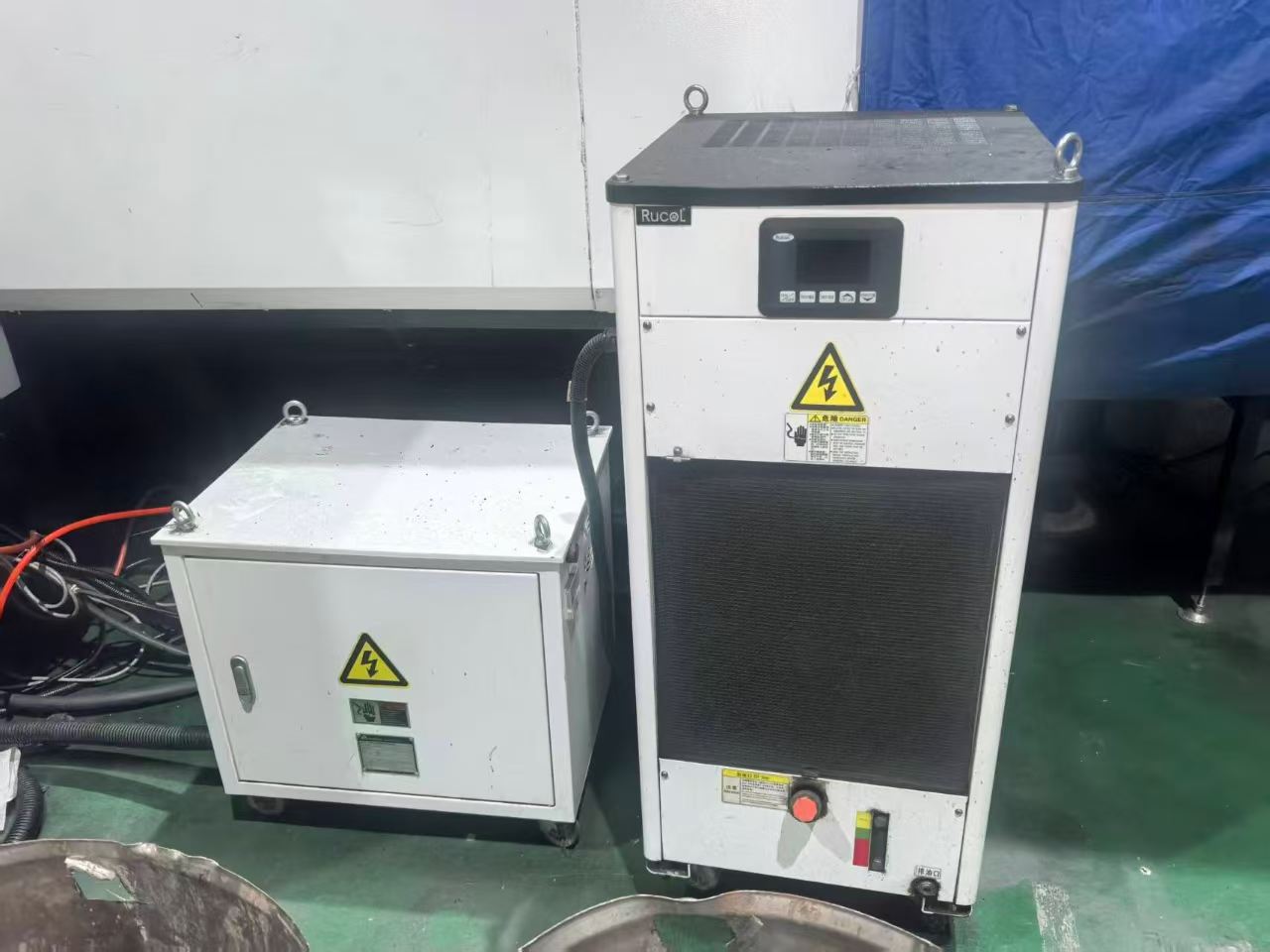

| Spindle Cooling | Oil cooler |
| Controller | Fanuc MF-Plus |
| Drive System | Separate drives |
| Motor Type | Fanuc Alpha motors |
| Hydraulic Unit | Included |
| Z-axis Travel | 1000 mm |
| Y-axis Travel | 3200 mm |
| X-axis Travel | 4300 mm |
