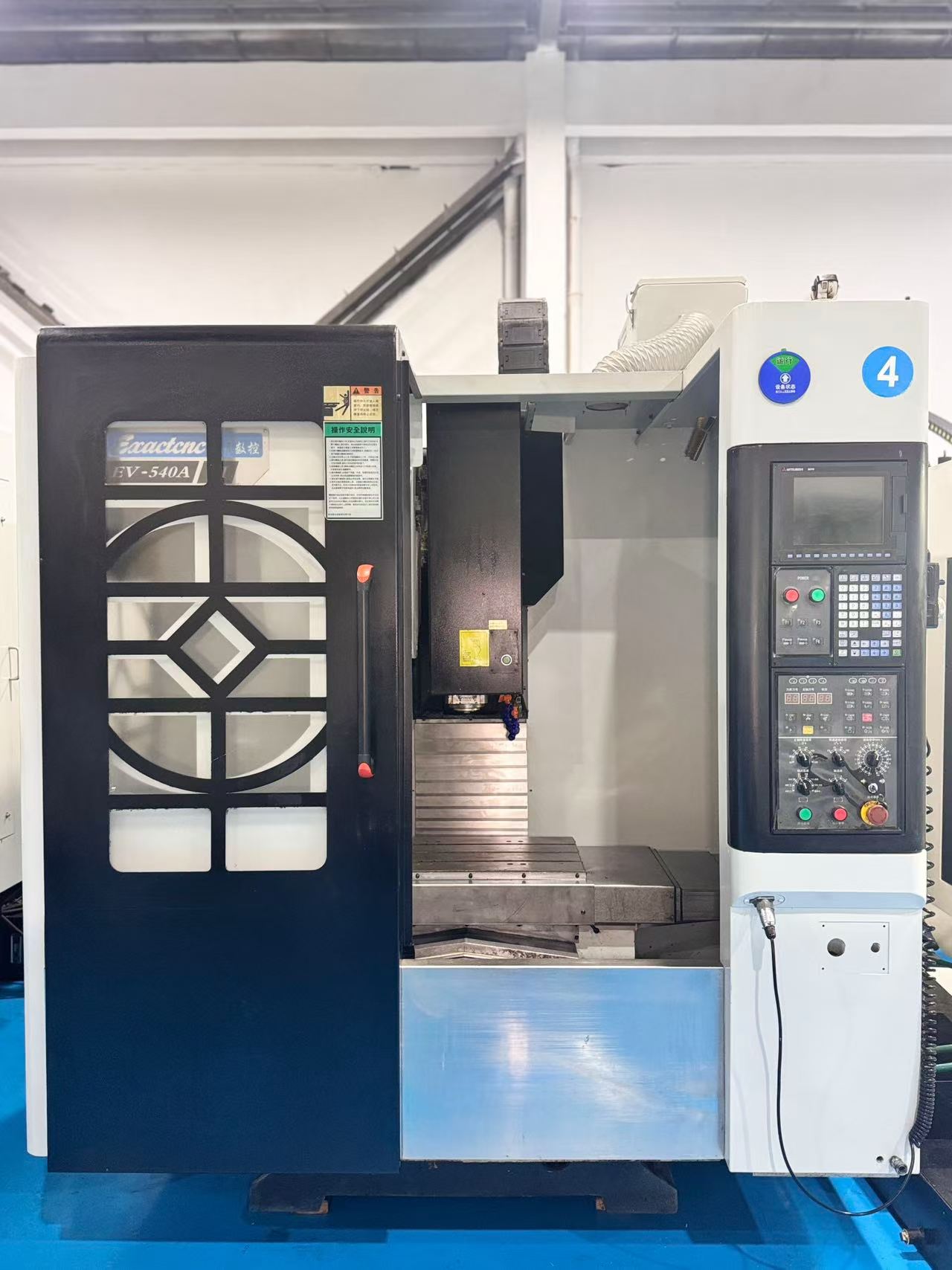

Used Qizhun EV 540 A CNC Drilling and Tapping Center

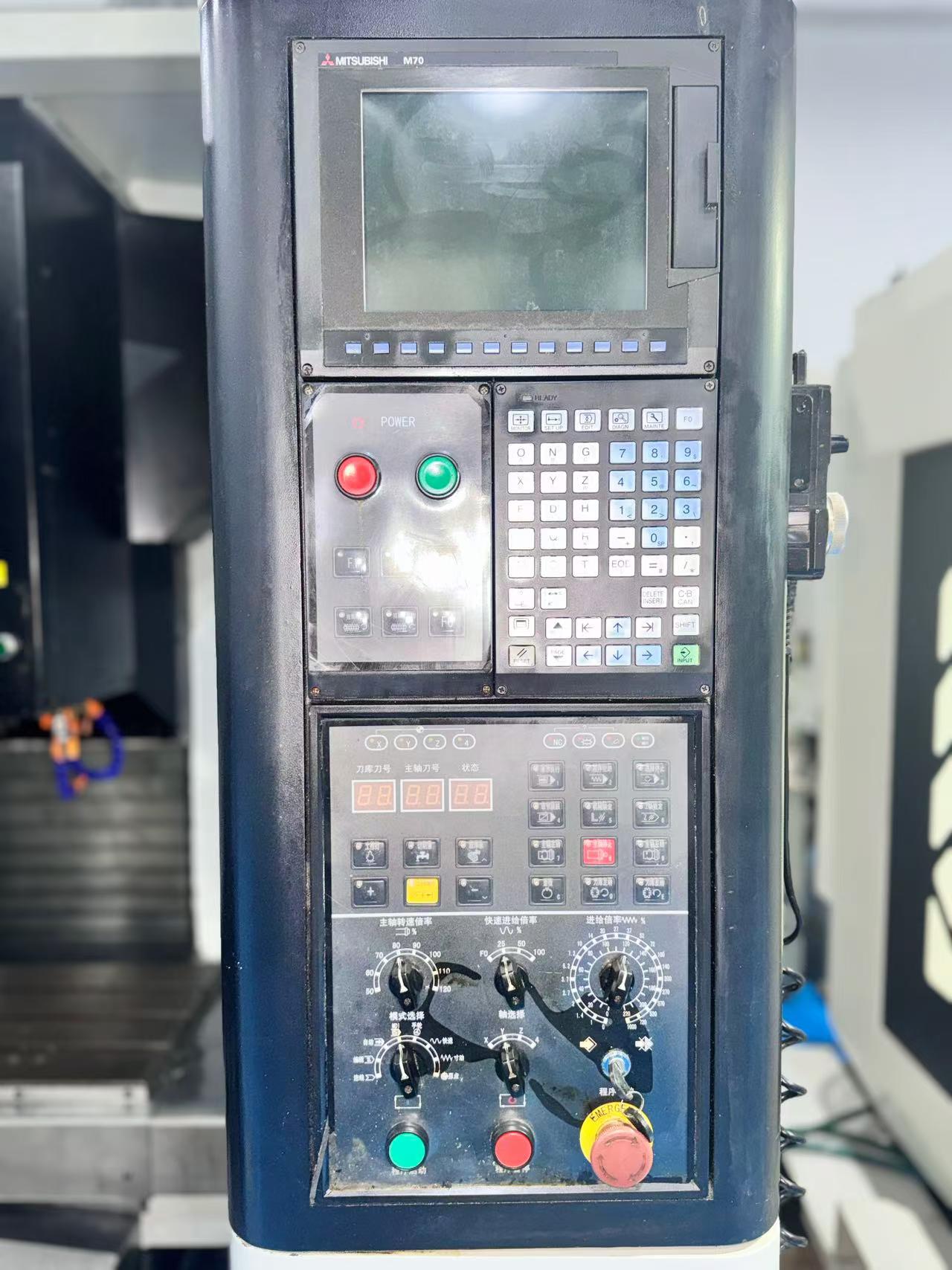

Qizhun EV 540 A drilling and tapping center, manufactured in 2015, equipped with Mitsubishi M 70 control system. Three-axis travel: 550/400/480 mm. Spindle speed up to 12000 rpm with oil cooler. 20-position arm-type tool magazine. Three-axis linear guideways (X/Y/Z: 25/25/35 mm). Worktable size: 600 mm x 400 mm. Repeatability: 0.01 mm. Spindle runout: 0.01 mm. Spindle front and side generatrix runout: 0.015 mm.

Machine Code: VMC2608128
Year: 2015
Location: China
Usage Hours: On request

Accessories

Spindle oil cooler

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Control system	Mitsubishi M 70
X/Y/Z travel	550/400/480 mm
Spindle speed	12000 rpm

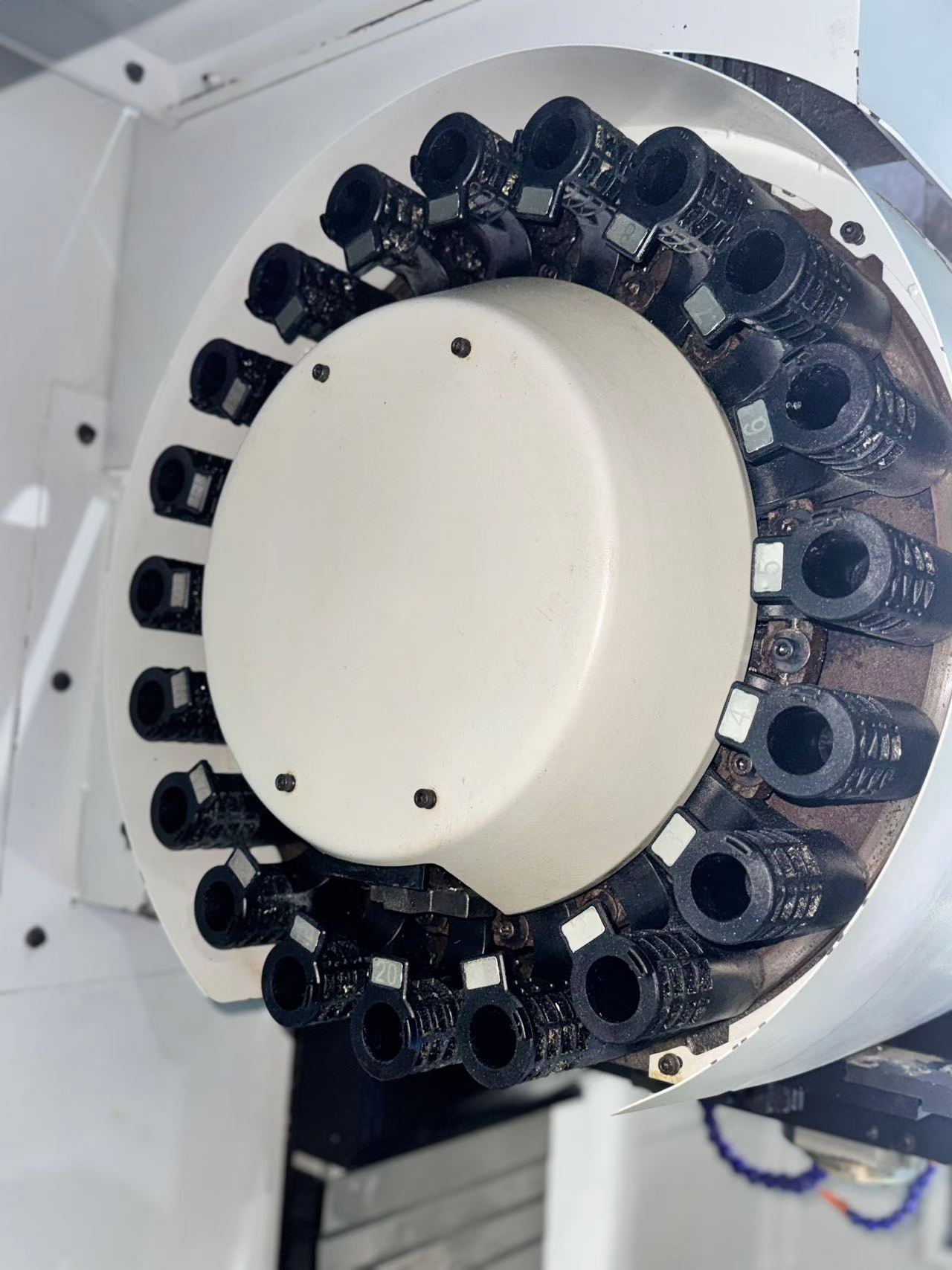

Tool magazine capacity	20 positions
Guideway type	Linear guideway (X/Y/Z)
Guideway thickness X/Y/Z	25/25/35 mm
Repeatability	0.01 mm

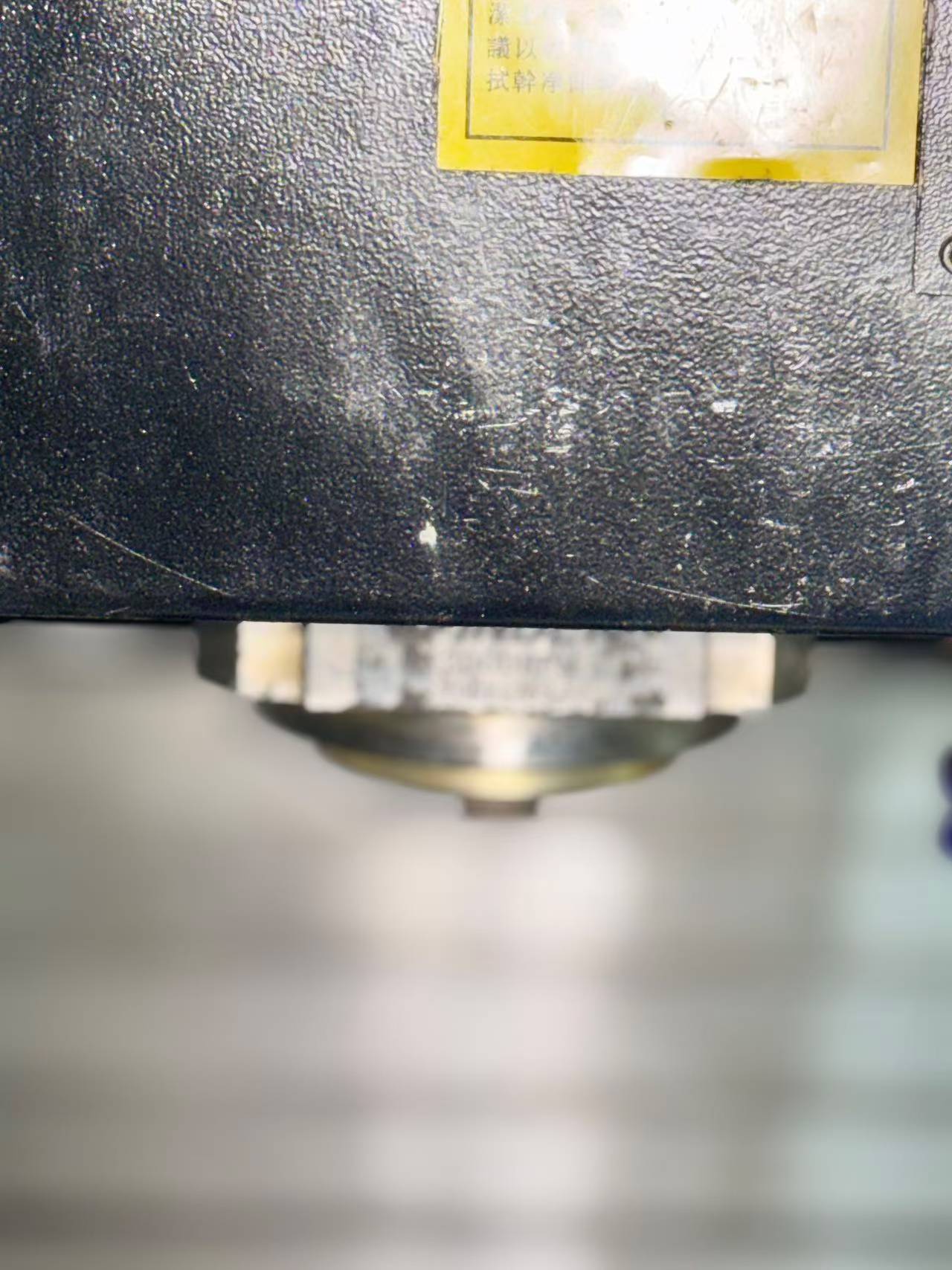

Spindle runout	0.01 mm
Spindle front generatrix	0.015 mm
Spindle side generatrix	0.015 mm

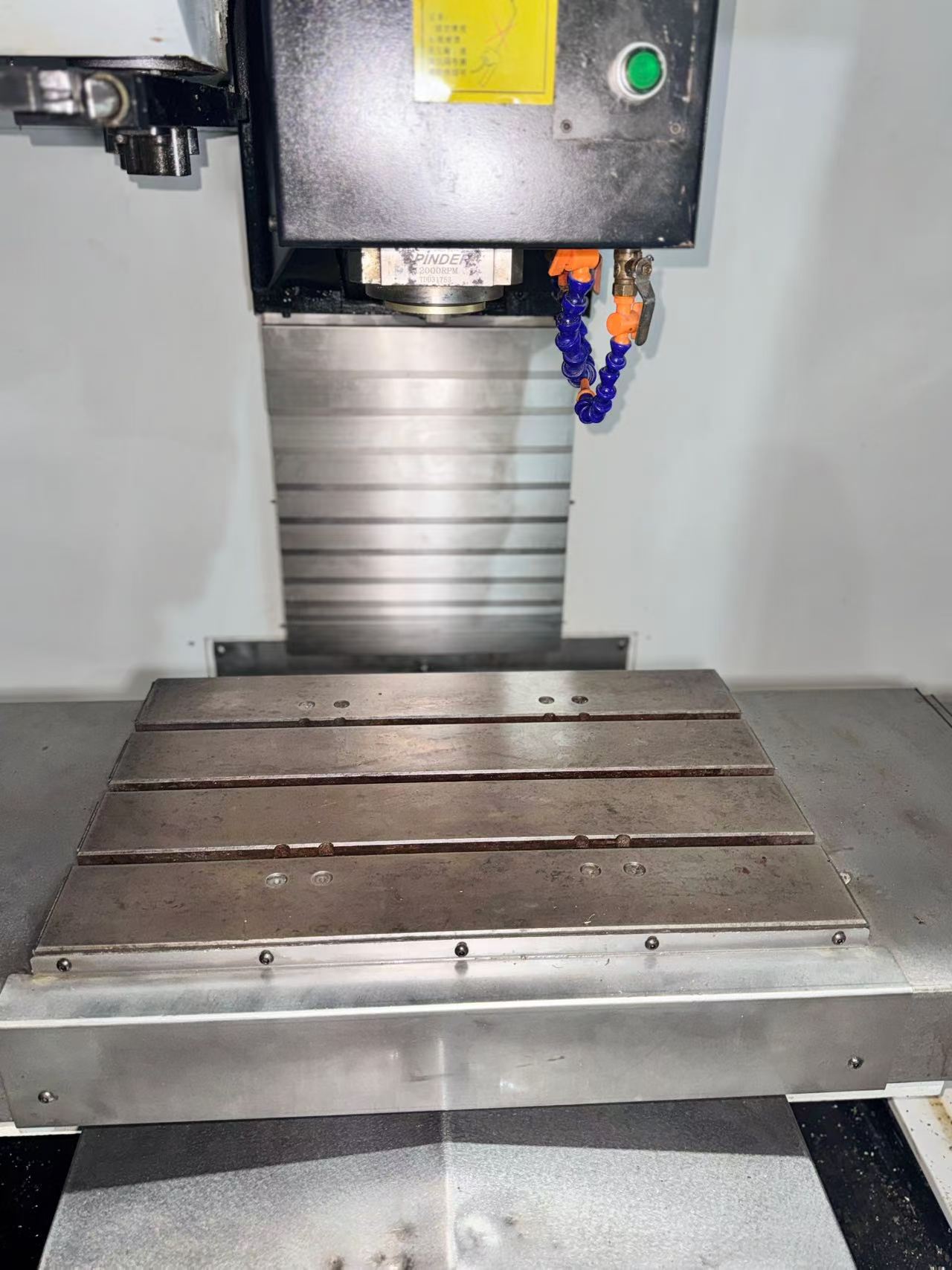

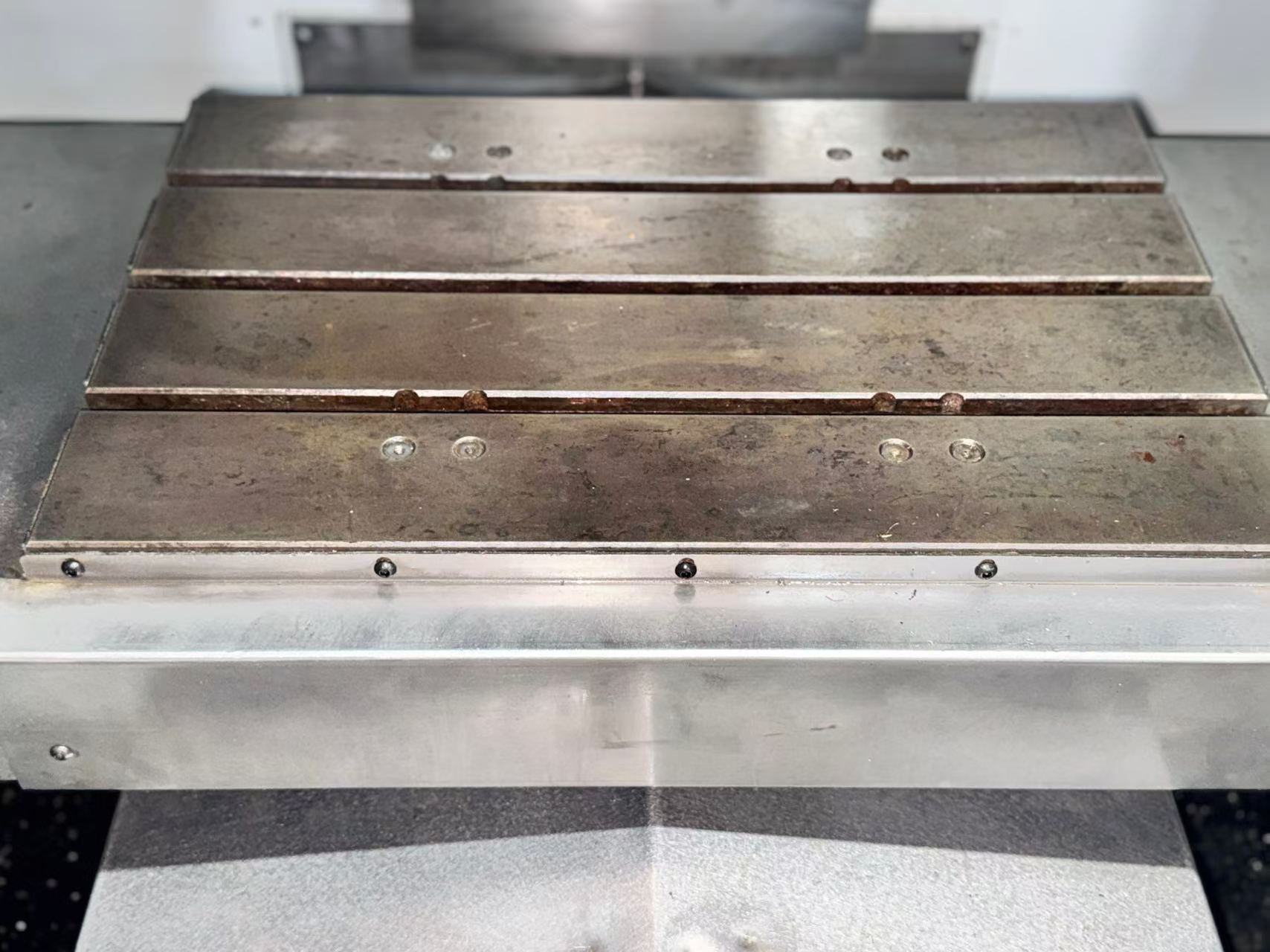

Worktable size	600 mm x 400 mm
Production year	2015
