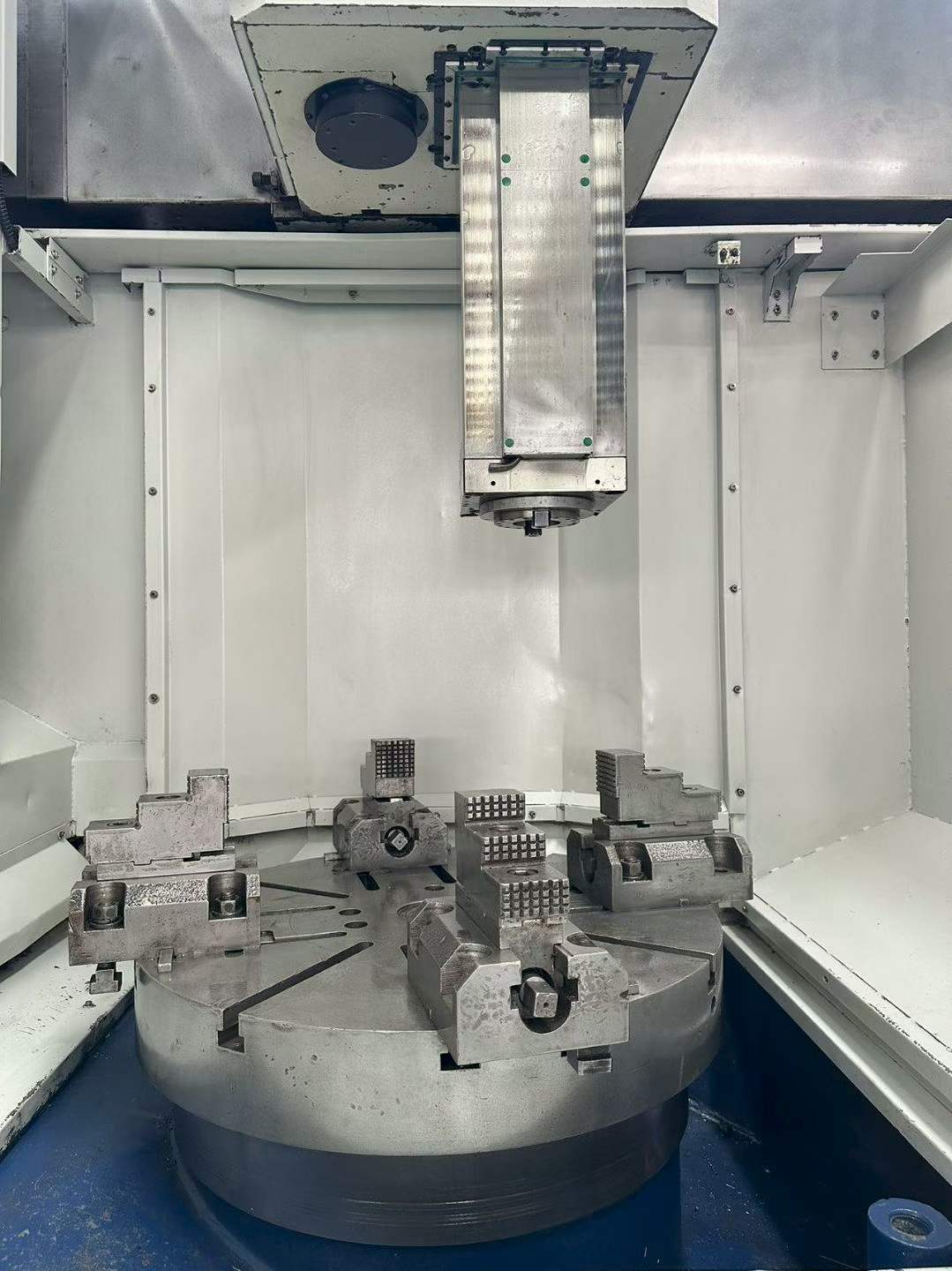

Used Rong Tian VL-86 CM High-Speed CNC Turn-Mill Center

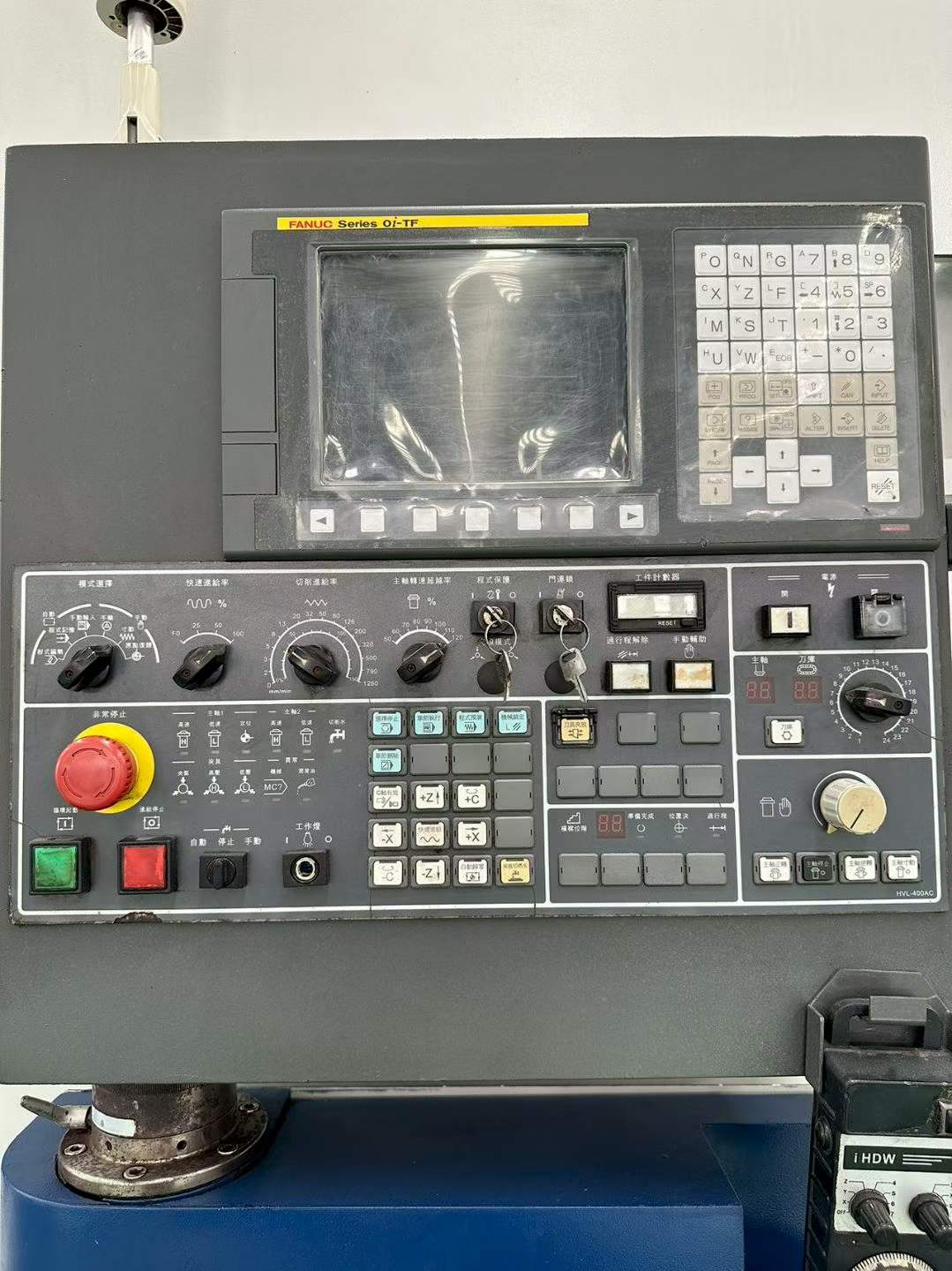

Used Rong Tian VL-86 CM high-speed CNC turn-mill center with FANUC TF control system and Alpha motor drive. Equipped with a 12-station tool magazine and automatic chip conveyor. Manufactured in 2017.
- Machine Code
- TML260822
- Year
- 2017
- Location
- China
- Usage Hours
- On request
Accessories
Automatic chip conveyor
Contact access
Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.
Loading…
Main Specifications

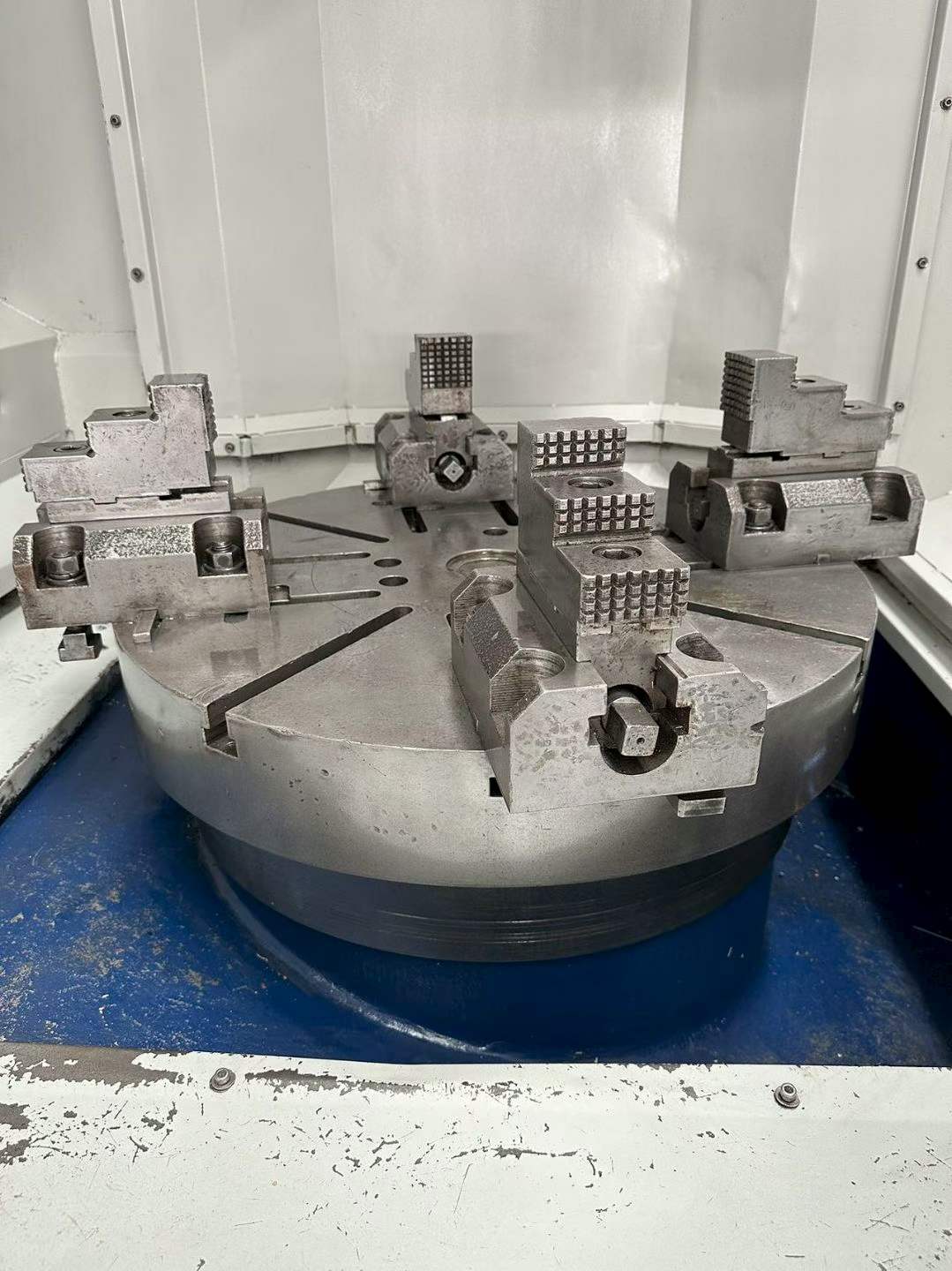

| Worktable diameter | 800 mm |
|---|---|
| Maximum swing diameter | 1100 mm |
| Maximum cutting diameter | 900 mm |
| Maximum cutting height | 650 mm |
| Maximum workpiece weight | 2,000 kg |
| Spindle speed | 5-600 rpm (high/low two ranges, two-step change) |
| Tool magazine capacity | 12 tools |

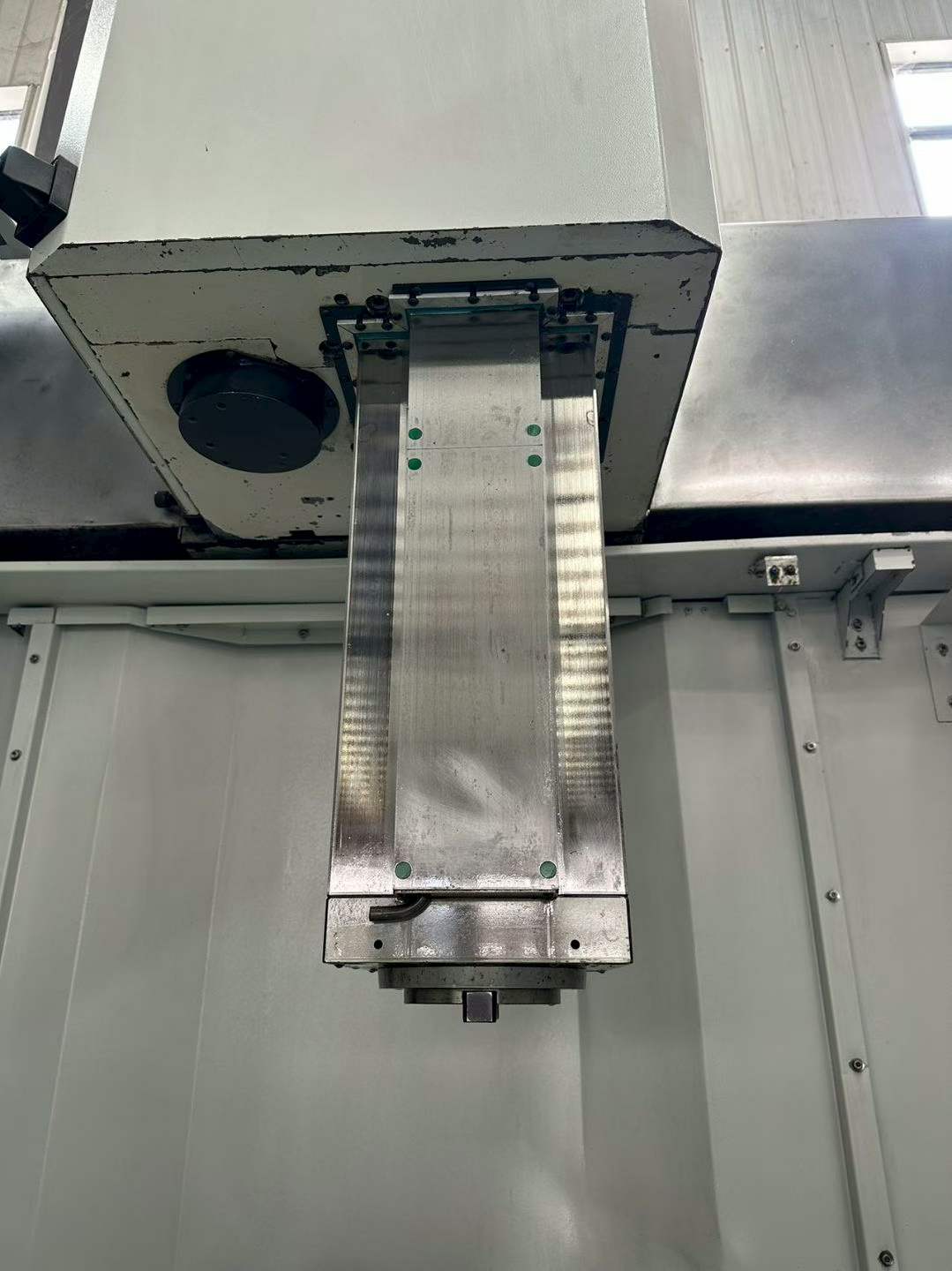

| Height from ram tool seat to worktable surface | 1175 mm |
