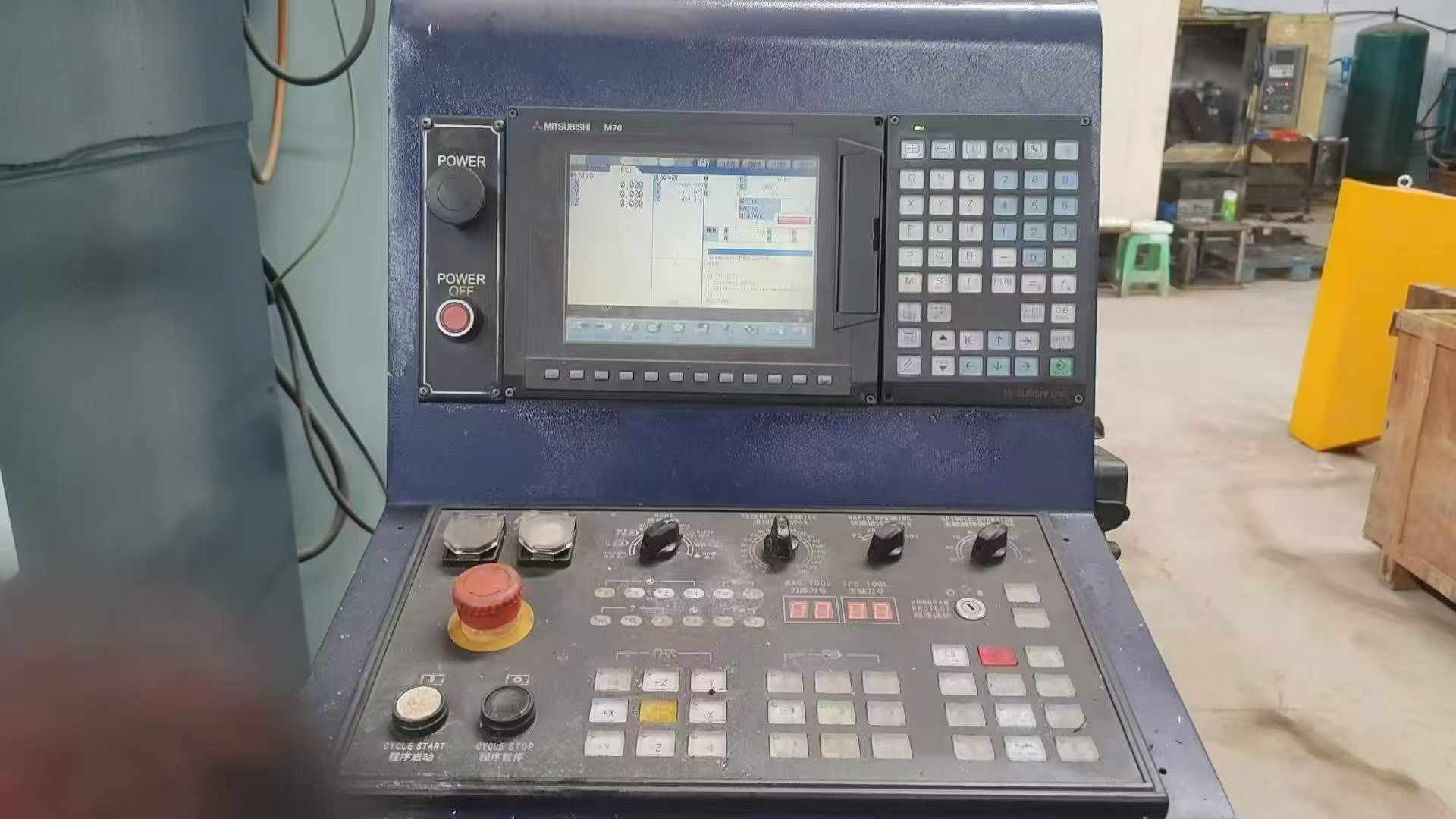

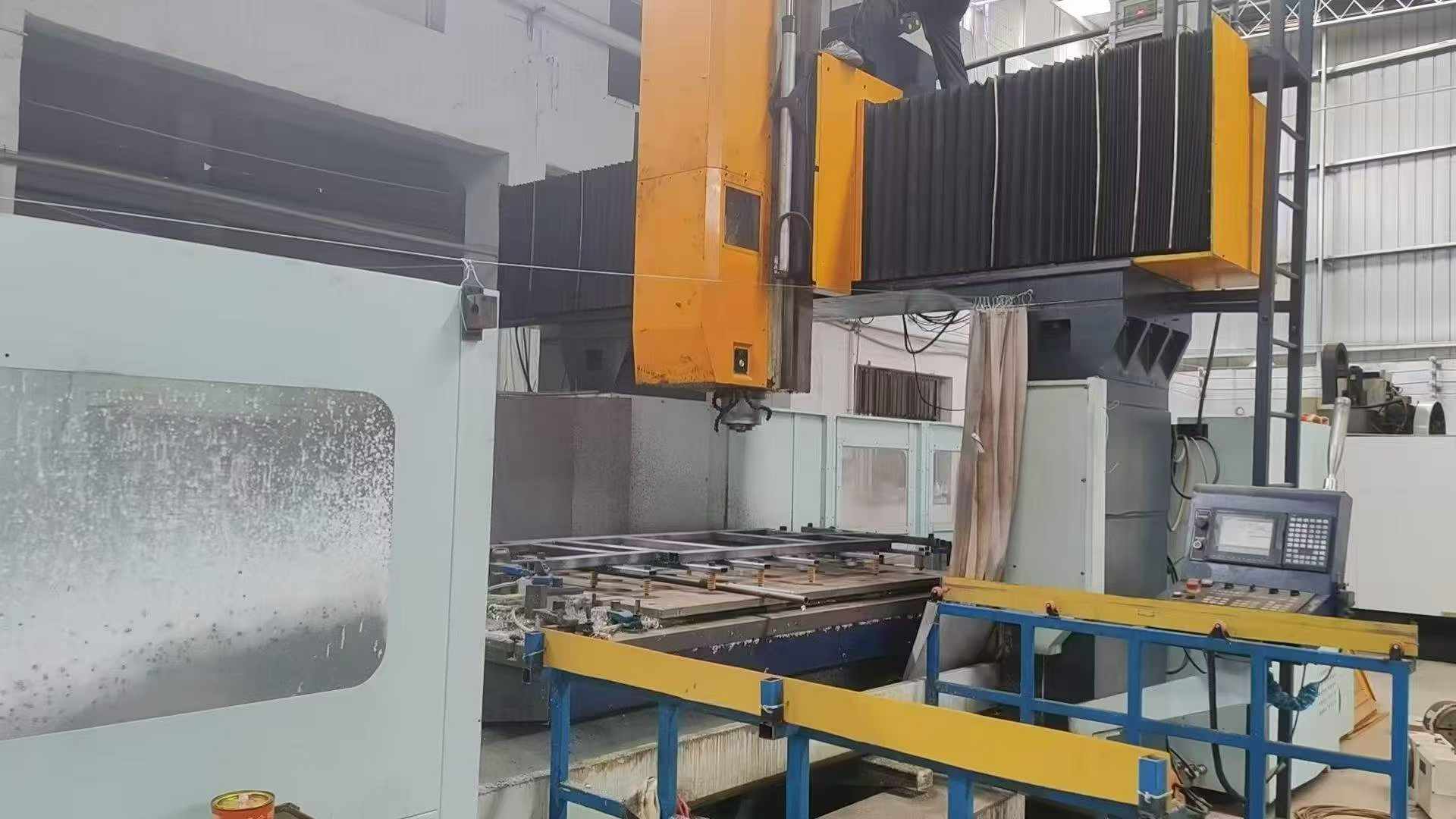

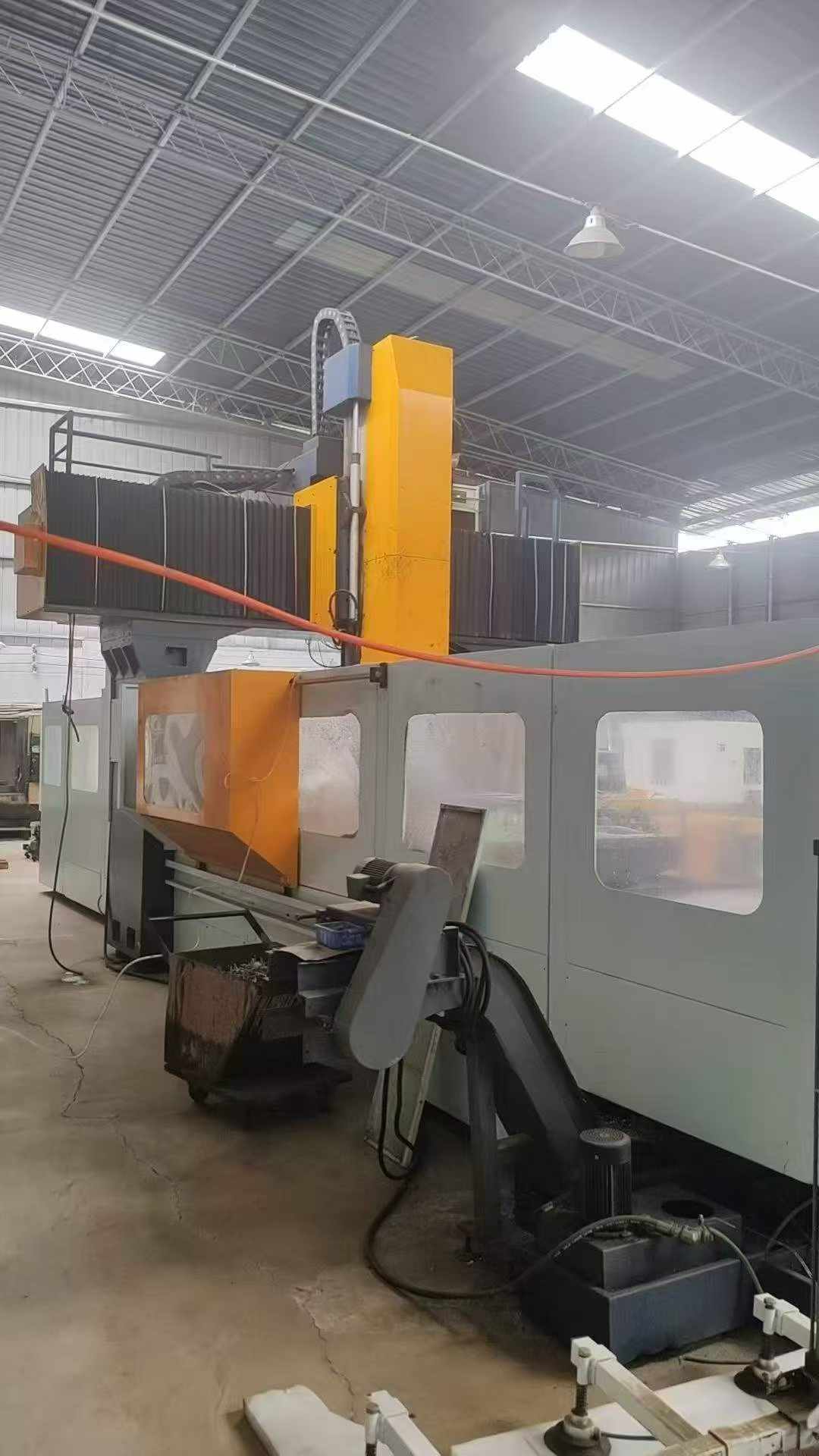

Used Runxing 4025 CNC Gantry Milling Machine with Mitsubishi M70
Just purchased Runxing 4025 CNC gantry milling machine. Mitsubishi M70 control system. Two linear guideways and one box guideway. BT50 tool holder, belt drive, 6000 rpm. Three-axis travel 4000 x 2500 x 1000 mm. Worktable size 4000 x 2100 mm. Gantry width 2500 mm, gantry height 1360 mm.
- Machine Code
- PM260721
- Year
- On request
- Location
- China
- Usage Hours
- On request
Contact access
Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.
Loading…
Main Specifications
| Spindle speed | 6000 rpm |
|---|---|
| Spindle taper | BT50 |
| X/Y/Z travel | 4000 x 2500 x 1000 mm |
| Worktable size | 4000 x 2100 mm |
| Gantry width | 2500 mm |
| Gantry height | 1360 mm |
| Guideway type | Two linear guideways and one box guideway |
| Spindle drive | Belt drive |
| Controller | Mitsubishi M70 |
| Guideway Configuration | Two linear guideways and one box guideway |
