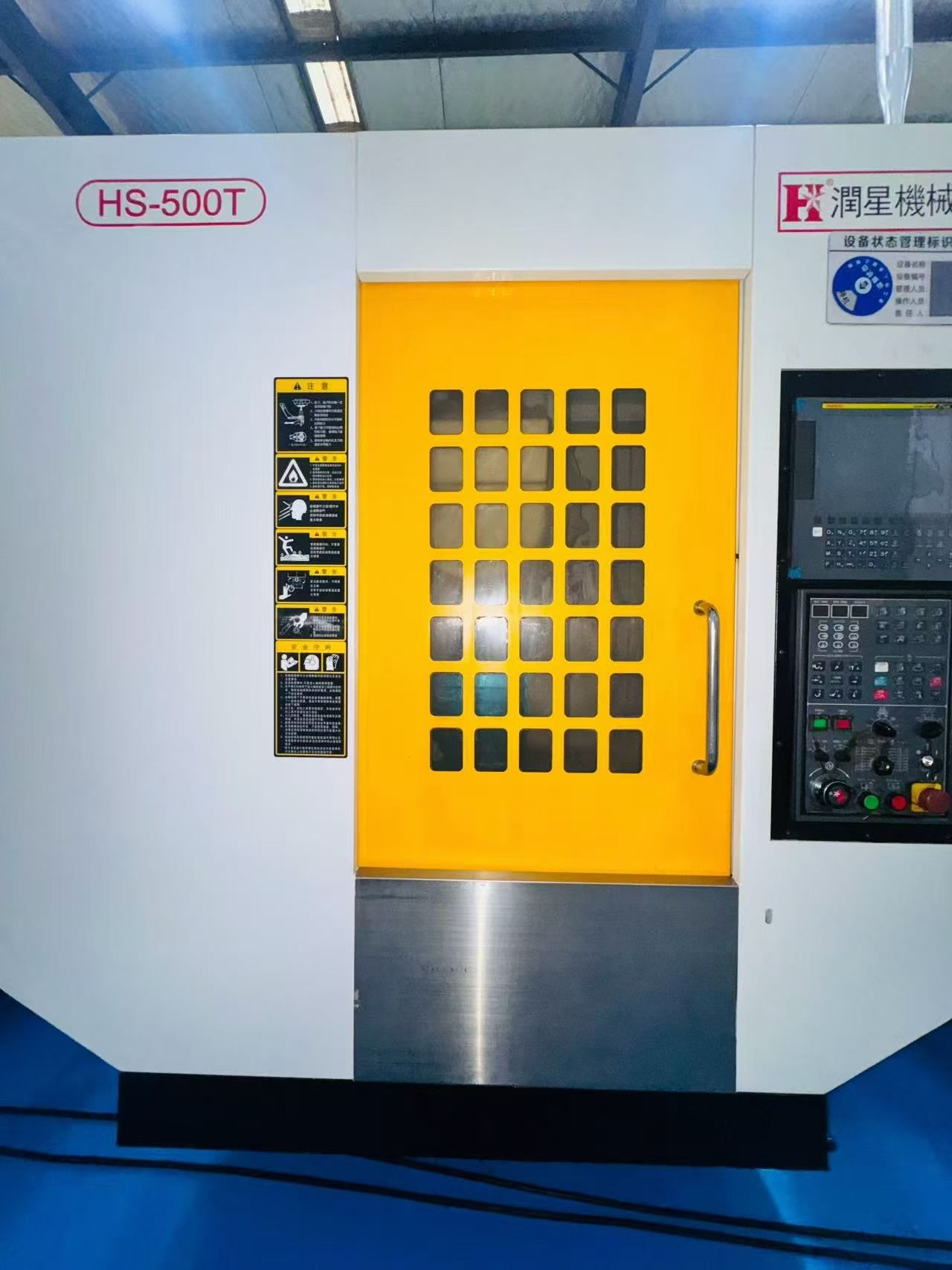

Used Runxing HS-500 T Drilling and Tapping Center with Fanuc
10 sets available. Runxing HS-500 T drilling and tapping center equipped with FANUC 0i-MF Plus control, BT30 direct drive spindle at 20000 rpm, 16-tool servo tool magazine, linear guideways, and high precision. Machine is from 2022 and in good condition. Suitable for high-speed drilling, tapping, and light milling.
- Machine Code
- DR260714
- Year
- 2022
- Location
- China
- Usage Hours
- On request
Main Specifications
| Spindle speed | 20000 rpm |
|---|---|
| Spindle taper | BT30 |
| Spindle motor power | 5.5 kW |
| X/Y/Z travel | 500 x 400 x 300 mm |
| Rapid traverse | 48 m/min |

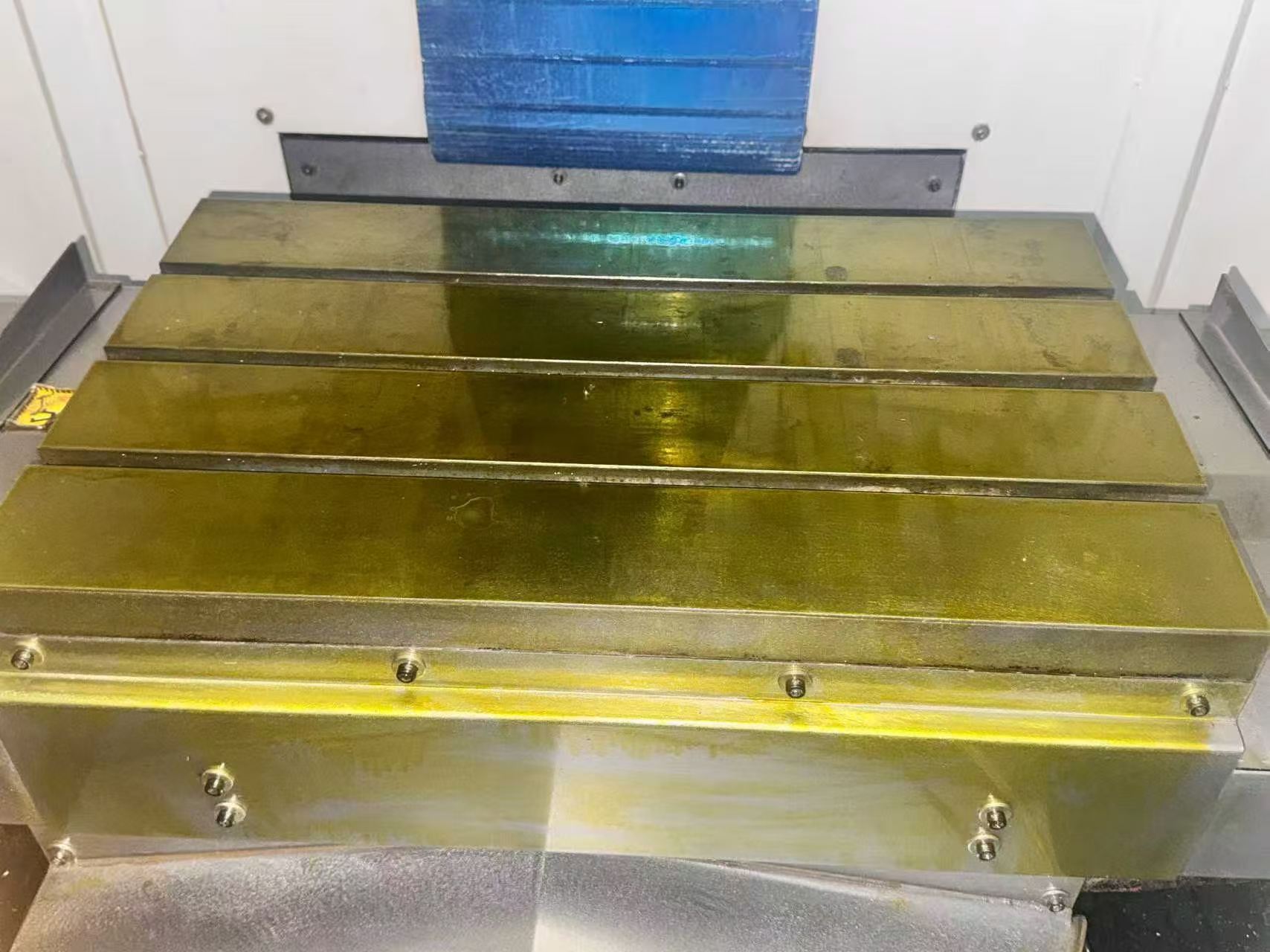

| Worktable size | 650 x 400 mm |

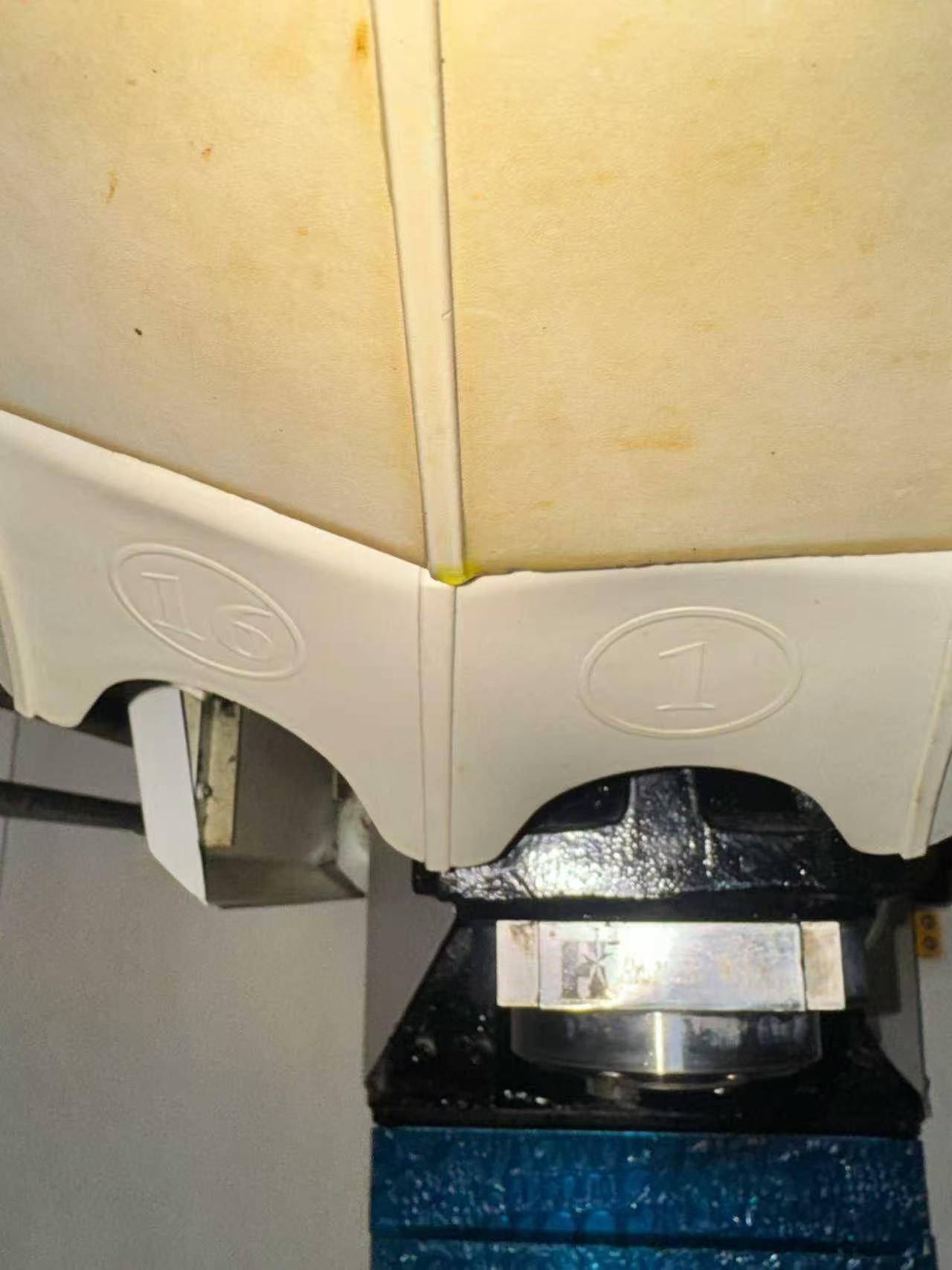

| Tool magazine capacity | 16 tools |
| Guideway type | Linear guideways (3 axes) |
| Spindle runout | 0.01 mm |
| Parallelism (Z to X/Y) | 0.01 mm |
| Repeatability | 0.005 mm |
| Machine Type | Drilling and Tapping Center |
| Controller | Fanuc 0i-MF Plus |
| Guideway Configuration | Linear guideways (3 axes) |
| Squareness (x To Y) | 0.01 mm |
| Year Of Manufacture | 2022 |
| Brand | Runxing |
| Model | HS-500 T |
