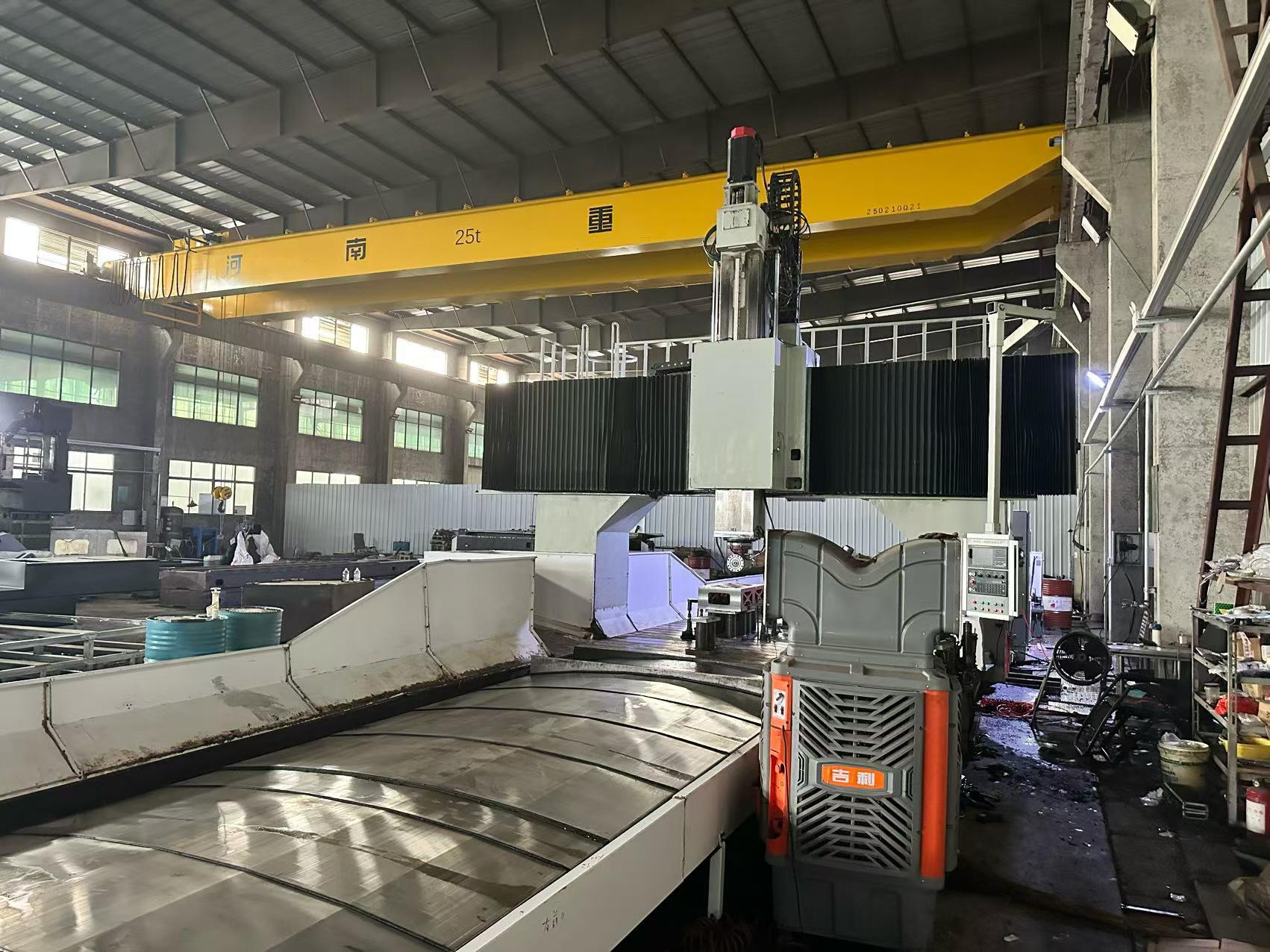

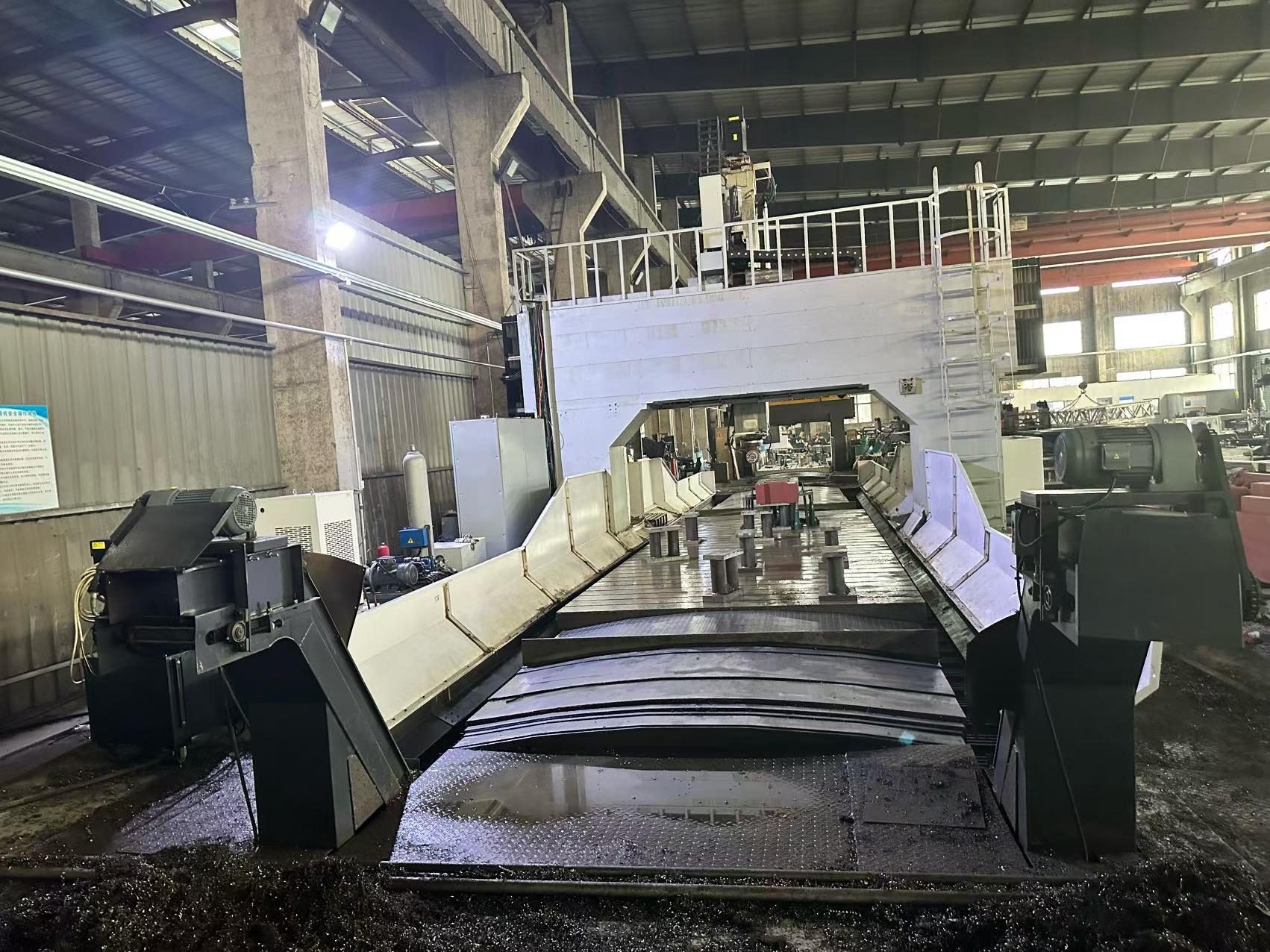

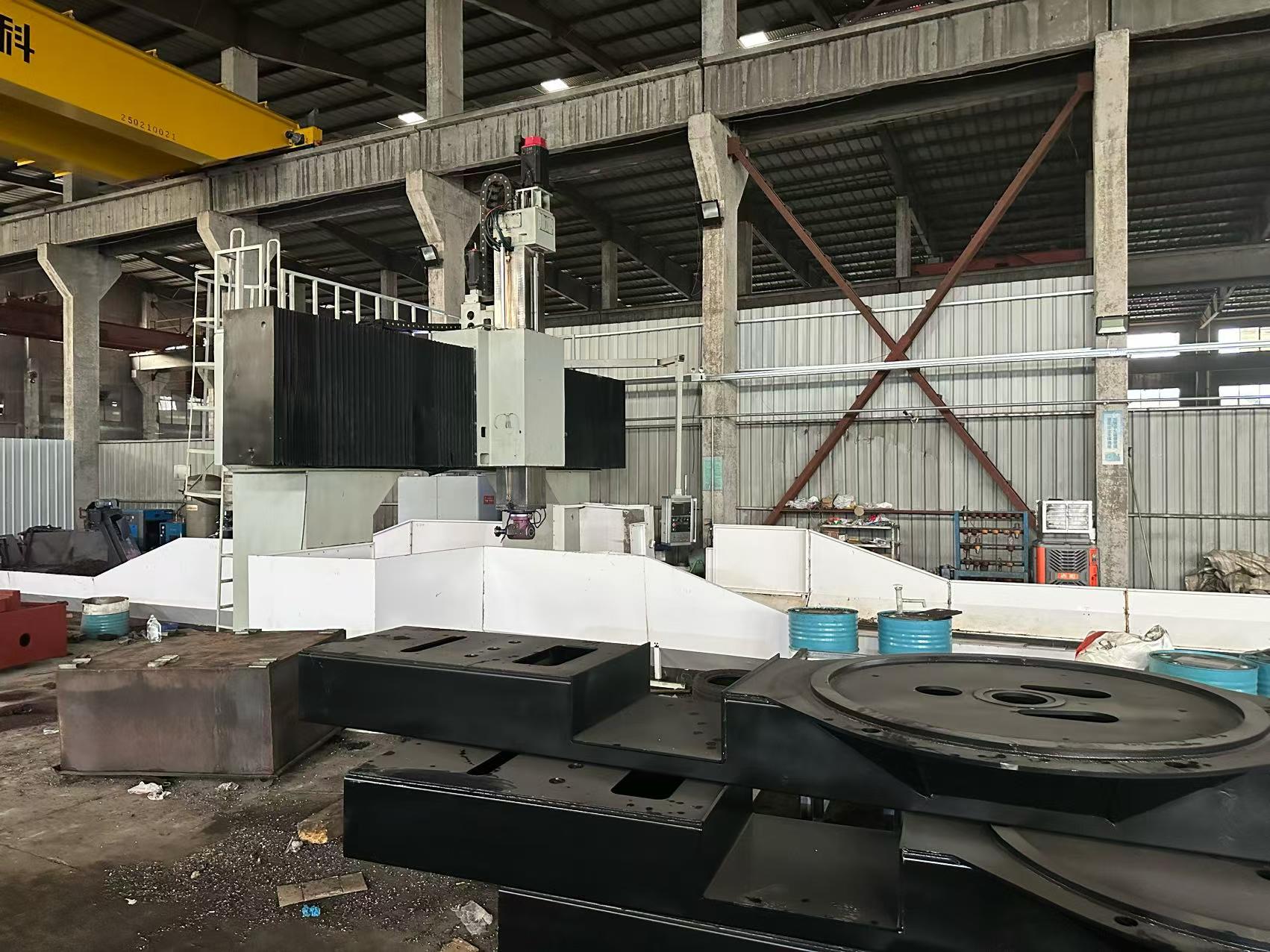

Used Sanli Precision CNC Gantry Milling Machine 4200 x 8500 x 1500
Used Sanli Precision CNC Gantry Milling Machine available from Changzhou factory. Machine is under power and can be inspected on site or verified by video. Specifications include X/Y/Z travel 4200 x 8500 x 1500 mm, worktable 8000 x 3000 mm, Fanuc MF-Puls control, BT50/6000 rpm spindle, and various accessories.
- Machine Code
- MIL260703
- Year
- 2022
- Location
- Changzhou, China
- Usage Hours
- On request
Accessories

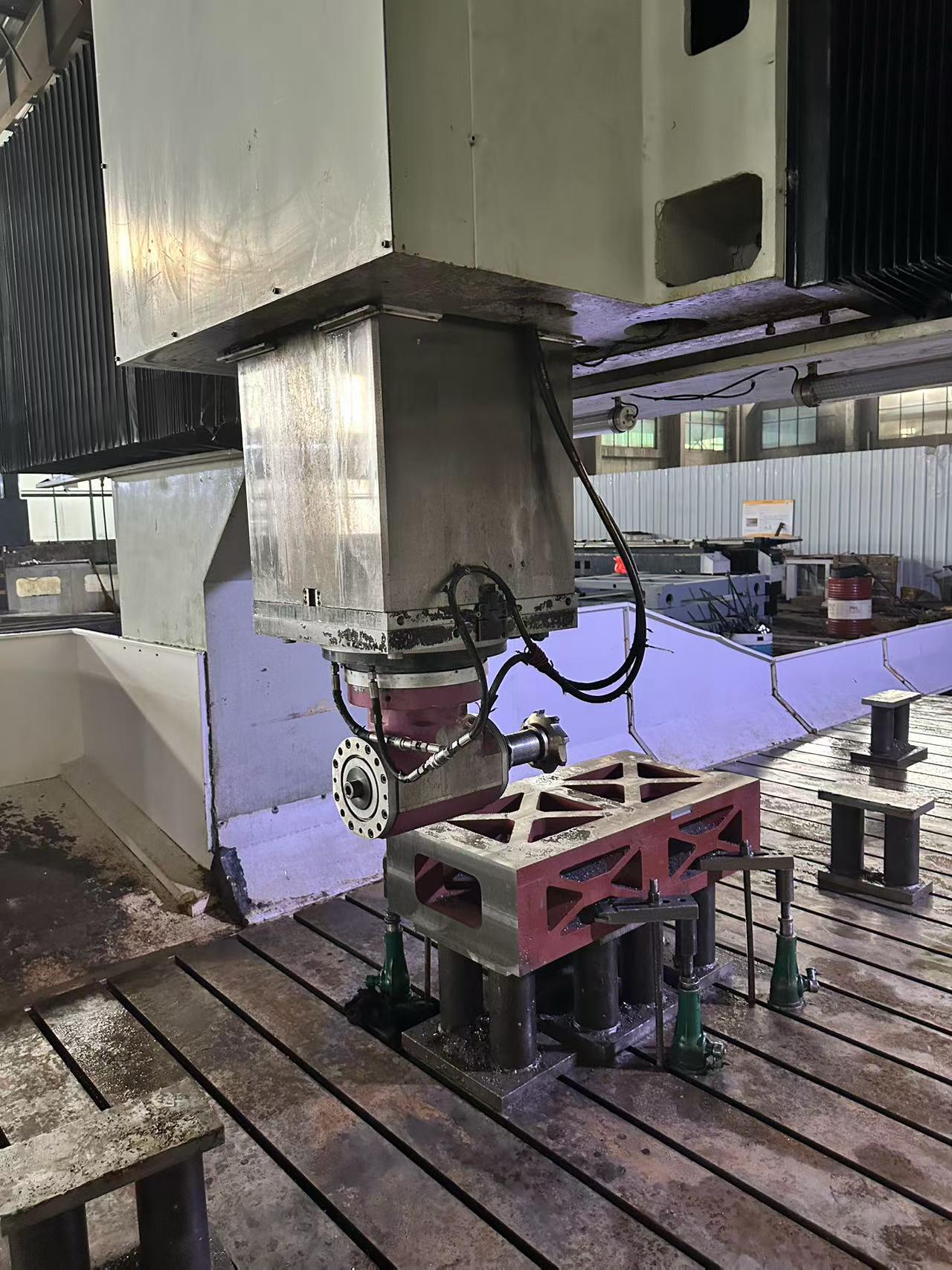

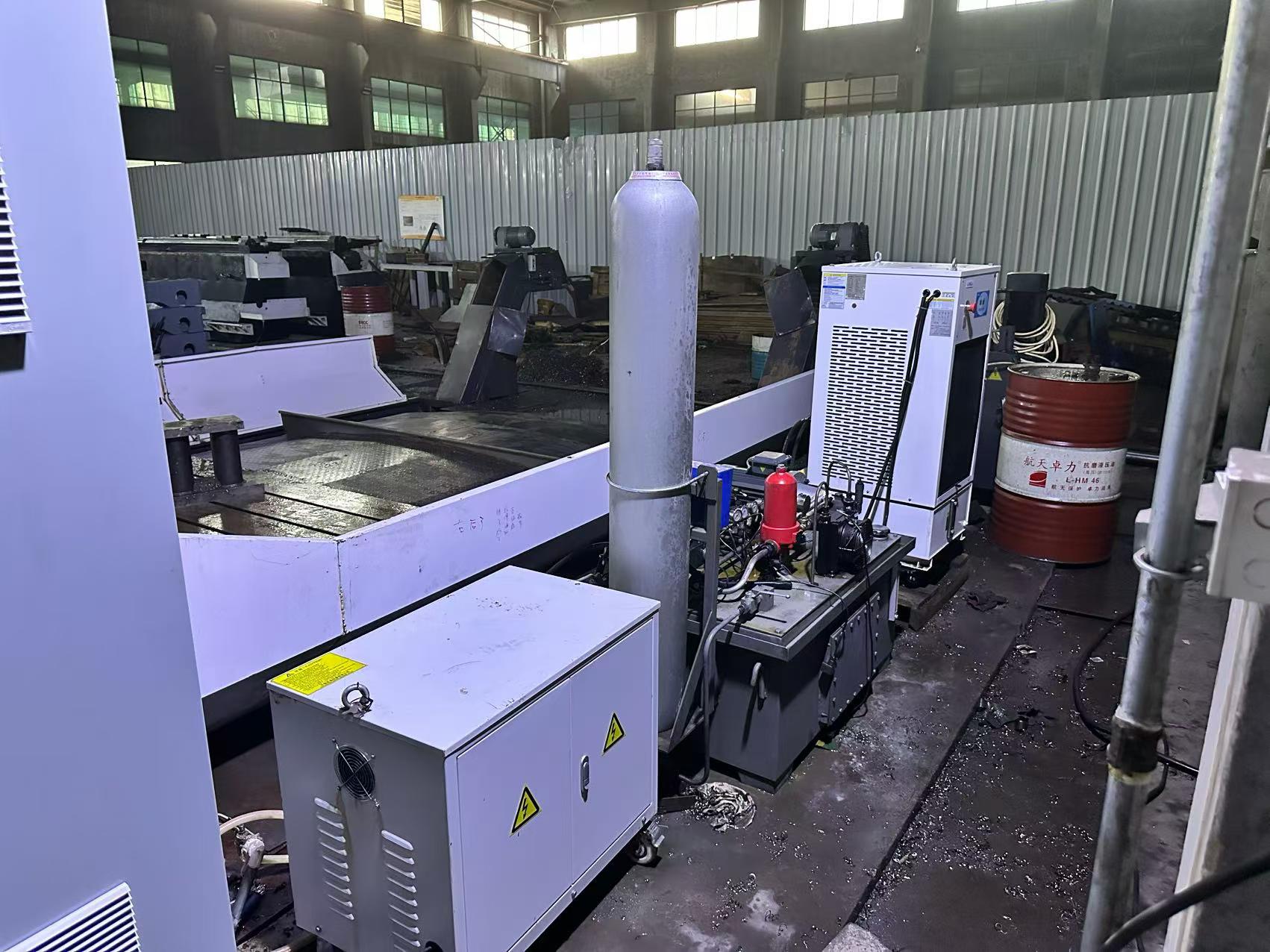

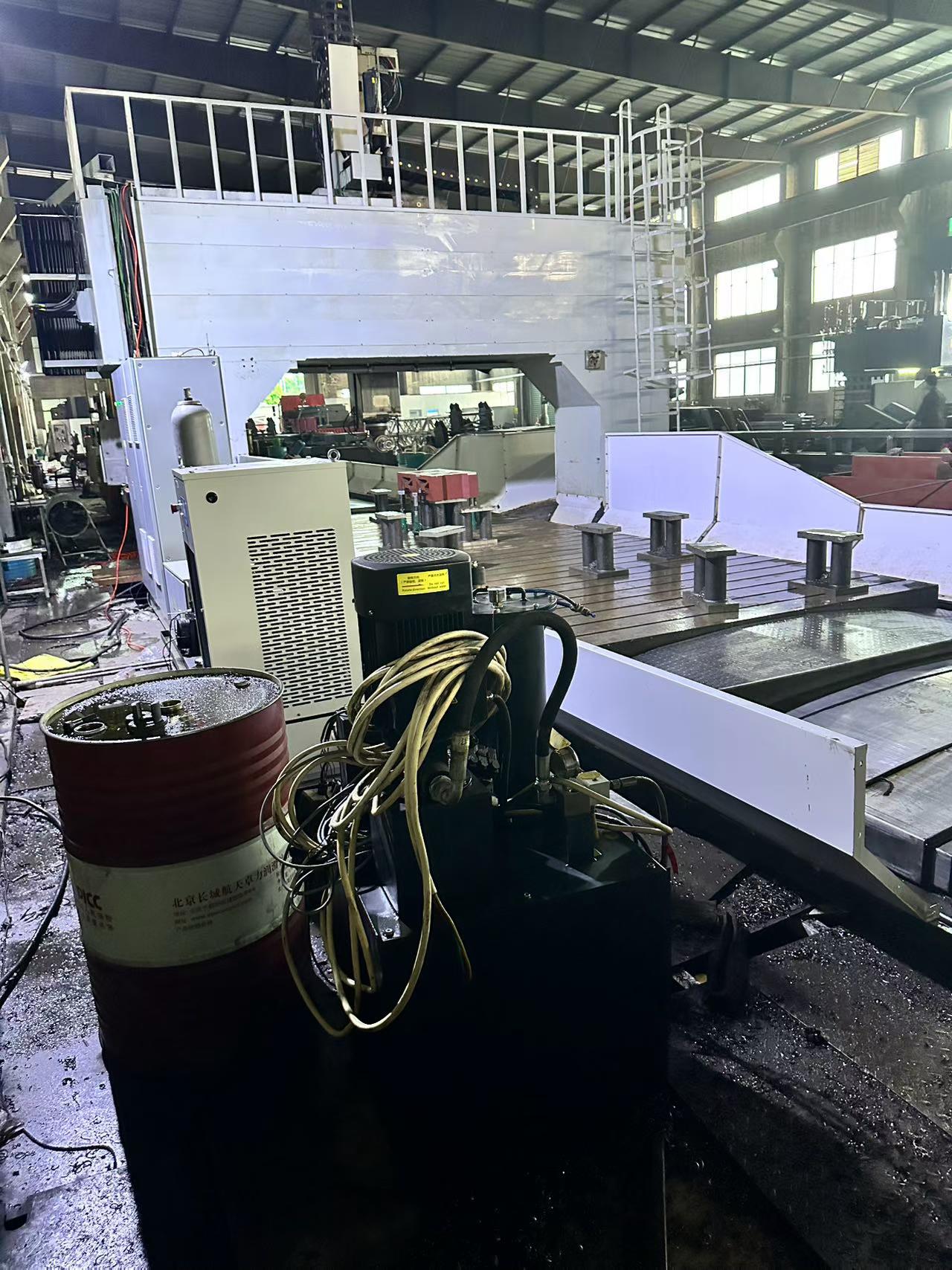

Oil cooler, Hydraulic unit, All-angle milling head, Through-spindle coolant (50 kg), Dual screw and chain chip conveyor
Main Specifications
| X/Y/Z travel | 4200 x 8500 x 1500 mm |
|---|---|
| Worktable size | 8000 x 3000 mm |
| Door width | 4200 mm |
| Door height | 1900 mm |
| Spindle nose to table | 1700 mm |
| Spindle taper | BT50 |
| Spindle speed | 6000 rpm |
| Ram size | 500 x 500 mm |

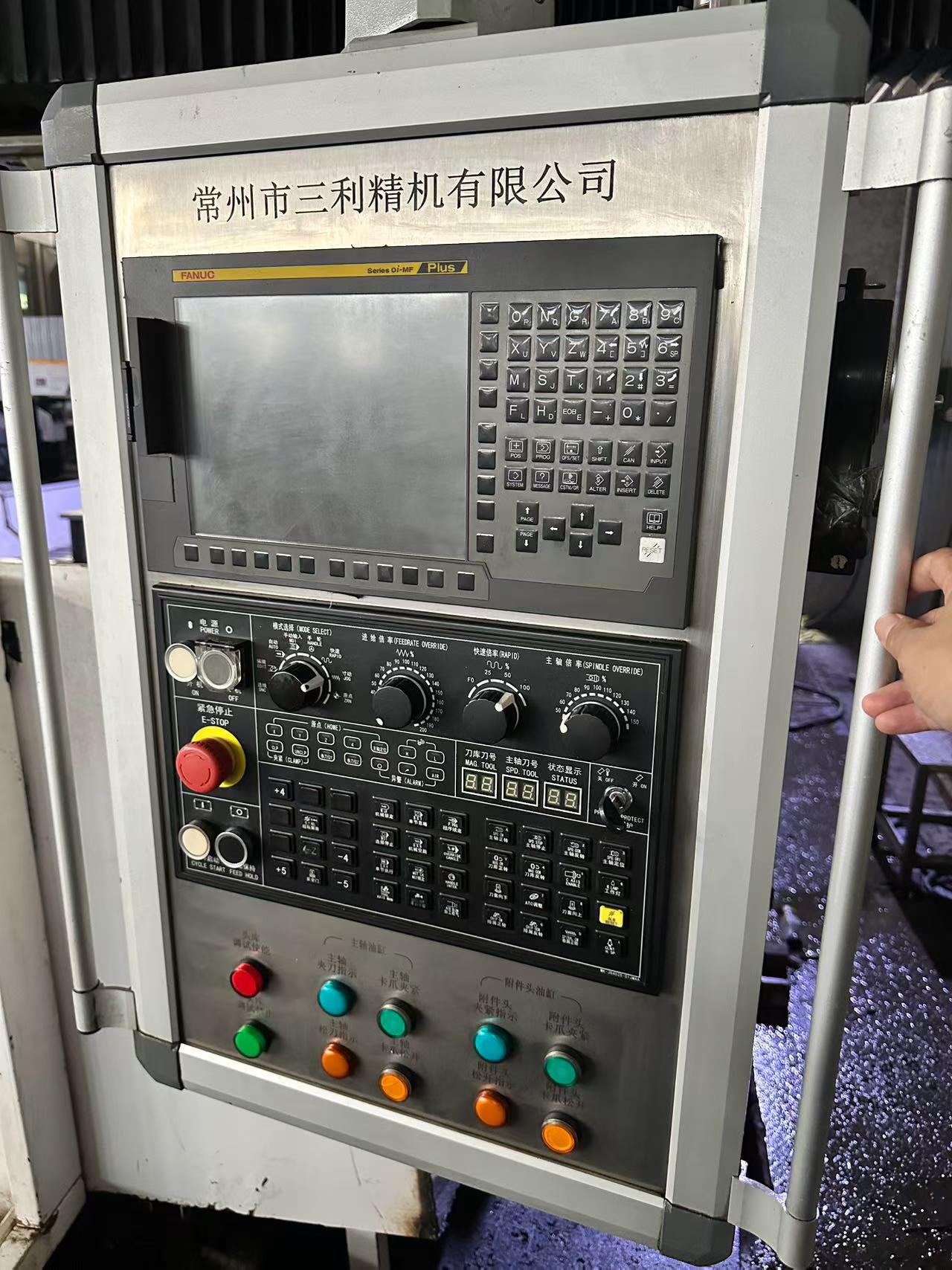

| Control system | Fanuc MF-Puls |
| Chip conveyor | Dual screw and chain |
| Manufacturing date | May 2022 |
| Guideway Configuration | X/Y linear guideways + Z box guideway |
| Oil Cooler | Included |
| Hydraulic Unit | Included |
| X-axis Guideway | Three linear guideways |
| Through-spindle Coolant | 50 kg/cm² |
| Gantry Width | 4200 mm |
| Gantry Height | 1900 mm |
