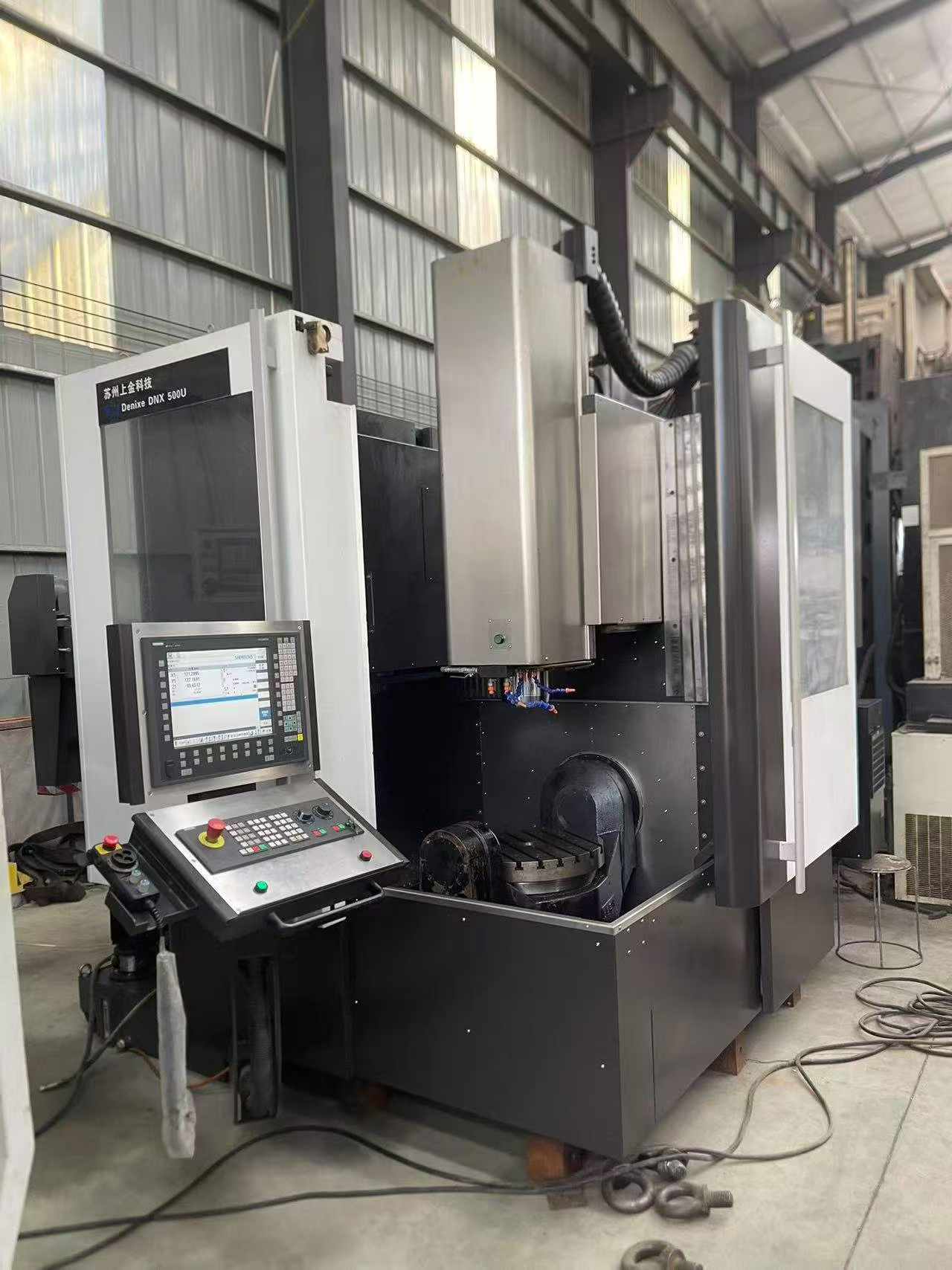

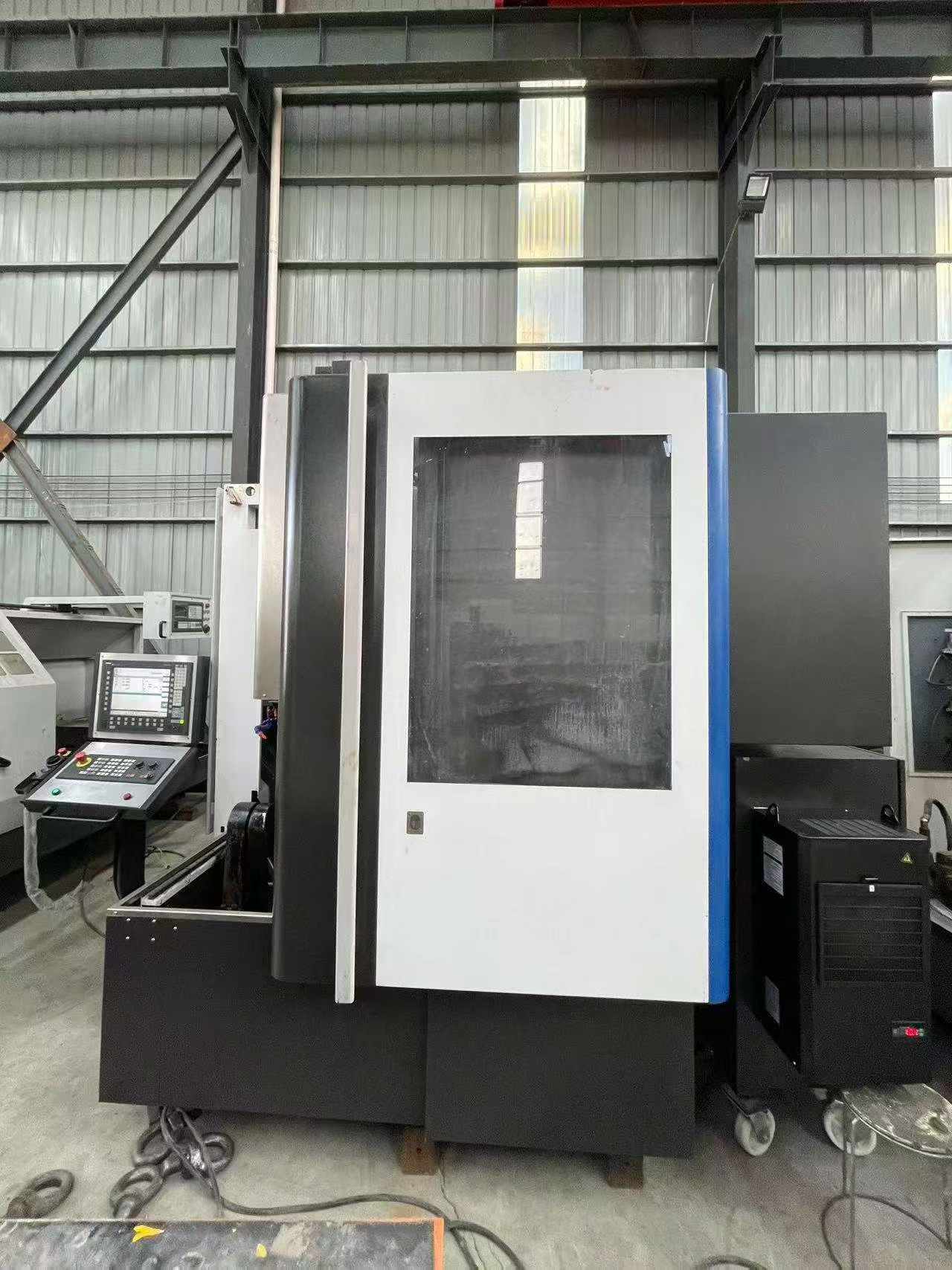

Used Shangjin DNX 500 U 5-Axis Machining Center with Siemens 840D sl
Suzhou Shangjin DNX 500 U 5-Axis Machining Center. Equipped with Siemens 840D sl control system. High preload roller linear guideways on X/Y/Z with full closed-loop control. Ideal for aerospace, automotive, precision molds, medical and other industries. B axis tilt range ±110°, C axis 360° continuous rotation.
- Machine Code
- MC2606108
- Year
- On request
- Location
- China
- Usage Hours
- On request
Accessories

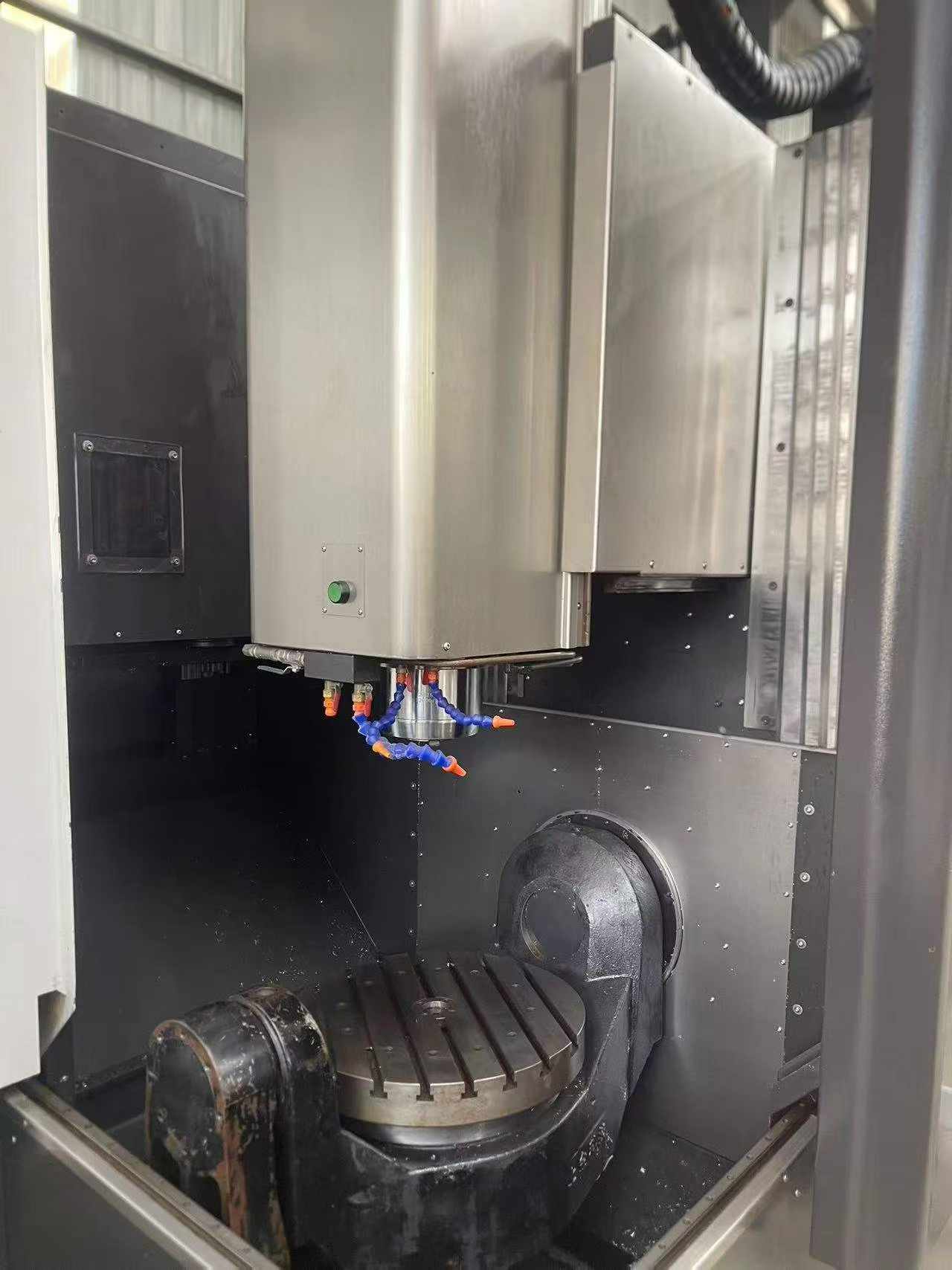

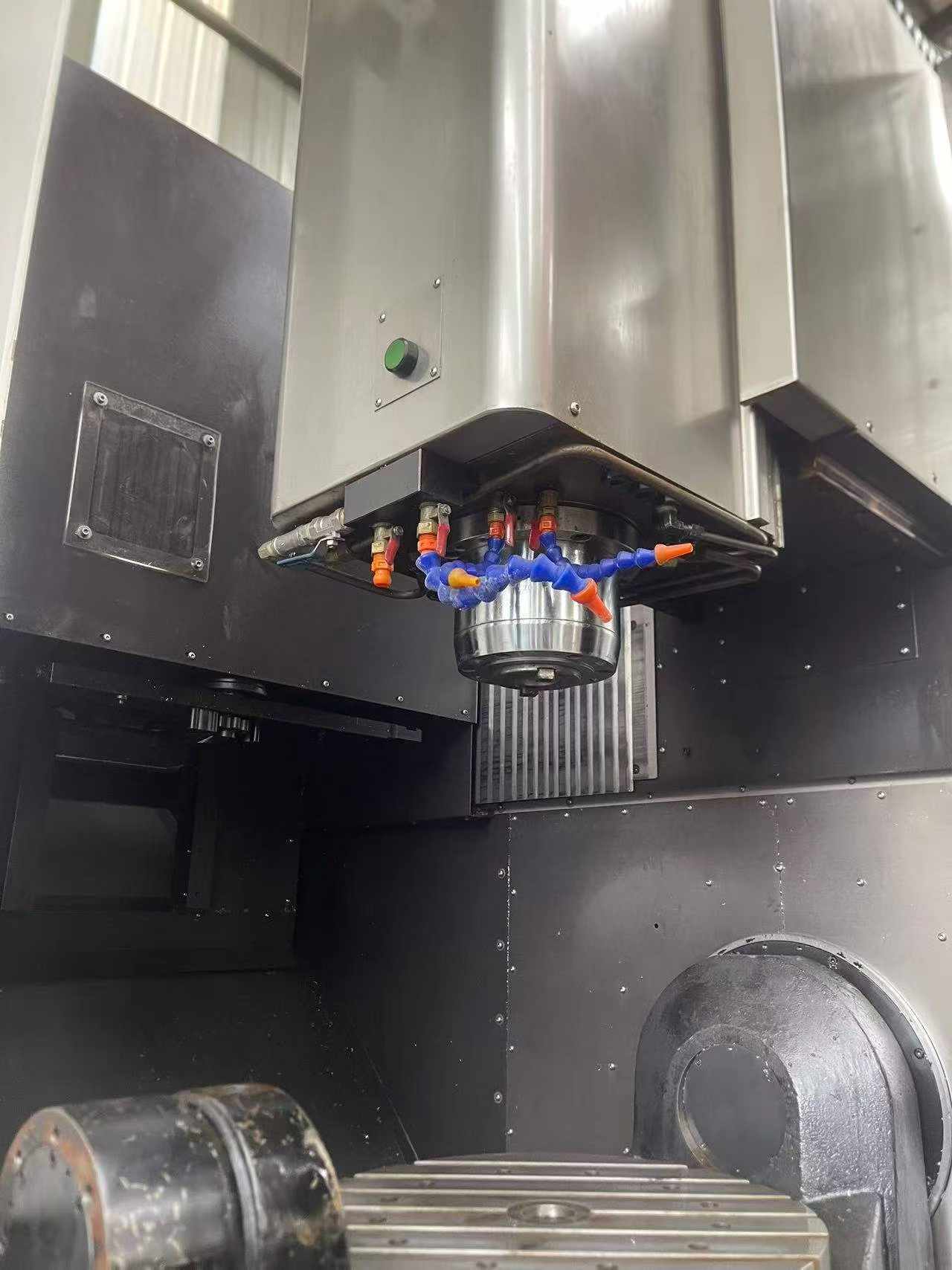

Spindle cooling: dual side spray + four ring spray
Main Specifications
| X/Y/Z travel | 500×450×400 mm |
|---|---|

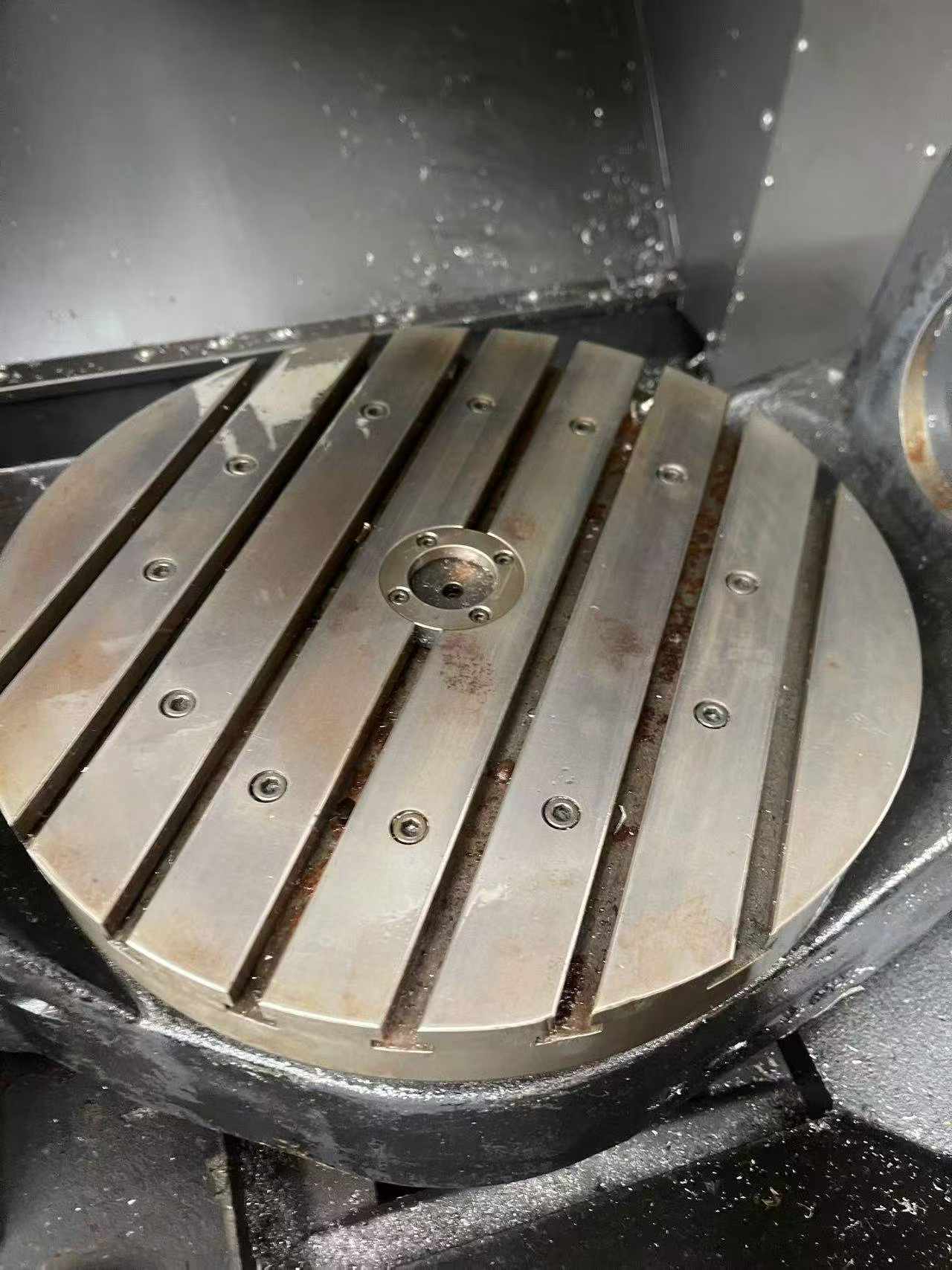

| Worktable diameter | 520 mm |
| B axis tilt range | ±110° |
| C axis rotation | 360° continuous |
| Positioning accuracy (linear axes) | 0.005 mm |
| Positioning accuracy (B/C axis) | 8 arcsec |
| Repeatability (linear axes) | 0.003 mm |
| Rapid traverse (linear axes) | 48 m/min |
| Rapid traverse (B axis) | 32 m/min |
| Rapid traverse (C axis) | 112 m/min |
| Spindle speed | 24000 rpm |

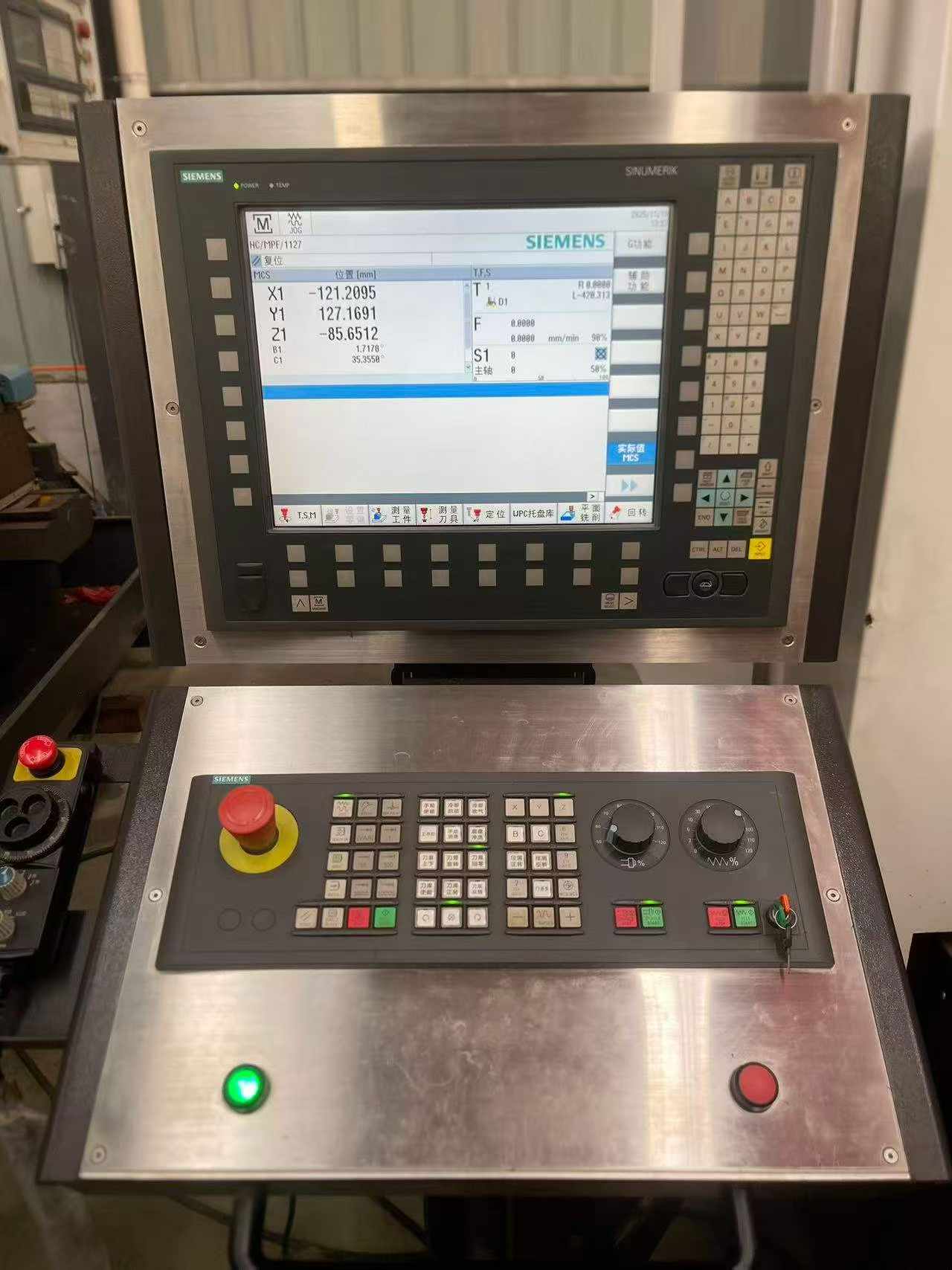

| Controller | Siemens 840D sl |
| Guideways | X/Y/Z high preload roller linear guideways, full closed-loop |
| Spindle Cooling | Double side spray + four ring spray |
| Guideway Configuration | X/Y/Z high preload roller linear guideways |
| Feedback System | Full closed-loop |
| Machine Type | 5-Axis Machining Center |

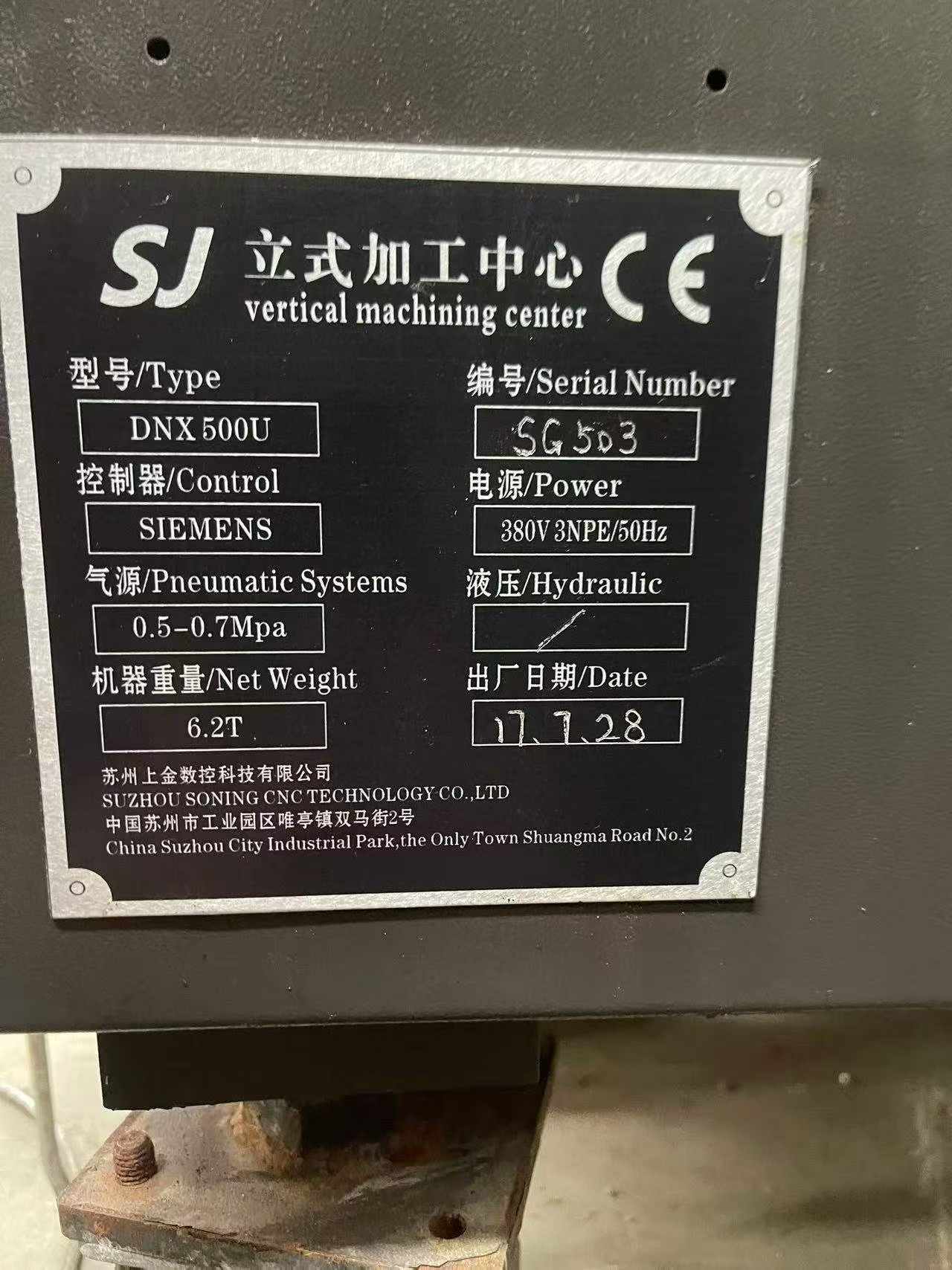

| Brand/Model | Suzhou Shangjin DNX 500 U |
| Spindle Type | German Kessler motorized spindle |
| Application | Aerospace |
