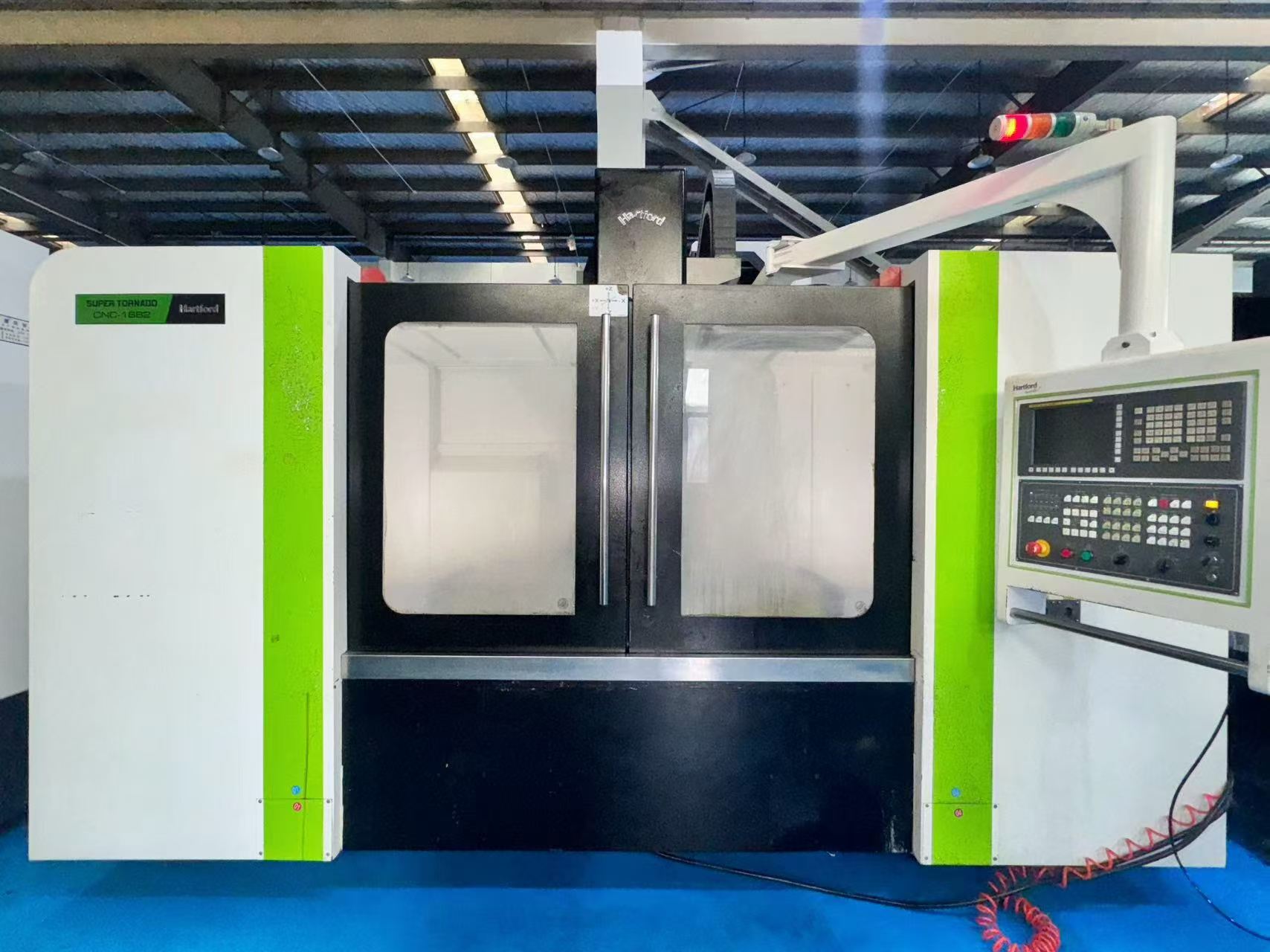

Used She Hong HCMC 1682 CNC Milling Machine with Fanuc 0i-MF 1

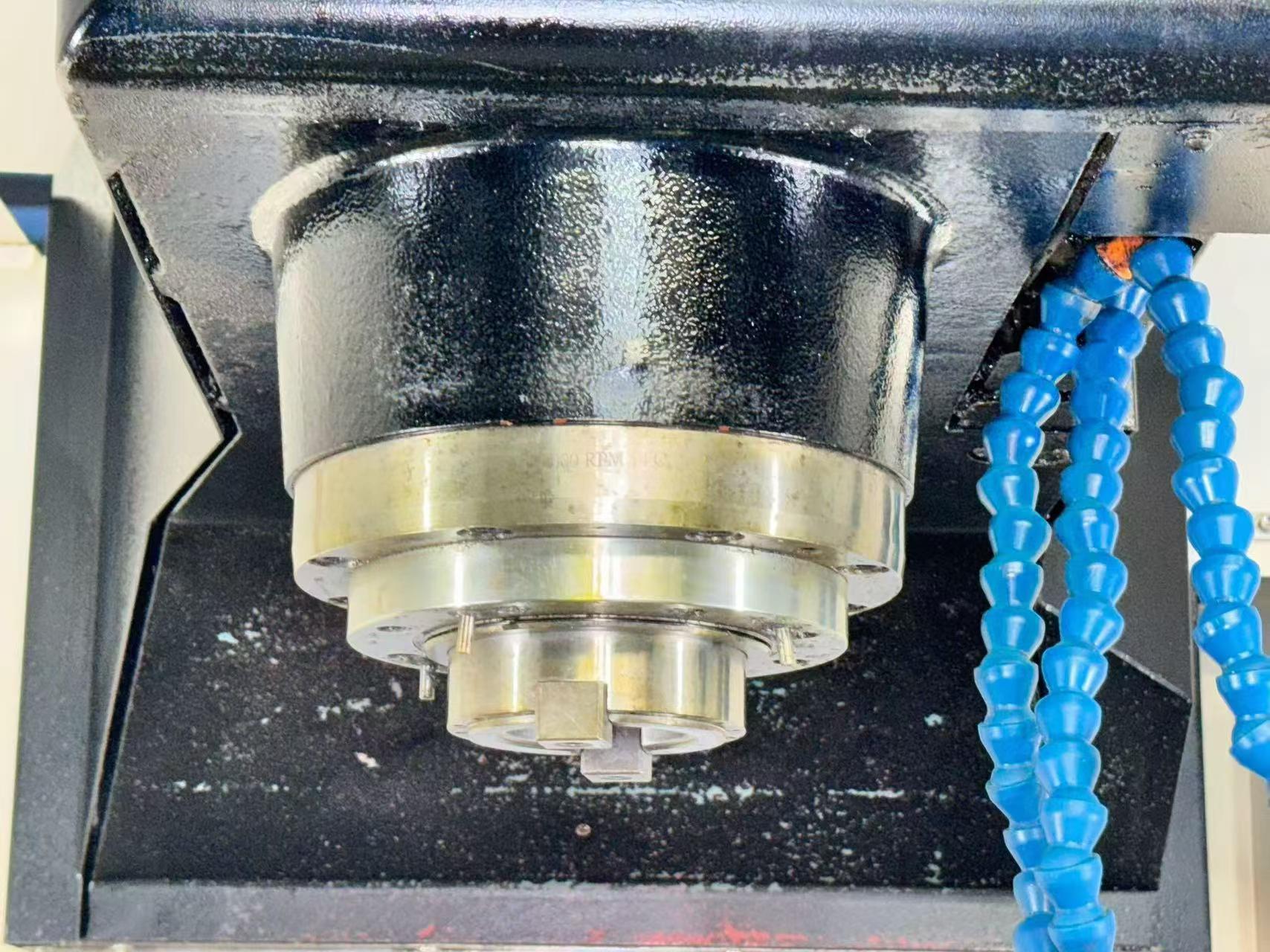

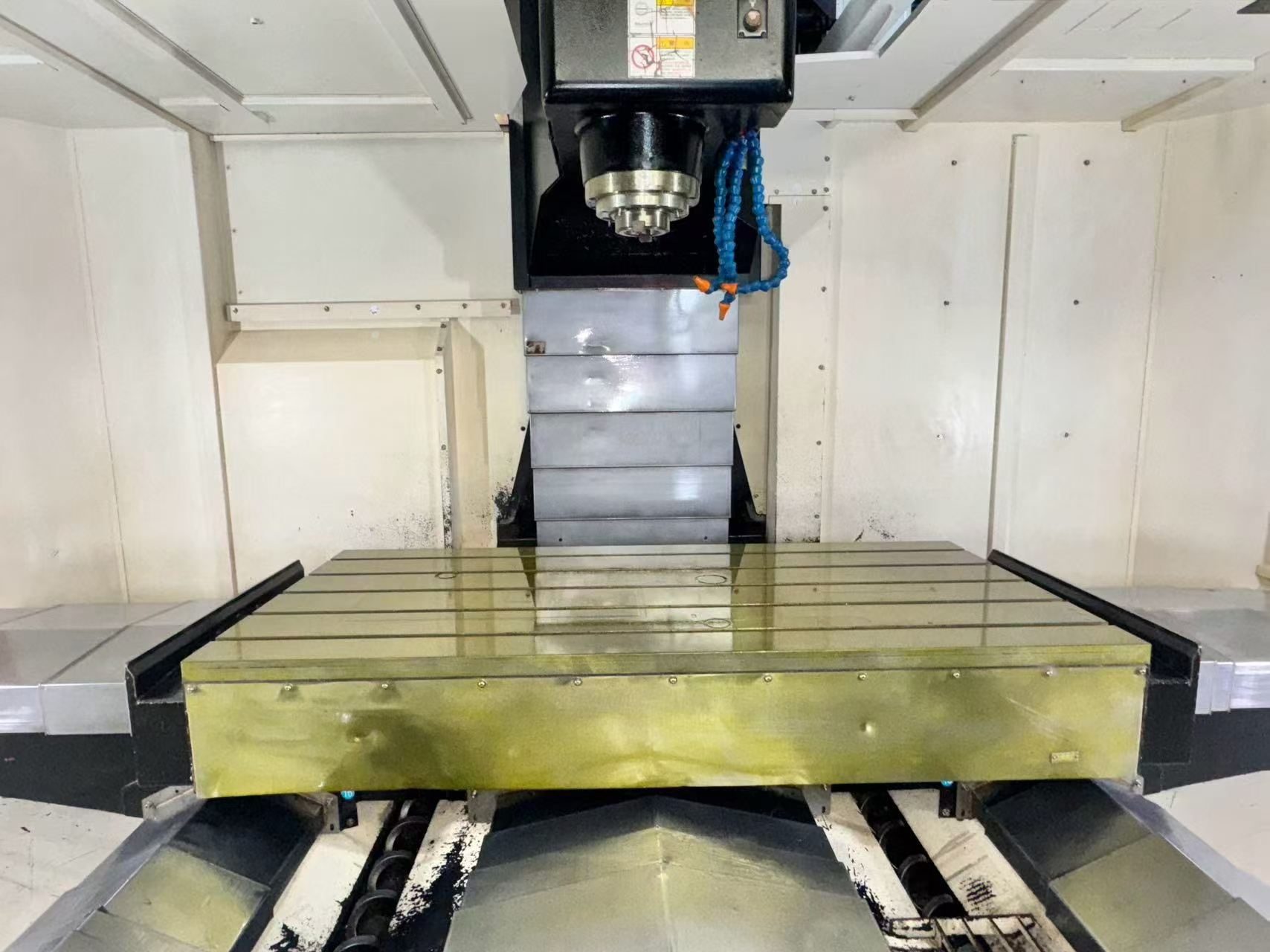

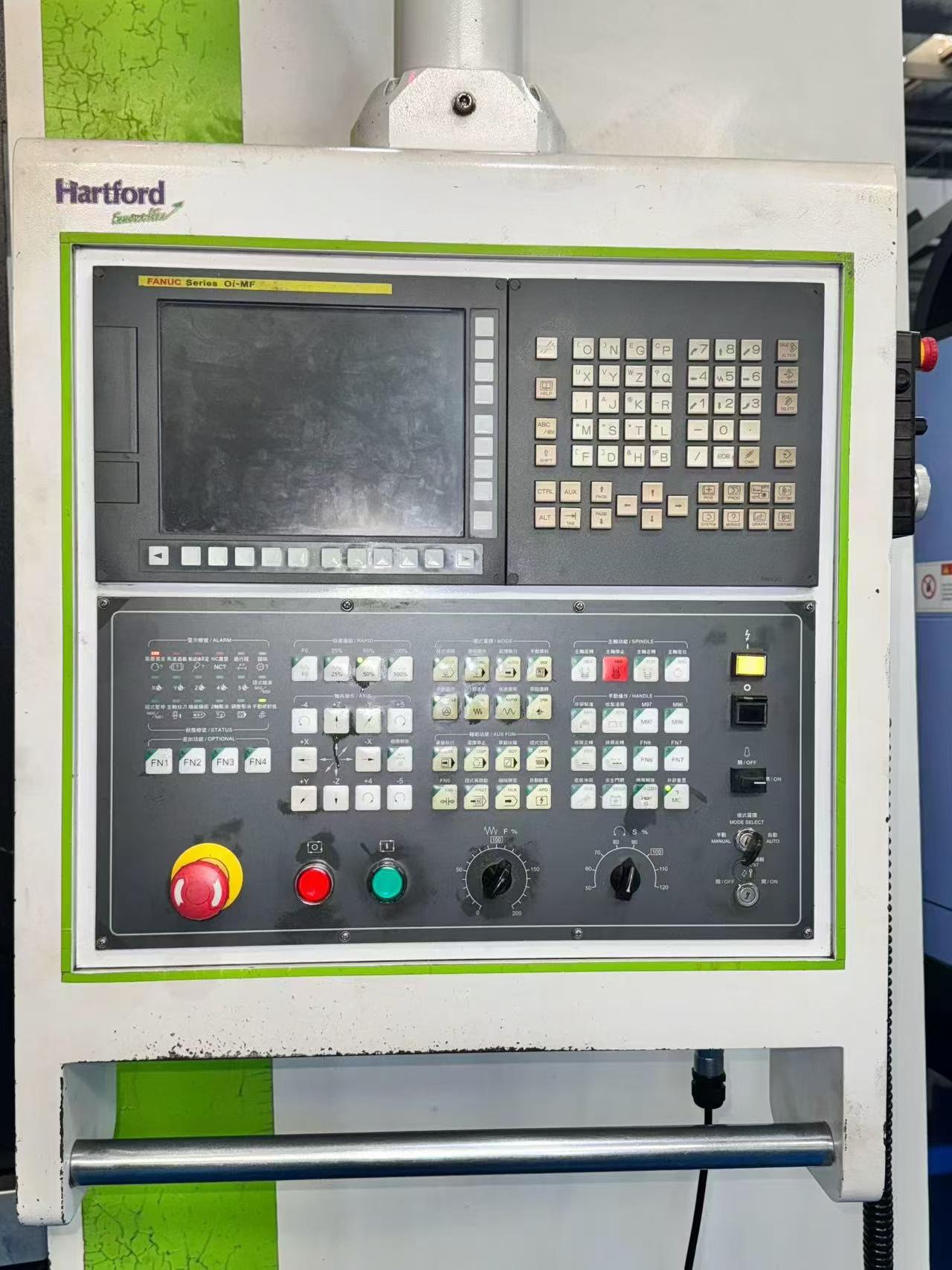

In stock used Taiwan She Hong HCMC 1682 CNC milling machine, manufactured in 2019, with Fanuc 0i-MF 1 control. Machine dimensions: 4 m x 3.1 m x 2.7 m (L x W x H). X/Y/Z travel: 1600/800/650 mm; worktable size: 1750 x 820 mm. Spindle speed 8000 rpm, BT50 geared spindle headstock with 18.5 kW spindle motor and oil cooling. Three axes are box guideways, with Y axis having four box guideways; X-axis guideway width 95 mm, Y-axis guideway width 150/70 mm. Z axis has counterweight to reduce load. Rapid traverse speed 20/20/18 m/min. Equipped with 4 screw chip conveyors. Without tool magazine.

Machine Code: MIL260807
Year: 2019
Location: China
Usage Hours: On request

Email Inquiry

Main Specifications

Machine dimensions	4 m x 3.1 m x 2.7 m (L x W x H)
X/Y/Z travel	1600/800/650 mm

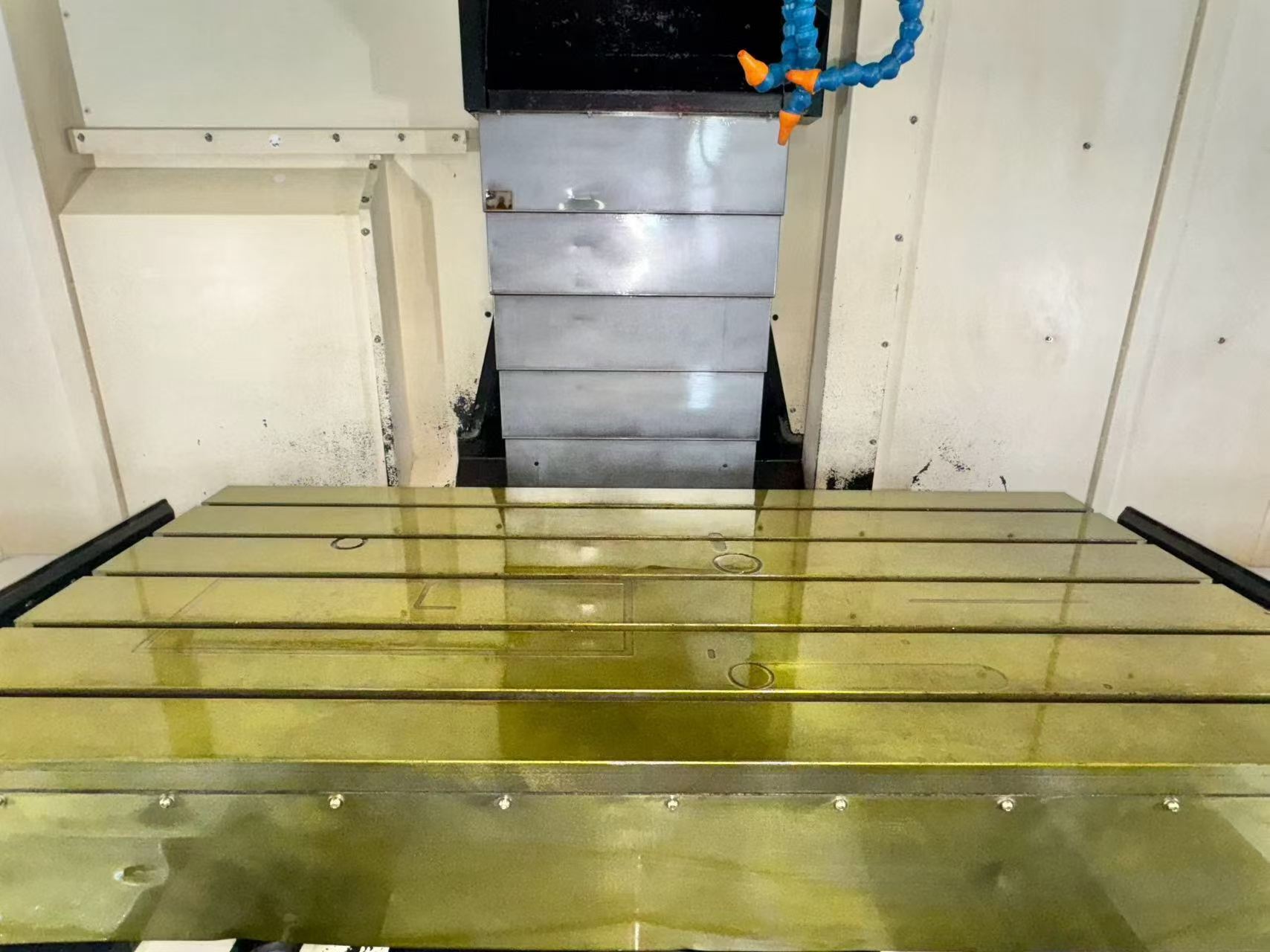

Worktable size	1750 x 820 mm
Spindle speed	8000 rpm
Spindle taper	BT50
Spindle headstock	Geared type
Spindle motor power	18.5 kW

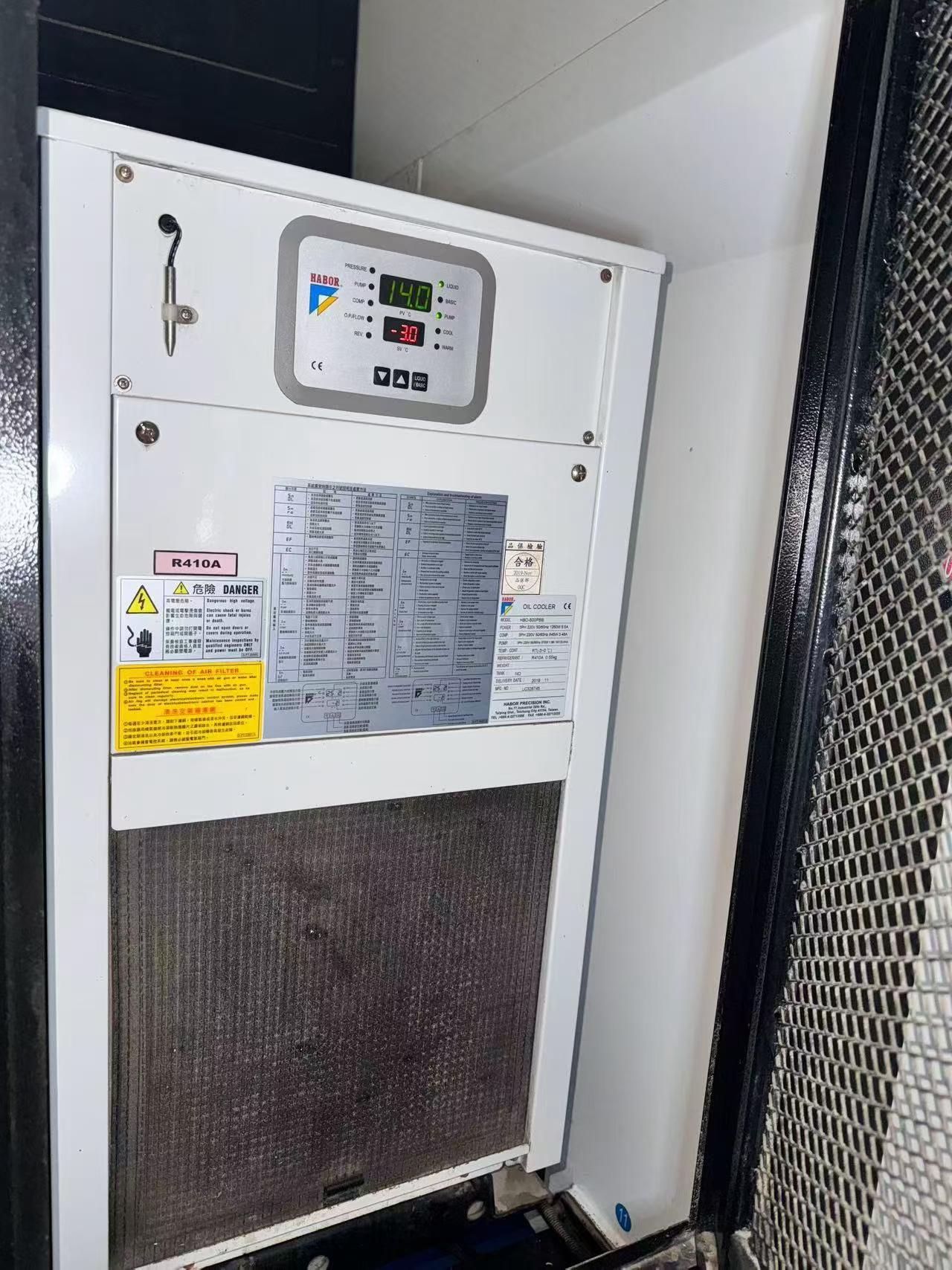

Spindle oil cooling	Included
Guideway type	Box guideway on three axes; Y axis with four box guideways
X-axis guideway width	95 mm
Y-axis guideway width	150 mm / 70 mm
Z-axis counterweight	Yes, to reduce load
Rapid traverse speed	20/20/18 m/min
Tool magazine	None
Chip conveyor	4 screw chip conveyors inside machine

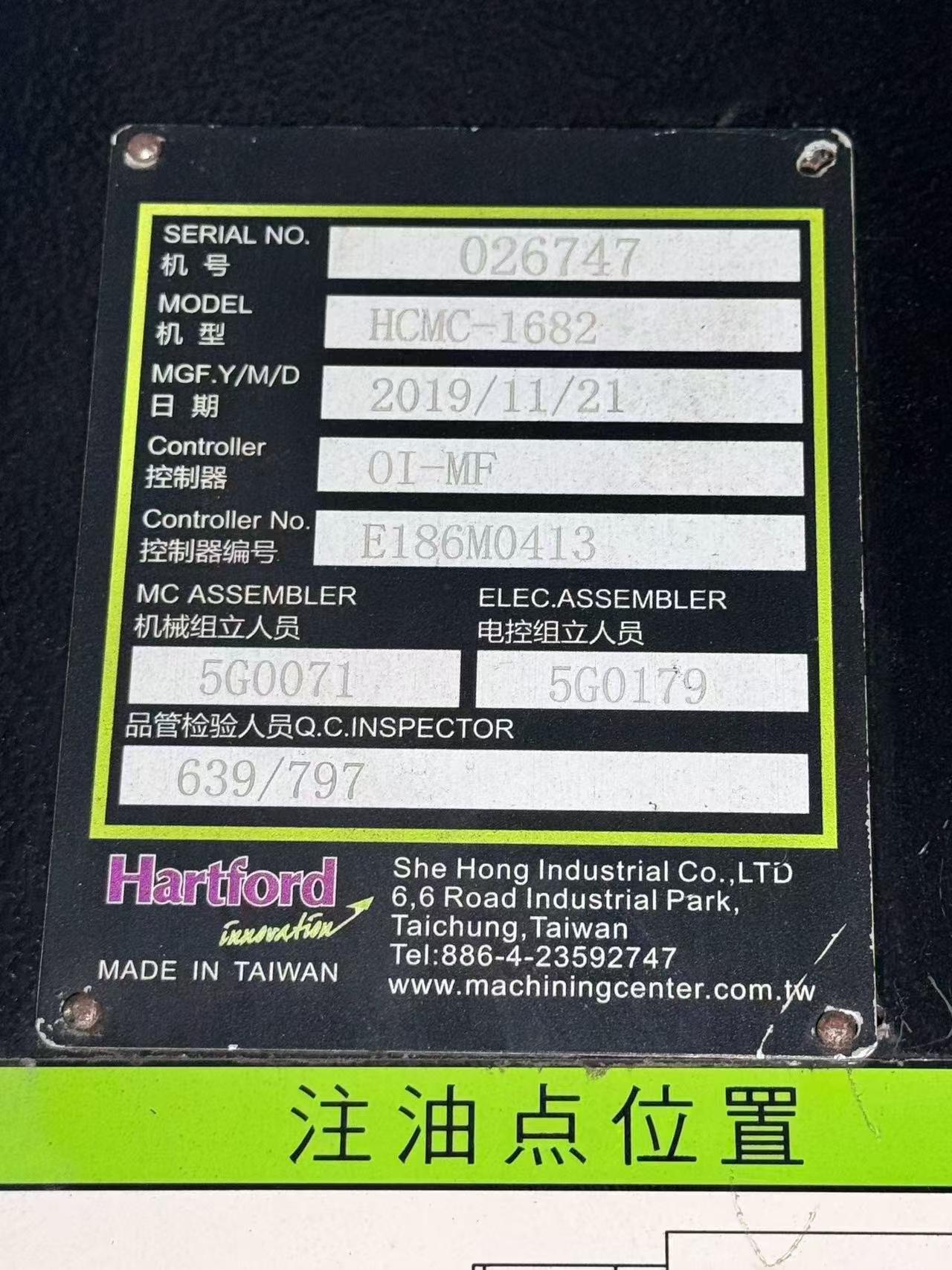

Year of manufacture	2019
