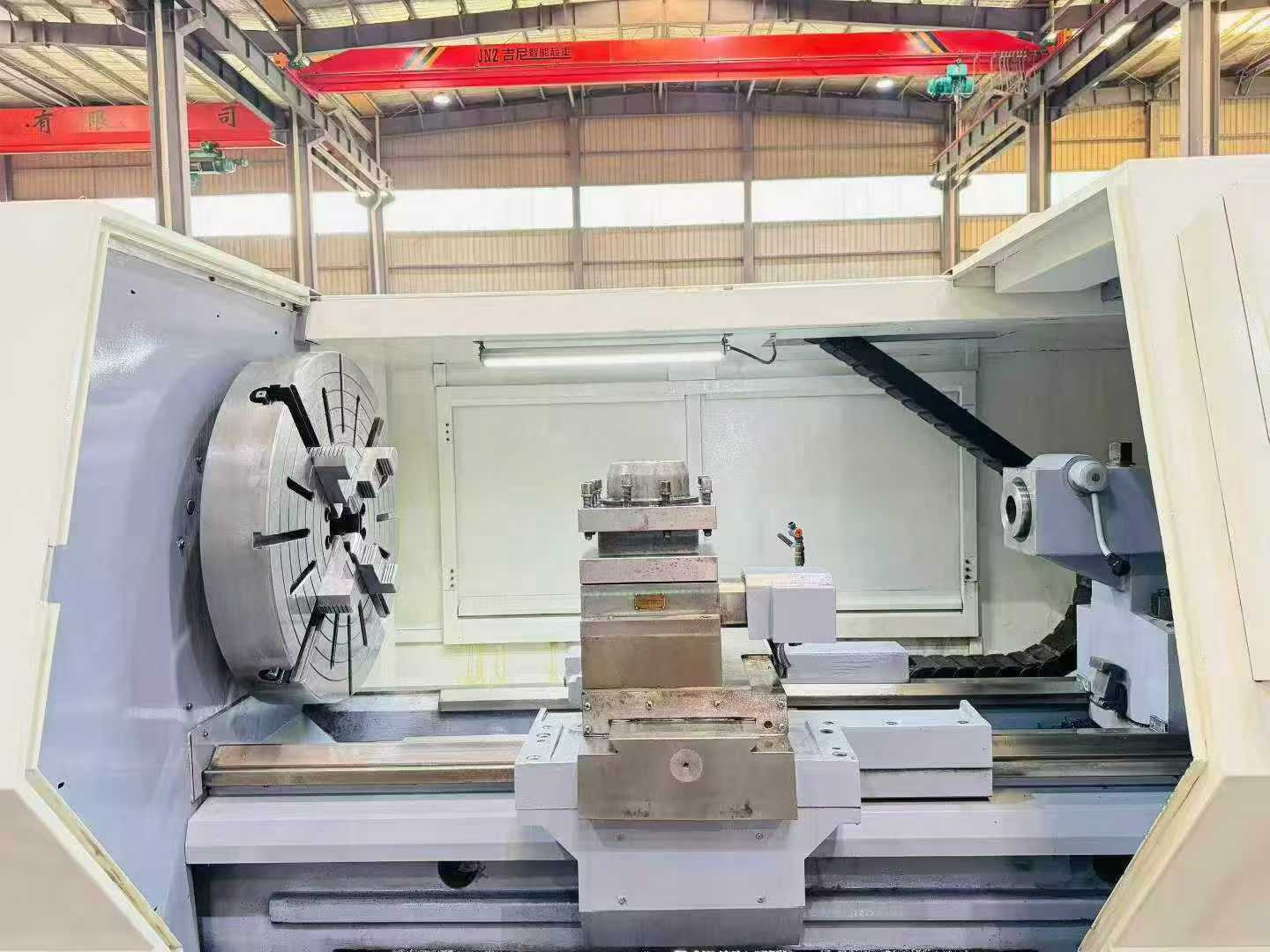

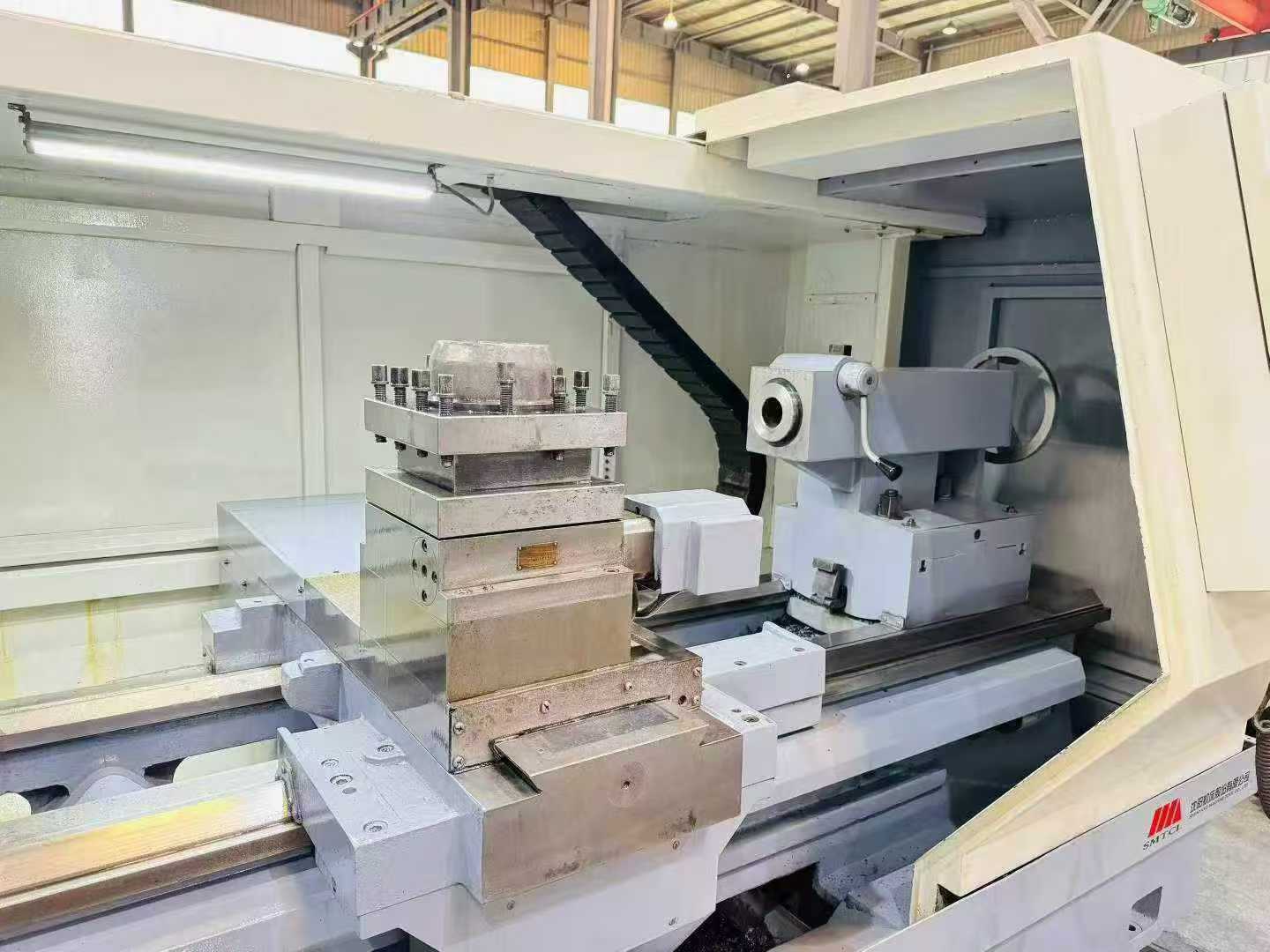

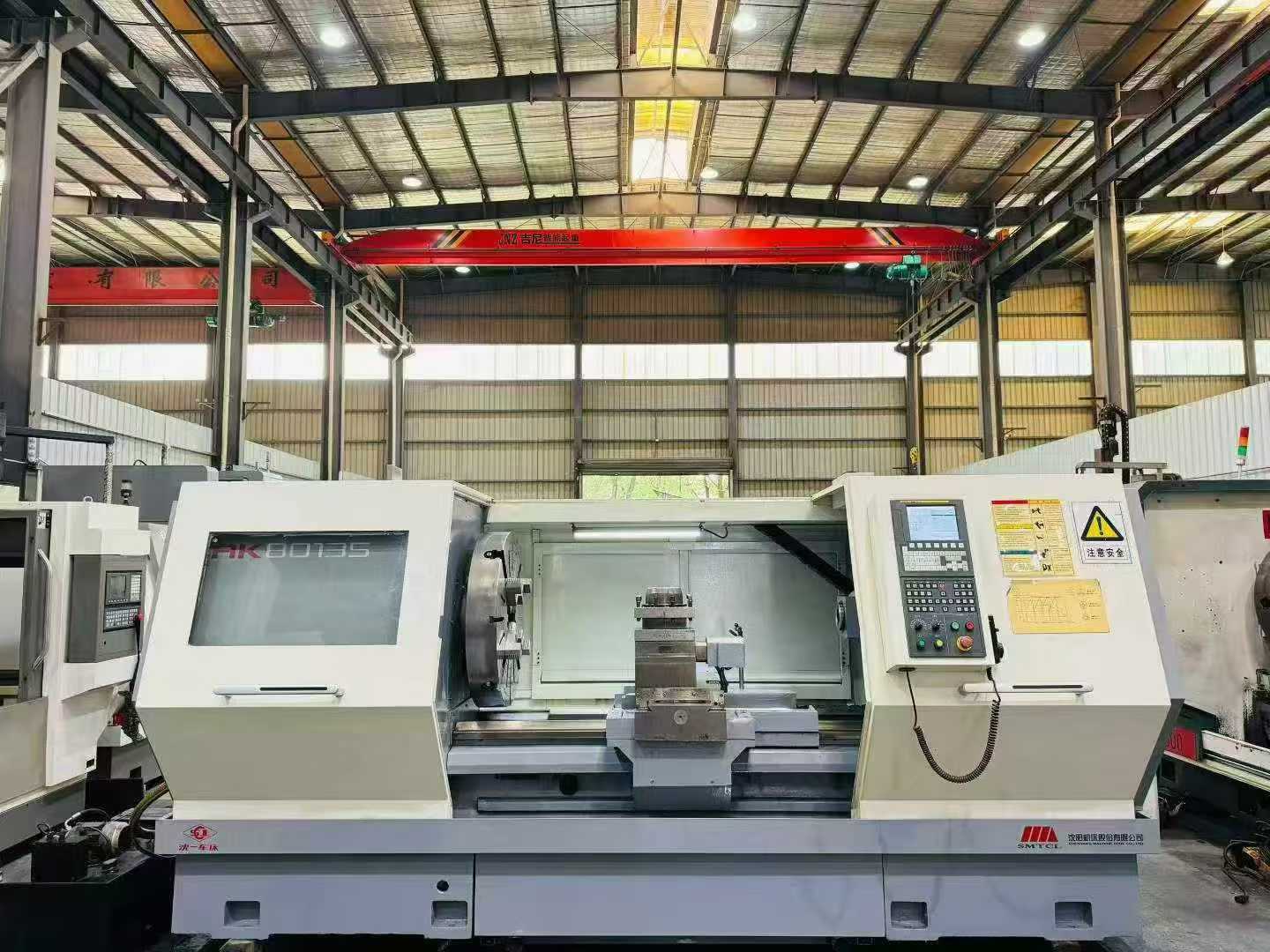

Used Shenyang CAK 80135 CNC Lathe with FANUC TF Control
Used Shenyang CAK 80135 CNC lathe with FANUC TF control system. Key specifications include a swing over bed of ∅1000 mm, maximum turning diameter of ∅800 mm, and effective machining length of 1350 mm. The machine is equipped with a ∅800 4-jaw chuck, a 15 kW servo main motor with 4-speed variable-frequency drive, hydraulic automatic gear shifting, an integral bed, and a guideway width of 600 mm. The original purchase price was nearly RMB 300,000; it is now offered at a favorable price. Please contact for more details.
- Machine Code
- CL260854
- Year
- On request
- Location
- Shenyang, China
- Usage Hours
- On request
Accessories

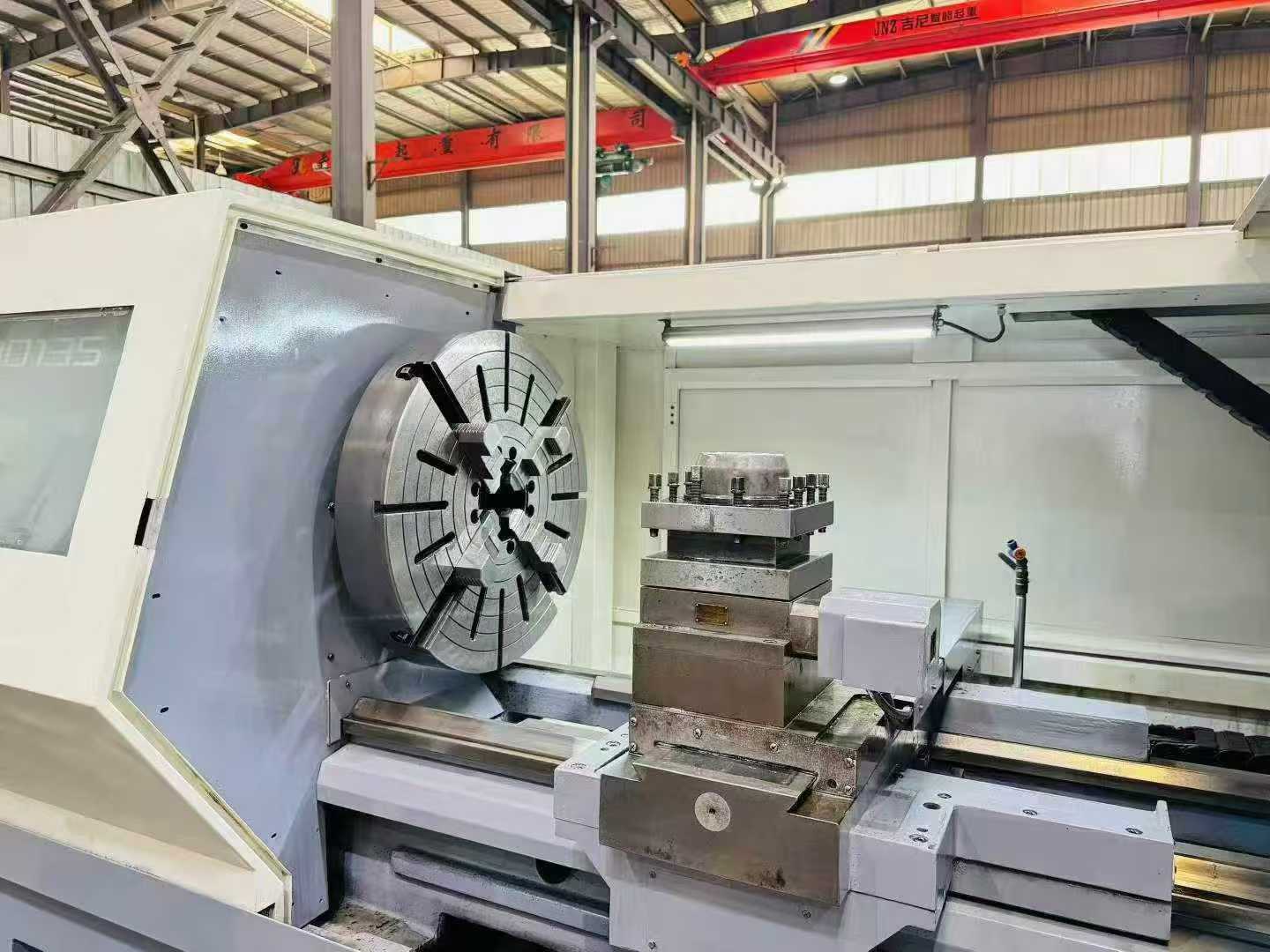

∅800 4-jaw chuck
Main Specifications

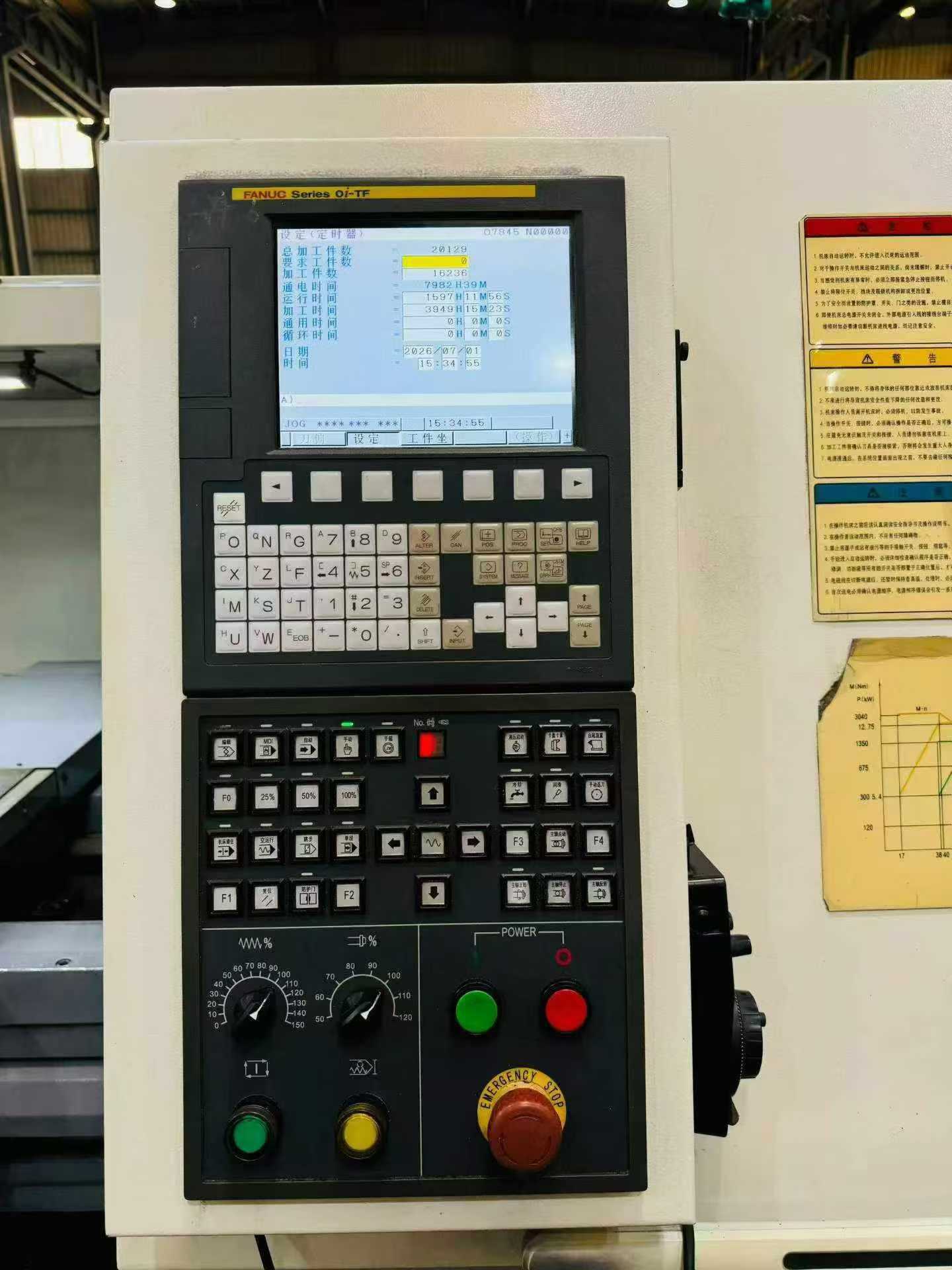

| Control system | FANUC TF |
|---|---|
| Swing over bed | ∅1000 mm |
| Max turning diameter | ∅800 mm |
| Effective machining length | 1350 mm |
| Chuck | ∅800 4-jaw chuck |
| Main motor power | 15 kW (servo) |
| Gear shifting | 4-speed with variable frequency, hydraulic automatic |
| Machine bed | Integral bed |
| Guideway width | 600 mm |
| Machine Type | CNC Lathe |
| Brand | Shenyang |
| Model | CAK 80135 |
| Controller | FANUC TF |
| Spindle Transmission | 4-speed with variable frequency |
| Original Purchase Price | ~300,000 CNY |
| Maximum Turning Diameter | ∅800 mm |
