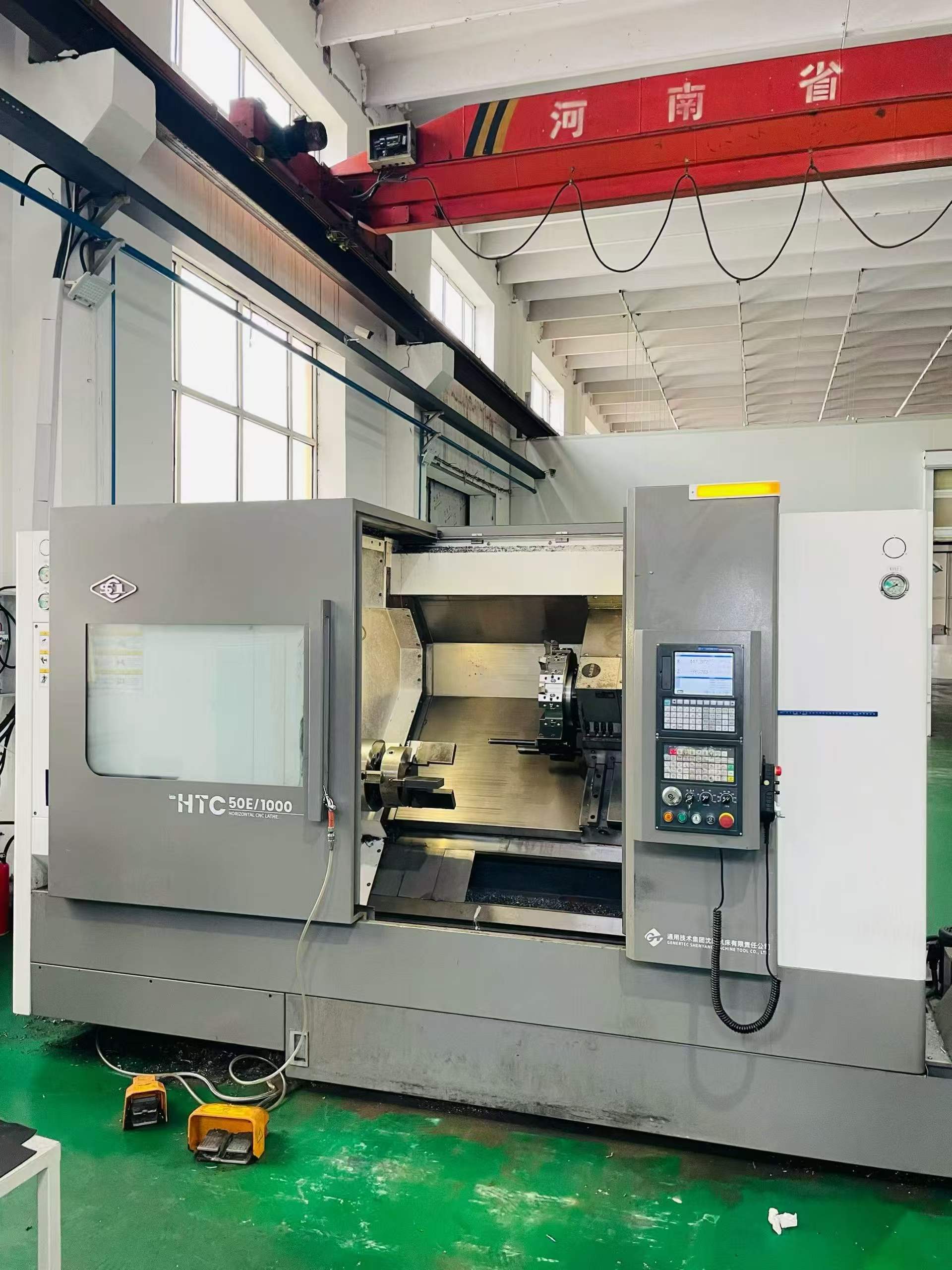

Used Shenyang HTC 50 E/1000 Slant-Bed CNC Lathe

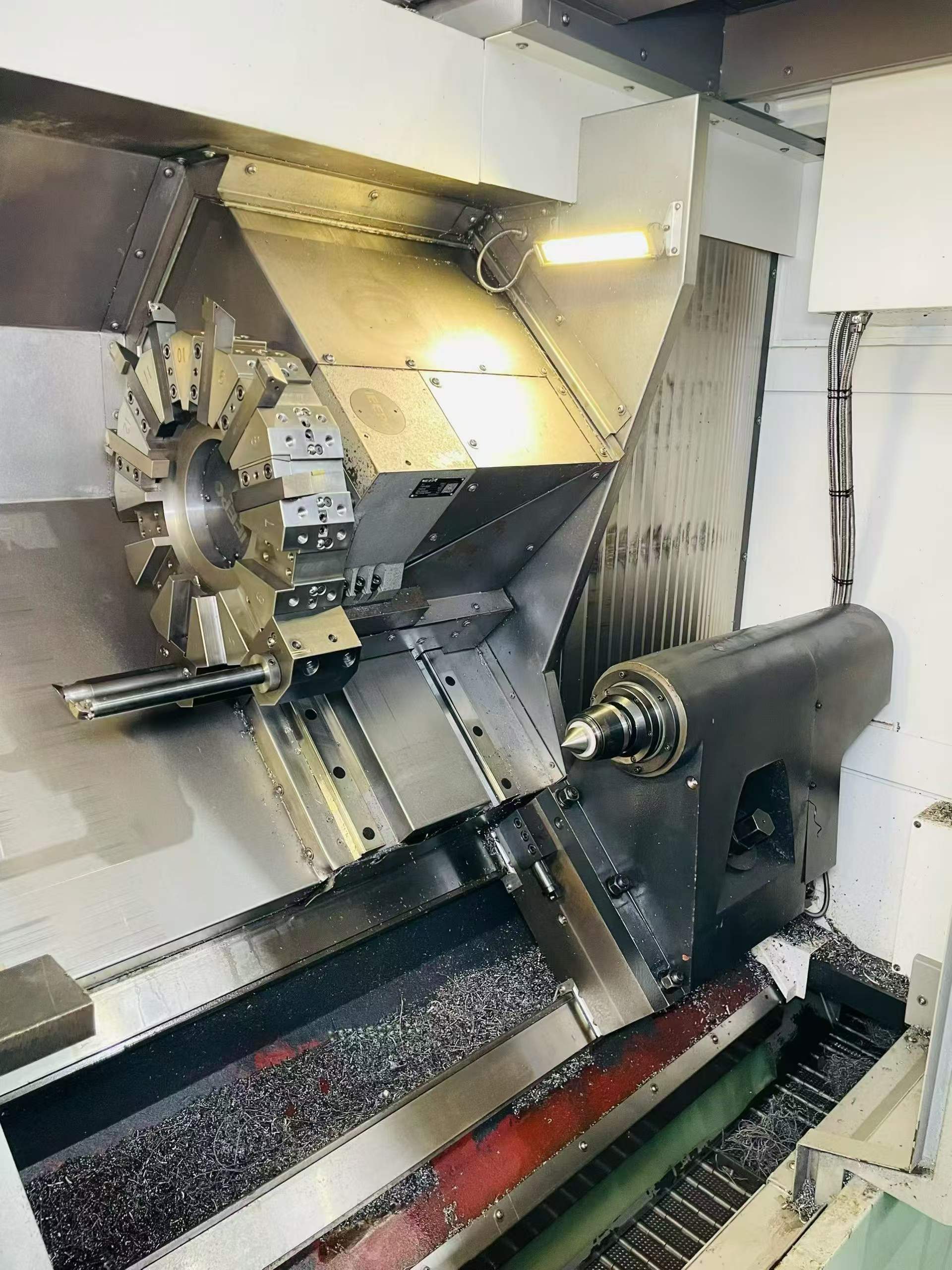

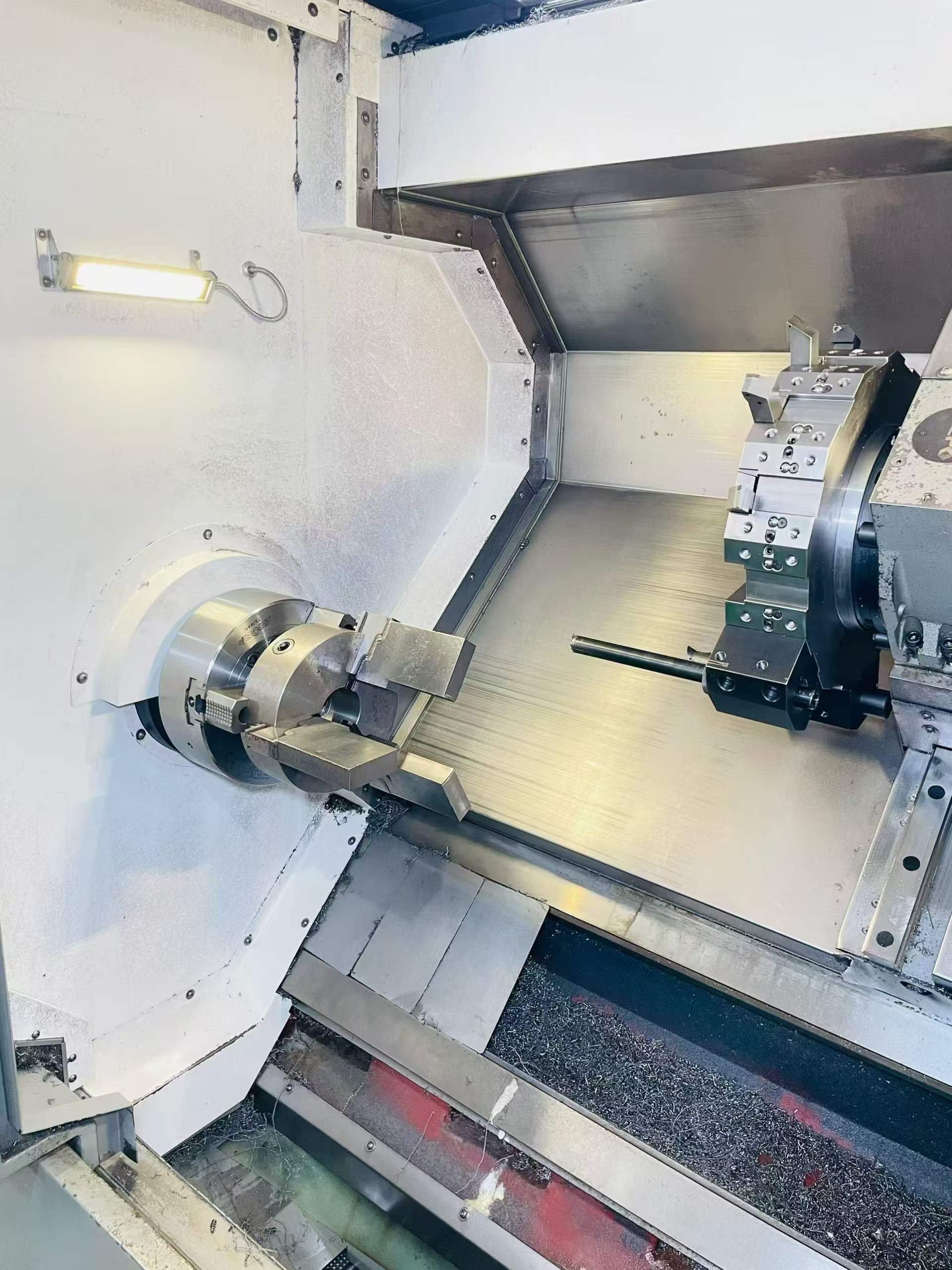

This Shenyang HTC 50 E/1000 heavy slant-bed CNC lathe is basically new, installed and used for only a few hundred hours. Equipped with GSK 988 TA control, precision linear guideways, A 2-8 spindle, 12-inch hydraulic chuck, 12-station servo turret, max swing over bed 700 mm, max turning diameter 550 mm, max turning length 1000 mm. High-end machine, available for inspection.
- Machine Code
- CL260768
- Year
- On request
- Location
- China
- Usage Hours
- On request
Accessories
12-inch Taiwan Yichuan hydraulic chuck, 12-station servo turret
Main Specifications
| Max swing over bed | 700 mm |
|---|---|
| Max turning diameter | 550 mm |
| Max turning length | 1000 mm |
| Spindle nose | A 2-8 |
| Chuck size | 12 inch |
| Turret stations | 12 |
| Guideway type | Linear guideway |
| Machine Type | Slant bed turret-type CNC lathe |
| Model | Shenyang HTC 50 E/1000 |

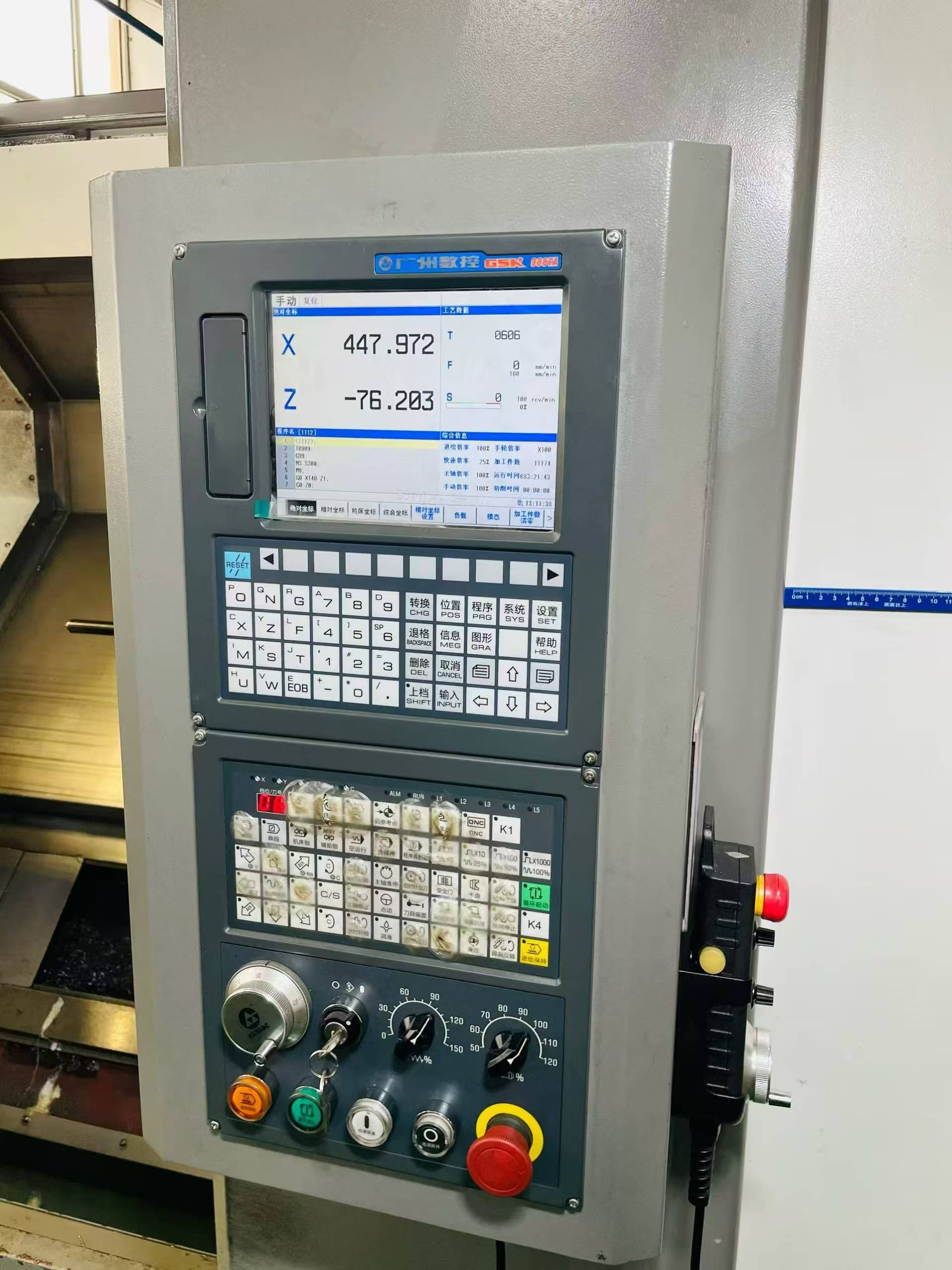

| Controller | GSK 988 TA |
| Chuck Type | Hydraulic, Taiwan Yichuan |
| Turret Type | Servo turret |
