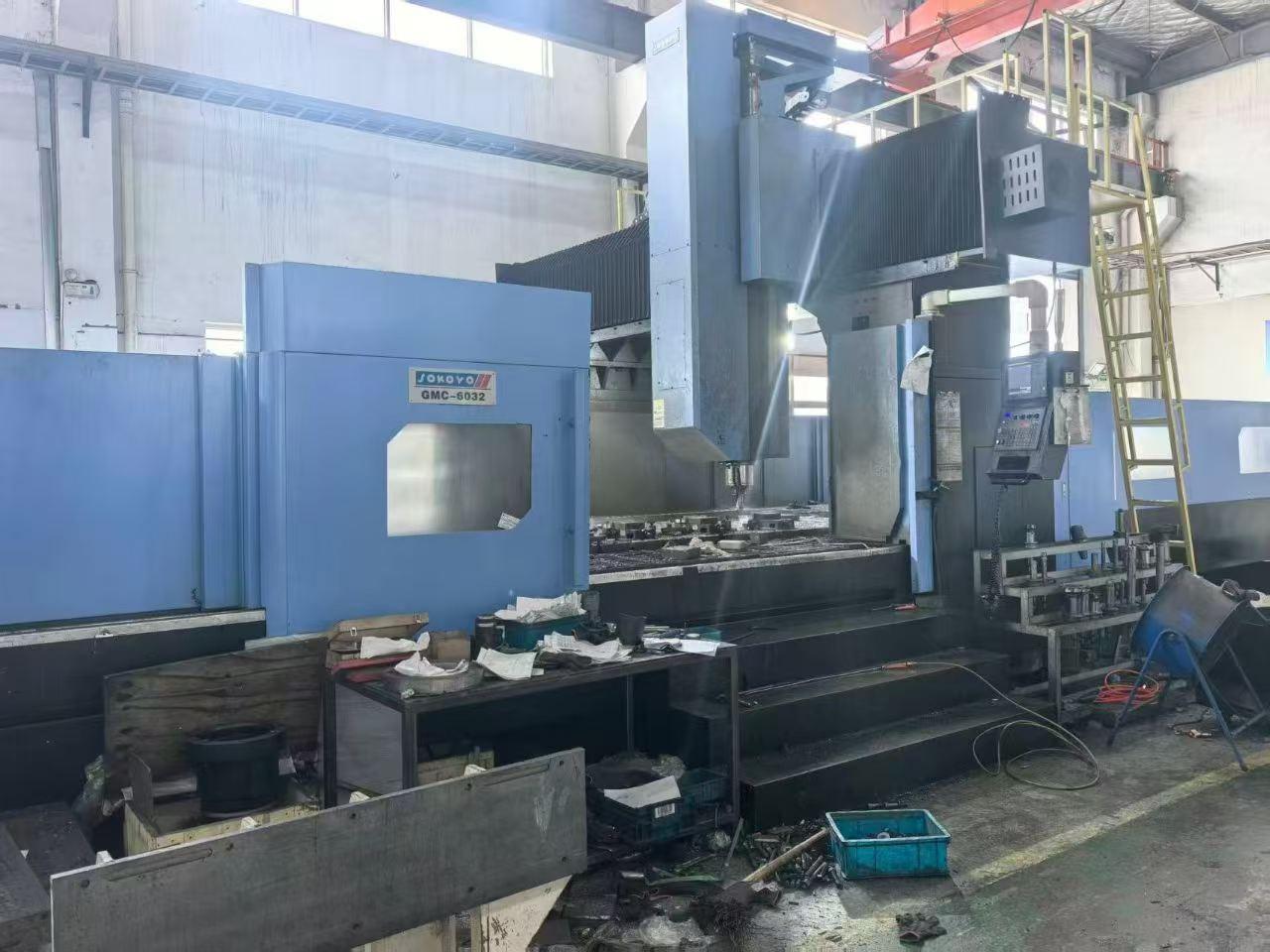

Used Sikeyuan 6032 Gantry Machining Center with FANUC 0i-MF Plus

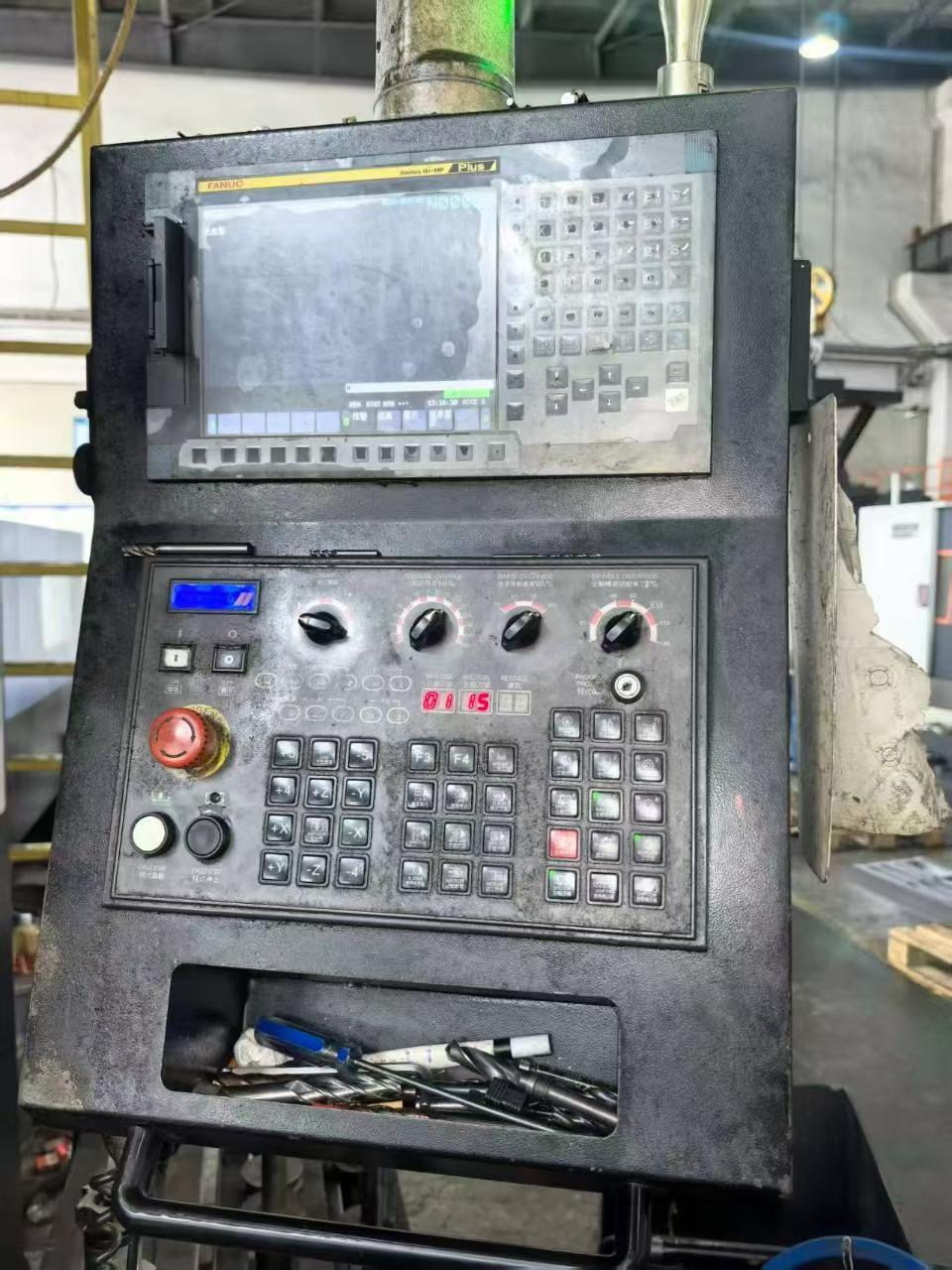

Heavy-duty Sikeyuan 6032 CNC Gantry Machining Center, fully equipped. Features include FANUC 0i-MF Plus control, BT50 spindle at 6000 rpm, 3200 mm door width, 1650 mm door height, worktable 6000 x 2800 mm, X/Y/Z travel 6200/3500/1100 mm. Guideway: two linear and one box. 60-chain tool magazine. Includes 50 bar through-spindle coolant, side milling head, and dual screw chip conveyor with chip drag conveyor.
- Machine Code
- MC260750
- Year
- On request
- Location
- China
- Usage Hours
- On request
Accessories

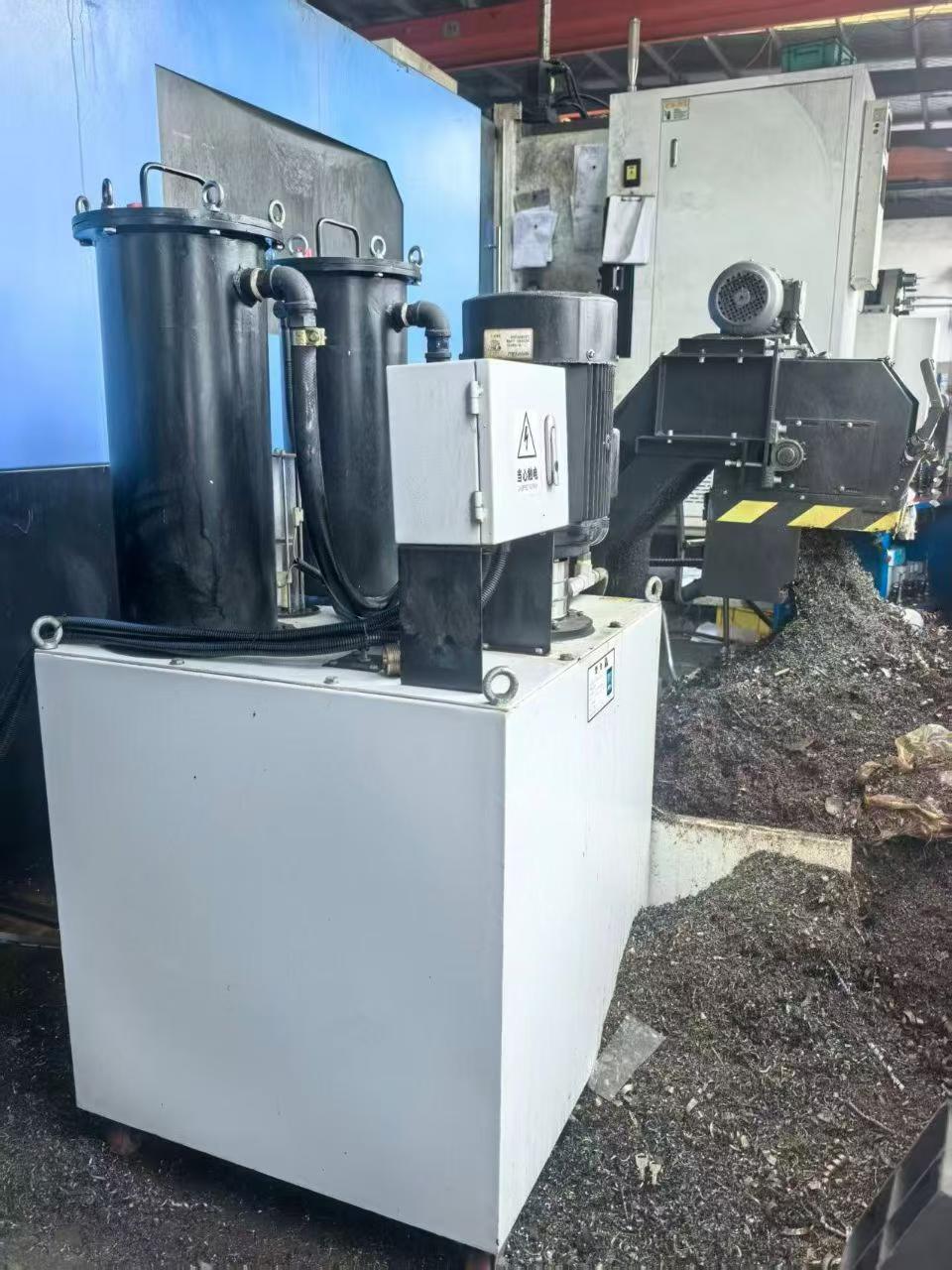

50 bar through-spindle coolant, side milling head, dual screw chip conveyor and chip drag conveyor
Contact access
Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.
Loading…
Main Specifications
| Spindle speed | 6000 rpm |
|---|---|
| Spindle taper | BT50 |
| Door width | 3200 mm |
| Door height | 1650 mm |
| Worktable size | 6000 x 2800 mm |
| X travel | 6200 mm |
| Y travel | 3500 mm |
| Z travel | 1100 mm |
| Guideway type | Two linear, one box |

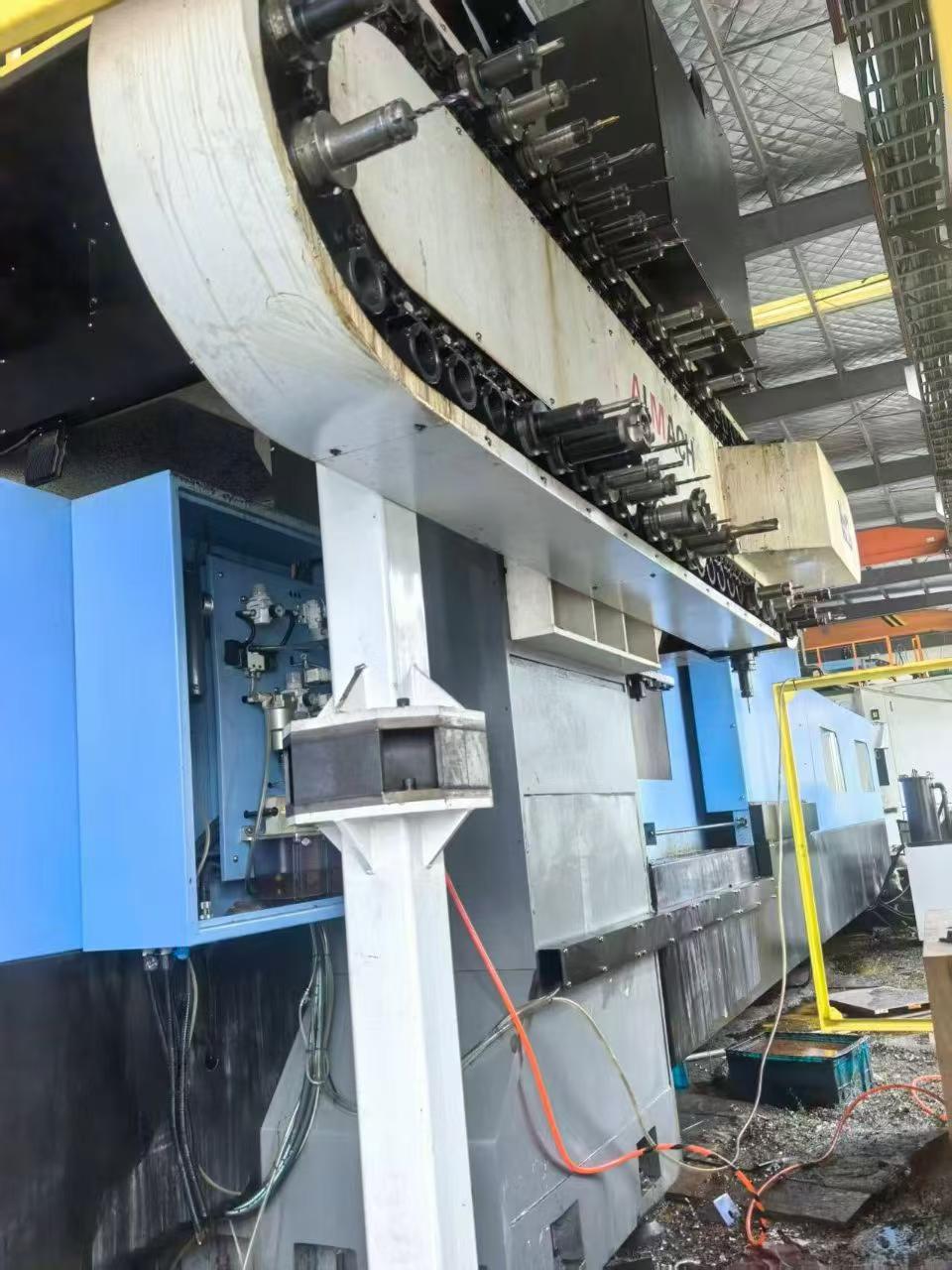

| Tool magazine capacity | 60 |
