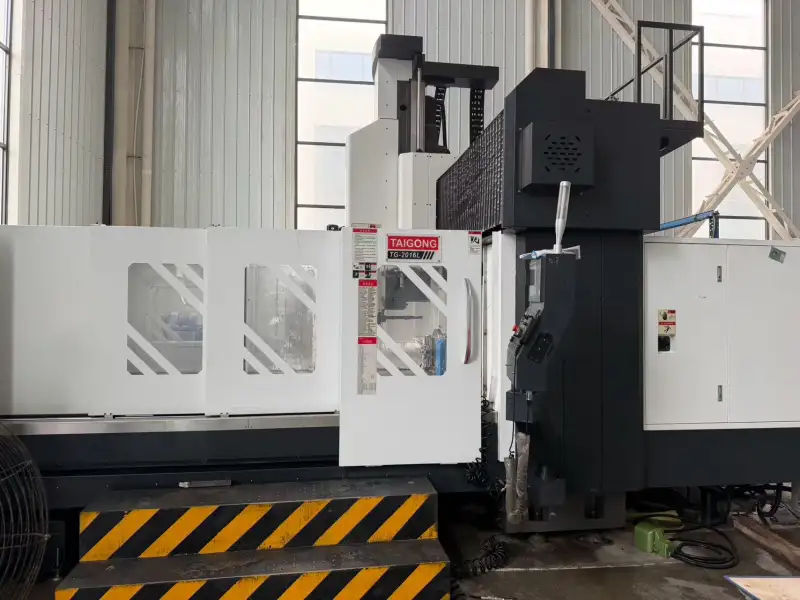

Used Taigong 2016 CNC Gantry Machining Center

For sale is a used Taigong 2016 CNC gantry machining center. The machine features a 2000 x 1600 mm worktable, 1650 mm gantry width, 1100 mm gantry clearance height, and X/Y/Z travel of 2200 x 1700 x 739 mm. It is equipped with a BT50 spindle running at 6000 rpm, a 24-position tool magazine, spindle oil cooling, and a FANUC 0i-MF Plus control system. A GTN 400 four-axis 16-inch rotary table is installed. The machine is located in China and can be inspected by video or on site.

Machine Code: MC2608238
Year: 2016
Location: China
Usage Hours: On request

Accessories

24-position tool magazine, spindle oil cooler, GTN 400 four-axis 16-inch rotary table

Email Inquiry

Main Specifications

Worktable size	2000 x 1600 mm
Gantry width	1650 mm
Gantry clearance height	1100 mm
Guideways	Two linear guideways and one box guideway
X/Y/Z travel	2200 x 1700 x 739 mm
Spindle taper	BT50
Spindle speed	6000 rpm
Tool magazine capacity	24 tools
Control system	FANUC 0i-MF Plus
Rotary table	GTN 400 four-axis, 16-inch
Machine Type	Gantry Machining Center
Guideway Configuration	X/Y linear guideways + Z box guideway
Spindle Oil Cooling	Included
Brand	Taigong
Model	2016
