AvailablePlaner Milling Machine

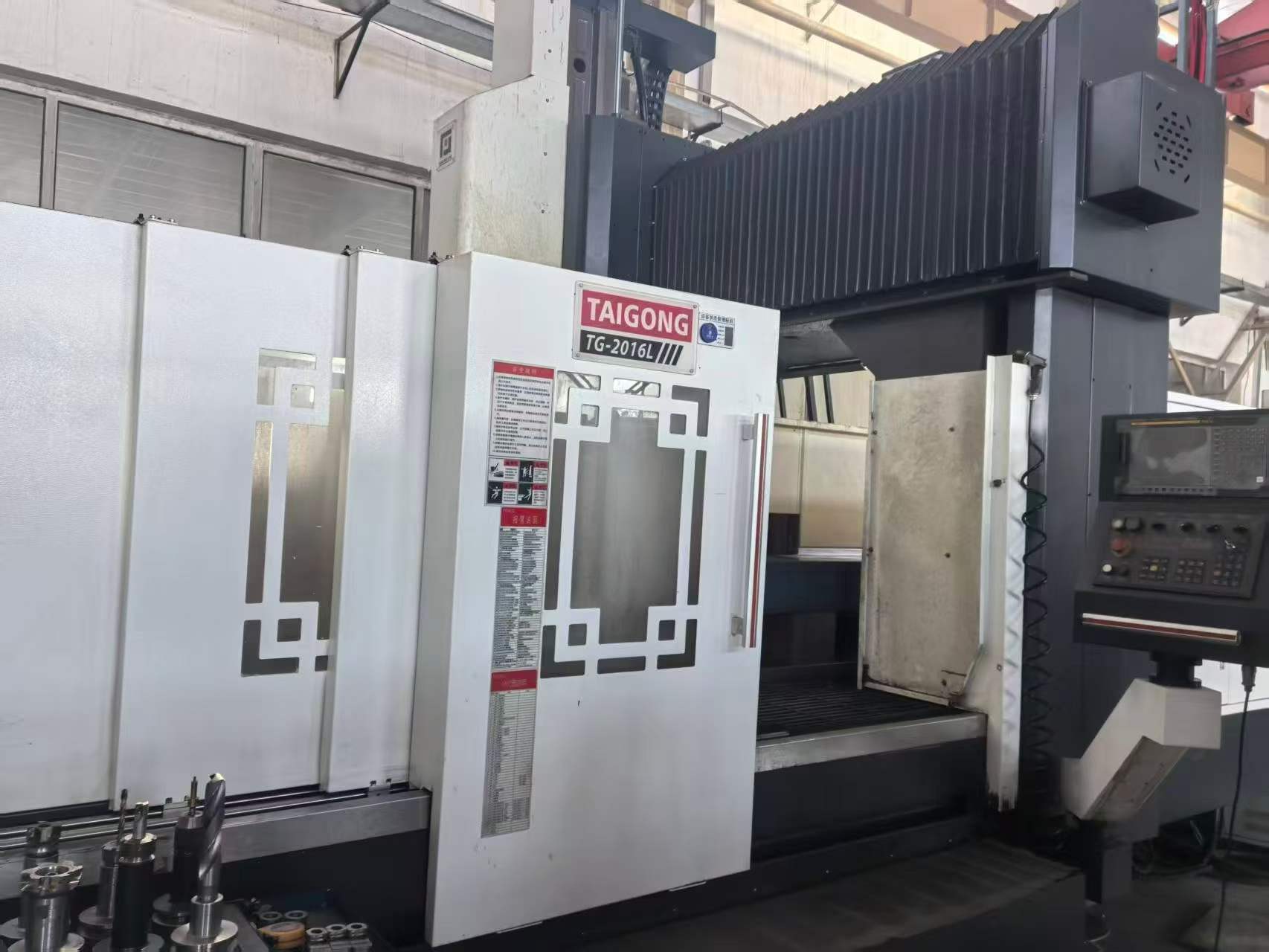

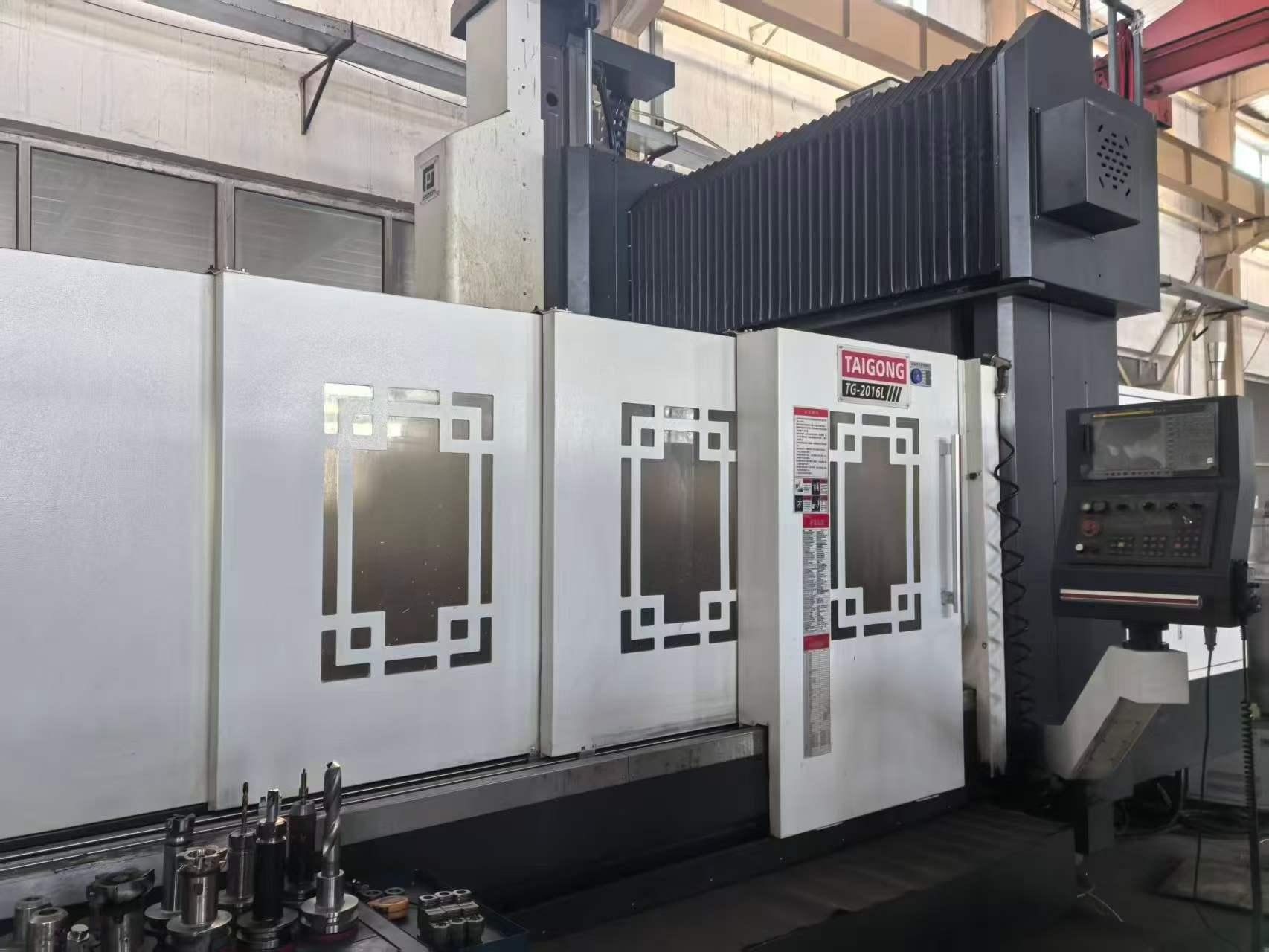

Used Taigong 2016 Gantry Milling Machine with Fanuc Control

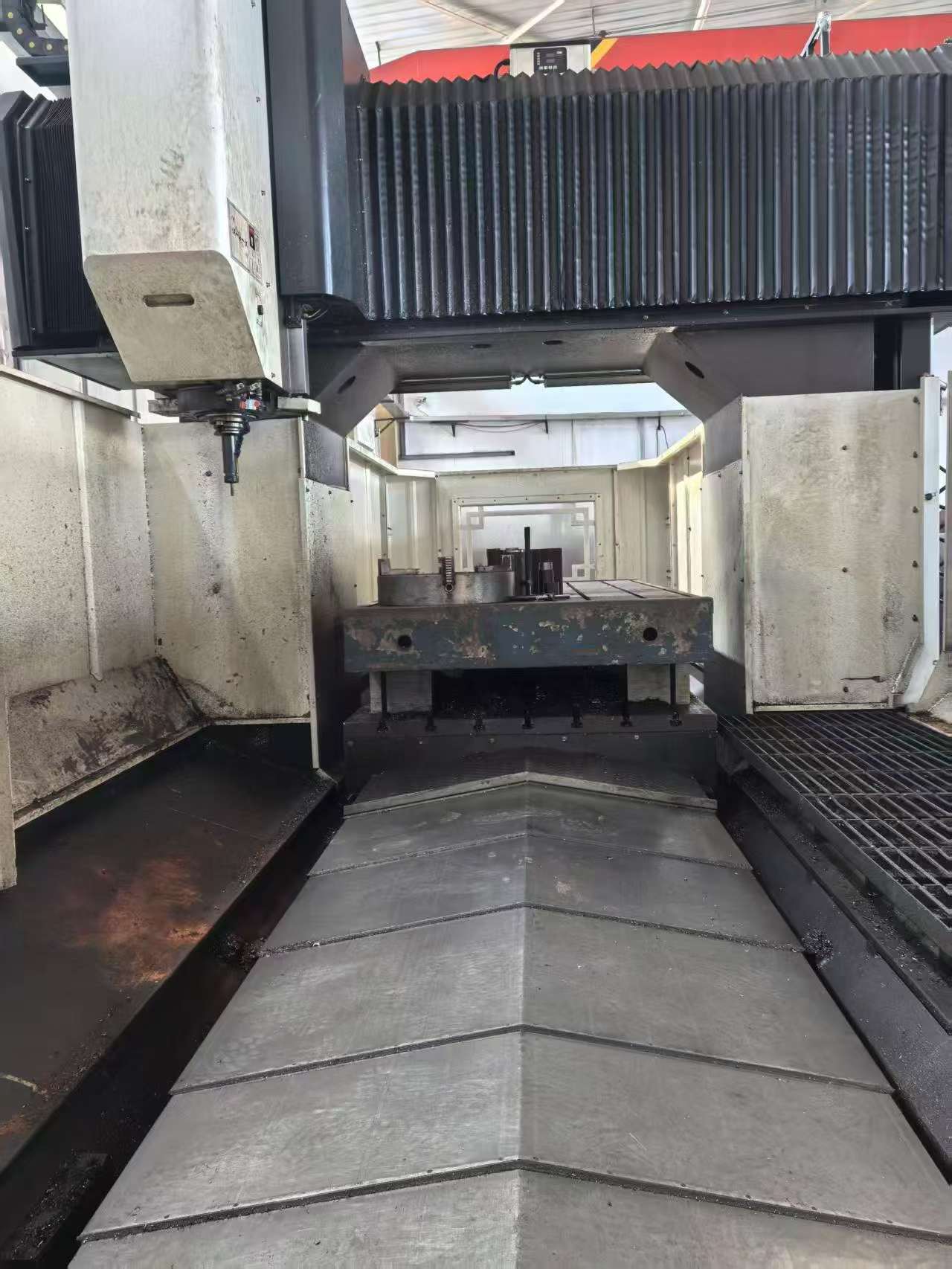

Used Taigong 2016 gantry machining center, one unit. Year: 2021. Control system: Fanuc 0i-MF Plus. Spindle: BT50 large-diameter spindle, 6000 rpm, with oil cooler. Worktable: 2000 x 1300 mm. X/Y/Z travel: 2000/1600/700 mm. Machining envelope: gantry width 1650 mm, spindle nose to table 1050 mm, gantry height 1150 mm. Other equipment: dual screw chip conveyor with chain-type chip conveyor.

Machine Code: PM260651
Year: 2021
Location: China
Usage Hours: On request

Accessories

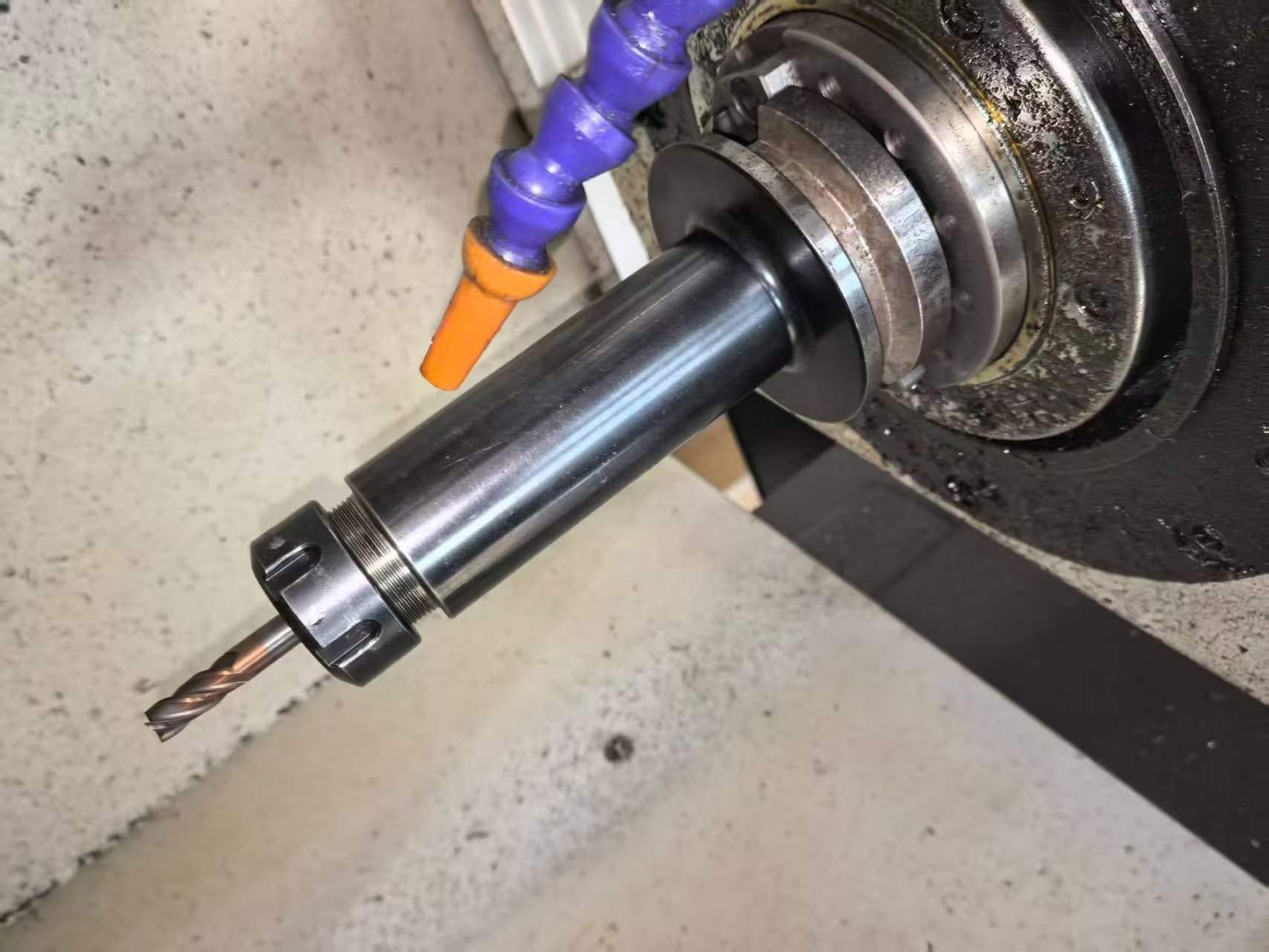

Spindle: BT50 large diameter, 6000 rpm, with oil cooler; Chip conveyor: dual screw and chain type

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Spindle speed	6000 rpm
Worktable size	2000 x 1300 mm
X travel	2000 mm
Y travel	1600 mm
Z travel	700 mm
Gantry width	1650 mm
Spindle nose to table	1050 mm
Gantry height	1150 mm
Spindle Taper	BT50

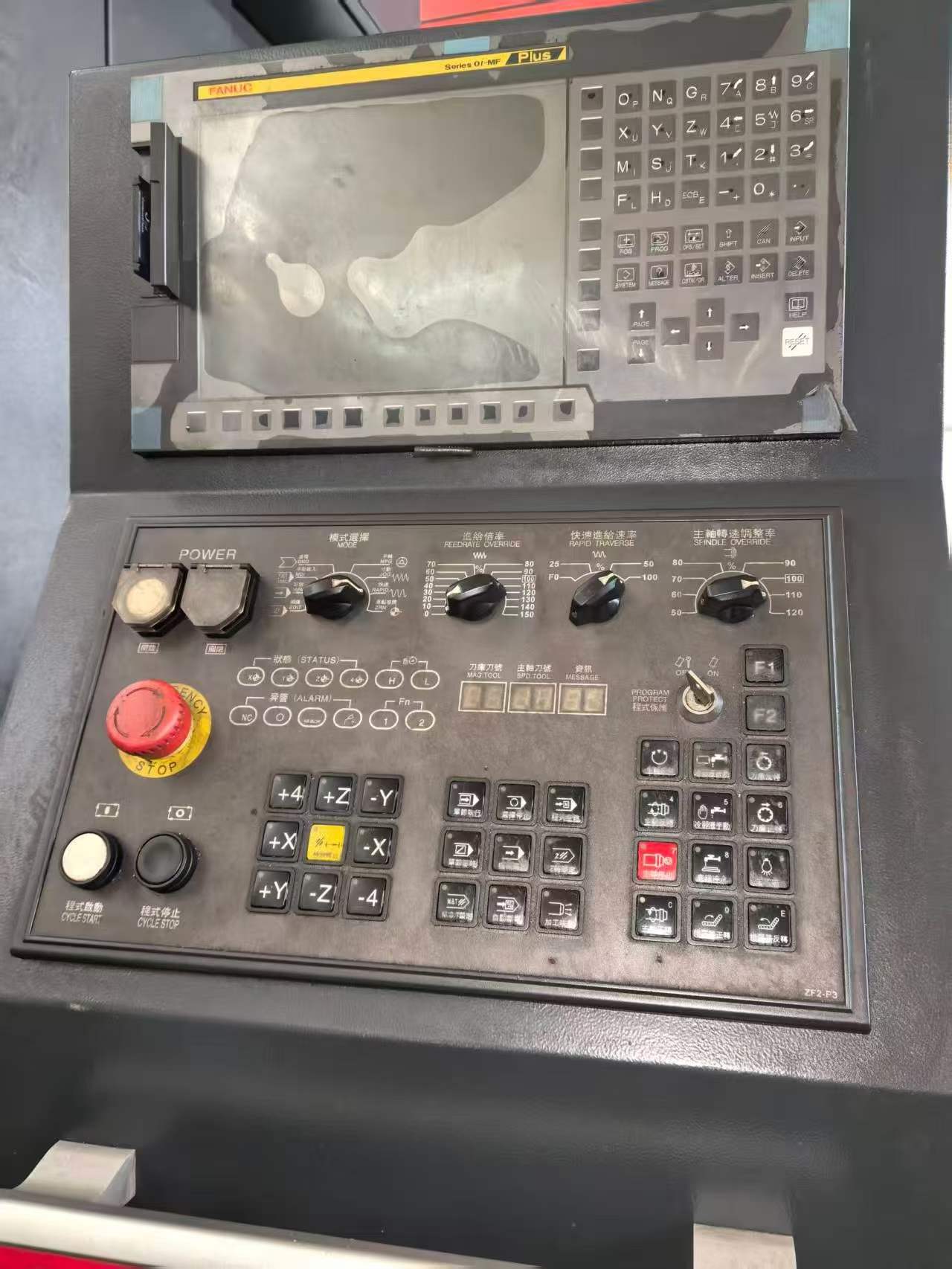

Controller	Fanuc OI-MF Plus
Year	2021
Oil Cooler	Included
Chip Conveyor	Dual screw chip conveyor
Machine Type	Gantry Machining Center
Model	2016
