AvailableCNC Drilling Machine
Used Taima i 70 plusT 13 CNC Drilling and Tapping Center
Available from stock. Taima i 70 plusT 13 Drilling and Tapping Center, equipped with Mitsubishi M80 control system, manufactured in 2022. Machine is in good condition and ready for inspection.
- Machine Code
- DR260718
- Year
- 2022
- Location
- China
- Usage Hours
- On request
Main Specifications
| Spindle speed | 12000 rpm |
|---|---|
| X/Y/Z travel | 1300/600/450 mm |

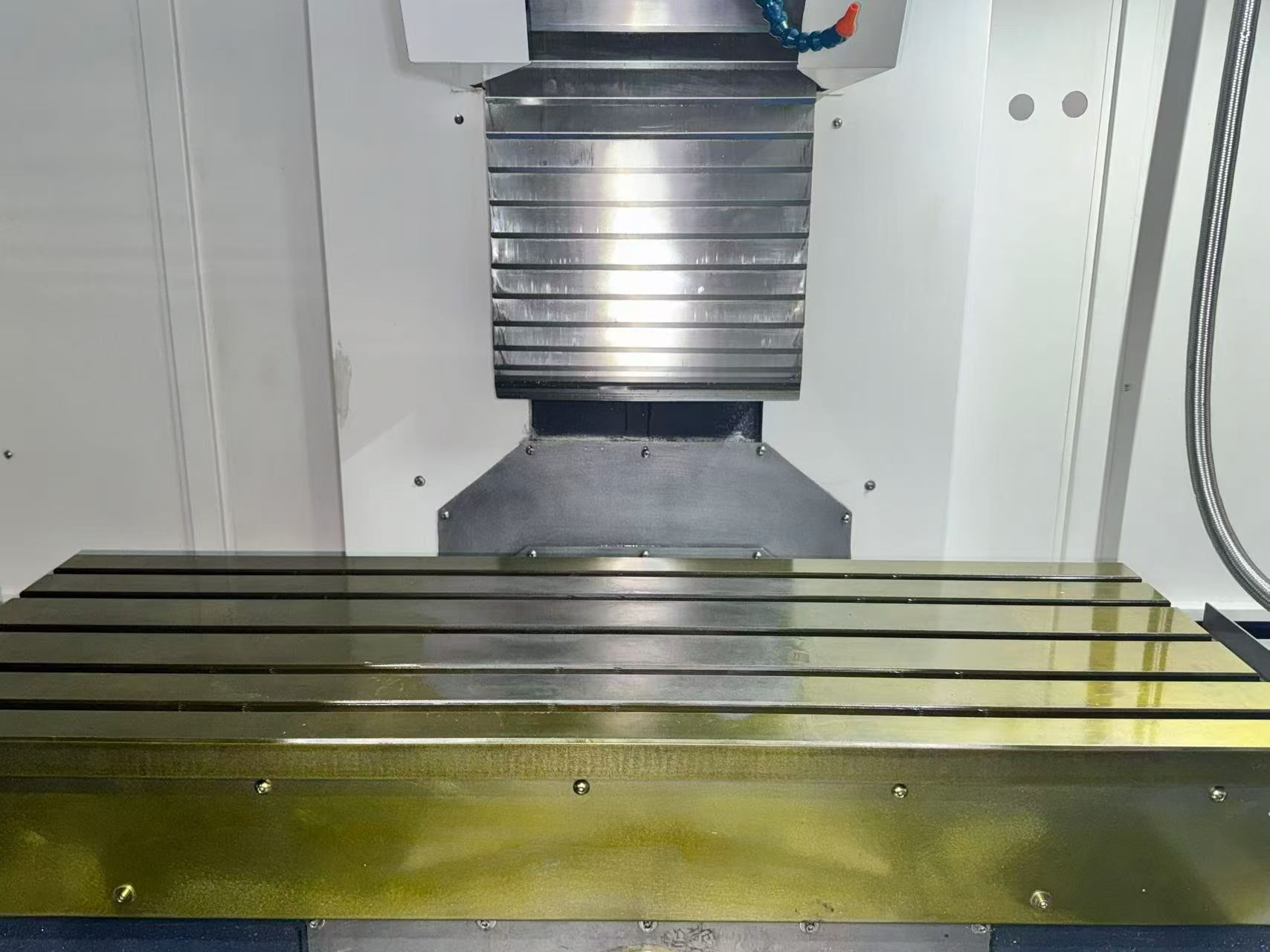

| Worktable size | 1400 x 500 mm |

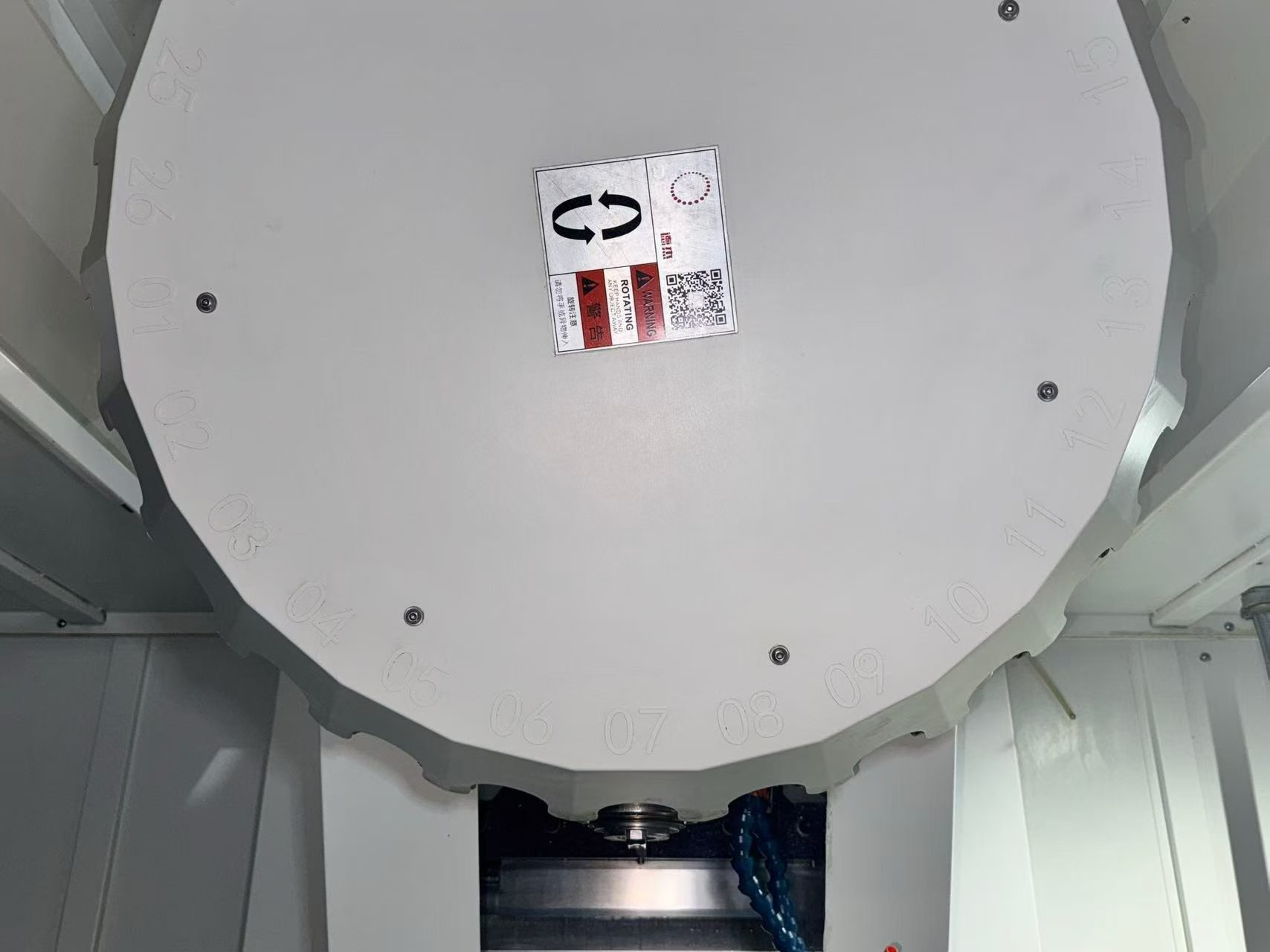

| Tool magazine capacity | 26 tools |
| Spindle taper | BT30 |
| Repeatability | 0.005 mm |
| Year | 2022 |
| Machine Type | Drilling and Tapping Center |

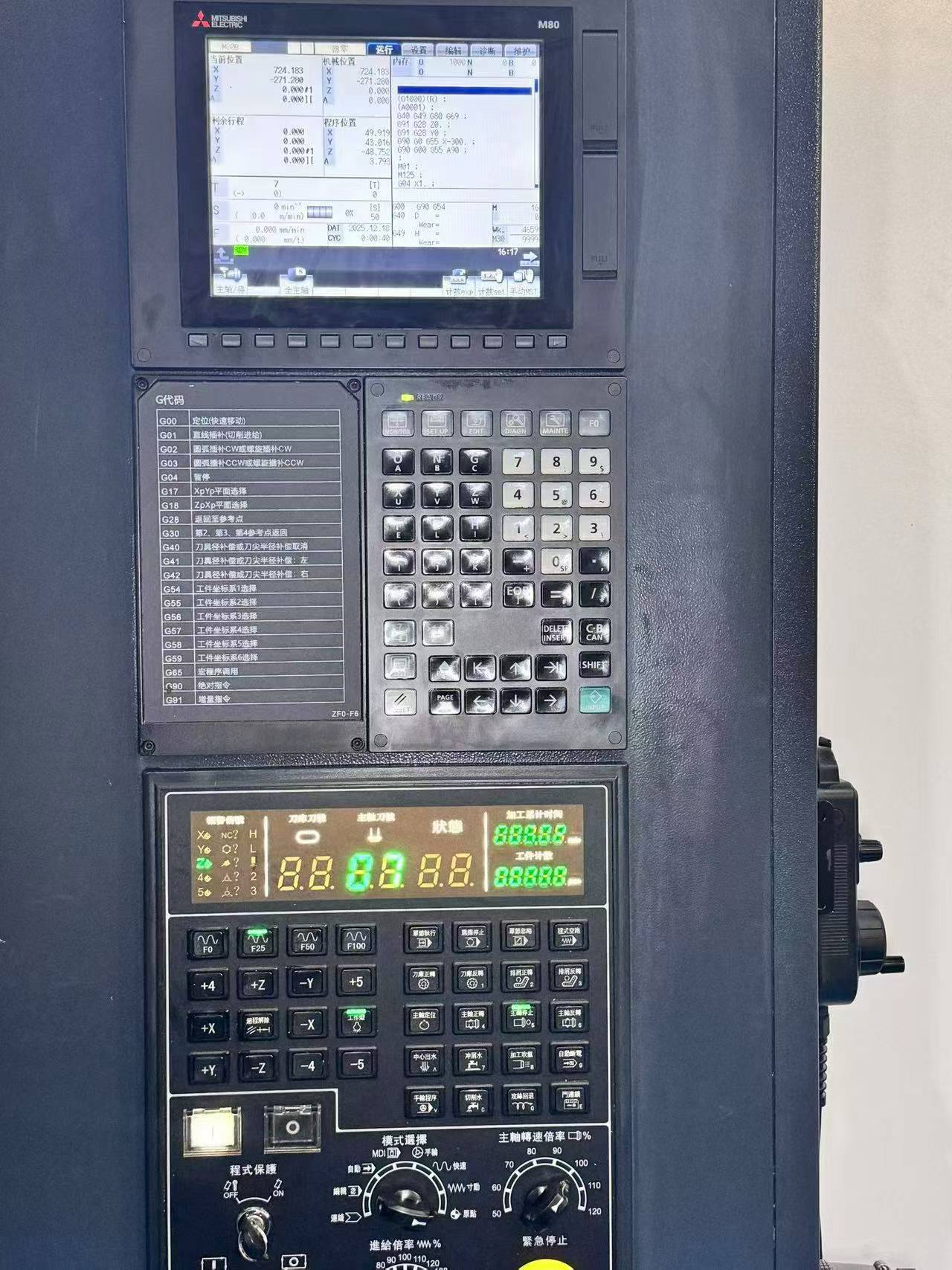

| Controller | Mitsubishi M80 |
| Z Axis Extension | 200 mm |
| Guideway Configuration | X/Y/Z linear guideways |
| Rapid Traverse Speed | 36/36/36 m/min |
| Spindle Nose To Table Distance | 730 mm |
| Machine Dimensions | 3400 x 2900 x 2900 mm |
| Spindle Runout | 0.01 mm |
| Z Axis Straightness (front) | 0.02 mm |
| Z Axis Straightness (side) | 0.02 mm |
