AvailableCNC Drilling Machine

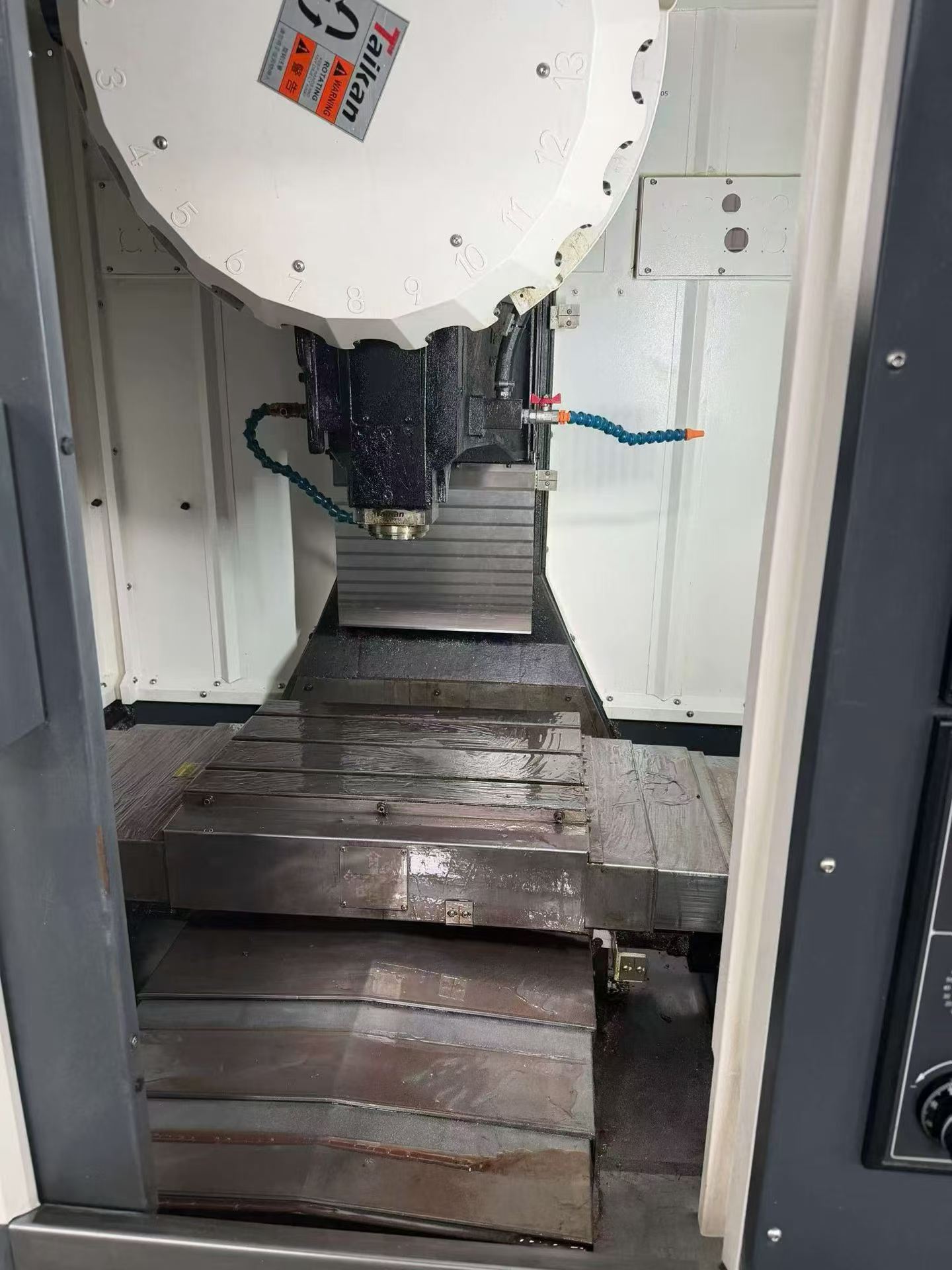

Used Taiquan T-500 B Drilling and Tapping Center with Mitsubishi M80A
Used Taiquan T-500 B Drilling and Tapping Center with Mitsubishi M80A control system. Features 21-position servo tool magazine, BT30 spindle at 24000 rpm, X/Y/Z travel 500 x 400 x 330 mm, Z-axis extended by 200 mm, spindle nose to table distance 350-680 mm. Machine has been used lightly with oil-based processing, in good condition. Available for on-site inspection and trial.
- Machine Code
- OE260730
- Year
- On request
- Location
- China
- Usage Hours
- On request
Accessories
21-position servo tool magazine, BT30 spindle
Main Specifications
| Spindle speed | 24000 rpm |
|---|---|
| Spindle taper | BT30 |
| Tool magazine capacity | 21 |
| X-axis travel | 500 mm |
| Y-axis travel | 400 mm |
| Z-axis travel | 330 mm |
| Distance from spindle nose to table | 350-680 mm |
| Machine Type | Drilling and Tapping Center |
| Brand | Taiquan |
| Model | T-500 B |
| Controller | Mitsubishi M80A |
| Tool Magazine Type | Servo |
| Z-axis Increased Height | 200 mm |
| Usage Condition | Little used |
