AvailablePlaner Milling Machine

Used Tianrui Jinggong Kraft VM 3018 Gantry Machining Center

This used Tianrui Jinggong Kraft VM 3018 gantry machining center is equipped with a FANUC 0i-MF control system. It features a BT50 spindle with 6000 rpm geared head, oil cooling, and 24-tool magazine. The machine has linear guideways on all axes and dual screw + chain chip conveyors. Worktable size is 3200 x 1600 mm with travels of 3200/1930/800 mm. Gantry clearance is 1020 mm high and 1840 mm wide. The spindle nose to table distance is 1010 mm. Machine is in good condition and available for inspection in Ningbo, China.

Machine Code: MC260749
Year: 2020
Location: Ningbo, China
Usage Hours: On request

Accessories

24-position mechanical tool magazine, dual screw and chain chip conveyor, spindle oil cooler, coolant system, chip tray

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

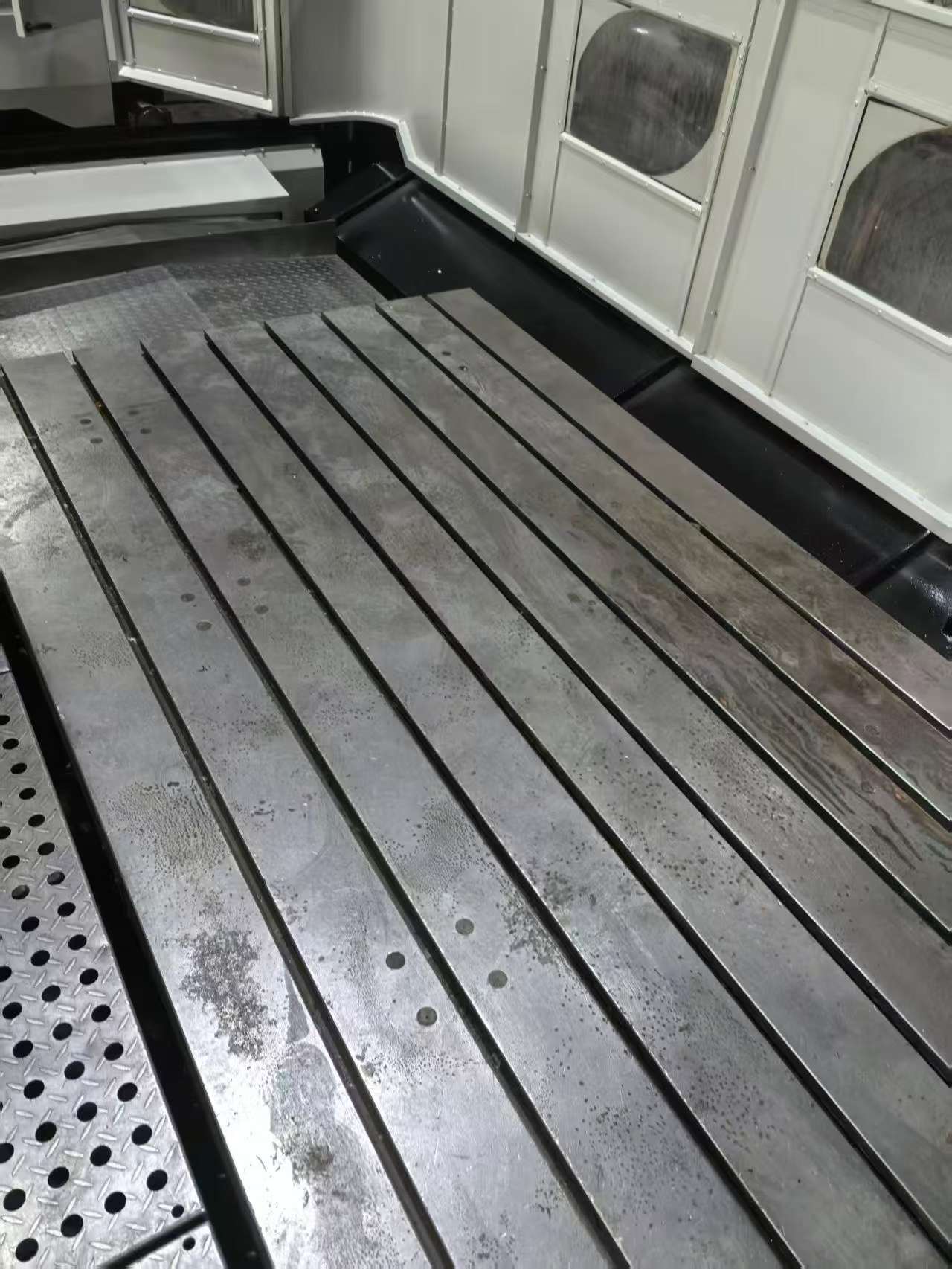

Worktable size	3200 x 1600 mm
X/Y/Z travel	3200 / 1930 / 800 mm
Spindle taper	BT50
Spindle speed	6000 rpm
Tool magazine capacity	24
Distance from spindle nose to table	1010 mm
Gantry clearance height	1020 mm
Gantry clearance width	1840 mm
Machine_type	Gantry Machining Center
Year	2020

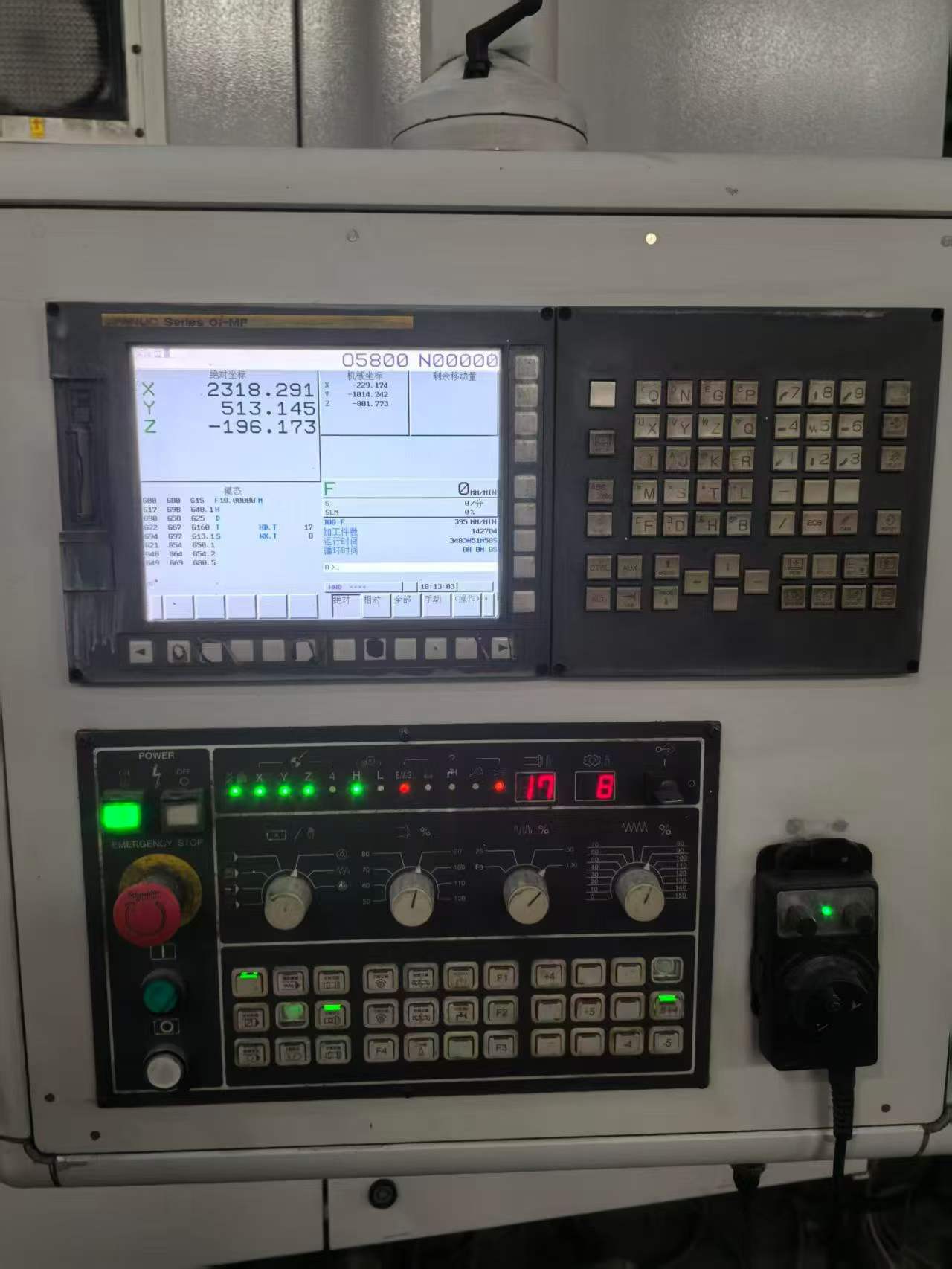

Controller	FANUC 0i-MF
Guideway Configuration	X/Y/Z linear guideways
Chip Conveyor	dual screw and chain chip conveyor
Spindle Type	gear head

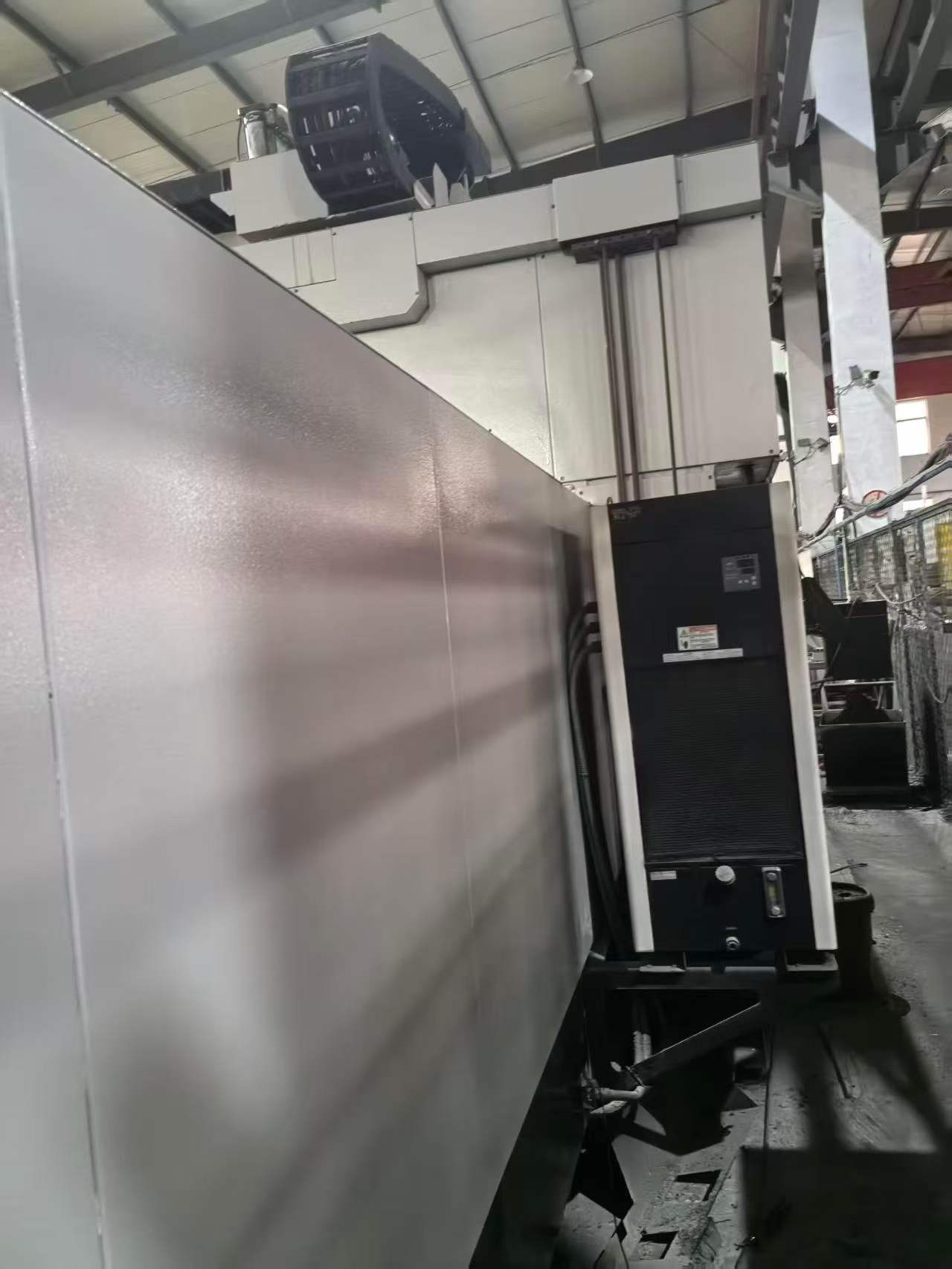

Oil Cooler	yes
