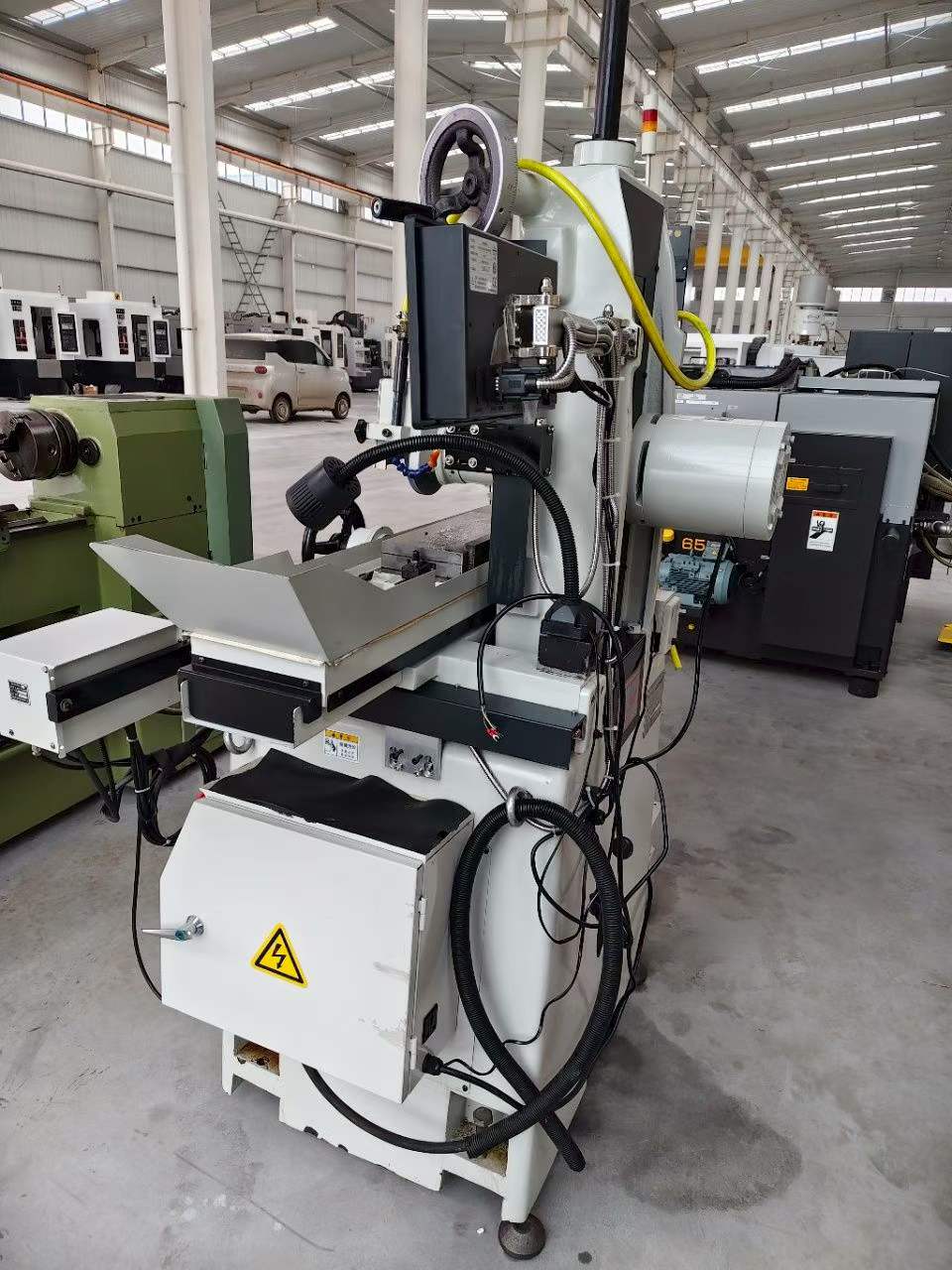

Used Tiger General 618 S Precision Surface Grinding Machine

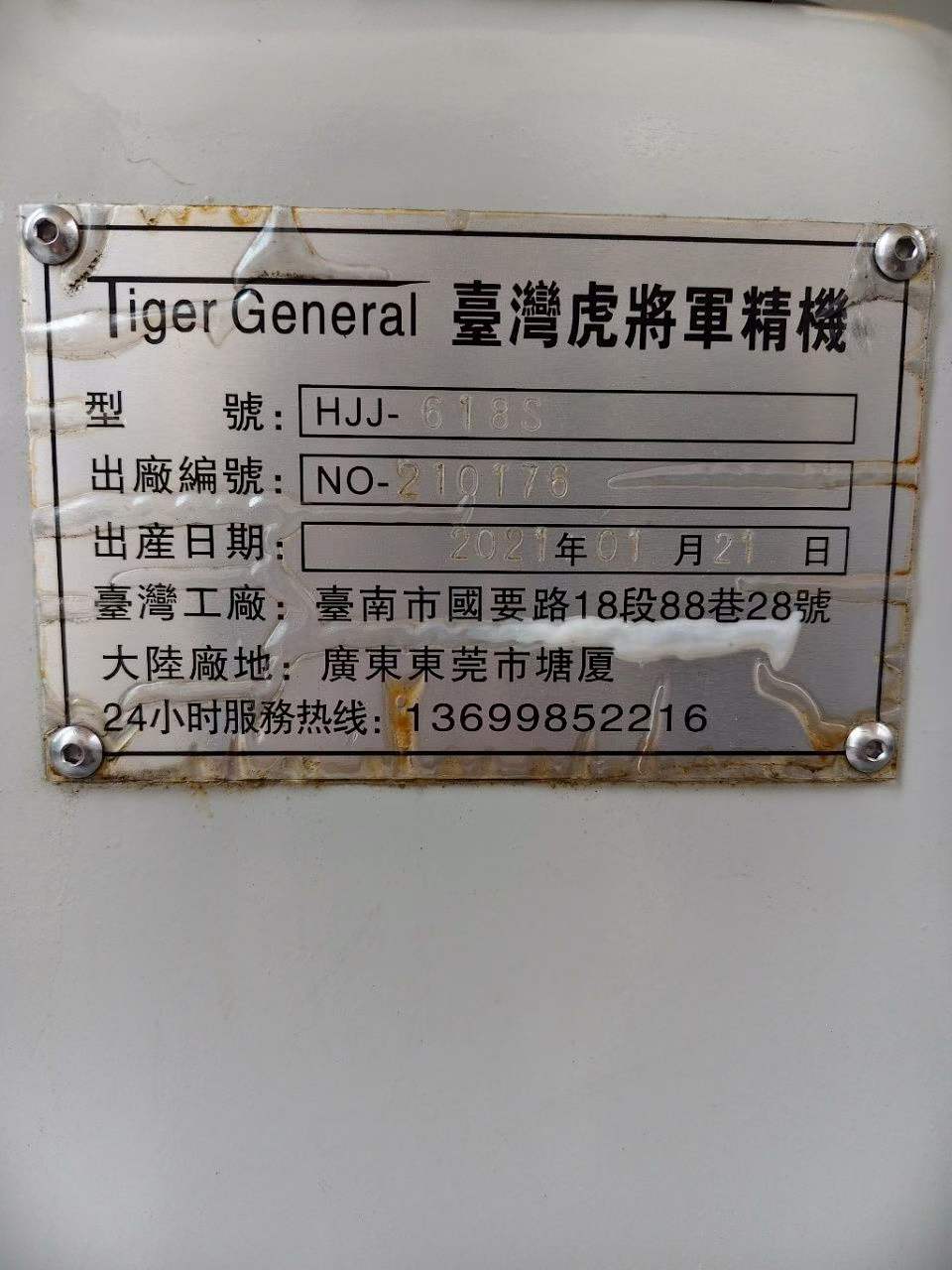

Tiger General 618 S precision surface grinding machine. Date of manufacture: January 2021. Suitable for high-precision grinding with cross/vertical handwheel feed accuracy of 0.002–0.005 mm per graduation.
- Machine Code
- GR260822
- Year
- 2021
- Location
- China
- Usage Hours
- On request
Contact access
Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.
Loading…
Main Specifications
| Worktable size | approx. 460 x 150 mm |
|---|---|
| Longitudinal travel | approx. 460–485 mm |
| Cross travel | approx. 160–180 mm |
| Maximum spindle speed | 3600 r.p.m |

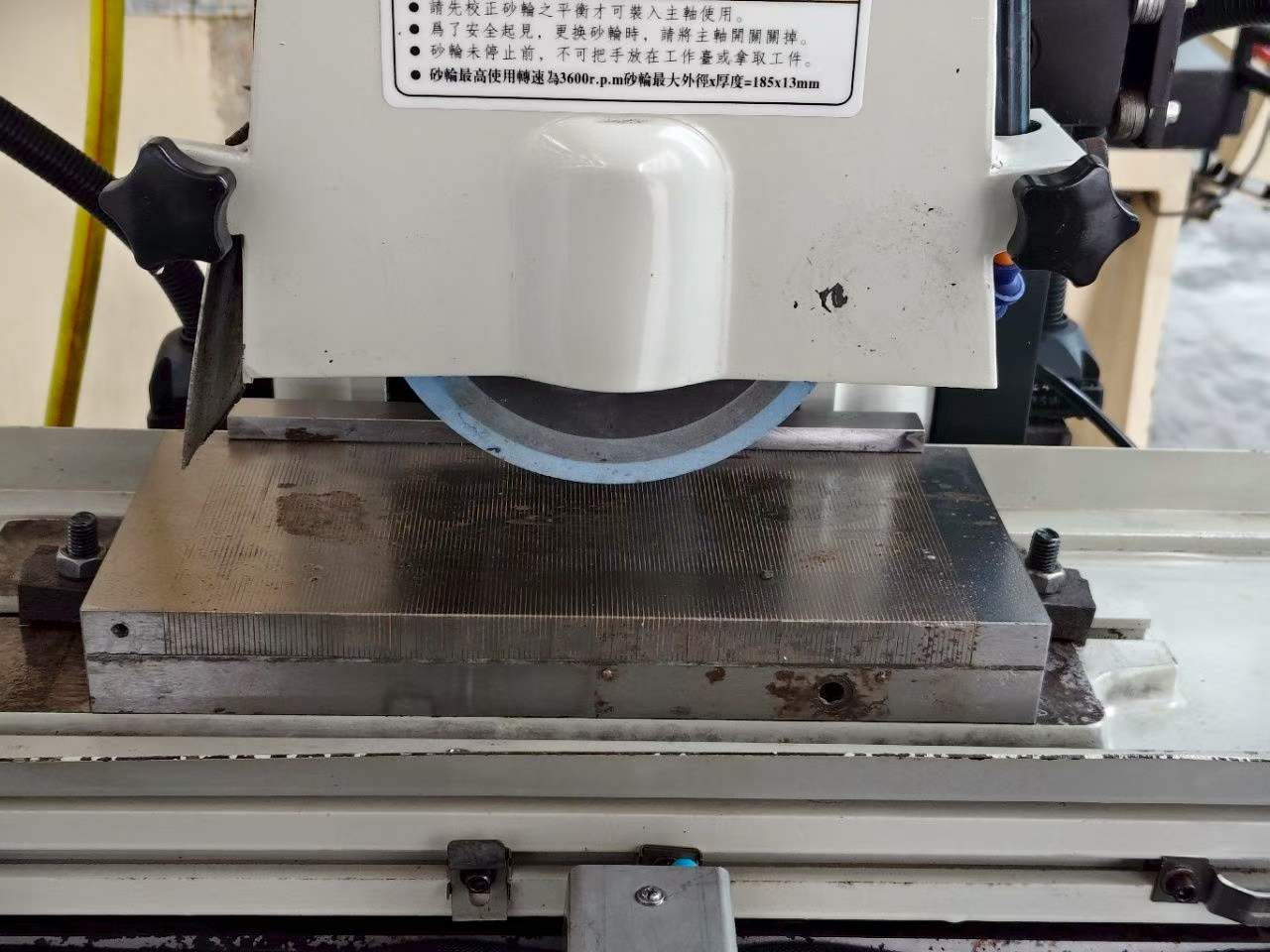

| Grinding wheel max. outer diameter | 185 mm |
| Grinding wheel thickness | 13 mm |

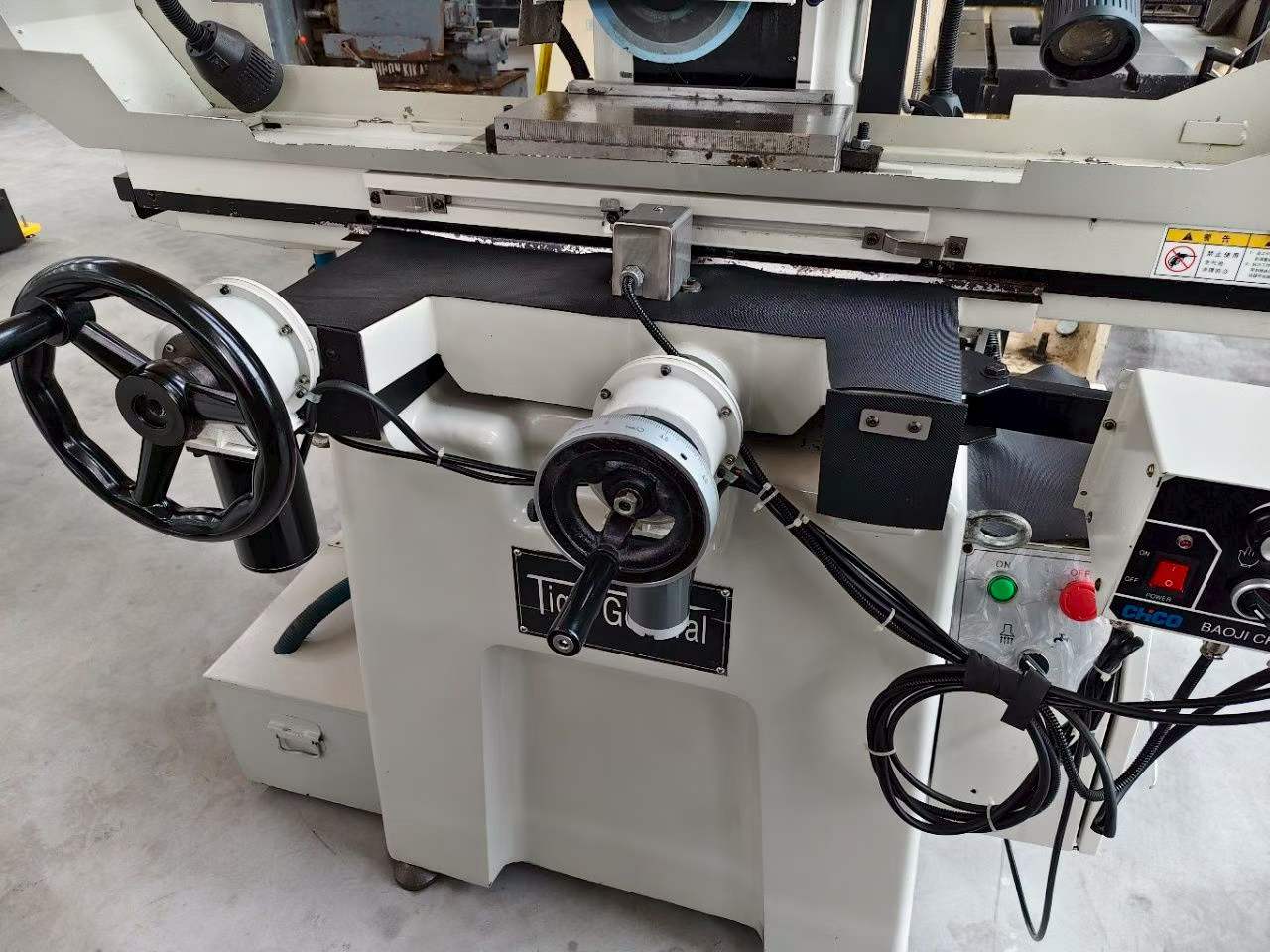

| Cross/vertical handwheel graduation | 0.002–0.005 mm |
