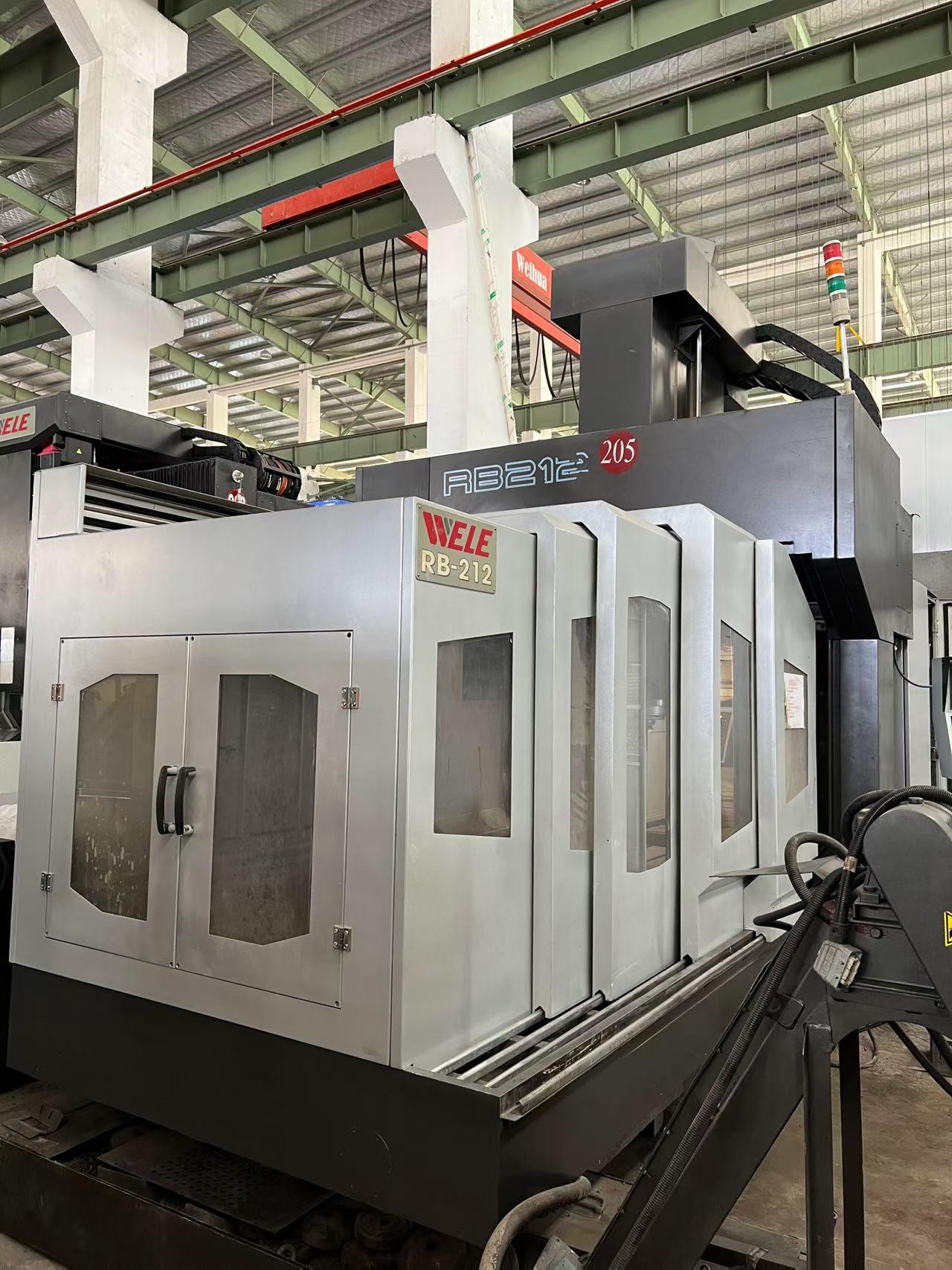

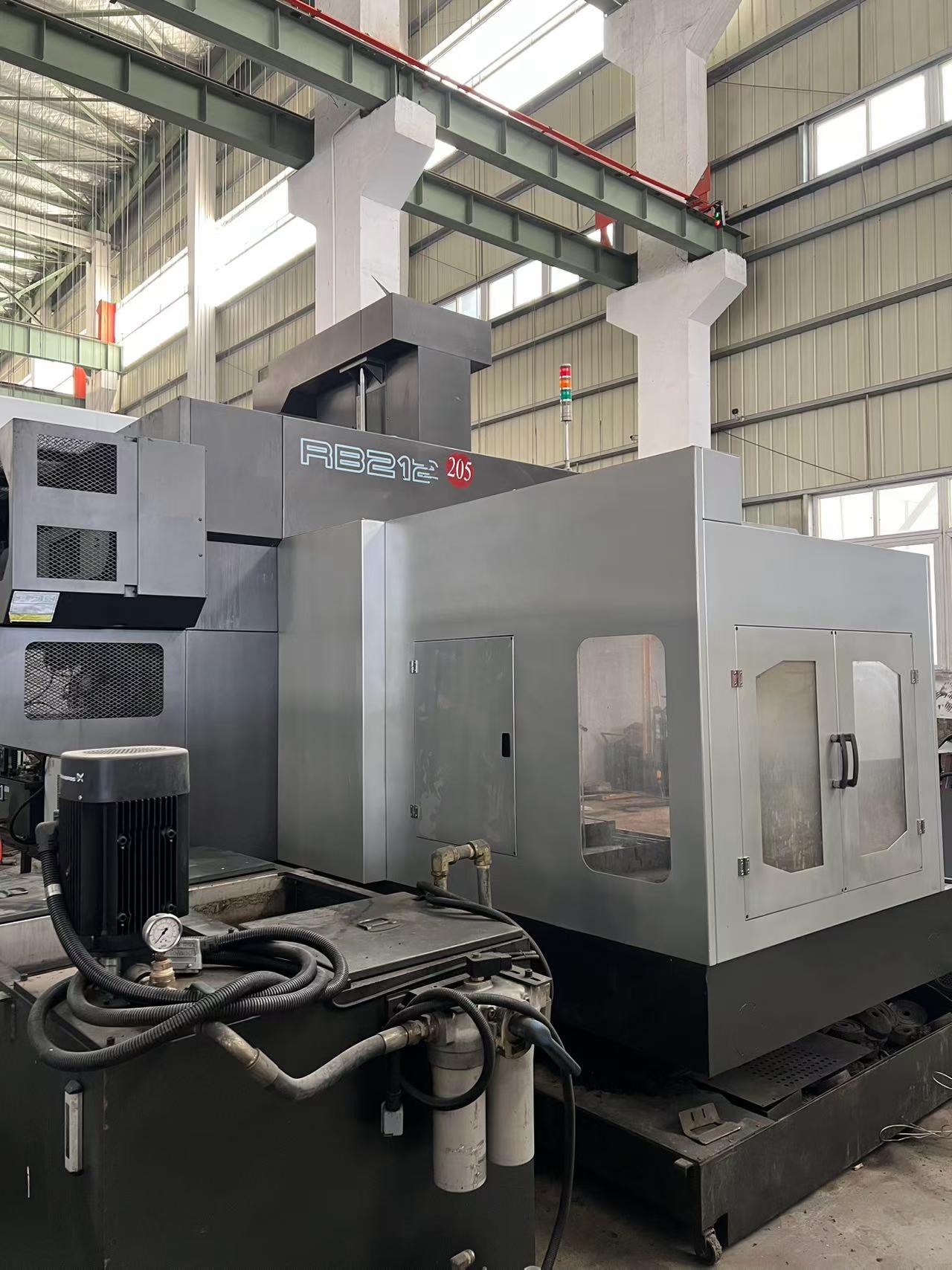

Used Weili 212 Gantry Machining Center (2 units)
Two identical used Weili 212 gantry machining centers. Equipped with BT50 gear drive spindle, 6000 rpm, through-spindle coolant, 32-tool chain magazine, and FANUC 18i-MB control. Available for inspection.
- Machine Code
- MC260759
- Year
- On request
- Location
- China
- Usage Hours
- On request
Accessories
Chip conveyor, linear scales on Z and Y axes
Contact access
Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.
Loading…
Main Specifications
| Spindle speed | 6000 rpm |
|---|---|
| X/Y/Z travel | 2100/1200/800 mm |
| Worktable size | 1100 x 2000 mm |
| Gantry width | 1300 mm |
| Gantry height | 1140 mm |
| Tool magazine capacity | 32 tools |
| Machine Type | Gantry Machining Center (Weili 212) |
| Quantity | 2 |

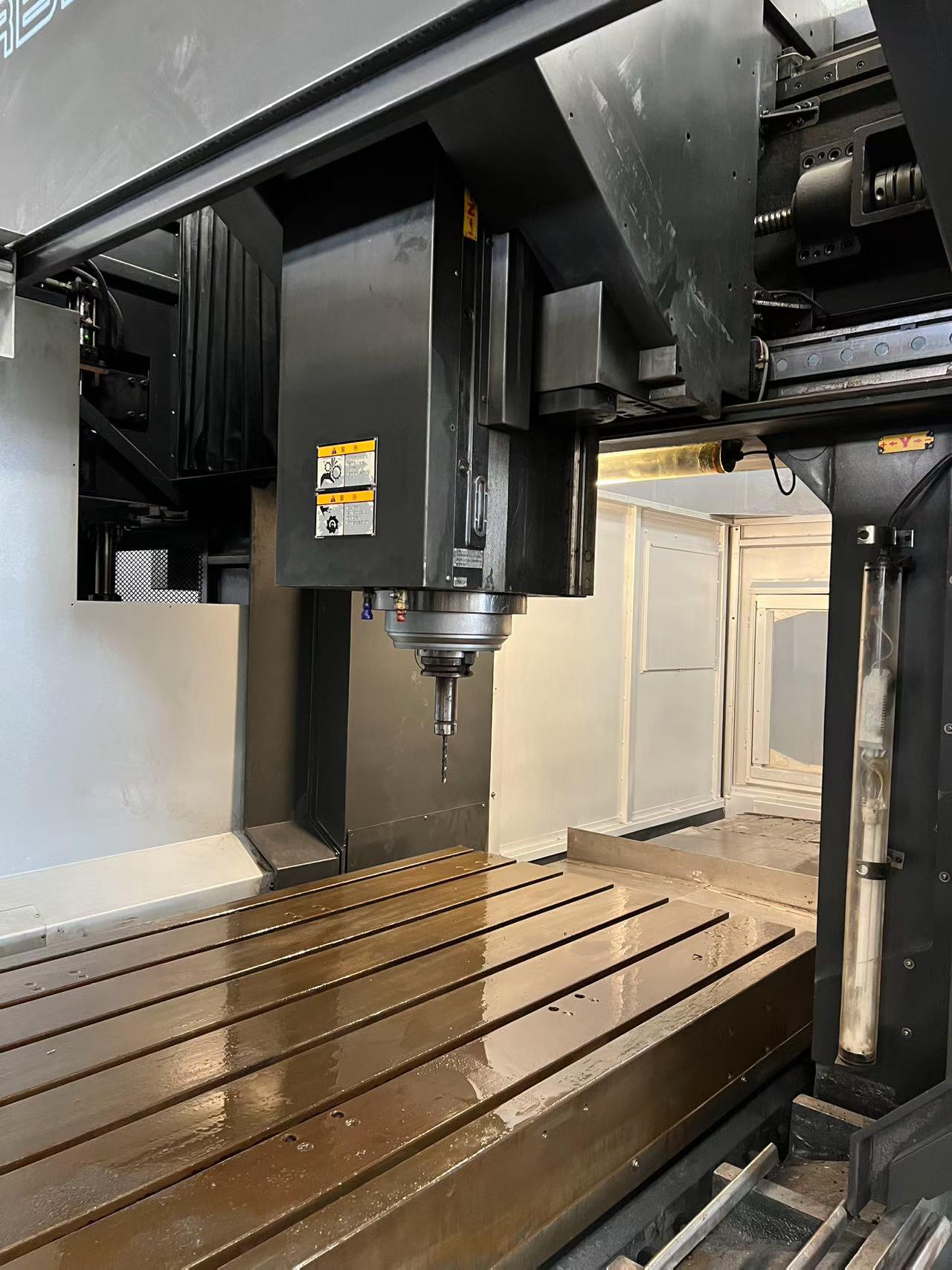

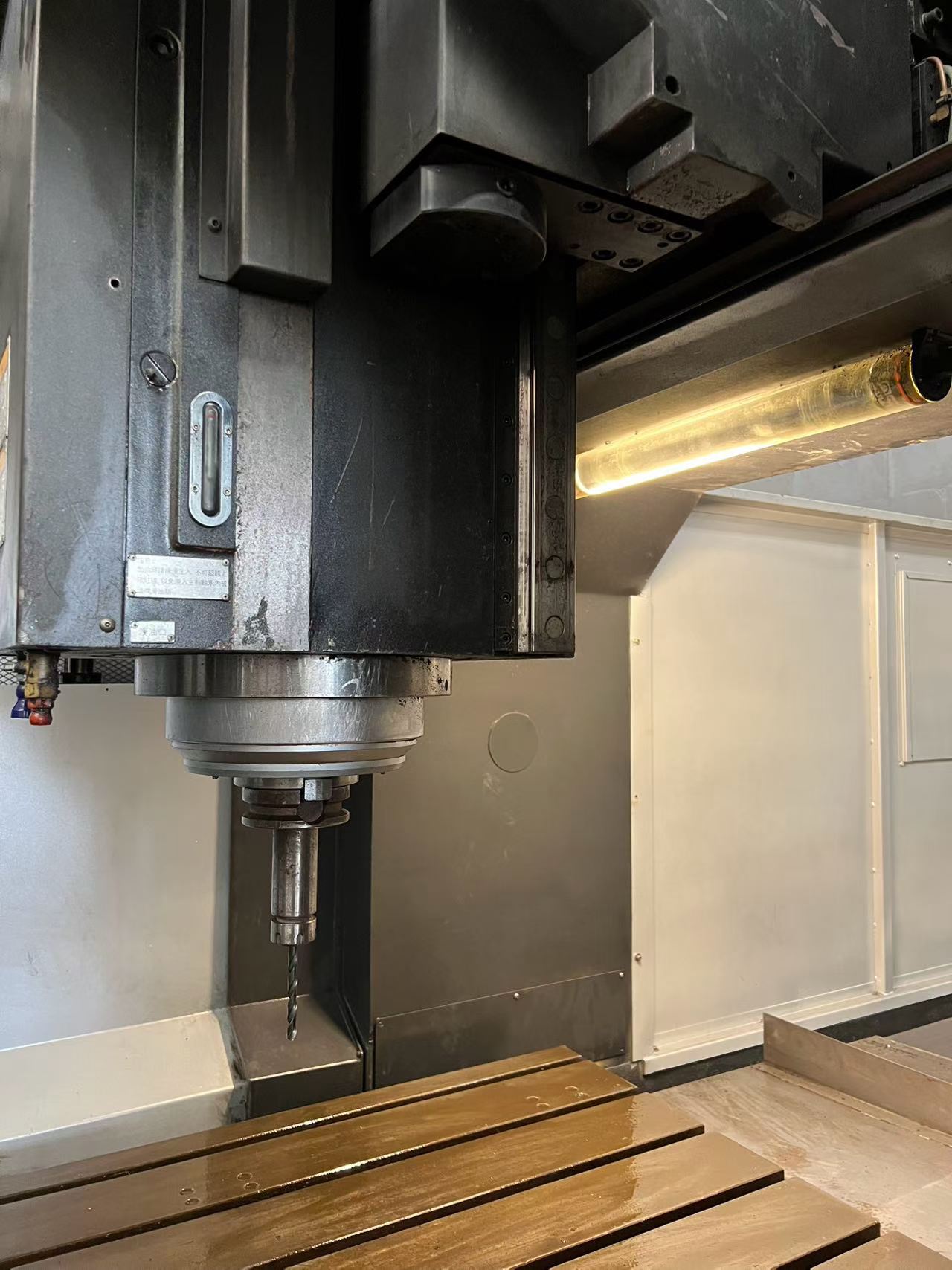

| Spindle | BT50 gear head |

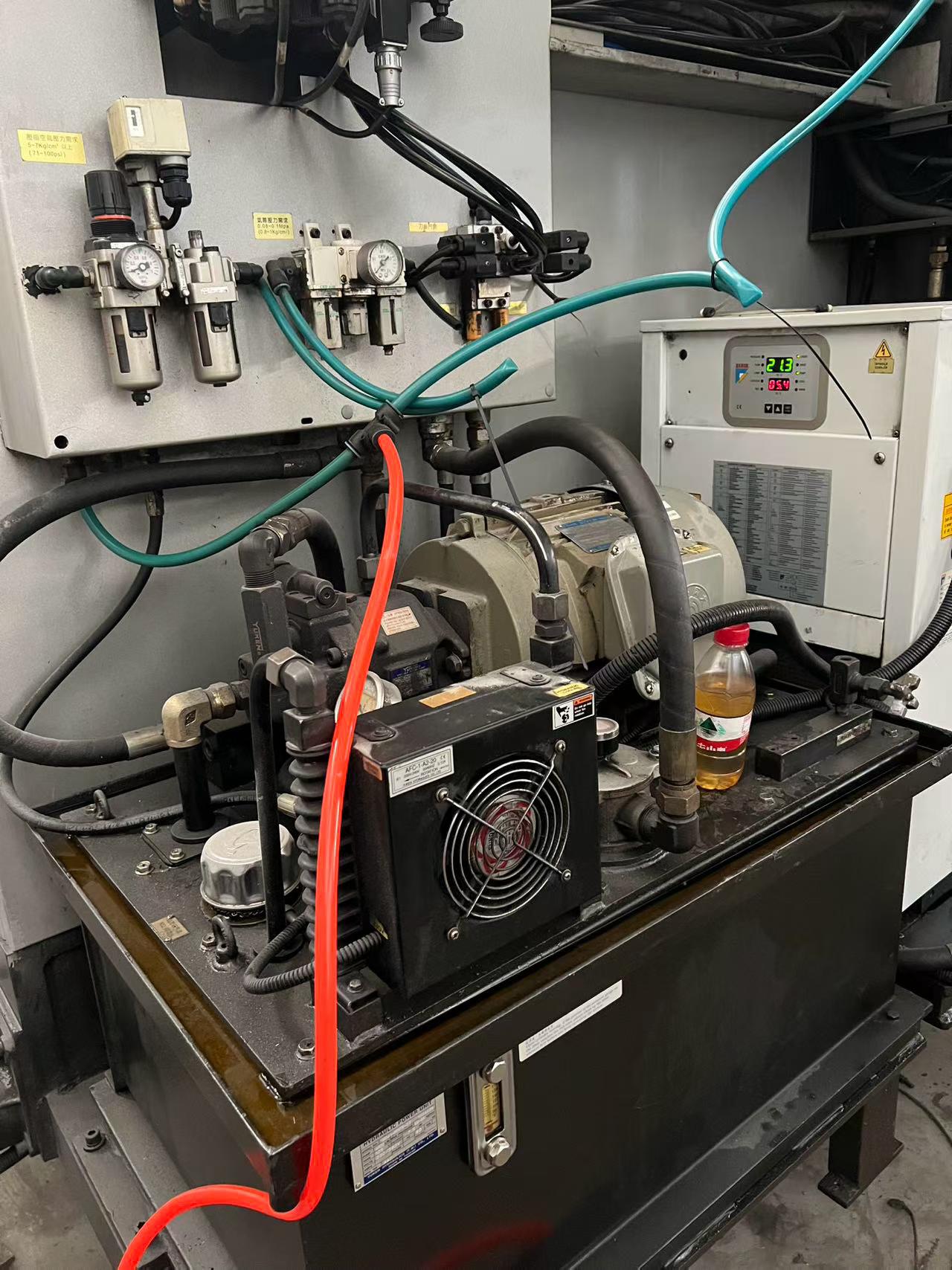

| Spindle Cooling | Oil cooling |
| Through-spindle Coolant | Yes |

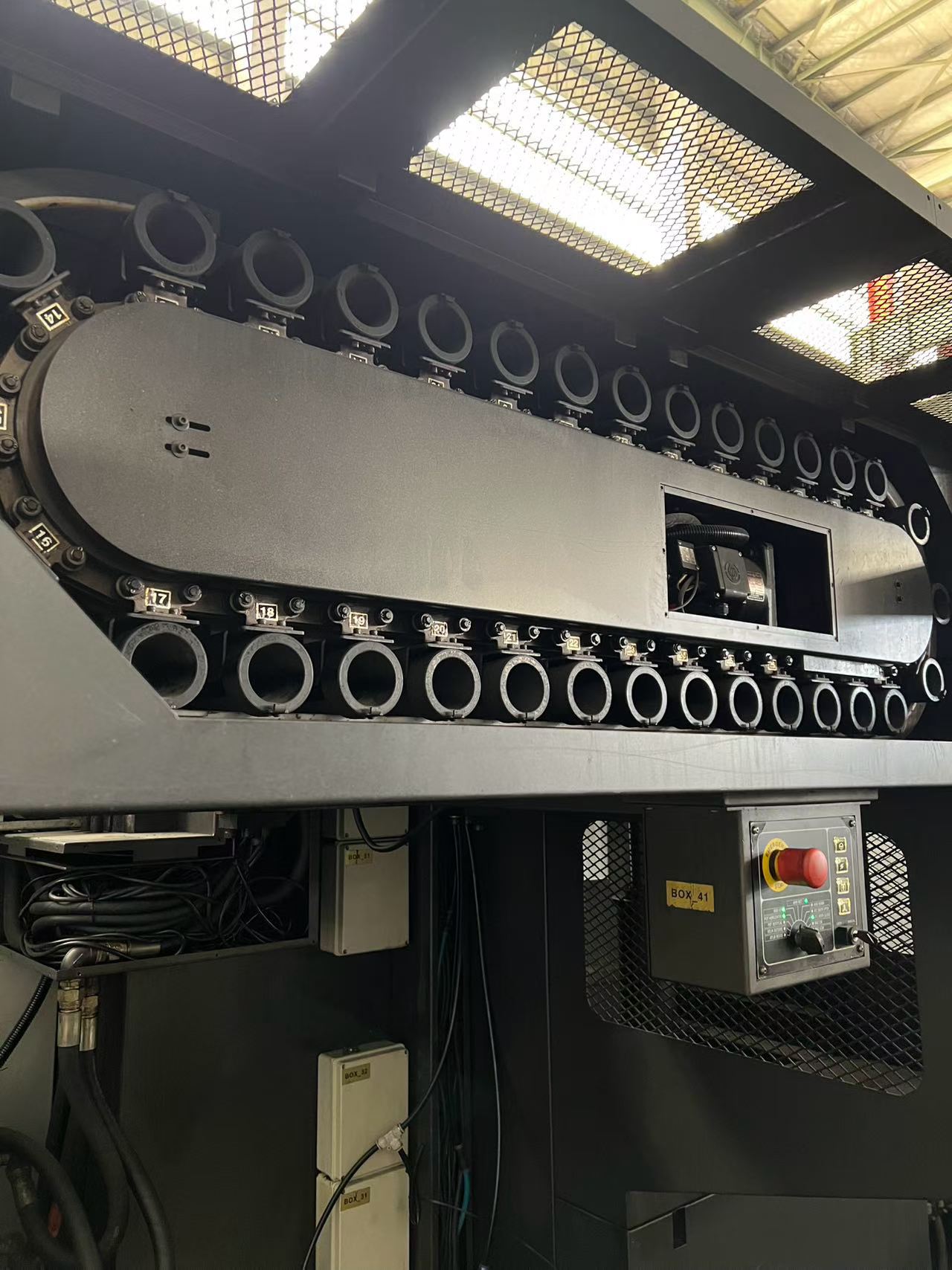

| Tool Magazine | 32 tools, chain type |

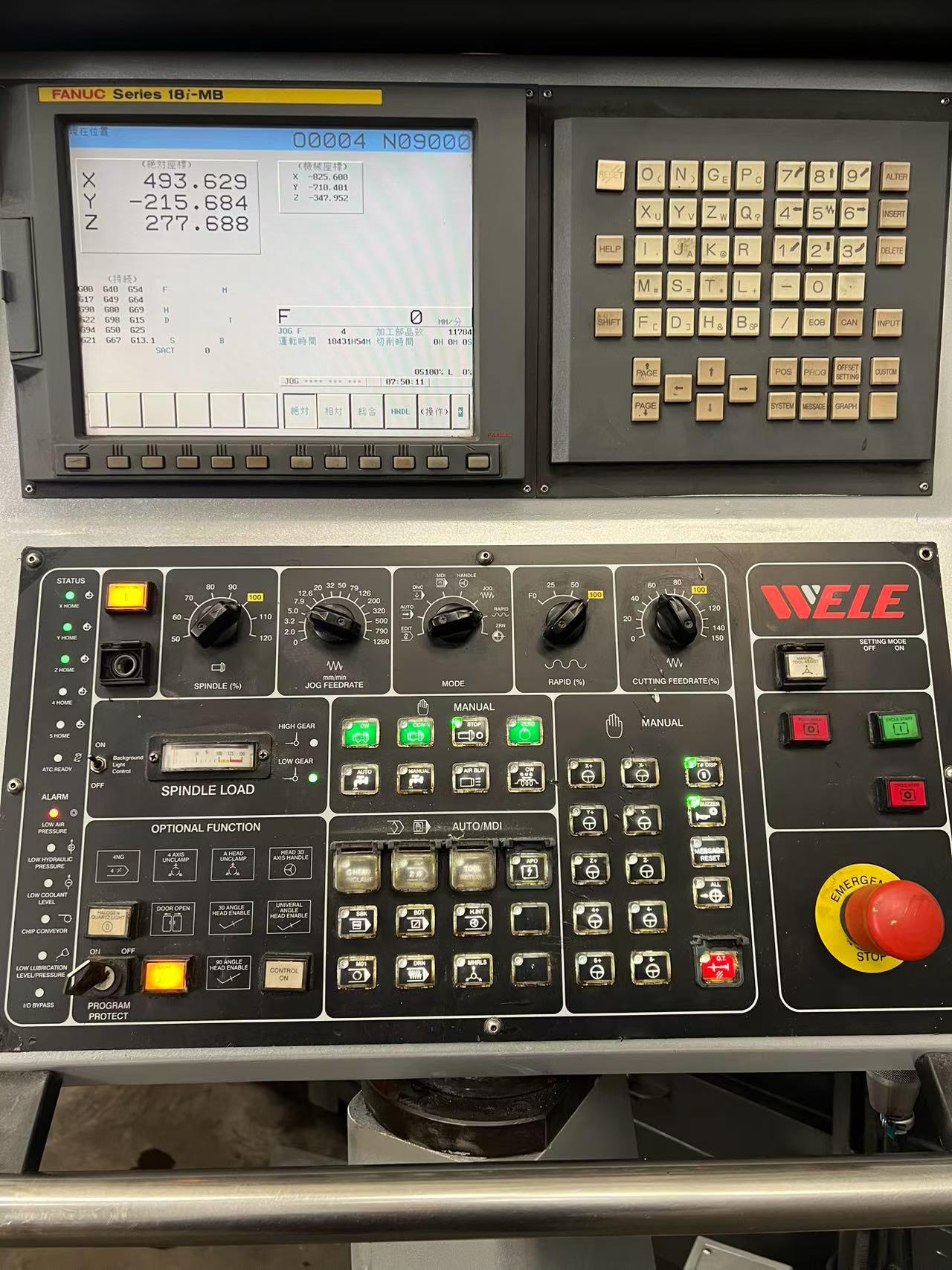

| Controller | FANUC 18i-MB |
| Chip Conveyor | Hinged belt chip conveyor |
