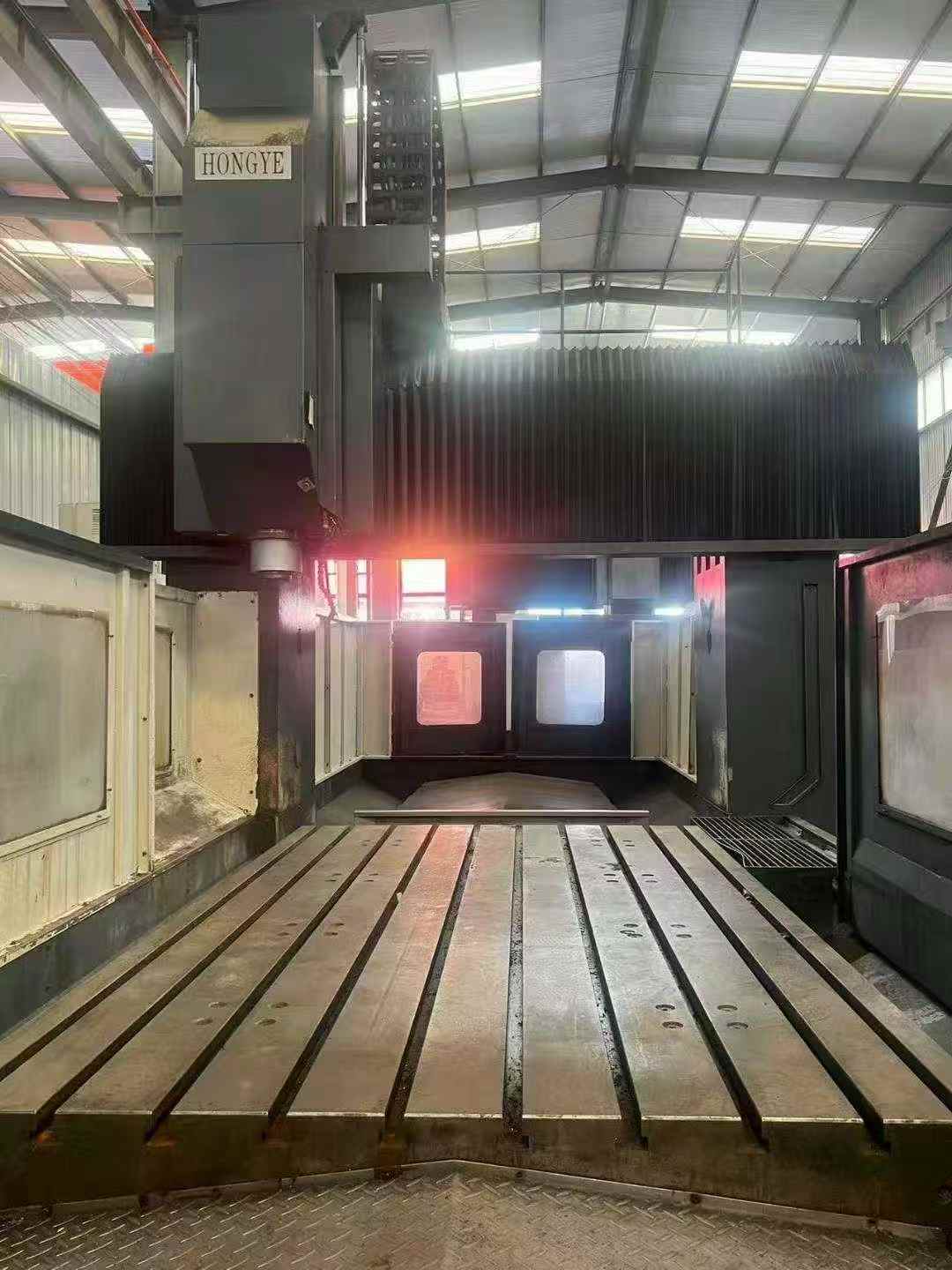

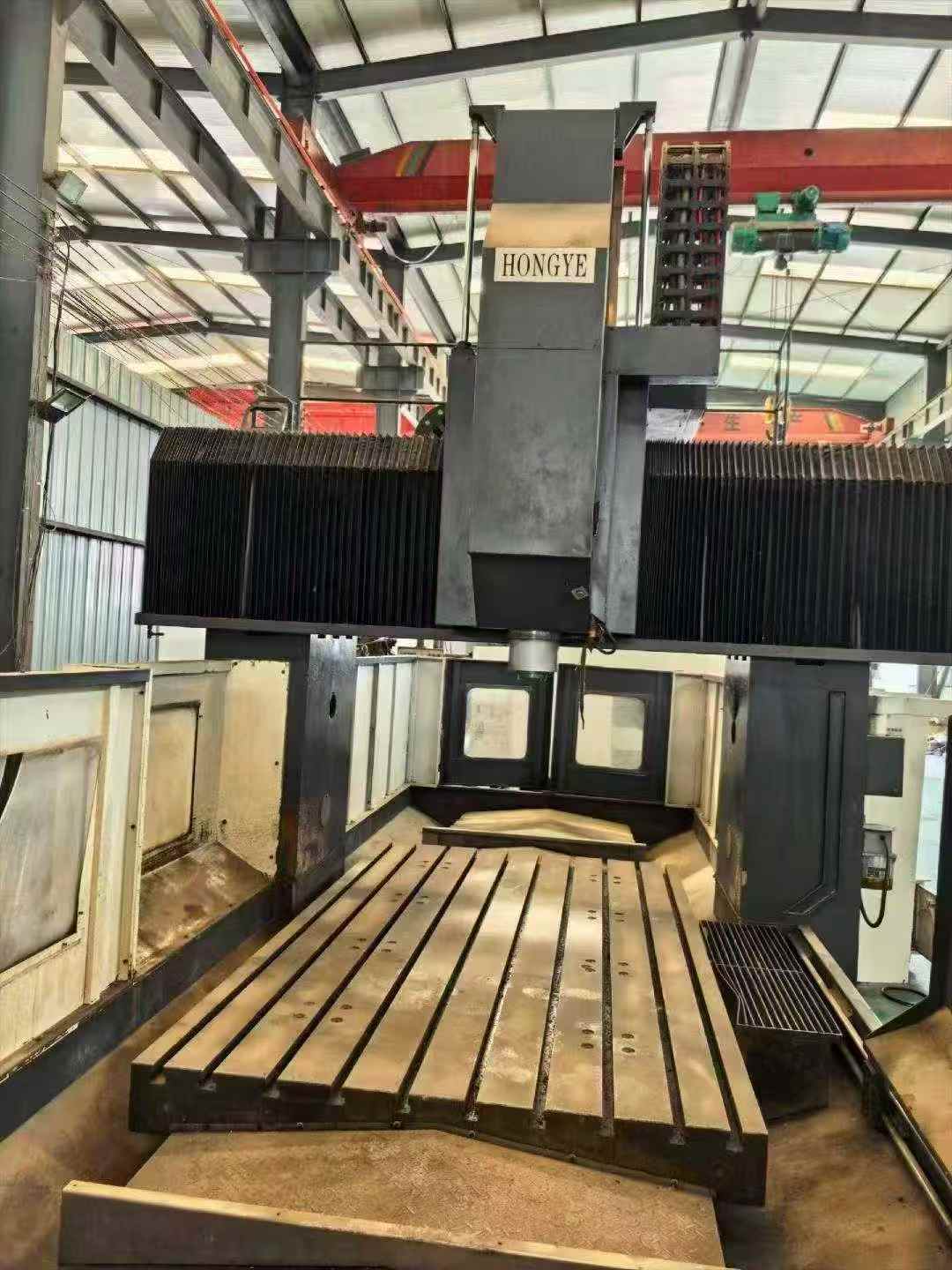

Used Wuyi Hongye 2719 CNC Gantry Milling Machine with Mitsubishi M80
Used 2019 Wuyi Hongye 2719 gantry milling machine equipped with Mitsubishi M80 control system. Machine is available for inspection in China.
- Machine Code
- MIL260625
- Year
- 2019
- Location
- China
- Usage Hours
- On request
Accessories

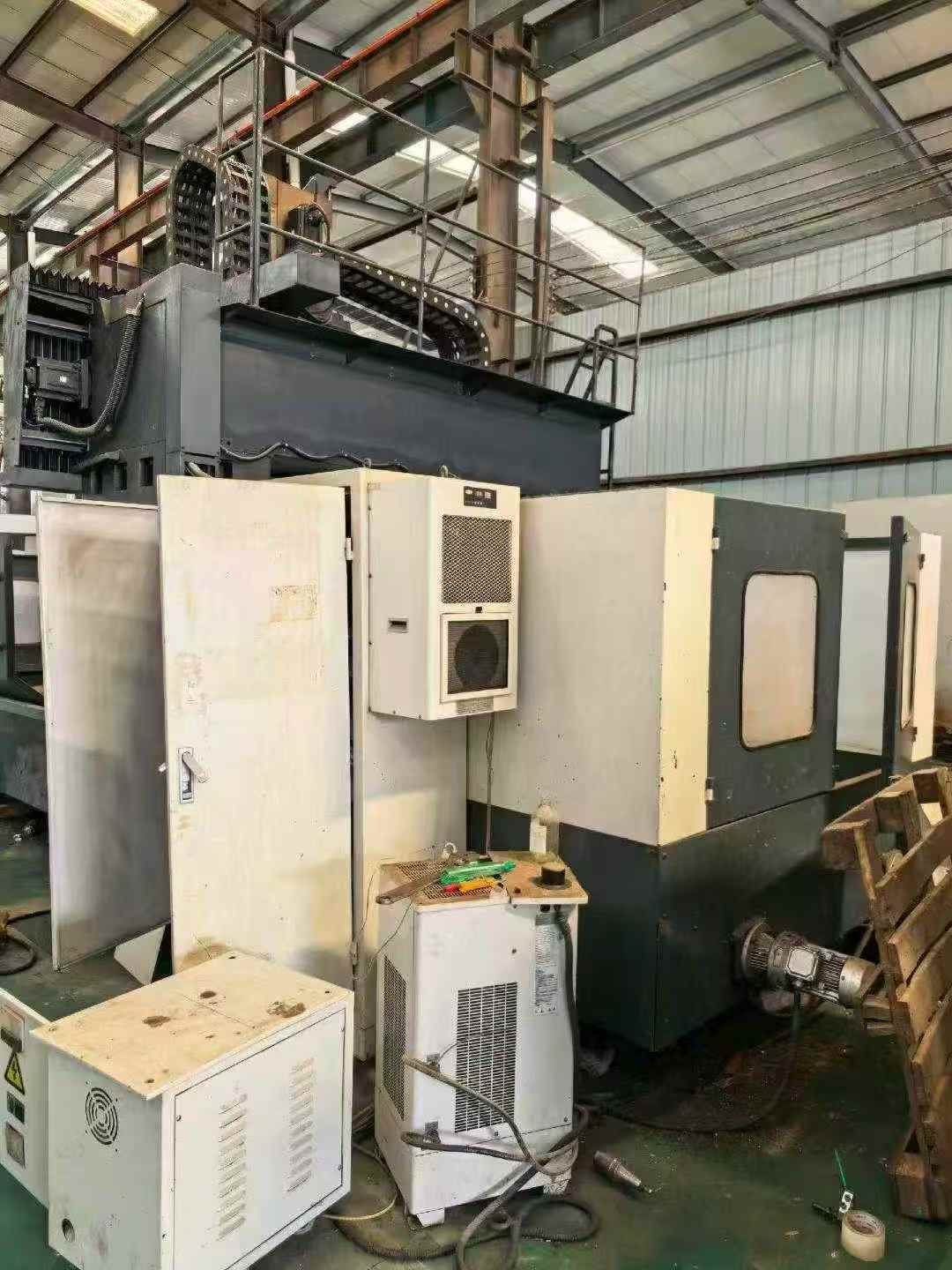

Spindle oil cooler, chip conveyor
Contact access
Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.
Loading…
Main Specifications
| X travel | 2700 mm |
|---|---|
| Y travel | 1900 mm |
| Z travel | 920 mm |

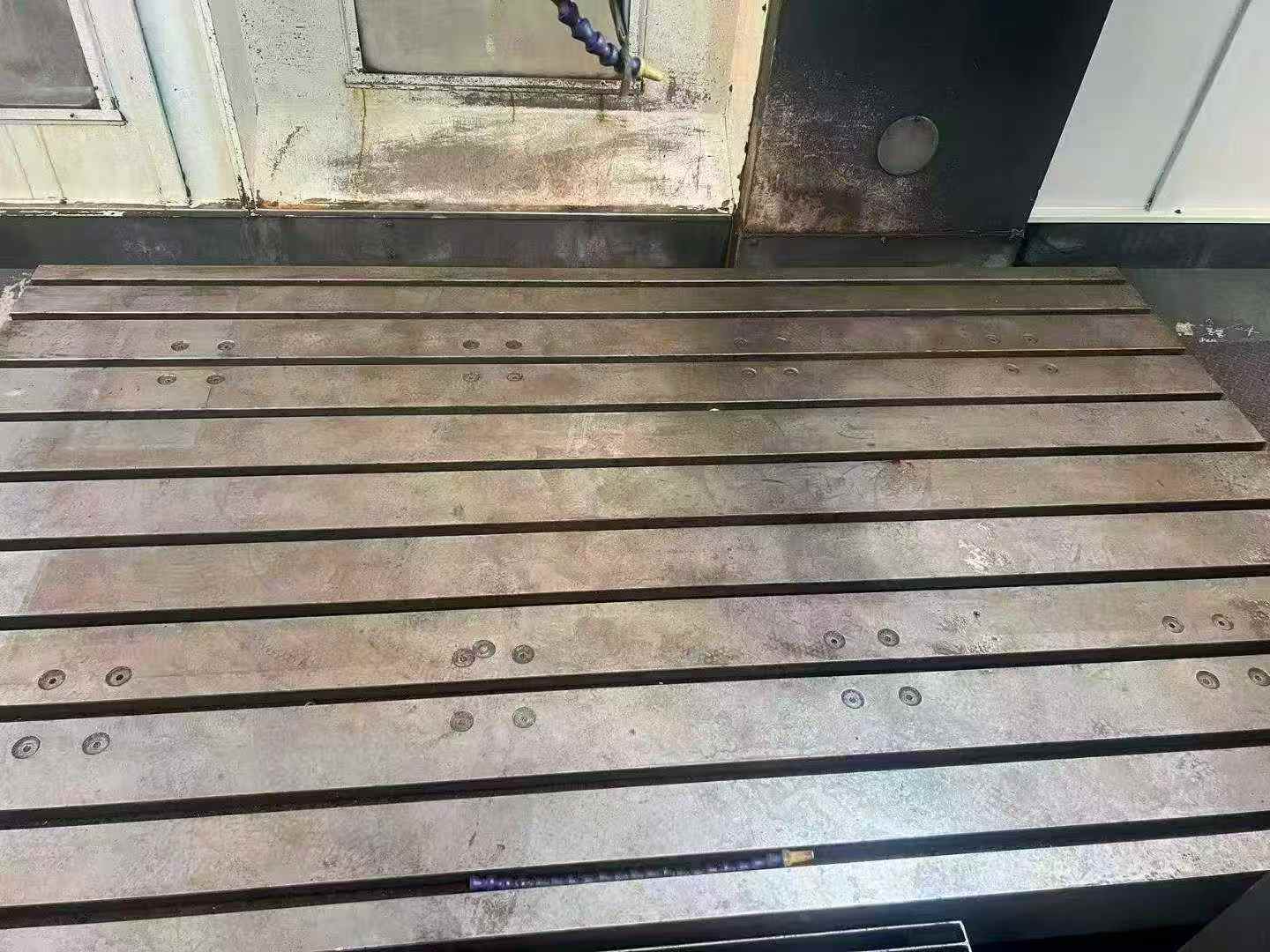

| Worktable size | 2700 × 1600 mm |
| Door width | 2 m |
| Door height | 1.12 m |

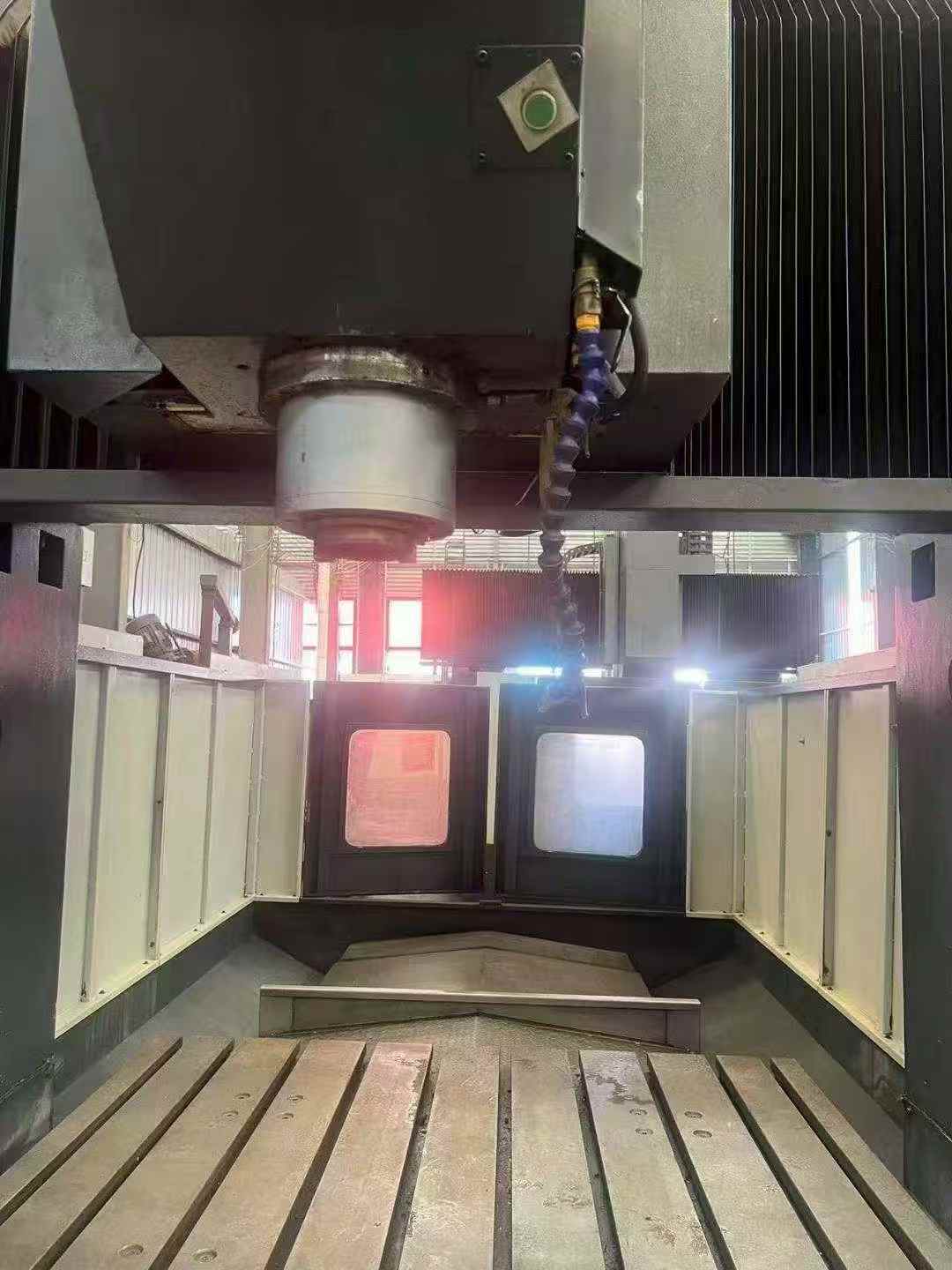

| Spindle speed | 5000 rpm |
| Spindle taper | BT50 |
| Guideways | Two linear + one box |
| Year | 2019 |

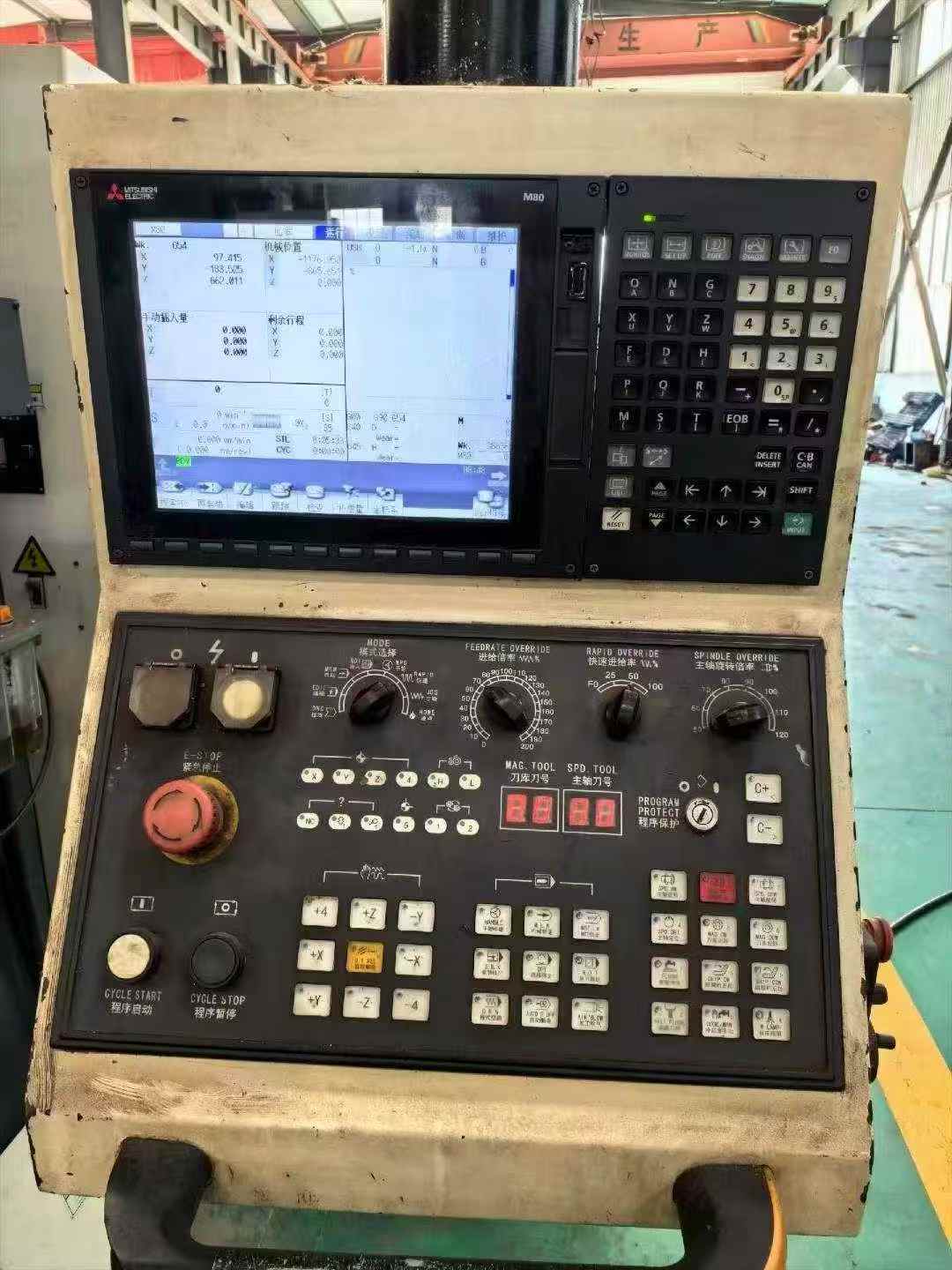

| Controller | Mitsubishi M80 |
| Machine Type | Gantry Milling Machine |
| Guideway Configuration | Two linear + one box guideway |
| Spindle Oil Cooler | Included |

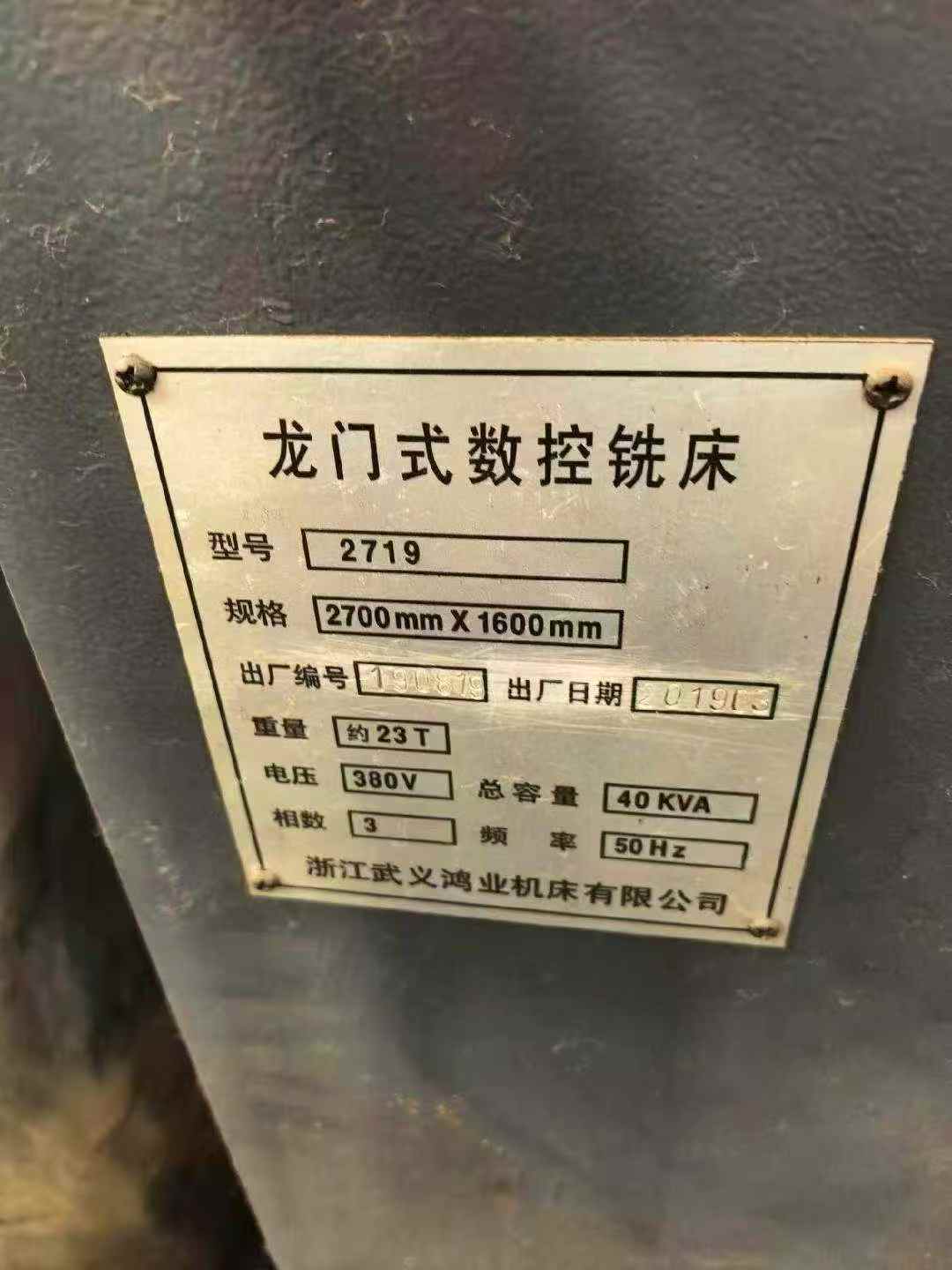

| Manufacturer | Zhejiang Wuyi Hongye |
| Model | 2719 |
| System Package | A |
| Y-axis Guideway Configuration | Two linear + one auxiliary box guideway |
