AvailablePlaner Milling Machine

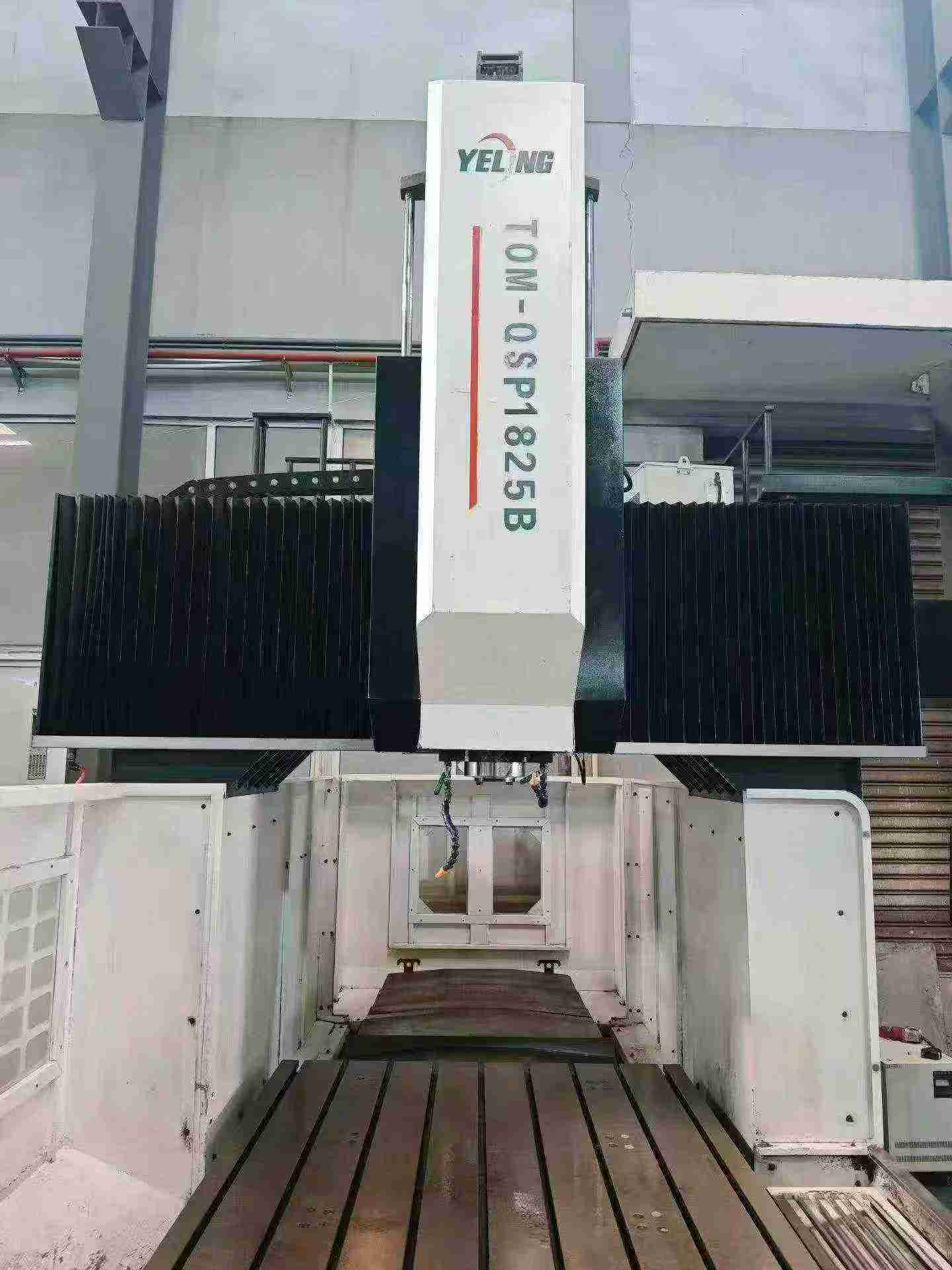

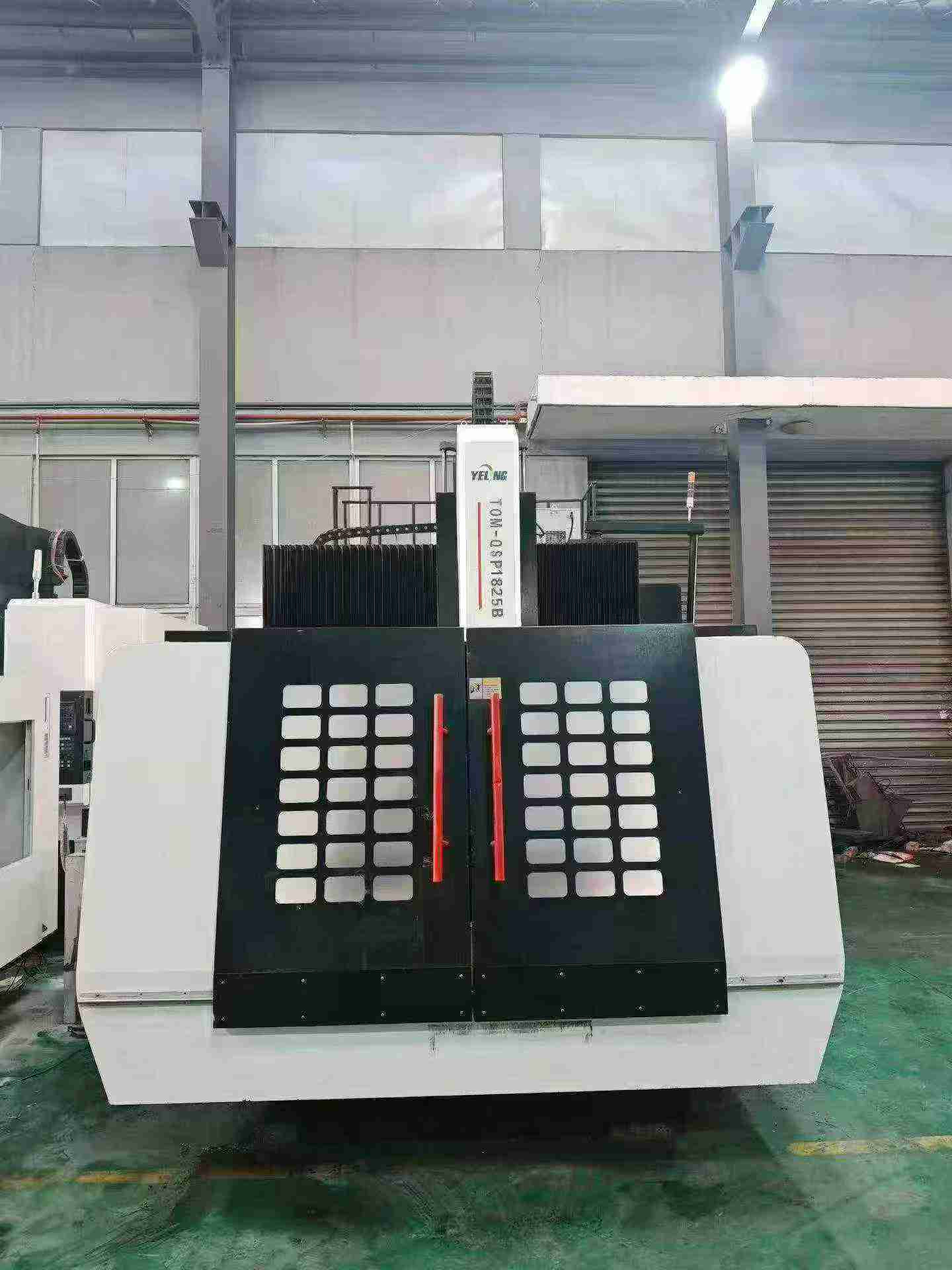

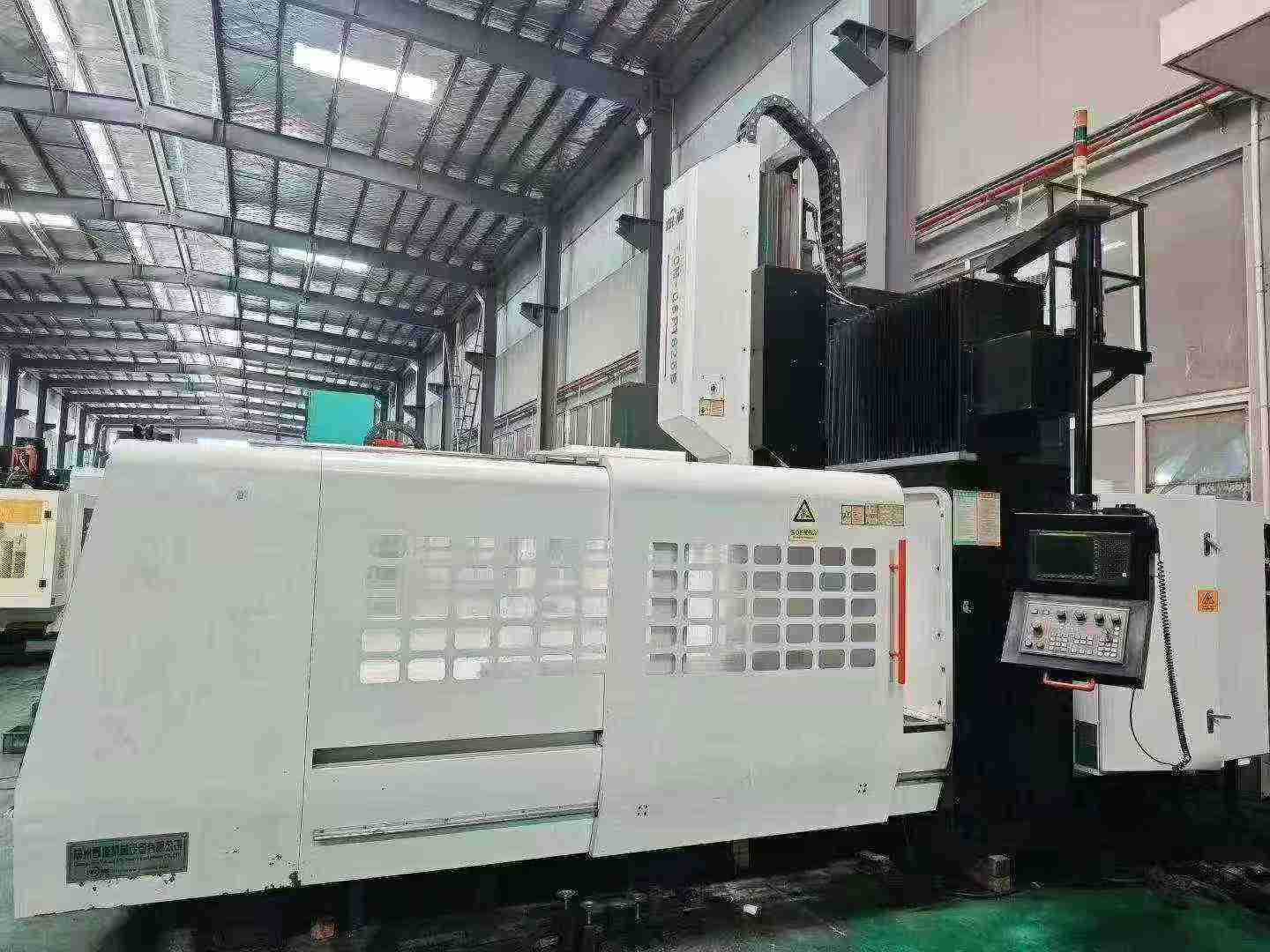

Used Yeling TOM-QSP 1825 B CNC Gantry Milling Machine

Used Yeling TOM-QSP 1825 B CNC Gantry Milling Machine with FANUC MF Plus controller. Manufactured at the end of 2021. Features two linear guideways and one box guideway. Taiwan Luo Yi BT50 spindle, 6000 rpm with oil cooler. Worktable size: 1600 x 2500 mm. Door width: 1800 mm, door height: 1220 mm. Spindle nose to table: 1120 mm. X/Y/Z travel: 2530 x 1900 x 800 mm. Includes hydraulic station and dual screw + chain chip conveyor. Machine in good condition. Available for inspection.

Machine Code: MIL260620
Year: 2021
Location: China
Usage Hours: On request

Accessories

Hydraulic station, dual screw and chain chip conveyor

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Spindle speed	6000 rpm
Spindle taper	BT50
Worktable size	1600 x 2500 mm
Door width	1800 mm
Door height	1220 mm
Spindle nose to table	1120 mm
X travel	2530 mm

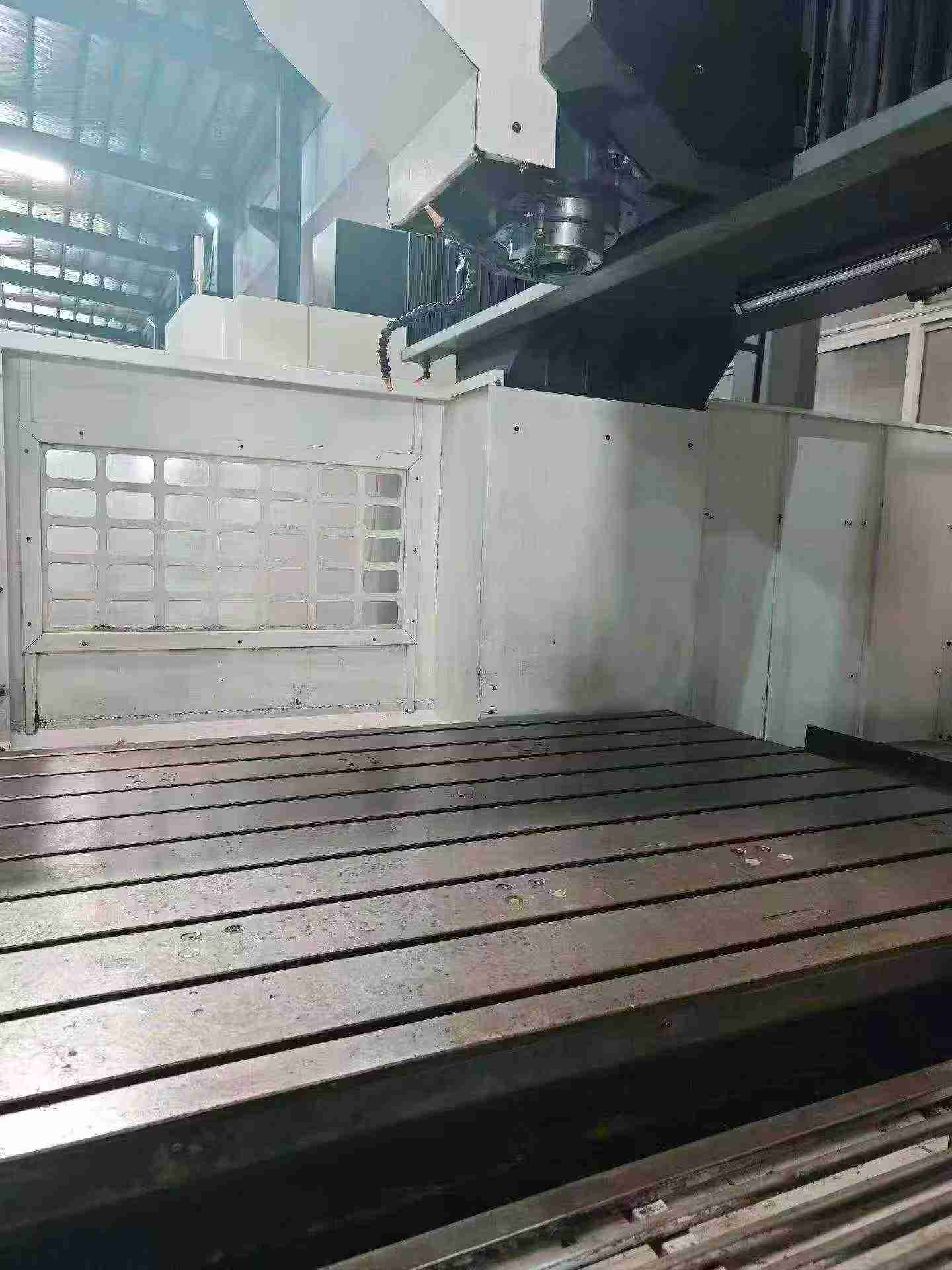

Y travel	1900 mm
Z travel	800 mm
Guideway type	Two linear guideways, one box guideway
Machine Type	Gantry Milling Machine
Manufacturing Year	2021
Guideway Configuration	X/Y linear guideways + Z box guideway

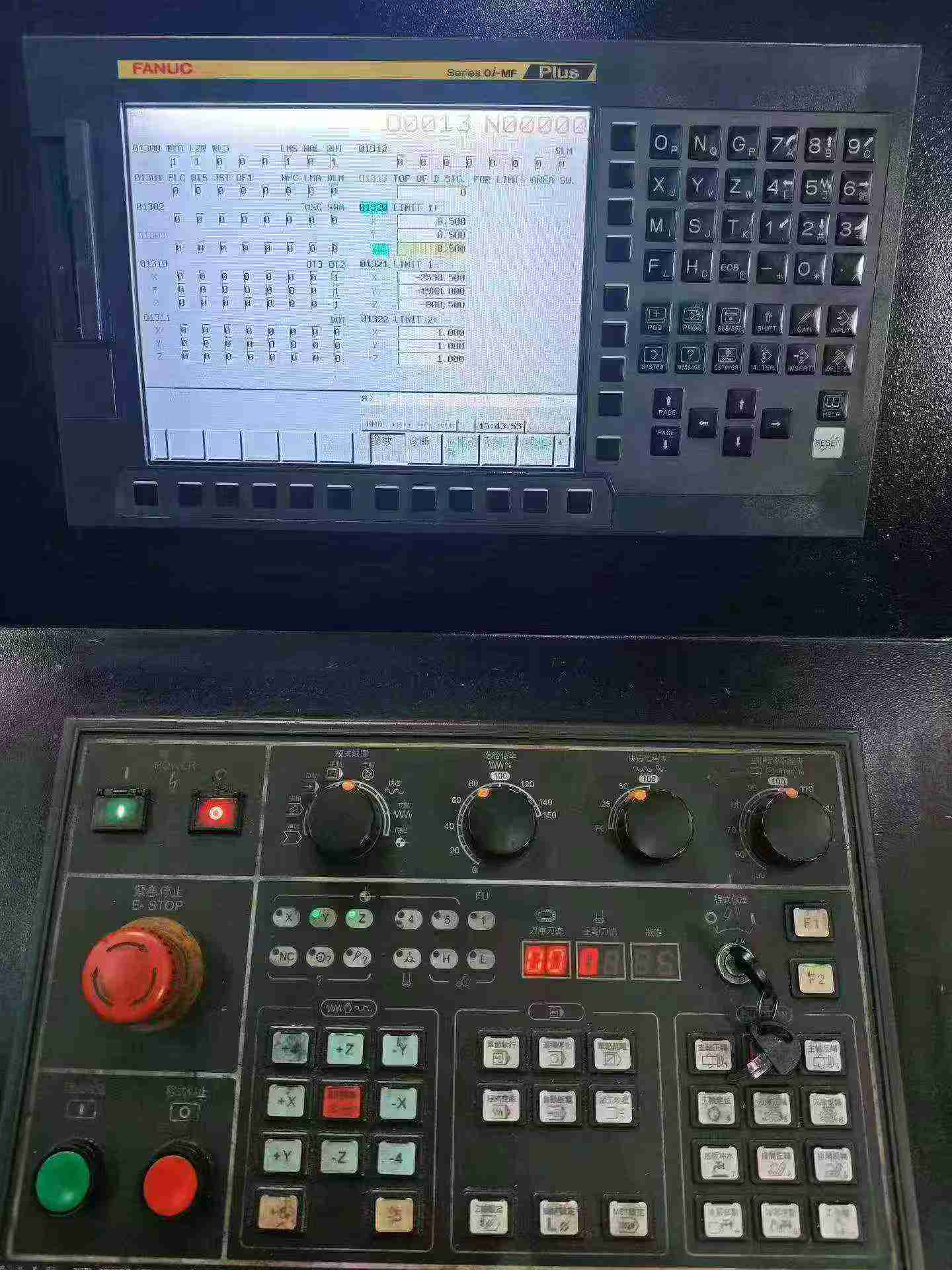

Controller	Fanuc MF-Plus

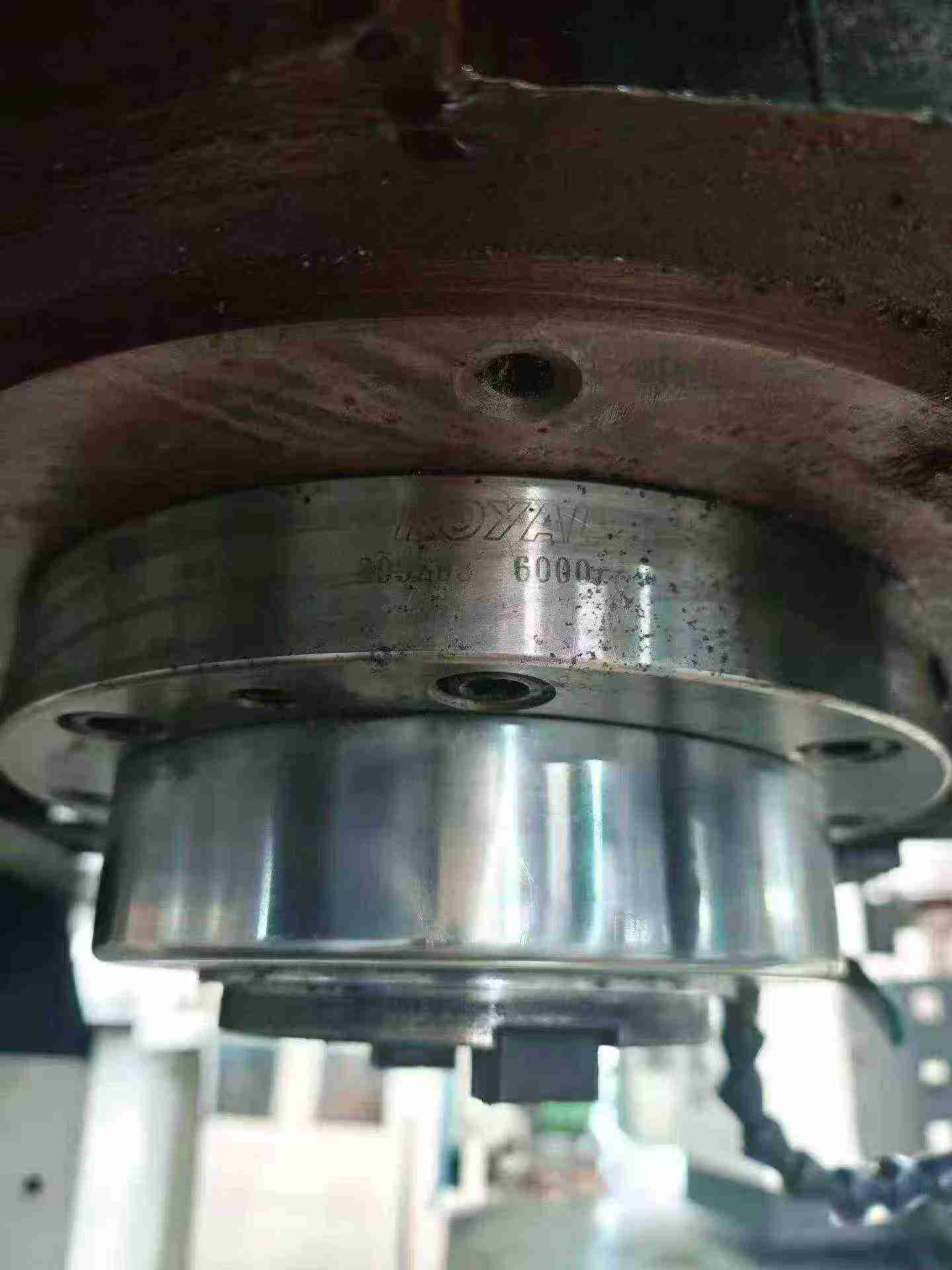

Spindle	BT50, 6000 rpm, oil cooled
Door Dimensions	Width: 1800 mm, Height: 1220 mm
Hydraulic Unit	Included
X/Y/Z Travel	X: 2530 mm, Y: 1900 mm, Z: 800 mm
Chip Conveyor	Dual screw and drag chain chip conveyor
