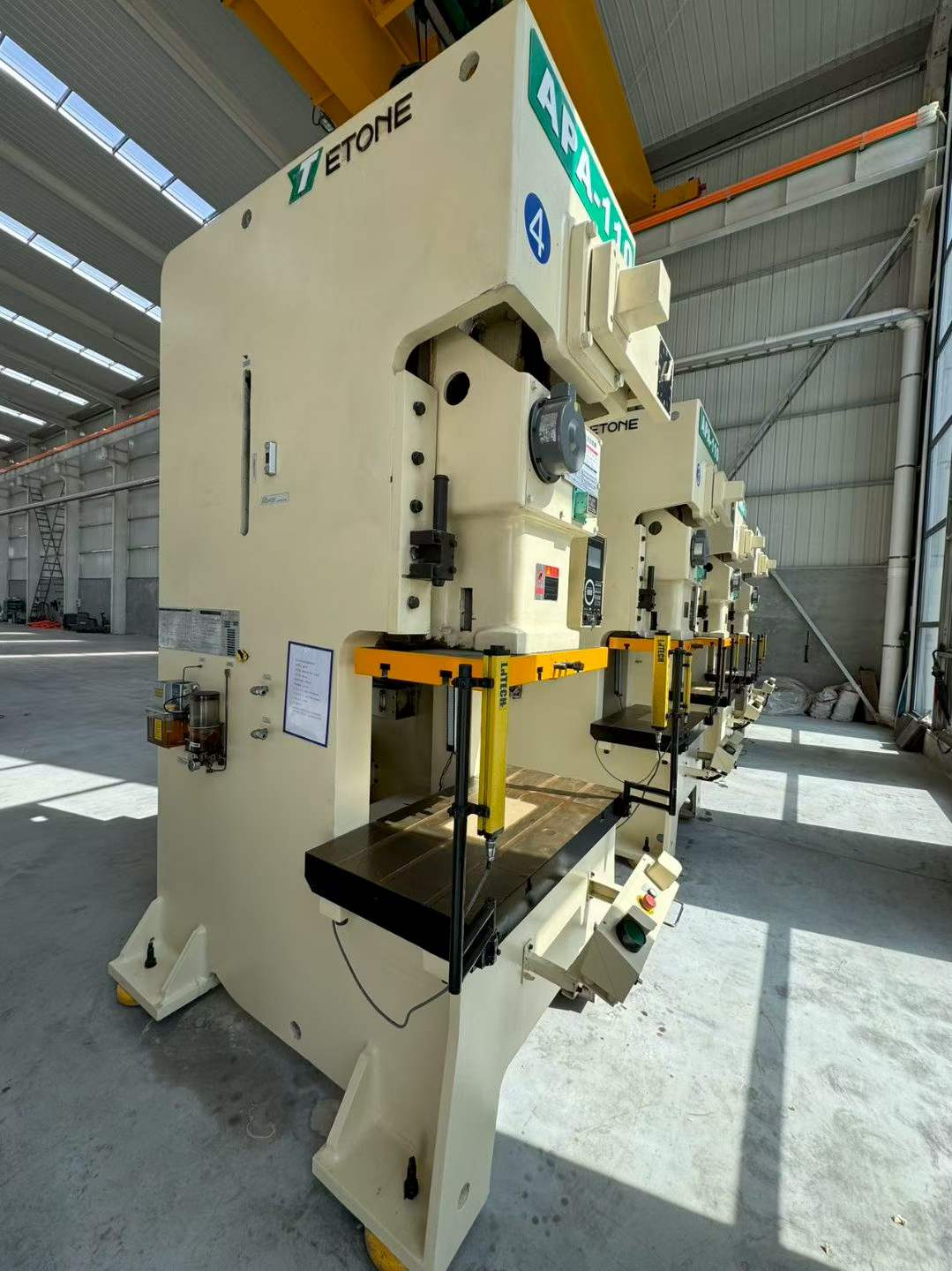

Used Yitian APA-110 High Speed Precision Punch Press
Yitian APA-110 high speed precision punch press Pressing capacity: 110 tons Year: 2022
- Machine Code
- PP260601
- Year
- 2022
- Location
- China
- Usage Hours
- On request
Contact access
Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.
Loading…

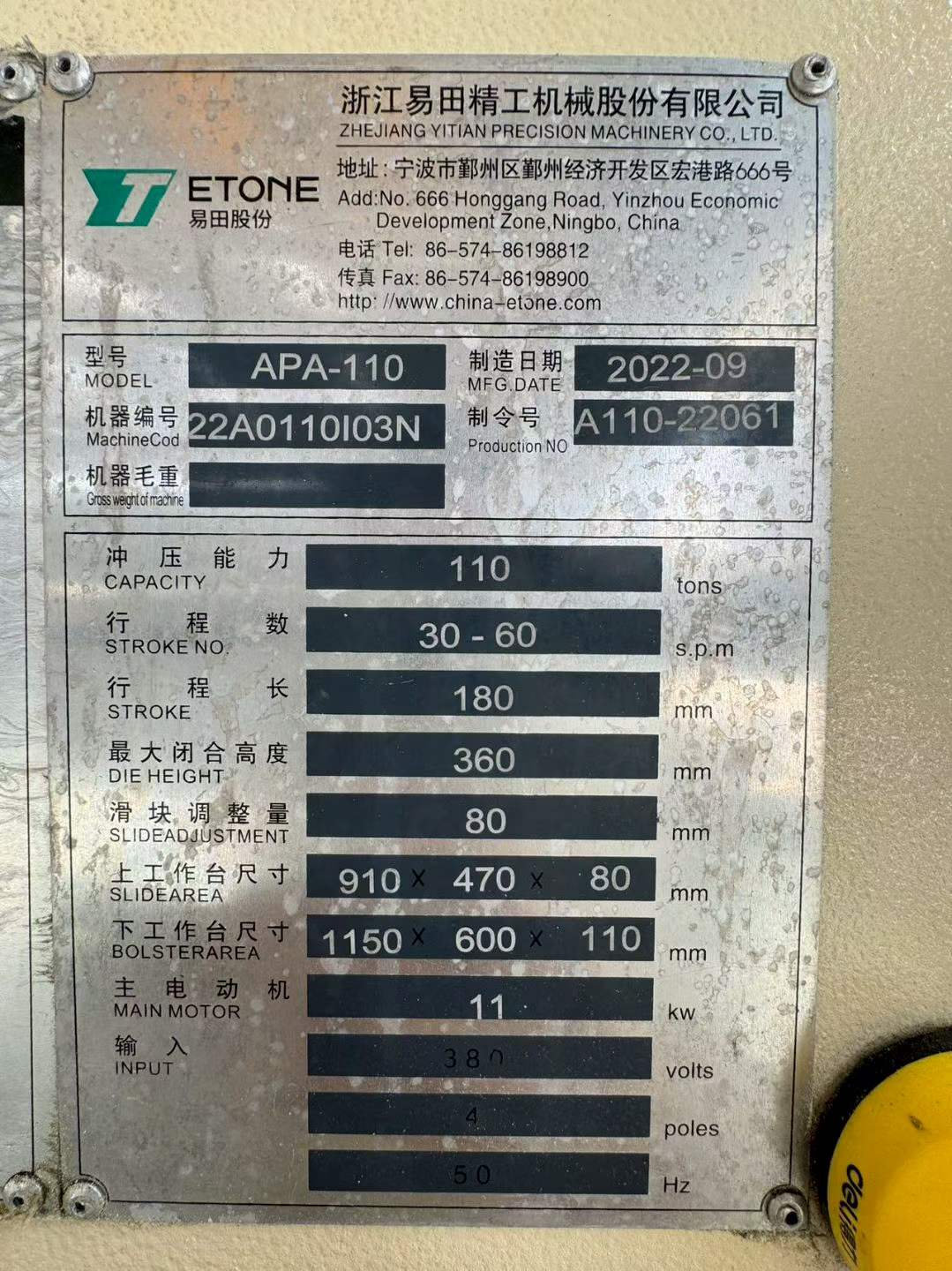

Main Specifications
| Pressing capacity | 110 tons |
|---|---|
| Stroke speed | 30–60 s.p.m |
| Stroke length | 180 mm |
| Maximum die height | 360 mm |
| Slide adjustment | 80 mm |
| Upper worktable size | 910 × 470 × 80 mm |
| Lower worktable size | 1150 × 600 × 110 mm |
| Main motor power | 11 kW |
| Machine type | High-speed precision punch press |
| Brand | Yitian |
| Model | APA-110 |
| Year | 2022 |

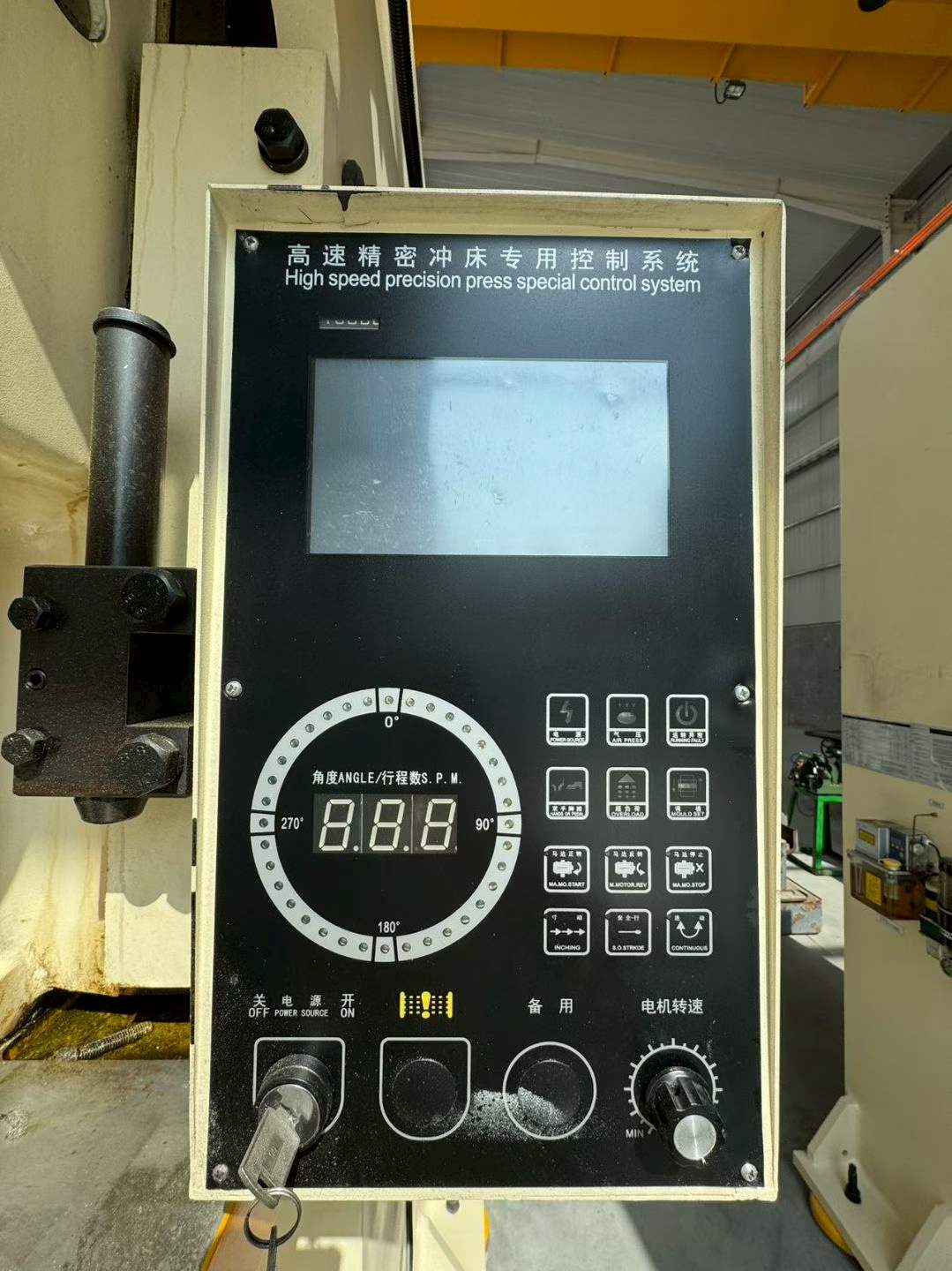

| Controller | Control system dedicated to high-speed precision punch presses |
| Controller feature | Supports angle and stroke display |
