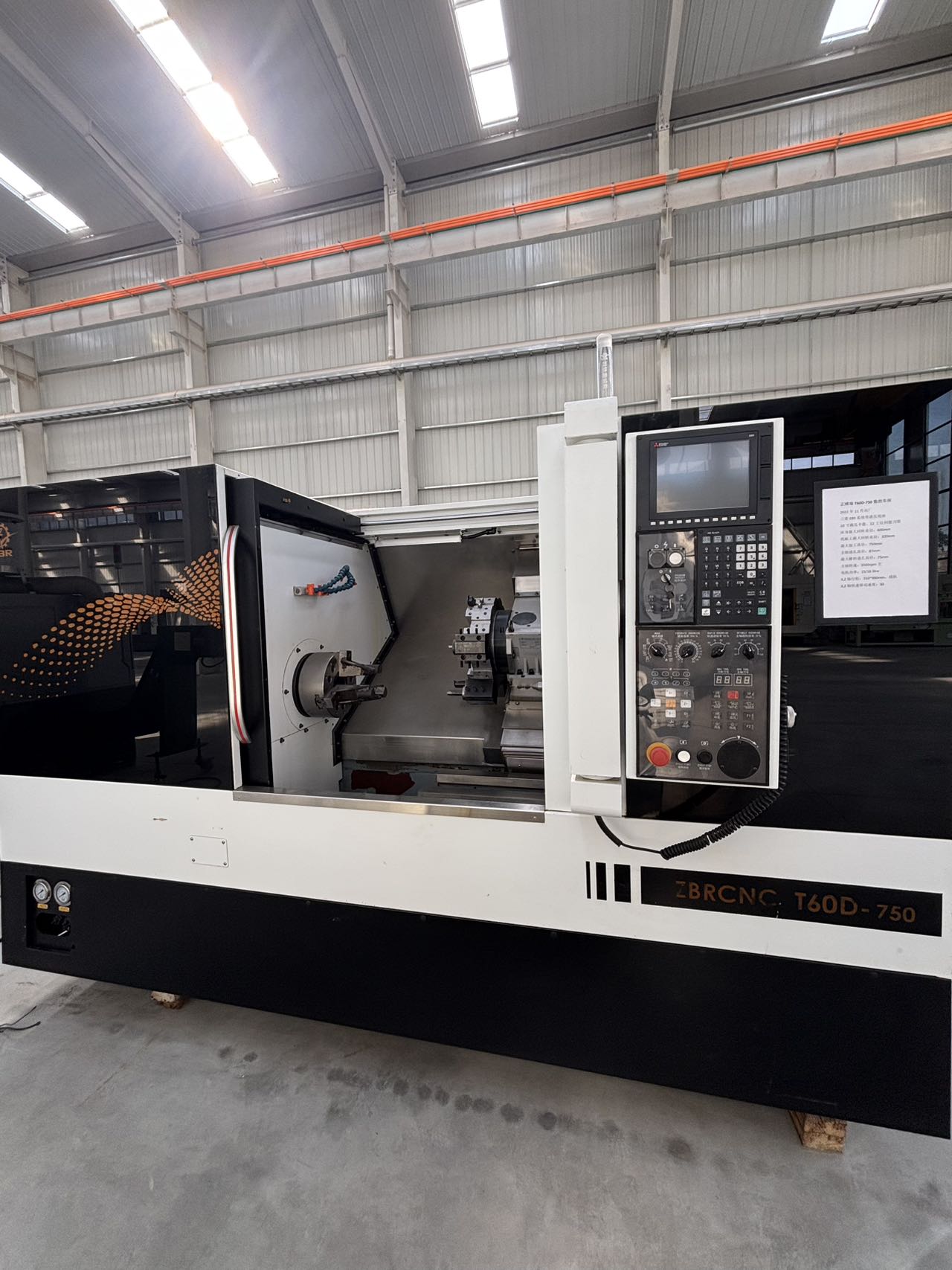

Used Zhengborui T60D-750 CNC Lathe with Mitsubishi E80
Used CNC lathe available from China stock.
- Machine Code
- CL260603
- Year
- 2022
- Location
- China warehouse
- Usage Hours
- On request
Contact access
Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.
Loading…
Main Specifications

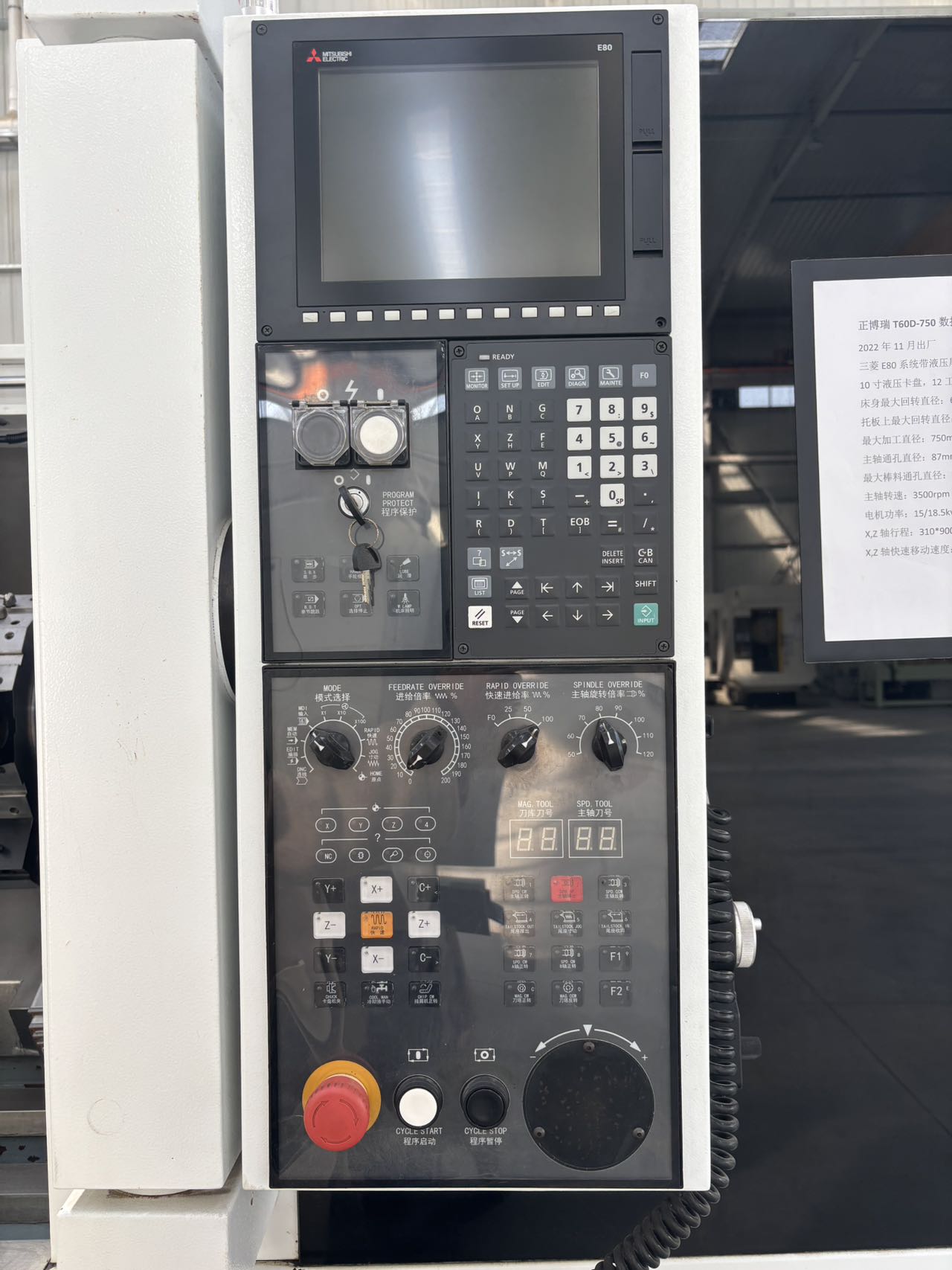

| Control system | Mitsubishi E80 |
|---|---|

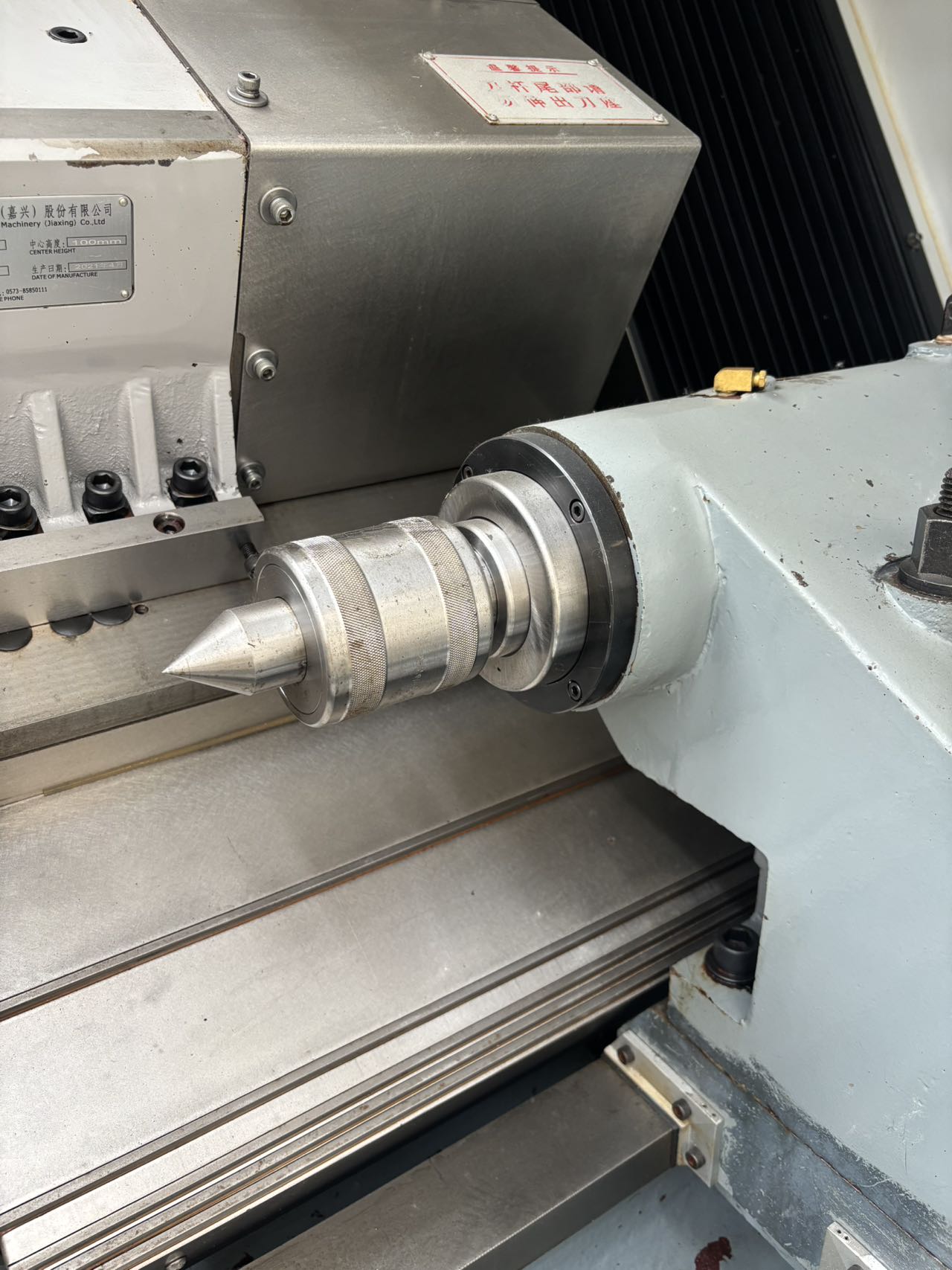

| Hydraulic tailstock | equipped |

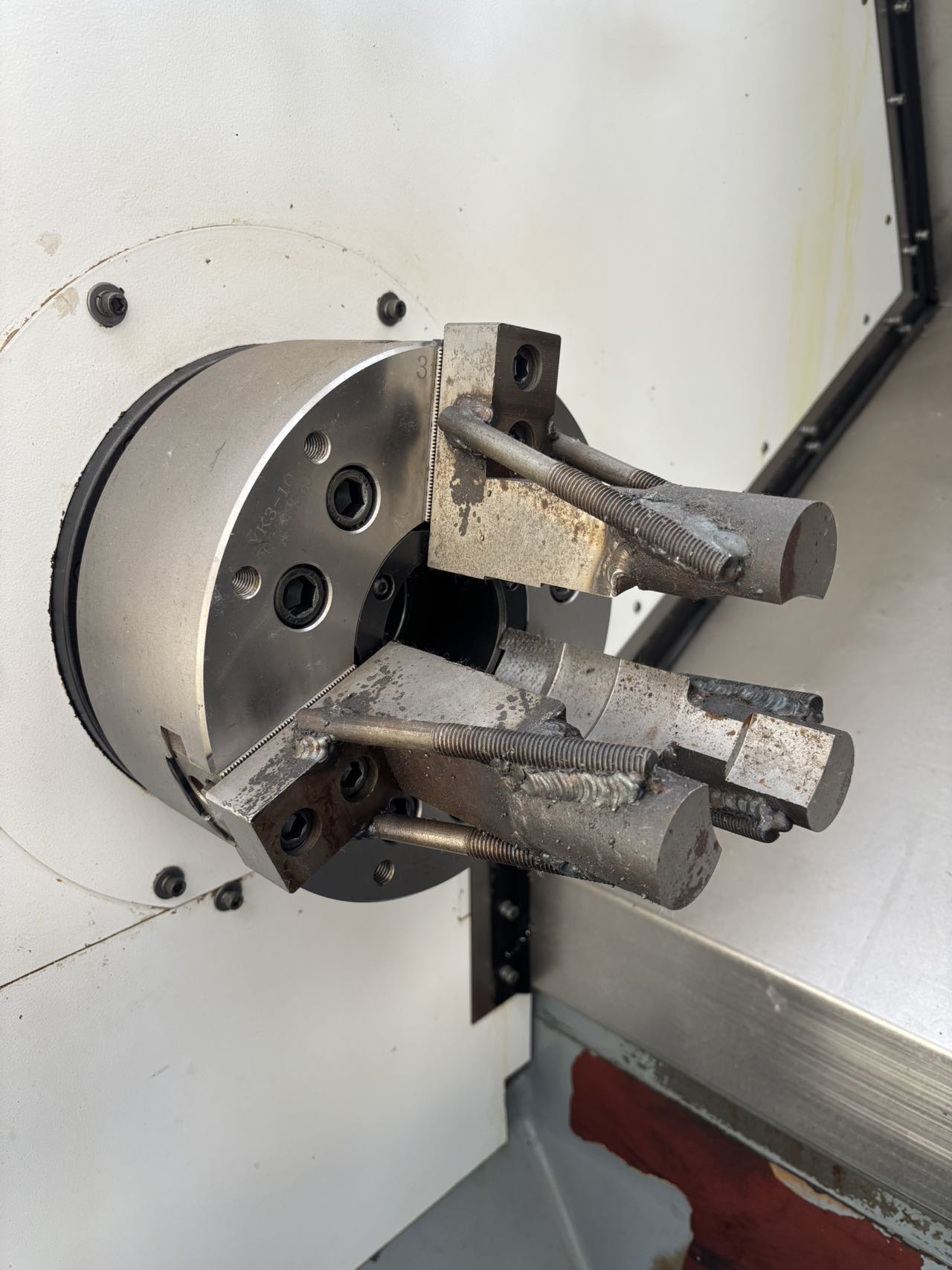

| Hydraulic chuck | 10 inch |

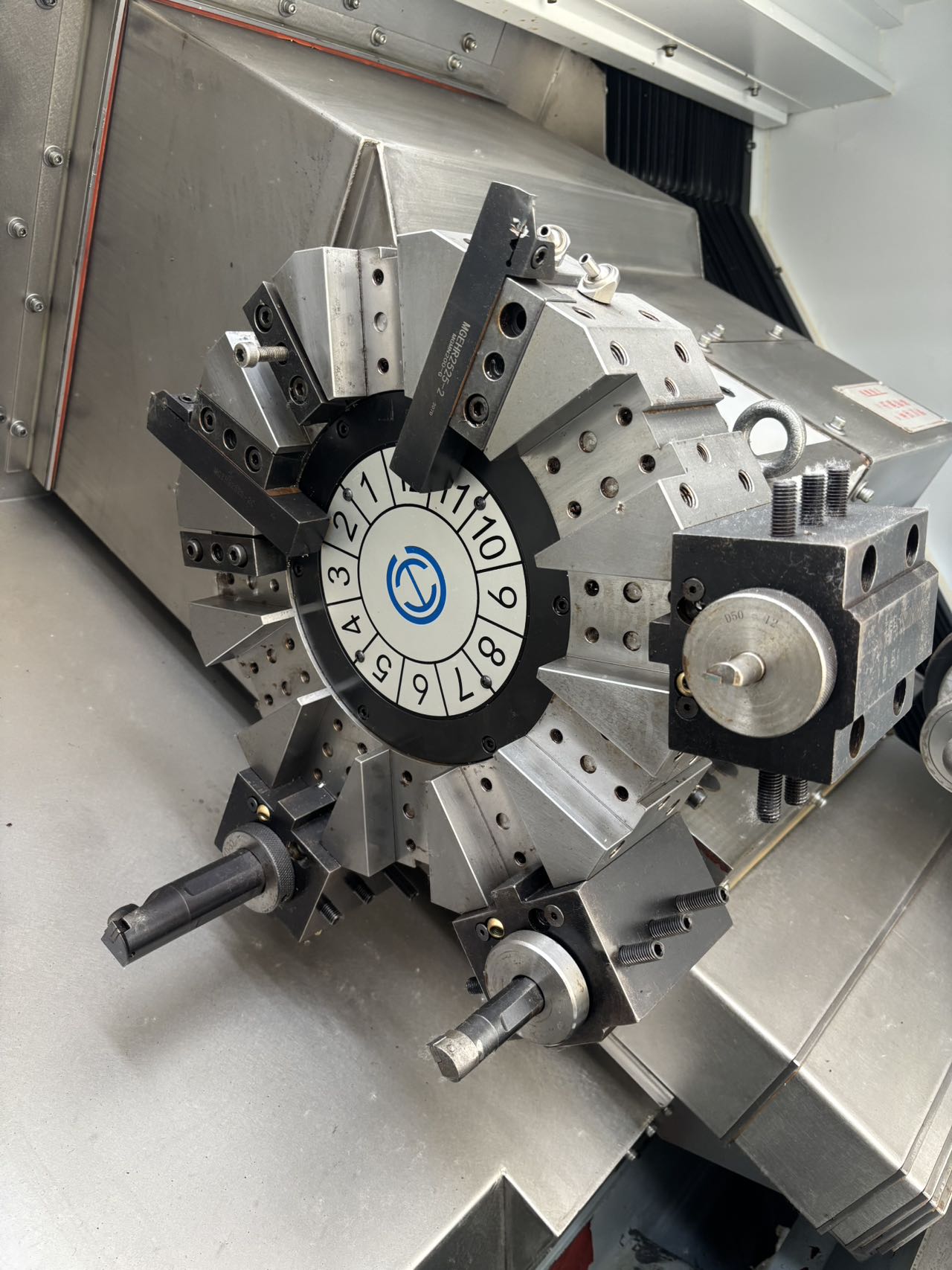

| Servo turret | 12 stations |
| Max. swing over bed | 600 mm |
| Max. swing over slide | 320 mm |
| Max. machining diameter | 750 mm |
| Spindle bore | 87 mm |
| Max. bar capacity | 75 mm |
| Spindle speed | 3500 rpm |
| Spindle motor power | 15/18.5 kW |
| X/Z axis travel | 310 x 900 mm |
| Guideway | linear guide |
| X/Z rapid traverse speed | 30 m/min |
| Factory date | November 2022 |
