AvailableVertical Machining Center

Used Victor Taichung Vcenter-55 Vertical Machining Center with FANUC 0i-MF

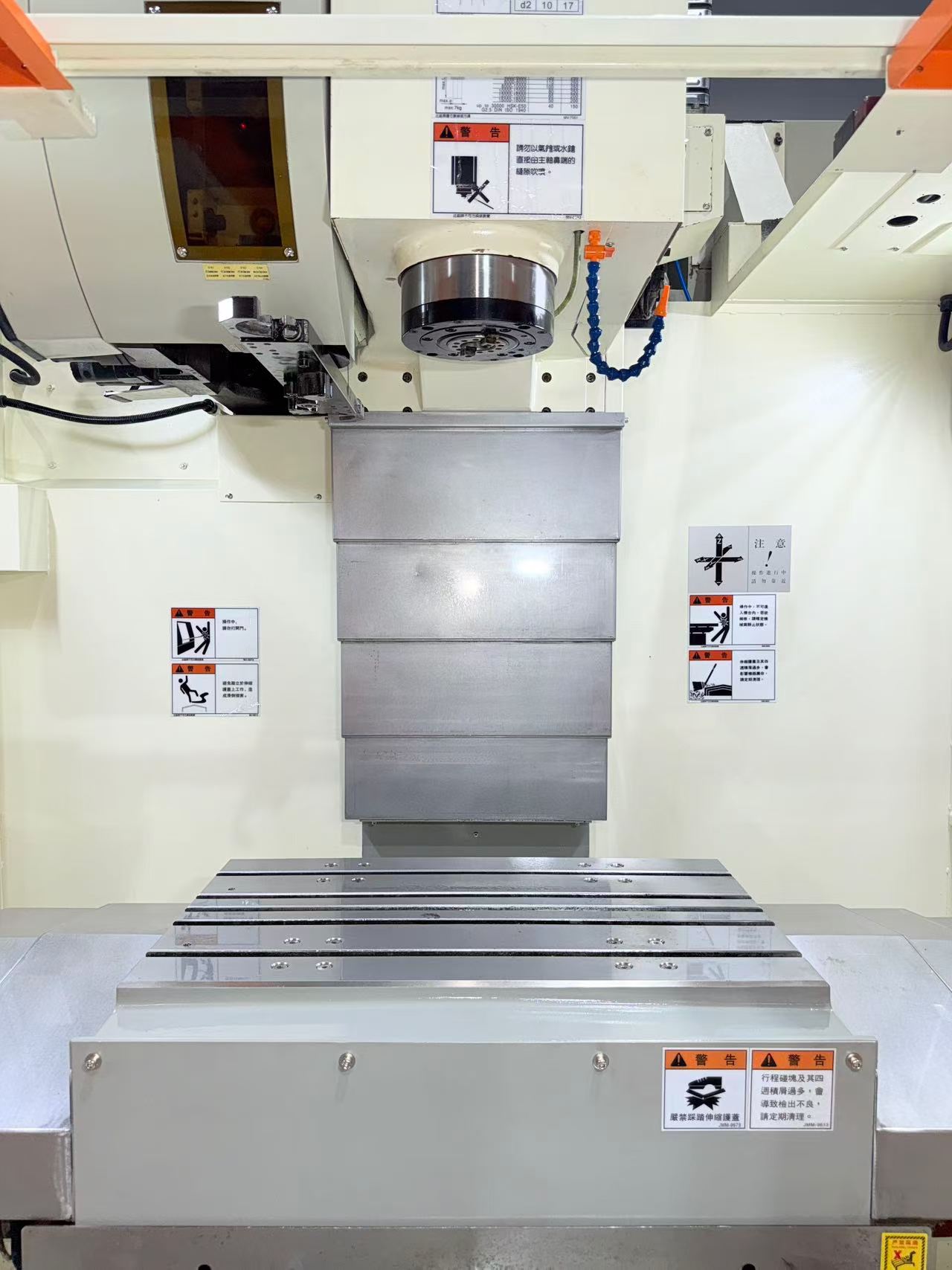

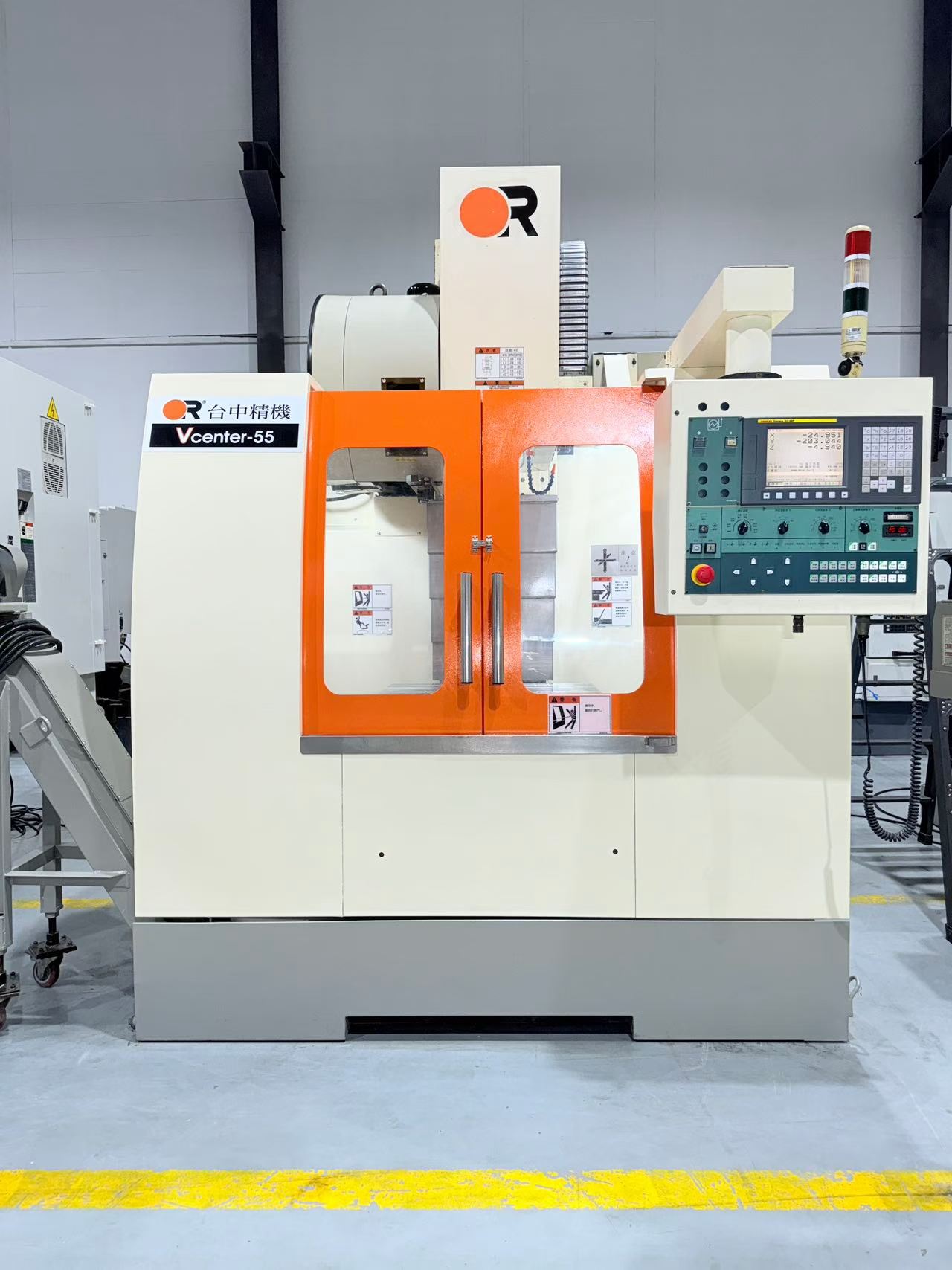

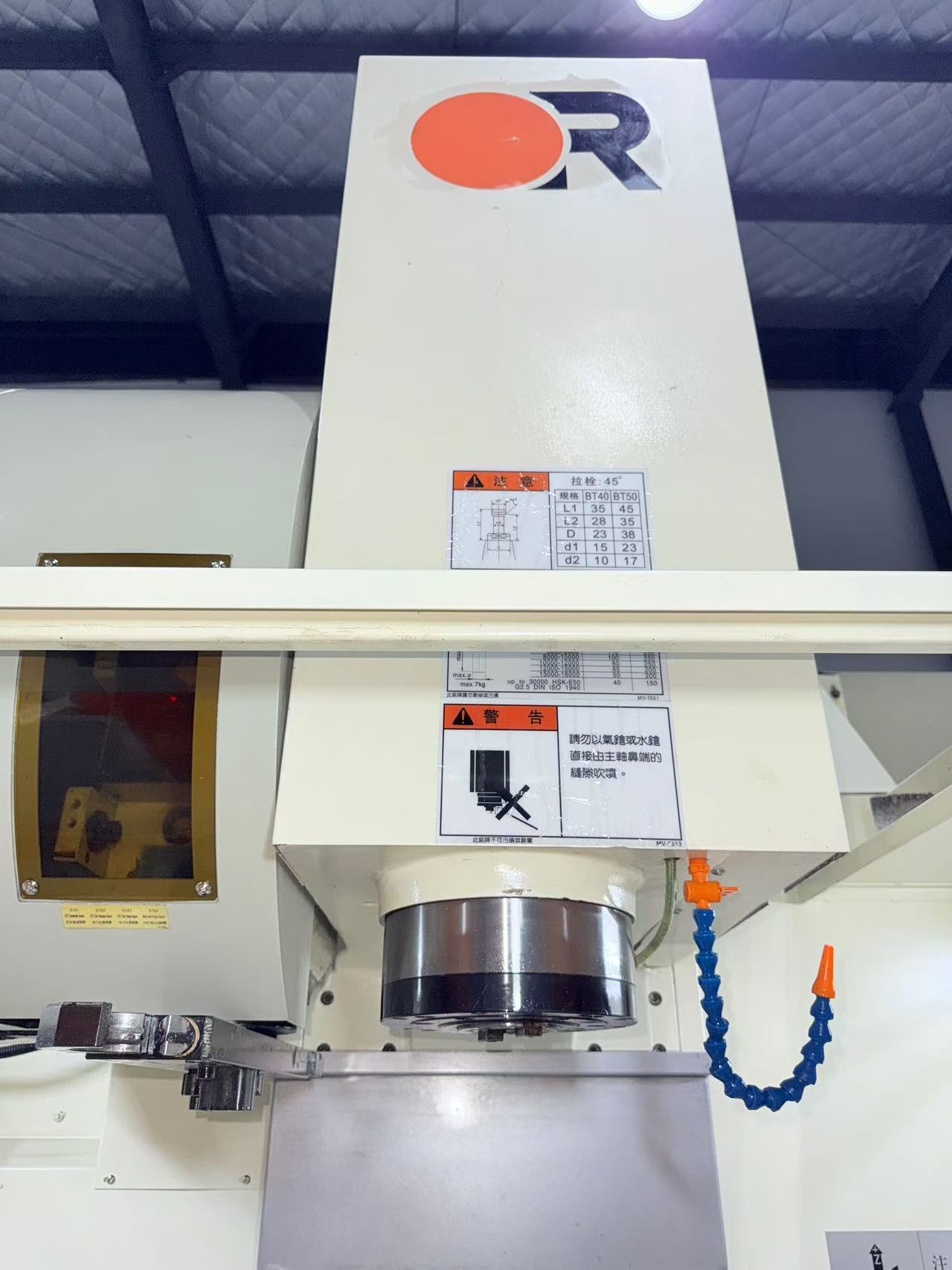

Victor Taichung Vcenter-55 Vertical Machining Center This Victor Taichung Vcenter-55 is a vertical machining center with X/Y/Z travels of 550 x 500 x 500 mm. The BT40 spindle runs up to 8000 rpm and is rated at 11 kW, with oil cooling for thermal stability during long cutting cycles. The Z axis is raised 200 mm, giving additional headroom in the working envelope. The machine is fitted with the FANUC Series 0i-MF CNC control in a high-specification configuration that includes the mold package, paired with FANUC Alpha drive motors. THK ball screws and guideways are used on the axes. Tooling changes are handled by a 24-position disc-type tool magazine, and the worktable is T-slotted for fixture and vise mounting. An automatic chip conveyor manages chip removal. Built in 2017. The machine is offered as a complete unit.

Machine Code: VMC2609185
Year: 2017
Location: China
Usage Hours: On request

Accessories

Automatic chip conveyor FANUC high-specification control with mold package FANUC Alpha drive motors THK ball screws and linear guideways 24-tool disc-type tool magazine

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Machine type	Vertical Machining Center
X/Y/Z travel	550 x 500 x 500 mm
Spindle taper	BT40
Spindle speed	8000 rpm, with oil cooler
Spindle power	11 kW
Z axis	Raised 200 mm
Ball screws and guideways	THK

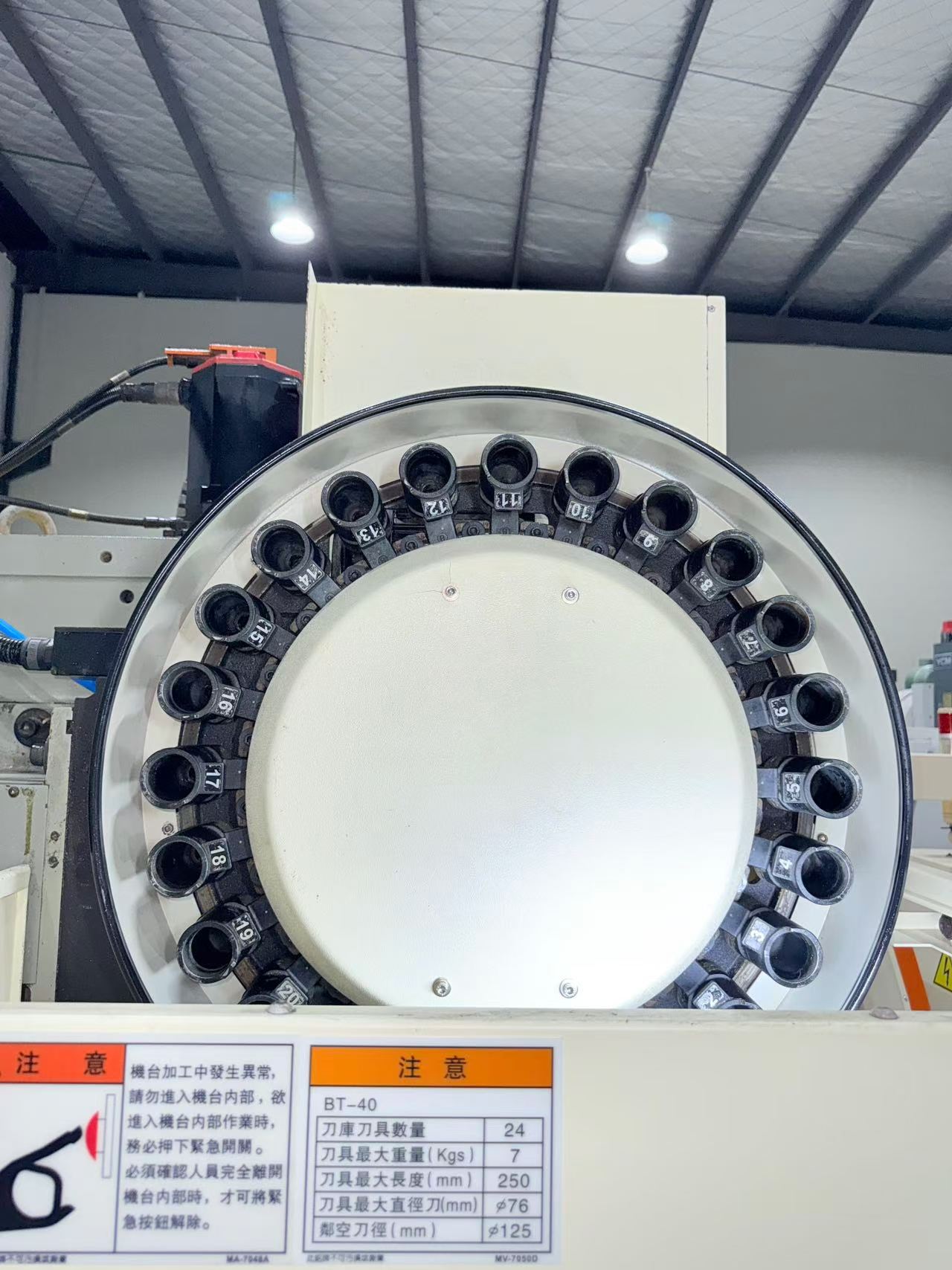

Tool magazine capacity	24 tools, disc type

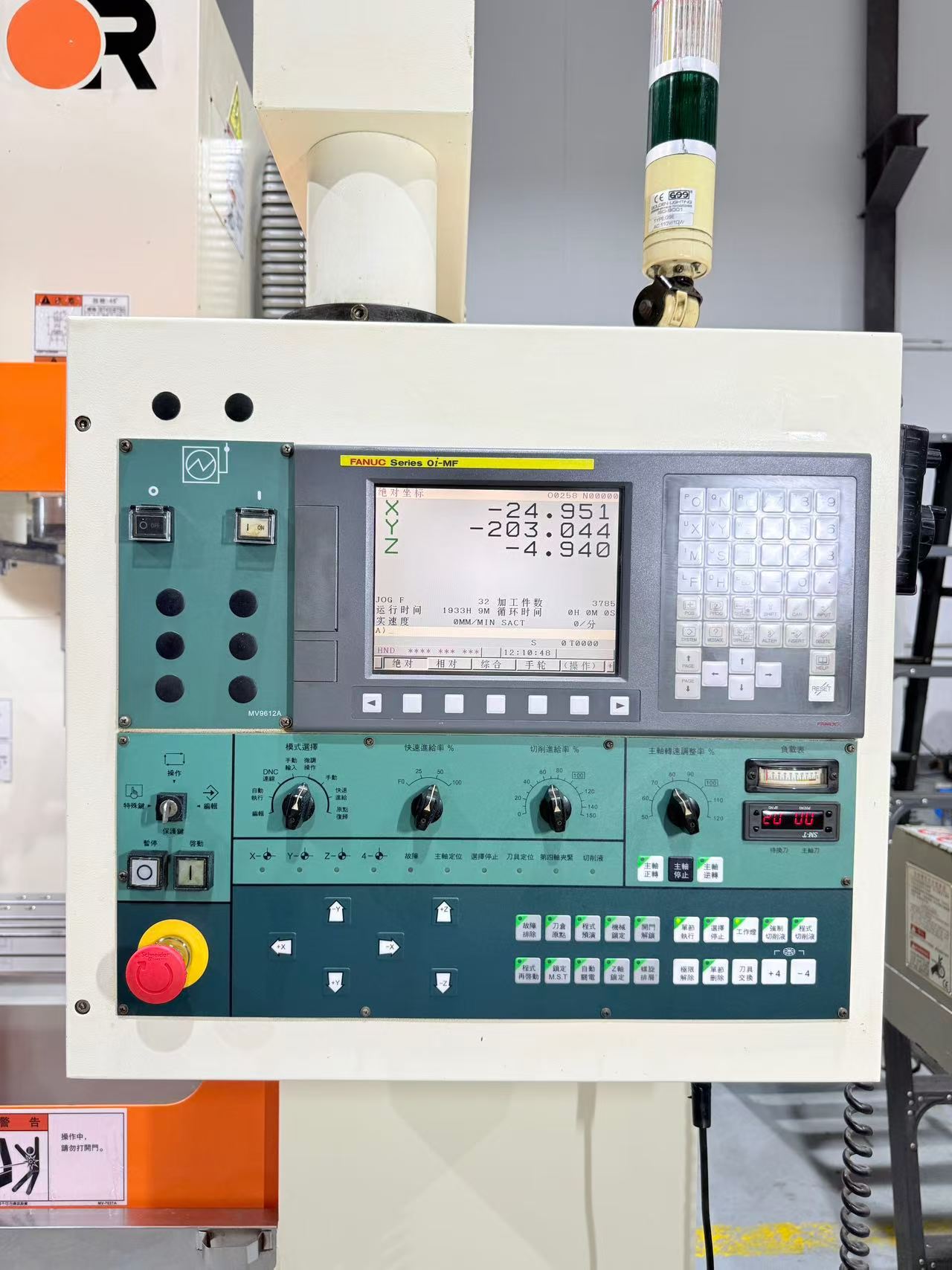

CNC control	FANUC Series 0i-MF
Drive motors	FANUC Alpha
Worktable	T-slotted
Chip removal	Automatic chip conveyor
Year	2017
Brand	Victor Taichung
Control system	FANUC 0i-MF
Year of manufacture	2017
