Used C 5235 Double-Column Vertical Lathe 3500 mm

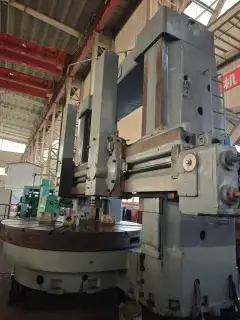

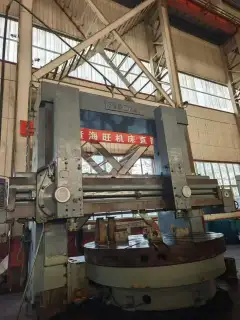

This used double-column vertical lathe is a conventional machine with no CNC control system. It is a classic-quality unit with model C 5235 and a maximum turning diameter of 3500 mm. The machine is fitted with a 3080 mm chuck and has a height of 2 m. It provides a table load capacity of 32 t and carries serial number 78013. Suitable for heavy-duty vertical turning work.
- Machine Code
- LAT261006
- Year
- 1978
- Location
- Wuxi, China
- Usage Hours
- On request
Accessories
3080 mm chuck
Main Specifications
| Machine type | Double-column vertical lathe |
|---|---|
| Model | C 5235 |
| Max turning diameter | 3500 mm |
| Chuck diameter | 3080 mm |
| Height | 2 m |
| Load capacity | 32 t |

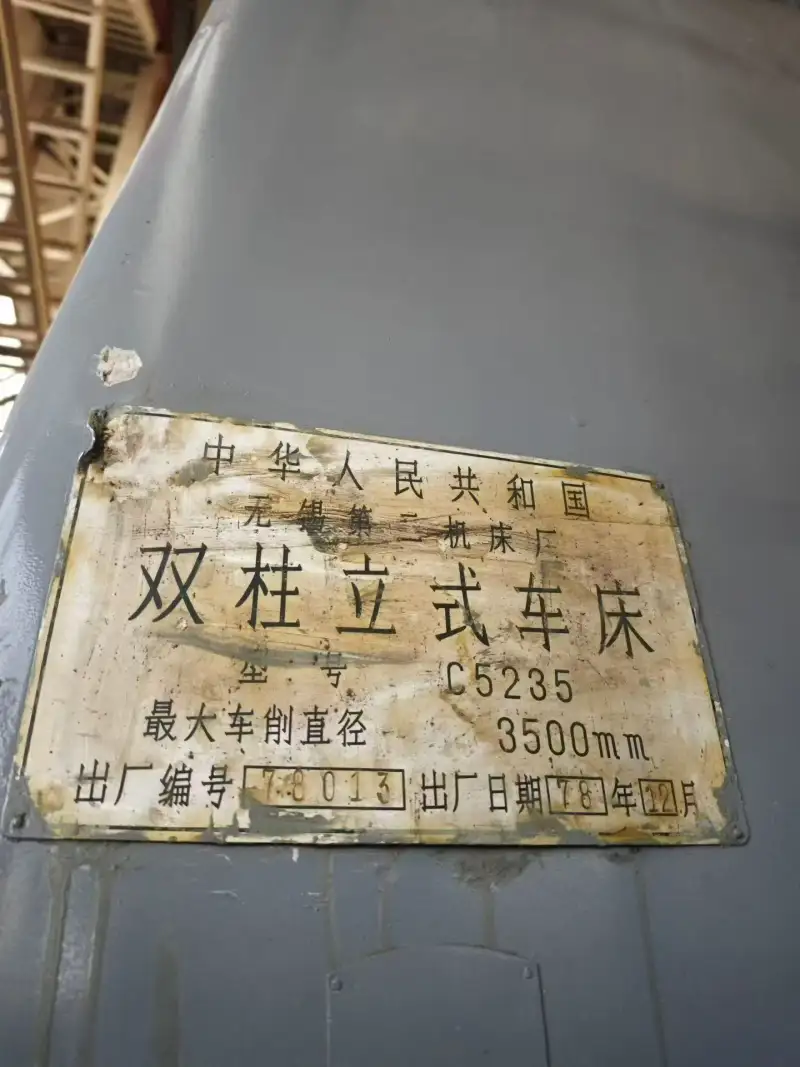

| Serial number | 78013 |
| Control | Conventional, no CNC system |
| Control system | None (conventional) |
