AvailableCNC Grinding Machine

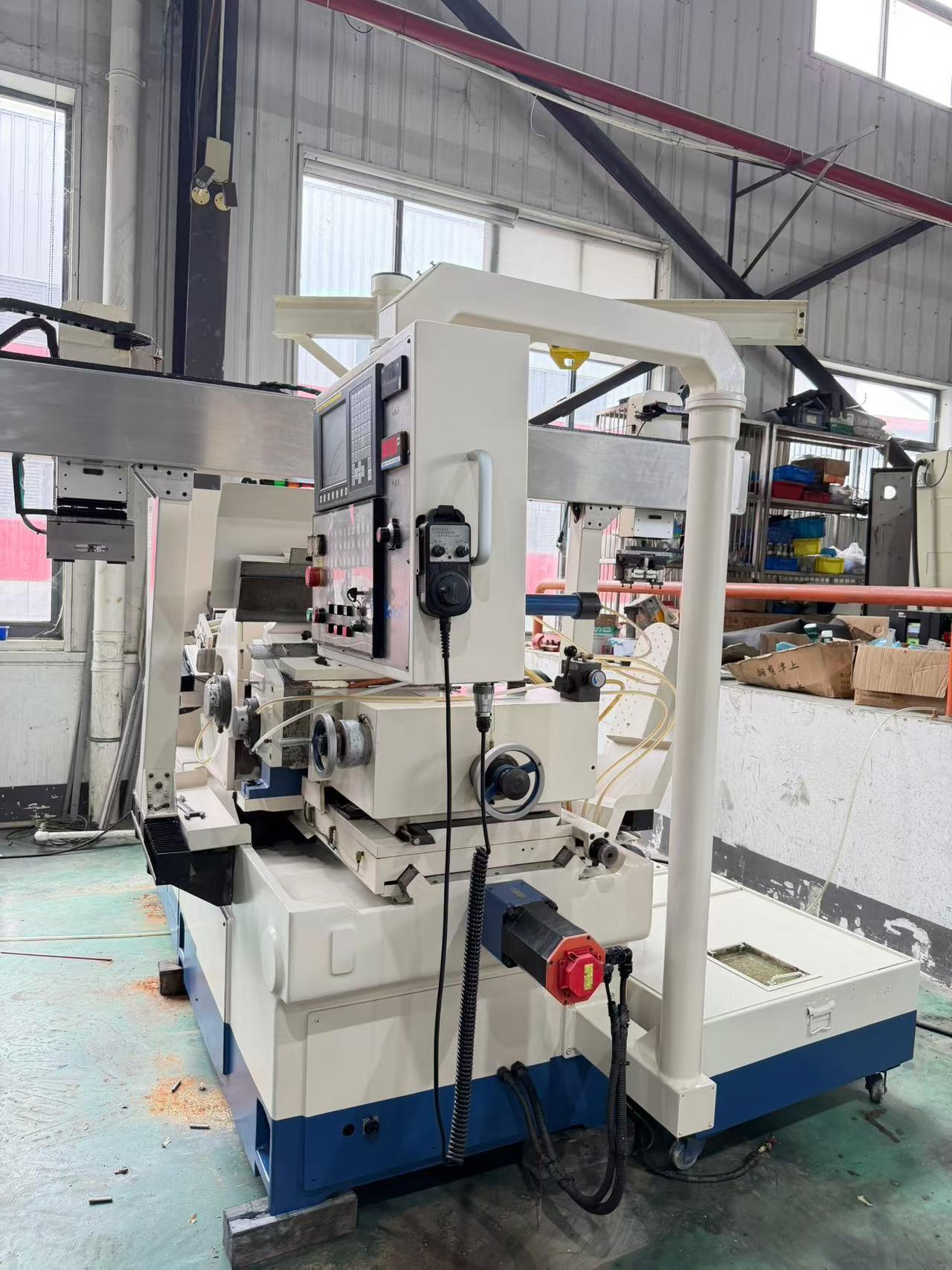

Xingfuxiang CNC Centerless Grinder HFC-1812 TFNC-15 A

Xingfuxiang CNC centerless grinder HFC-1812 TFNC-15 A, year 2017. Capable of through-feed and plunge-feed grinding, suitable for heavy cutting and precision finishing. Stable size and excellent consistency over long production runs. Equipped with automatic hydraulic dressing system, wheel wear automatic compensation, and multi-program storage. Can process various parts such as motor shafts, cylindrical pins, bearing rollers, and slender shafts.

Machine Code: GR260704
Year: 2017
Location: China
Usage Hours: On request

Accessories

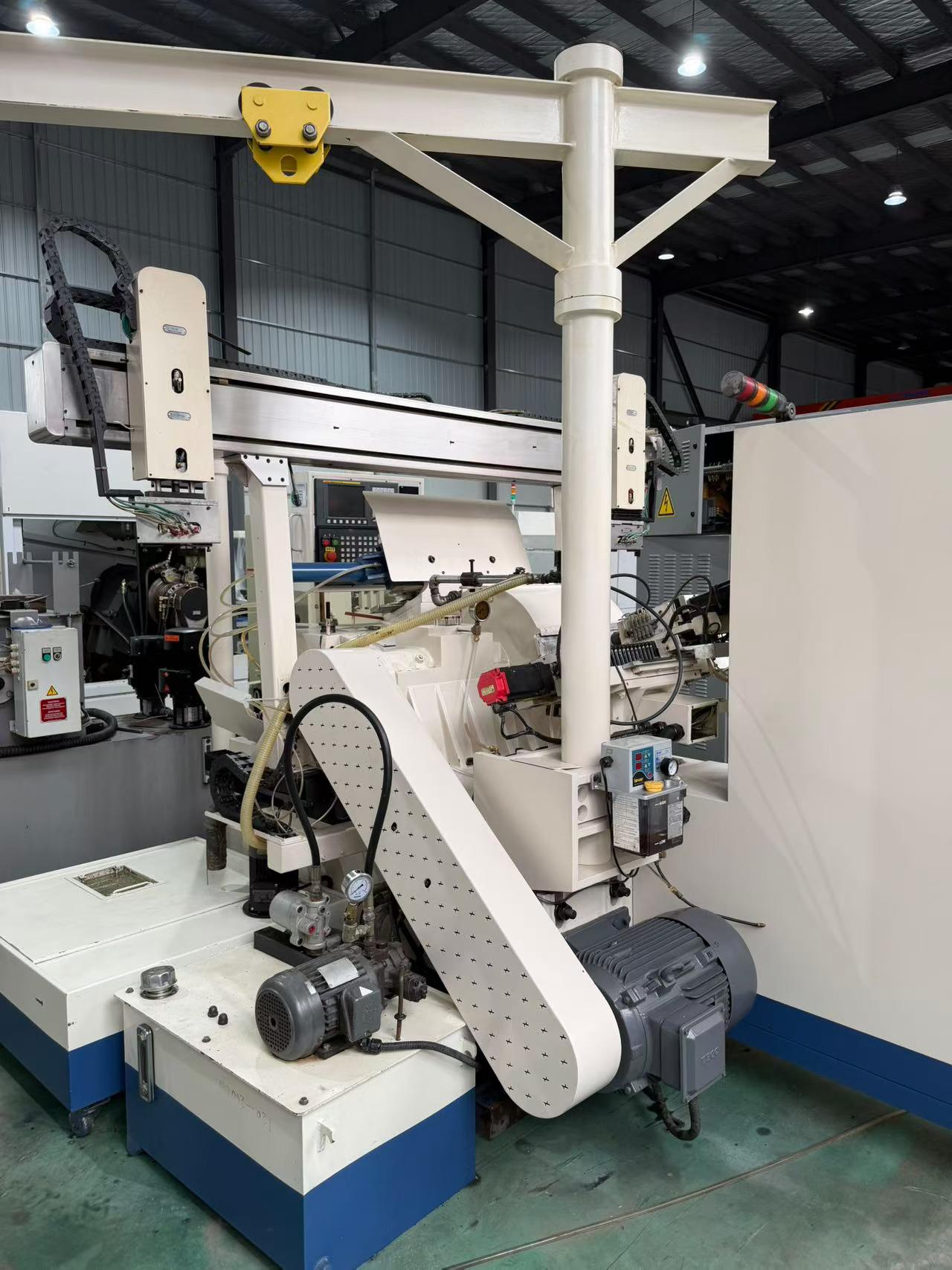

Automatic robot loader; Large capacity coolant tank suitable for stainless steel and bearing steel mass production; Diamond hydraulic dresser with 0.1 μm minimum infeed; Adjustable regulating wheel tilt angle.

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Workpiece diameter	1~50 mm
Max through-feed grinding length	300 mm
Grinding wheel size	φ455 x 305 x φ203 mm
Regulating wheel size	φ305 x 305 x φ152 mm
Machine Type	Centerless Grinding Machine
Model	HFC-1812 TFNC-15 A
Year	2017
Through-feed Grinding	Available
Dressing System	Fully automatic hydraulic dressing system
Program Storage	Multi-program storage and switching
Optional Work Rest Width	40~100 mm
Bed Material	Mechanite cast iron integral
Spindle Type	Hydrodynamic precision spindle
Feed Control	Servo three-axis independent feed control
Dresser Type	Diamond hydraulic dresser
Minimum Feed Increment	0.1 μm
Coolant Tank	Large capacity
Brand	Xingfuxiang
