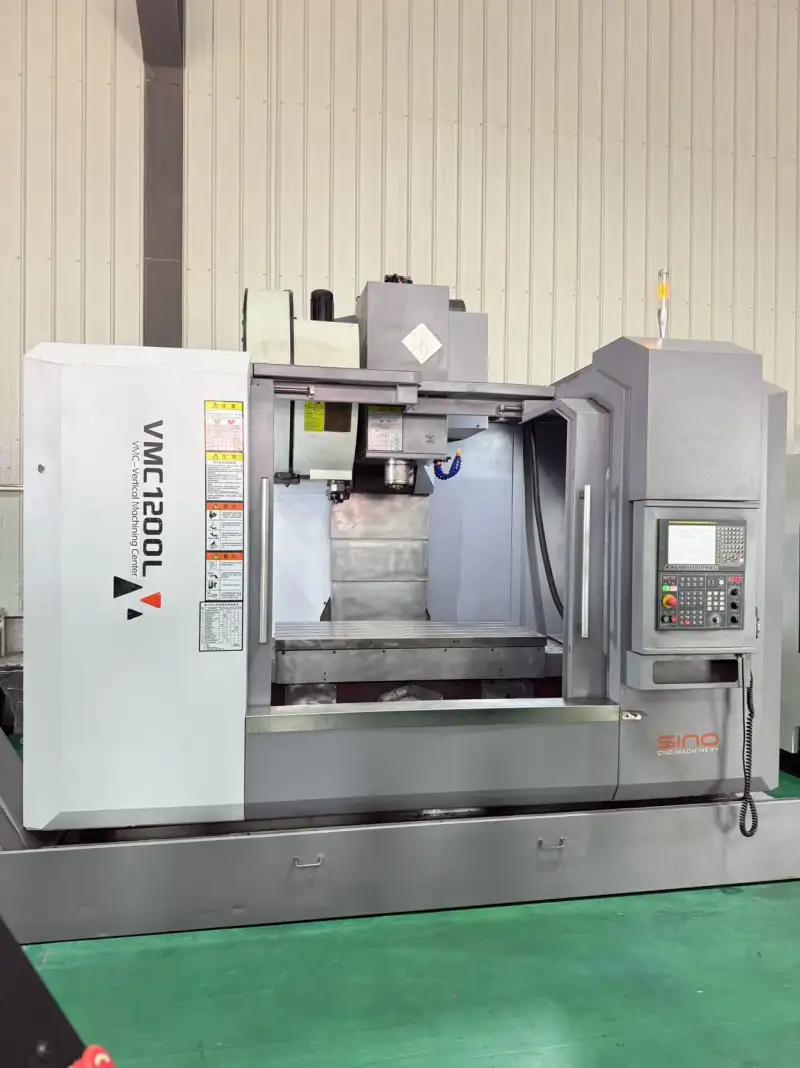

Used Xinnuo VMC 1200 L Heavy-Duty Vertical Machining Center with FANUC

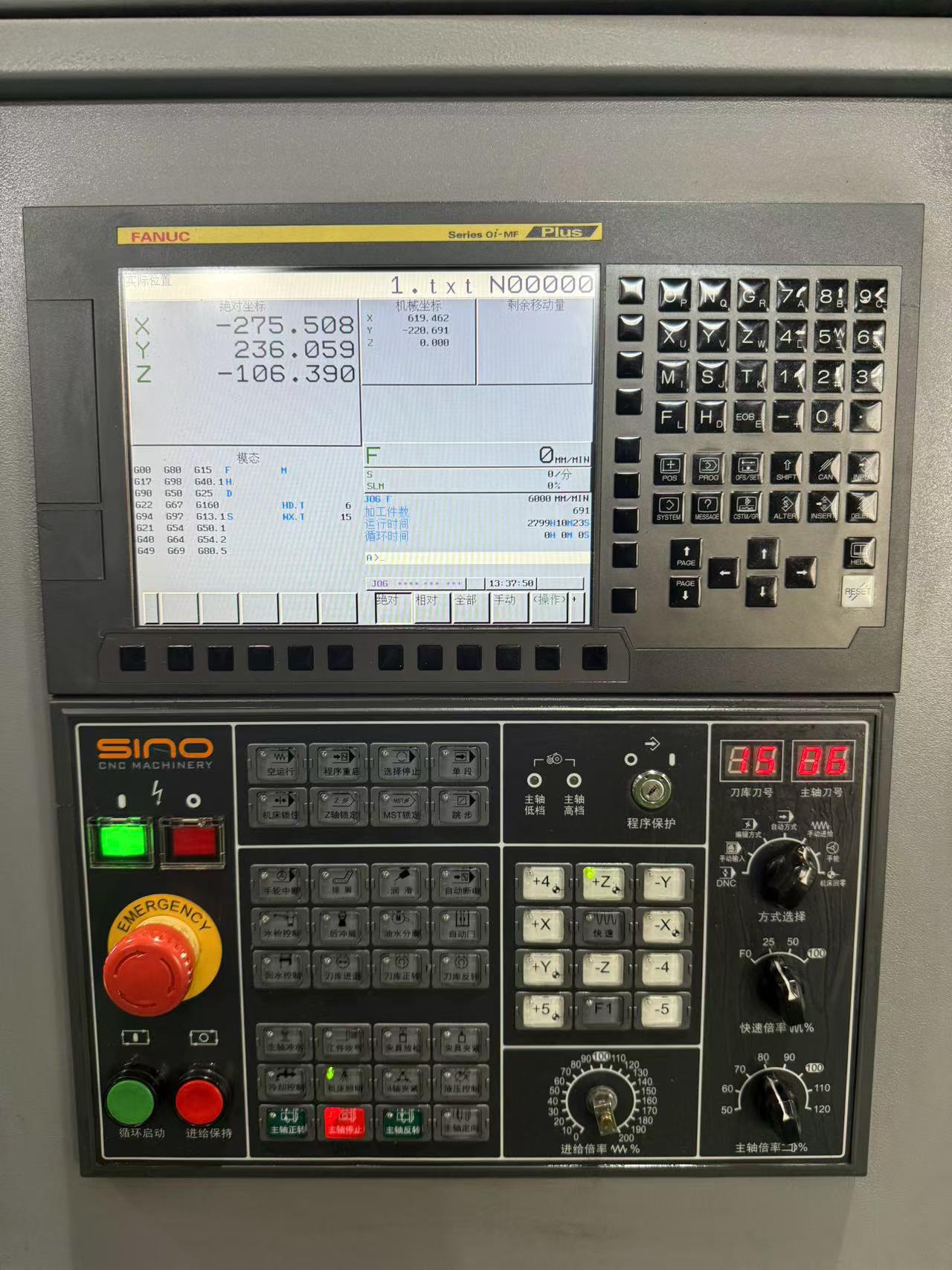

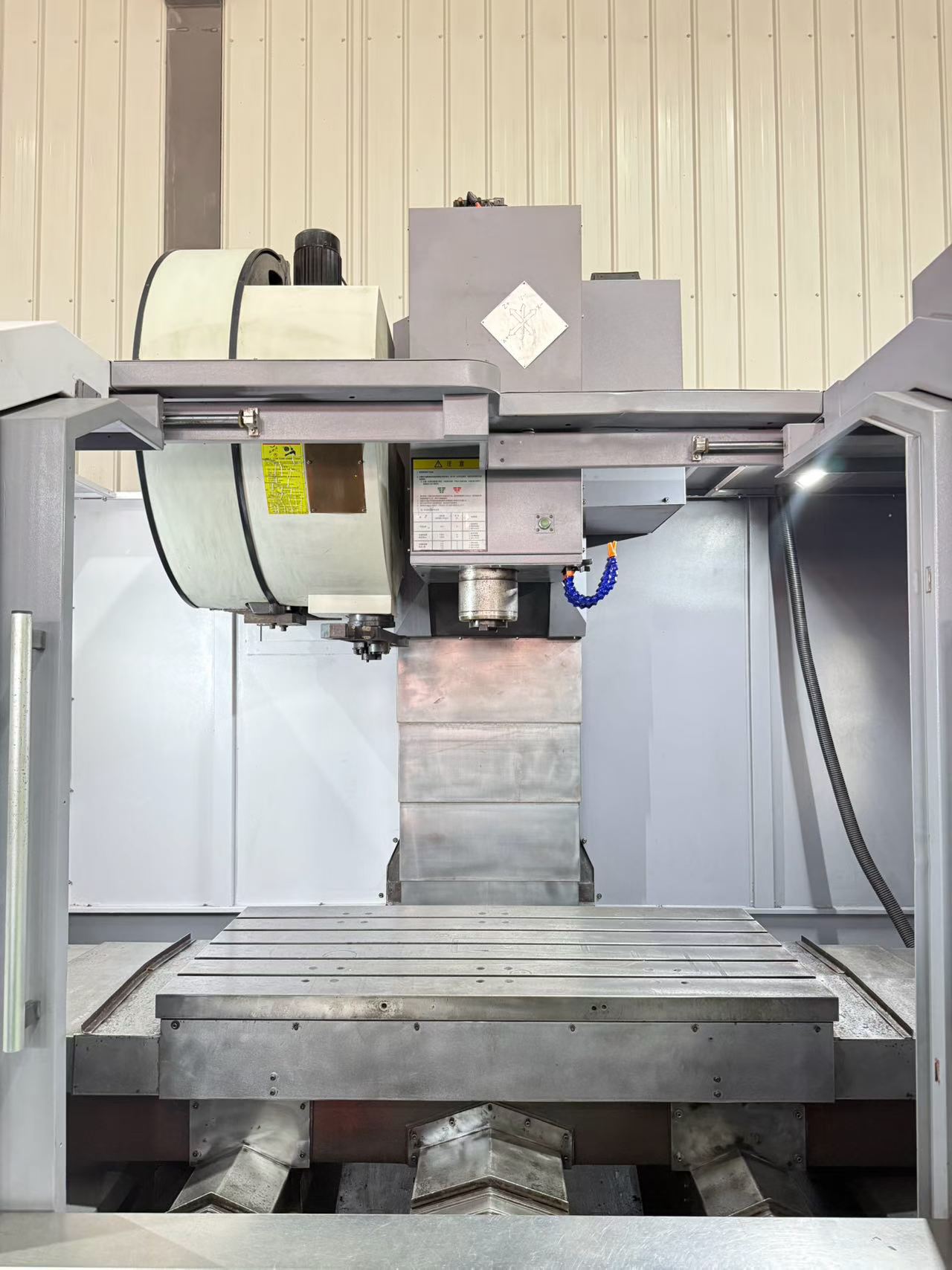

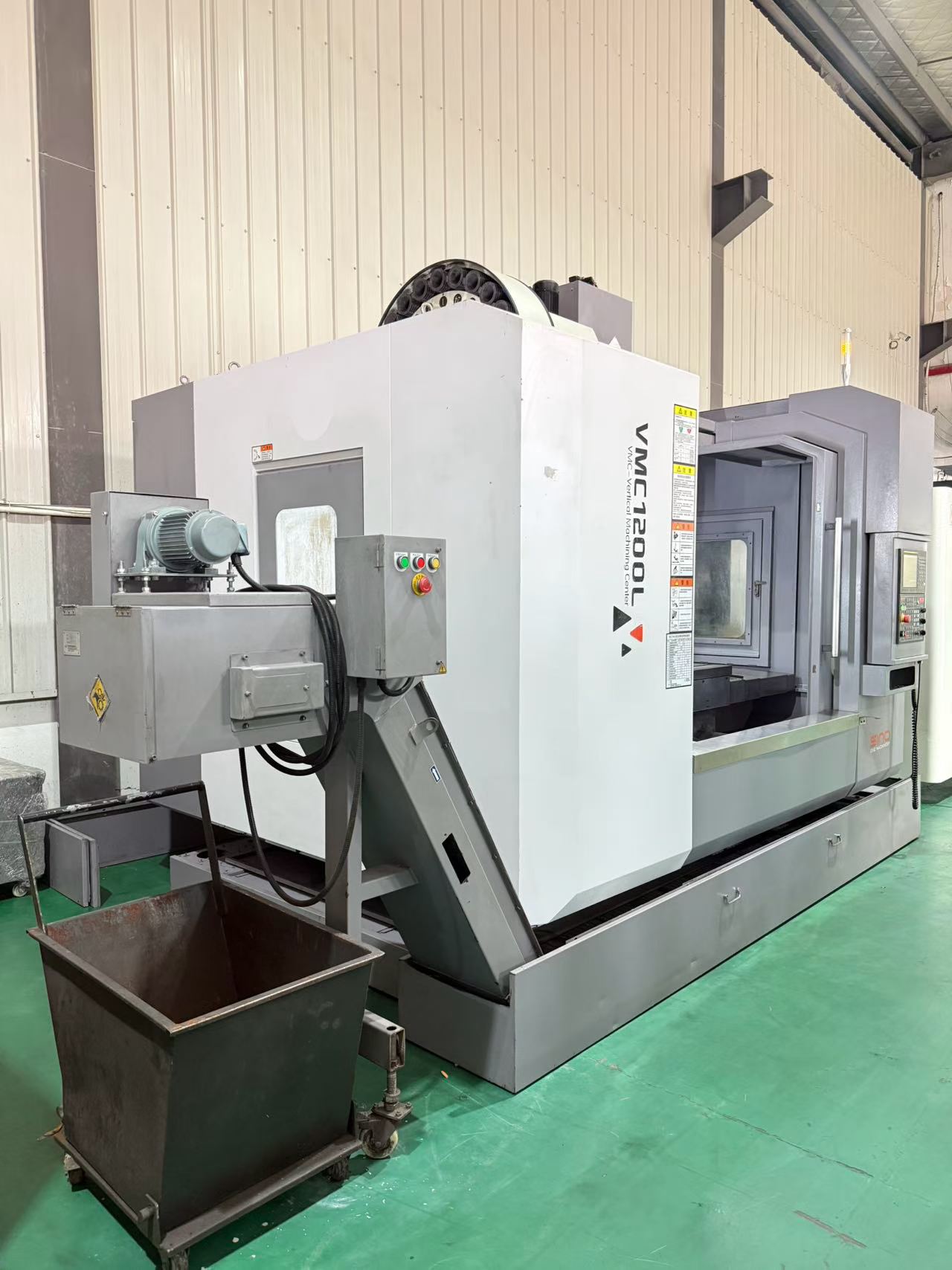

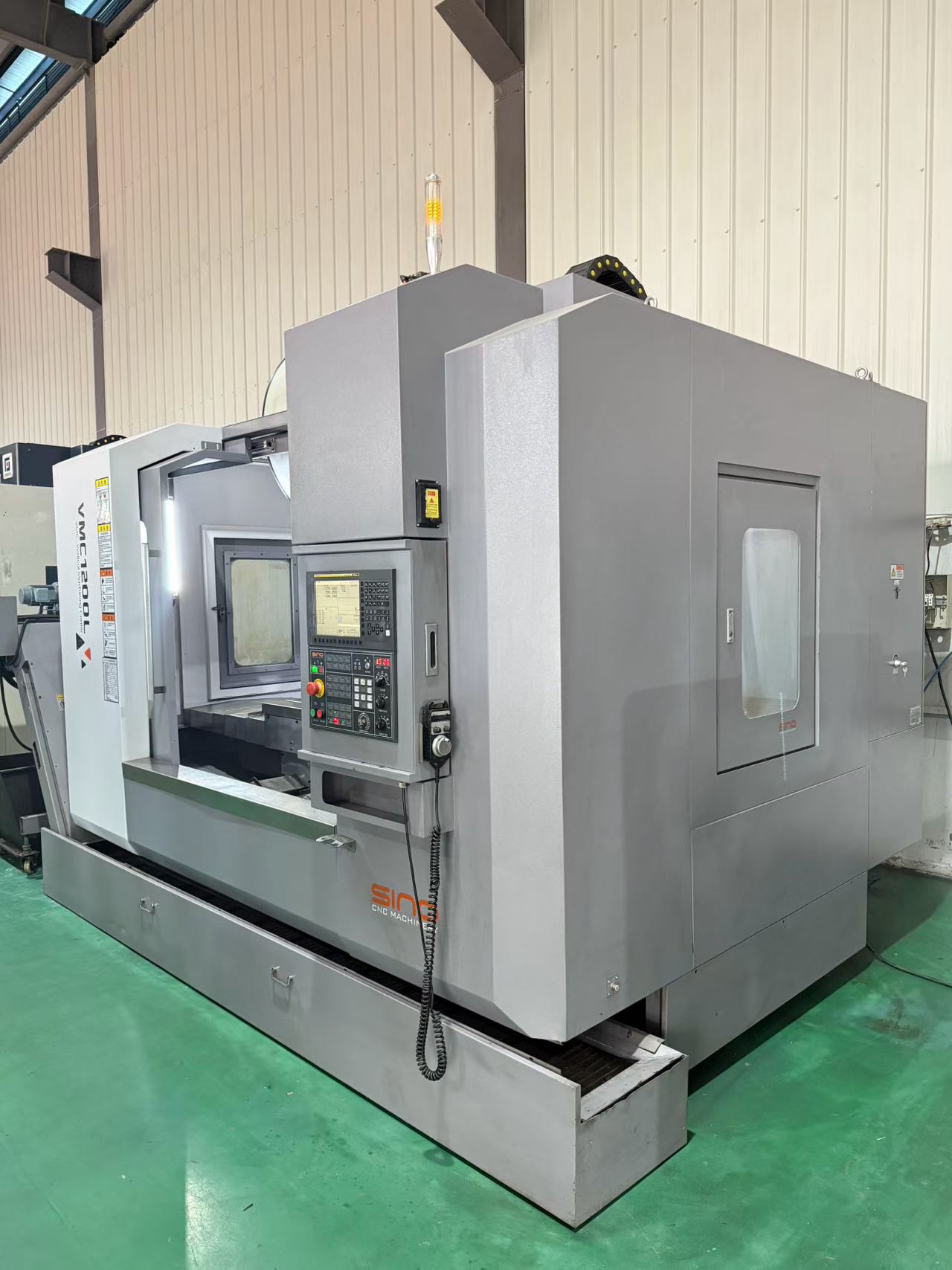

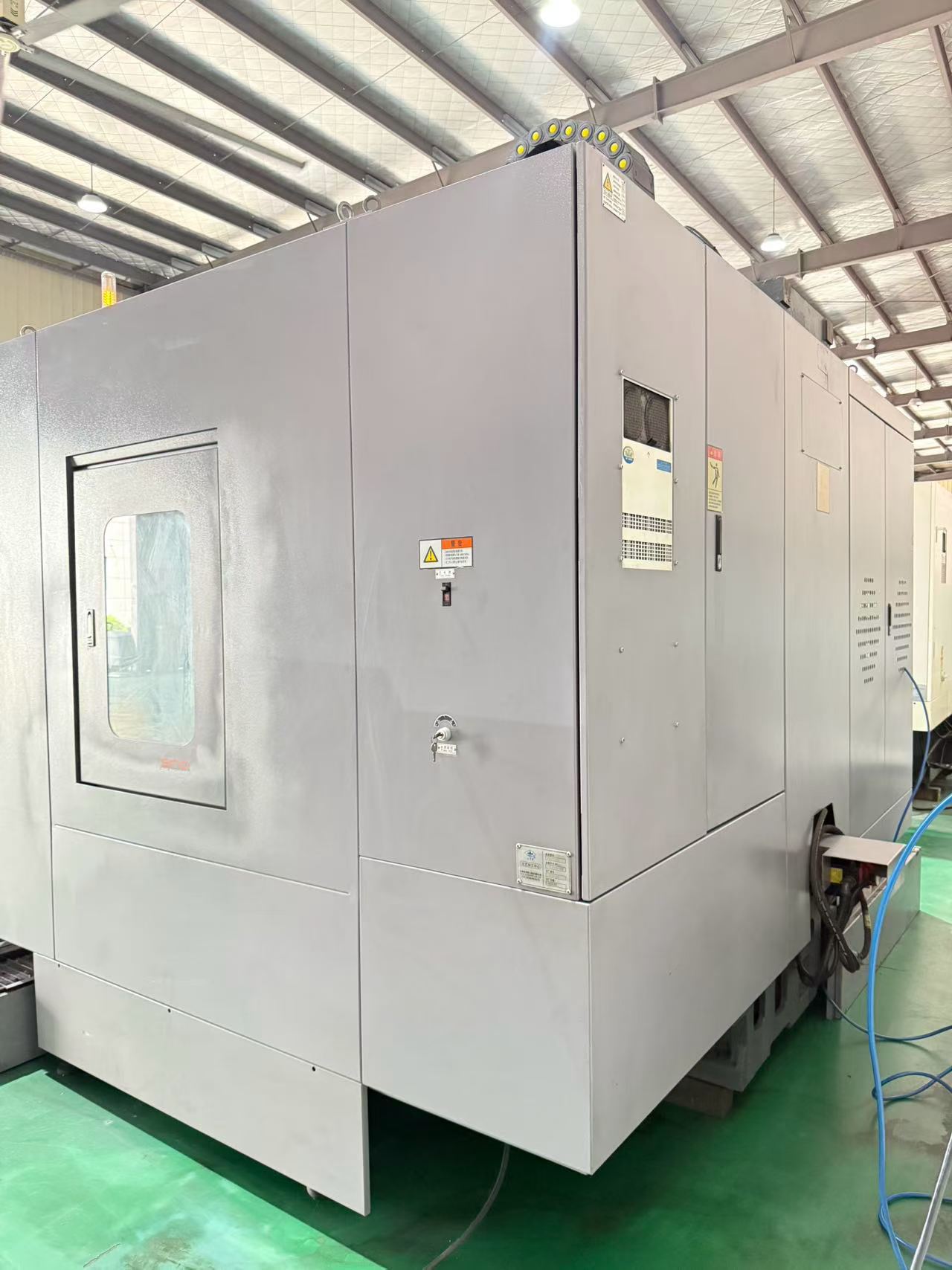

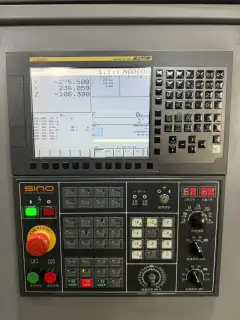

This used Xinnuo VMC 1200 L is a heavy-duty vertical machining center manufactured in 2023. It is equipped with a FANUC 0i-MF Plus control system, a BT50 belt-driven spindle with a maximum speed of 6000 rpm, and a 24-position arm-type automatic tool changer. The machine features a worktable of 1400 mm x 700 mm, with X/Y/Z travels of 1200 mm x 680 mm x 680 mm. Additional highlights include a 15 kW spindle motor, a combination of two linear guideways and one box guideway, and an automatic chip conveyor. All parameters are for reference only; please refer to the actual machine for final details.
- Machine Code
- VMC2608320
- Year
- 2023
- Location
- China
- Usage Hours
- On request
Accessories
Automatic chip conveyor, Z-axis counterweight
Main Specifications
| Spindle taper | BT50 |
|---|---|
| Spindle speed | 6000 rpm |
| Spindle motor power | 15 kW |
| X-axis travel | 1200 mm |
| Y-axis travel | 680 mm |
| Z-axis travel | 680 mm |

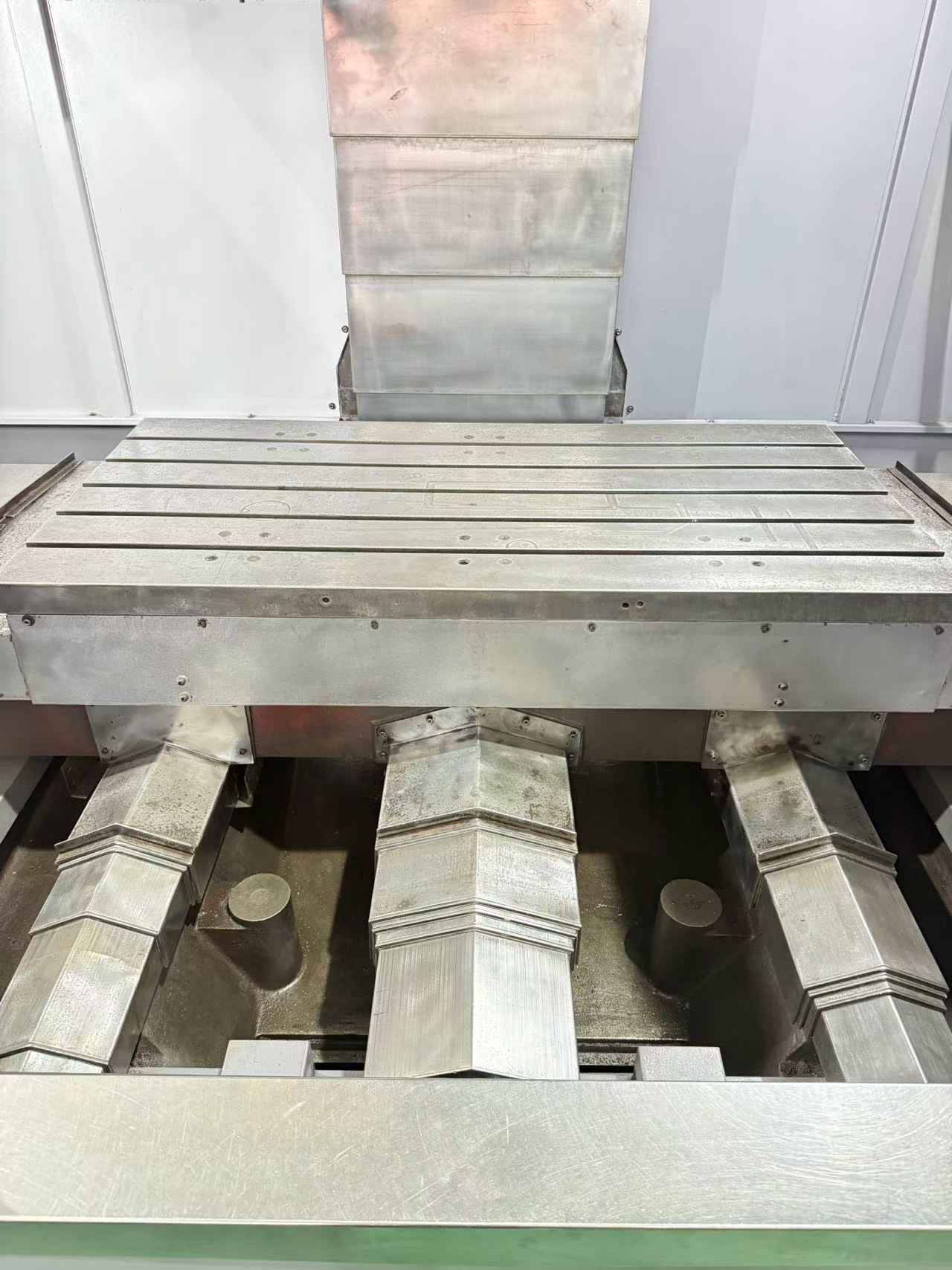

| Worktable size | 1400 mm x 700 mm |

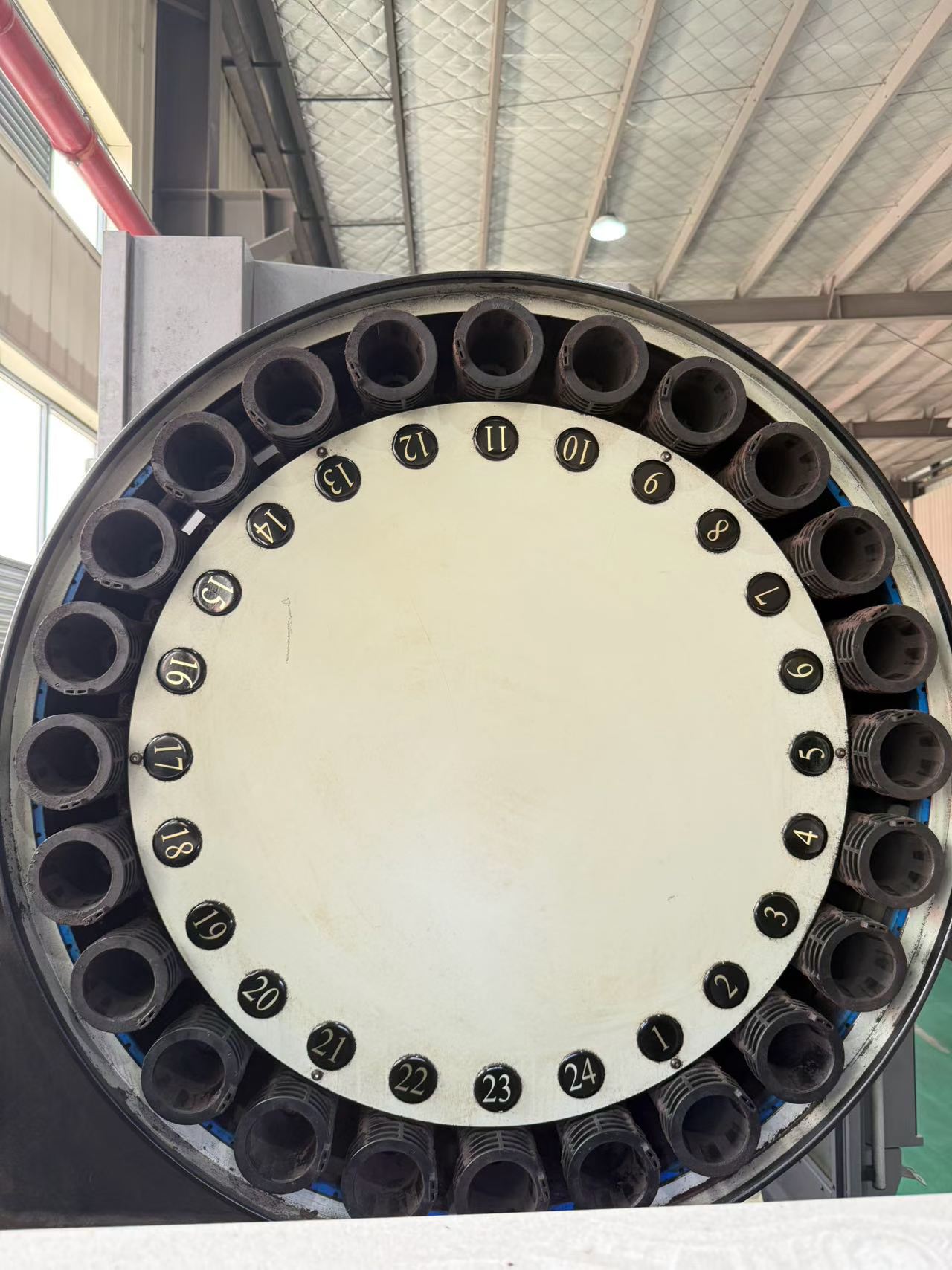

| Tool magazine capacity | 24 tools |
| Guideways | Two linear guideways + one box guideway |
| Control system | FANUC 0i-MF Plus |
| Year | 2023 |
| Brand | Xinnuo |
| Year of manufacture | 2023 |
