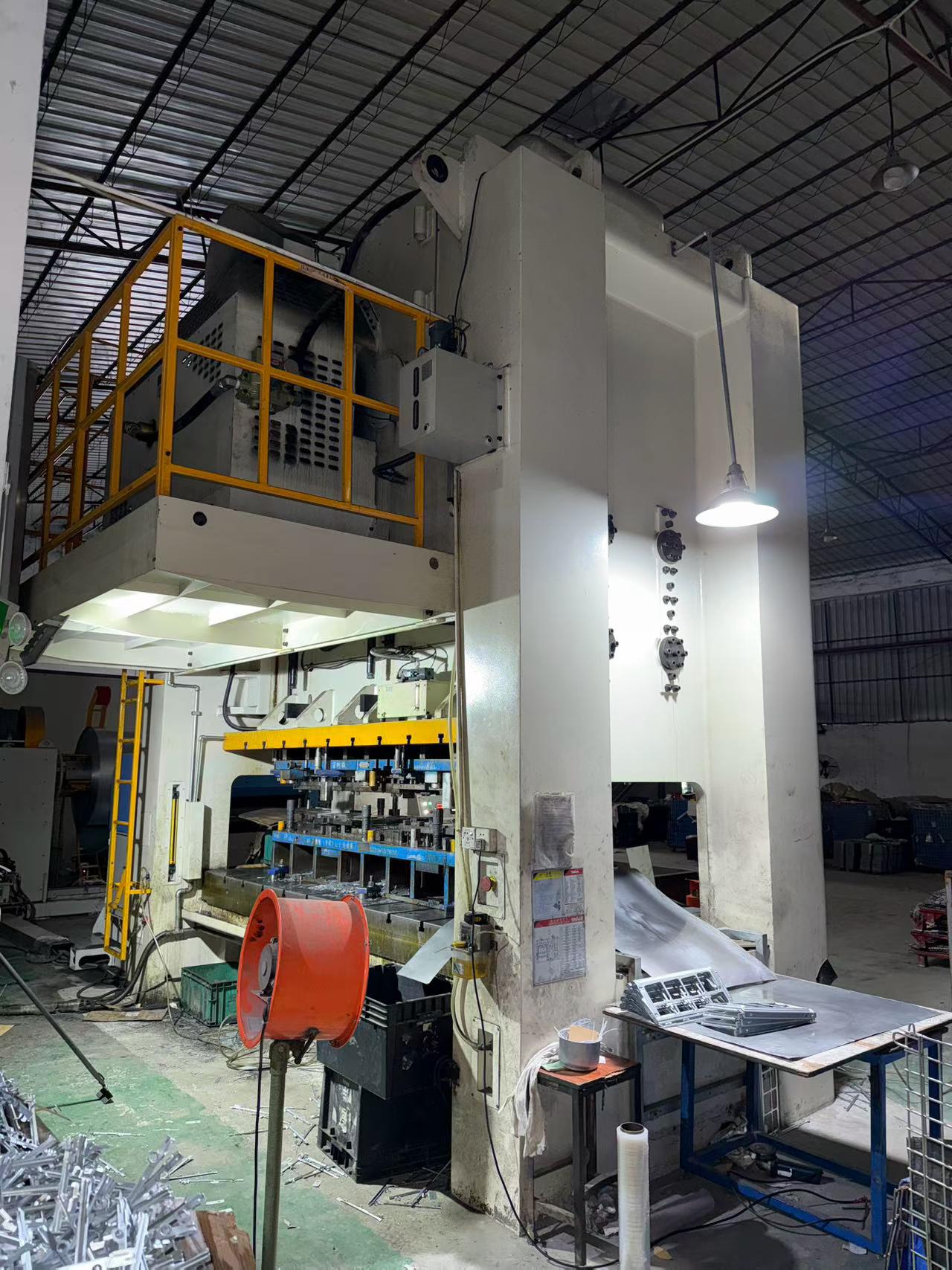

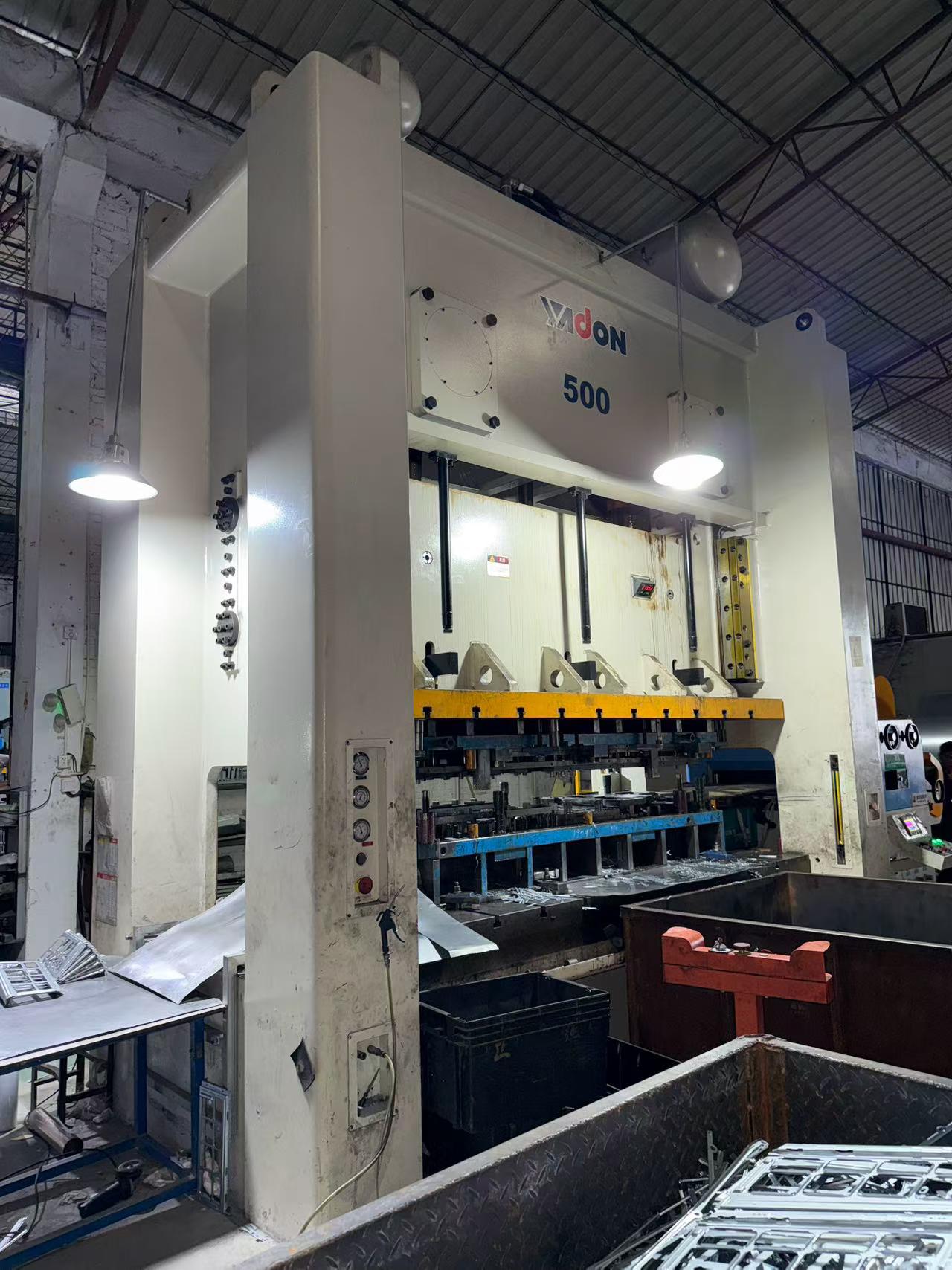

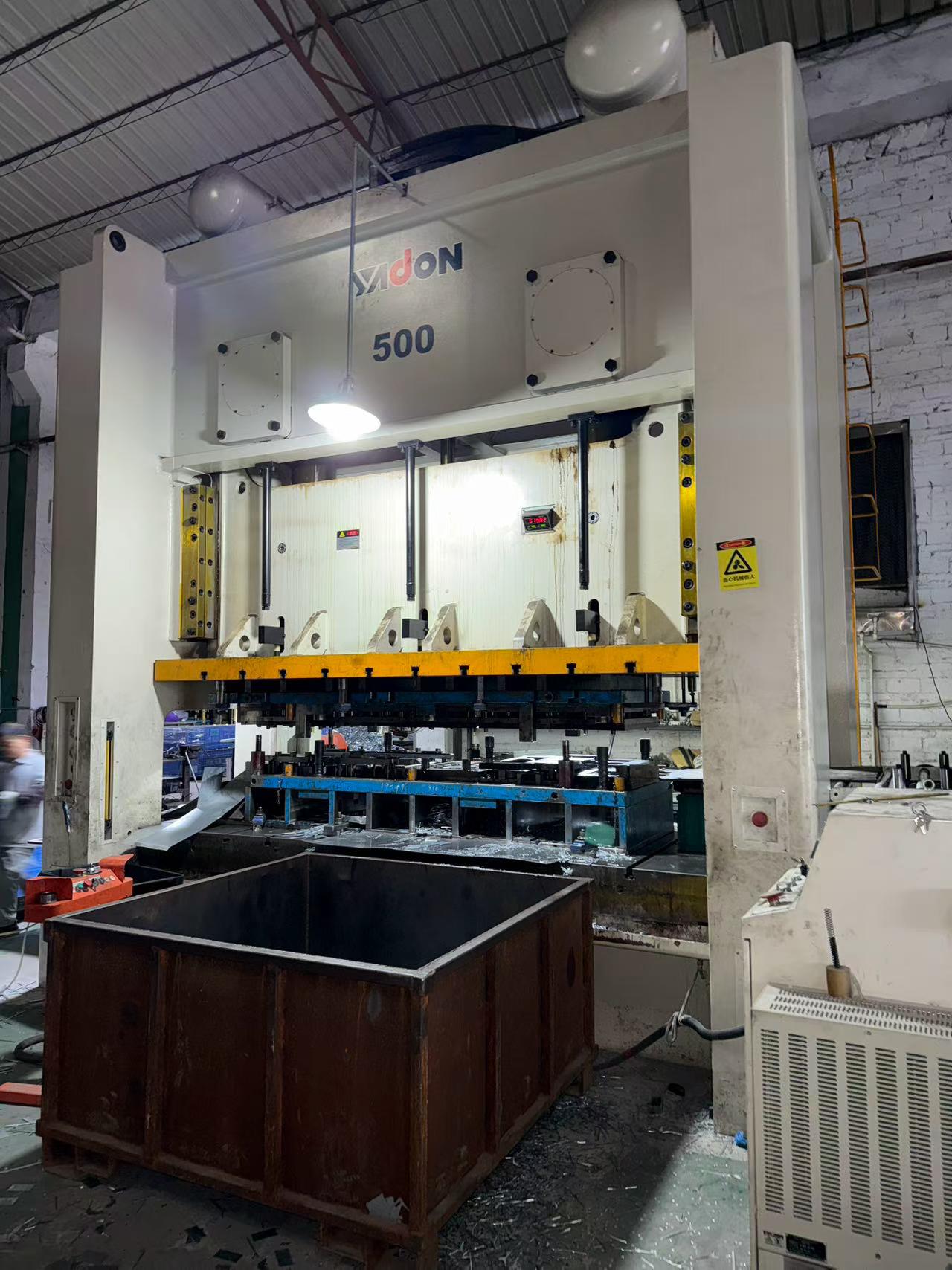

Yangduan 500 Ton Double-Shaft Gantry Punch Press JB 36-500
Used Yangduan 500 ton double-shaft gantry punch press, model JB 36-500, manufactured March 2025. Suitable for mold, hardware, stamping processing. Available from China stock. The machine information is translated from the original Chinese supplier notes and can be verified by video or on-site inspection.
- Machine Code
- PP260603
- Year
- 2025
- Location
- China
- Usage Hours
- On request
Main Specifications
| Pressure | 5000 kN |
|---|---|
| Stroke | 10 mm |
| Maximum die height | 700 mm |
| Slide adjustment | 120 mm |
| Table size | 3600×1500 mm |
| Main motor power | 45 kW |
| Total stop response time | 0.23 s |
| Machine Type | Double-shaft gantry punch press, 500 t |
| Model | JB 36-500 |
| Manufacturing Date | 2025-3 |
| Nominal Pressure | 5000 kN |
