Used YCM 800 Horizontal Machining Center with FANUC Absolute-Value System

YCM 800 horizontal machining center built around a dual worktable with 1° / 1′ indexing, giving two pallet stations for work while cutting continues at the other. The guideway arrangement is two linear guideways and one box guideway, and the machine runs on a FANUC absolute-value system, so axis positions are retained without re-homing. Spindle drive is a FANUC α15 spindle motor rated 15 kW / 18.5 kW. Tooling is handled by a BT50 magazine with 80 fixed tool positions, accepting tools up to 20 kg with a 12-second tool change. A Renishaw measurement system is fitted for in-process part measurement. Machining accuracy is held within 0.01 mm. Machine weight is approximately 26,560 kg, floor space is 7,085 mm x 5,700 mm, and total power consumption is 65 kVA.

Machine Code: HMC261015
Year: On request
Location: China
Usage Hours: On request

Accessories

Renishaw measurement system; FANUC absolute-value system; BT50 80-station tool magazine with fixed tool positions

Open machine video

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

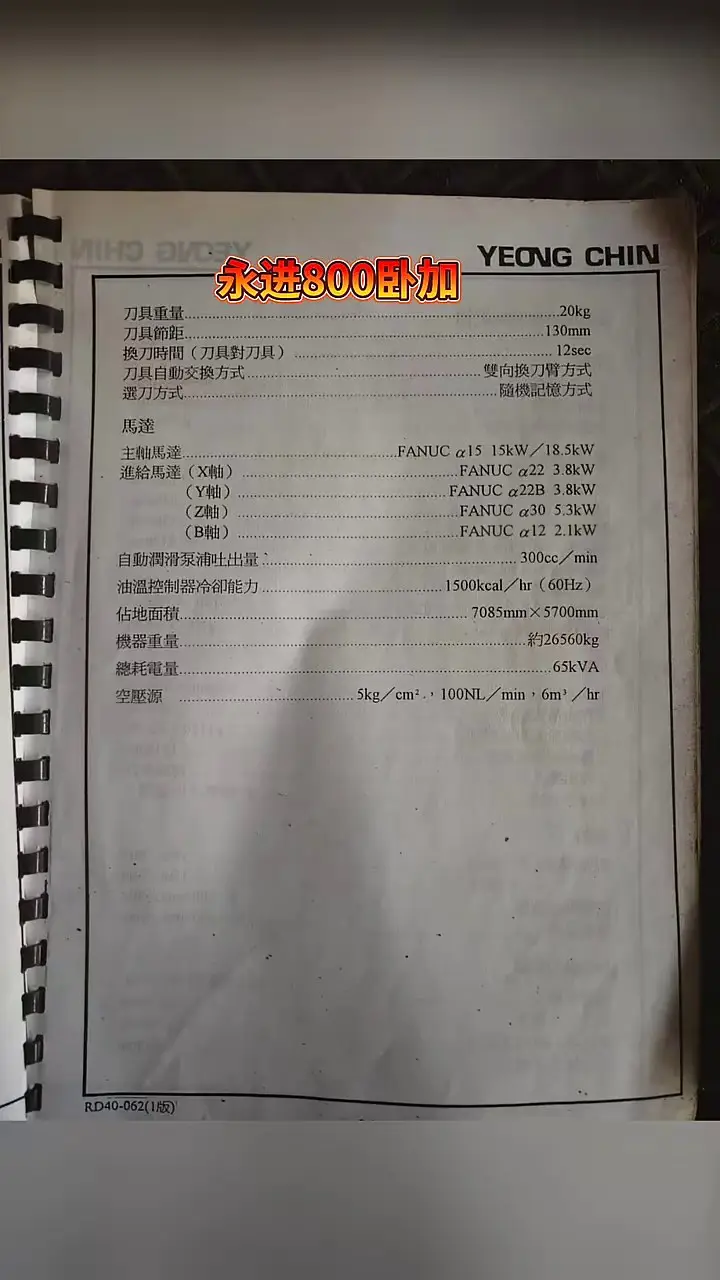

Main Specifications

Machine type	Horizontal Machining Center
Worktable configuration	Dual worktable, 1° / 1′ indexing
Guideway configuration	Two linear guideways and one box guideway
Controller	FANUC absolute-value system
Spindle motor	FANUC α15, 15 kW / 18.5 kW
Spindle taper	BT50
Tool magazine capacity	80 tools, fixed tool positions
Maximum tool weight	20 kg
Tool change time	12 s
Machining accuracy	Within 0.01 mm
Machine weight	Approx. 26,560 kg
Floor space	7,085 mm x 5,700 mm
Total power consumption	65 kVA
Measurement	Renishaw measurement system
Brand	YCM
Control system	FANUC absolute-value system
