AvailableVertical Machining Center

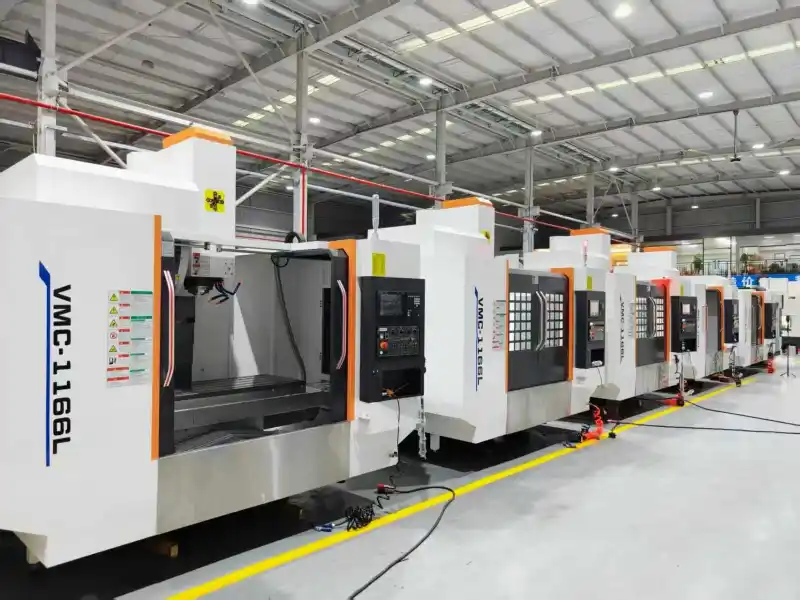

Used YiGang Technology 1160 Vertical Machining Center with Mitsubishi M 80 Control

This YiGang Technology 1160 is a vertical machining center built around the Mitsubishi M 80 CNC control system. All three linear axes run on roller linear guideways, supporting stable heavy-cutting performance and consistent accuracy over the 1100 x 600 x 600 mm X/Y/Z travels. The 1200 x 600 mm worktable accommodates medium and large fixture and workpiece sizes. The spindle is a Taiwan Jianchun belt-driven unit rated to 10,000 rpm, suited to both steel and aluminium machining. Tool changes are handled by a 24-station arm-type tool magazine, keeping non-cutting time short across multi-tool programs. The machine is offered as a used unit, available for inspection.

Machine Code: VMC2610130
Year: 2026
Location: China
Usage Hours: On request

Accessories

Mitsubishi M 80 CNC control system 24-station arm-type tool magazine Taiwan Jianchun belt-driven spindle (10,000 rpm) Roller linear guideways on X, Y and Z axes

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

X/Y/Z travel	1100 x 600 x 600 mm
Worktable size	1200 x 600 mm
Spindle speed	10,000 rpm
Spindle drive	Belt-driven, Taiwan Jianchun
Tool magazine capacity	24 stations
Tool changer type	Arm-type ATC
Guideway type	Roller linear guideway (3 axes)

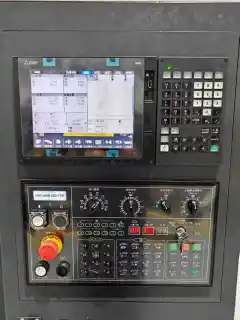

CNC control	Mitsubishi M 80
Brand	YiGang Technology
Control system	Mitsubishi M 80
Year of manufacture	2026
