AvailableCNC Lathe

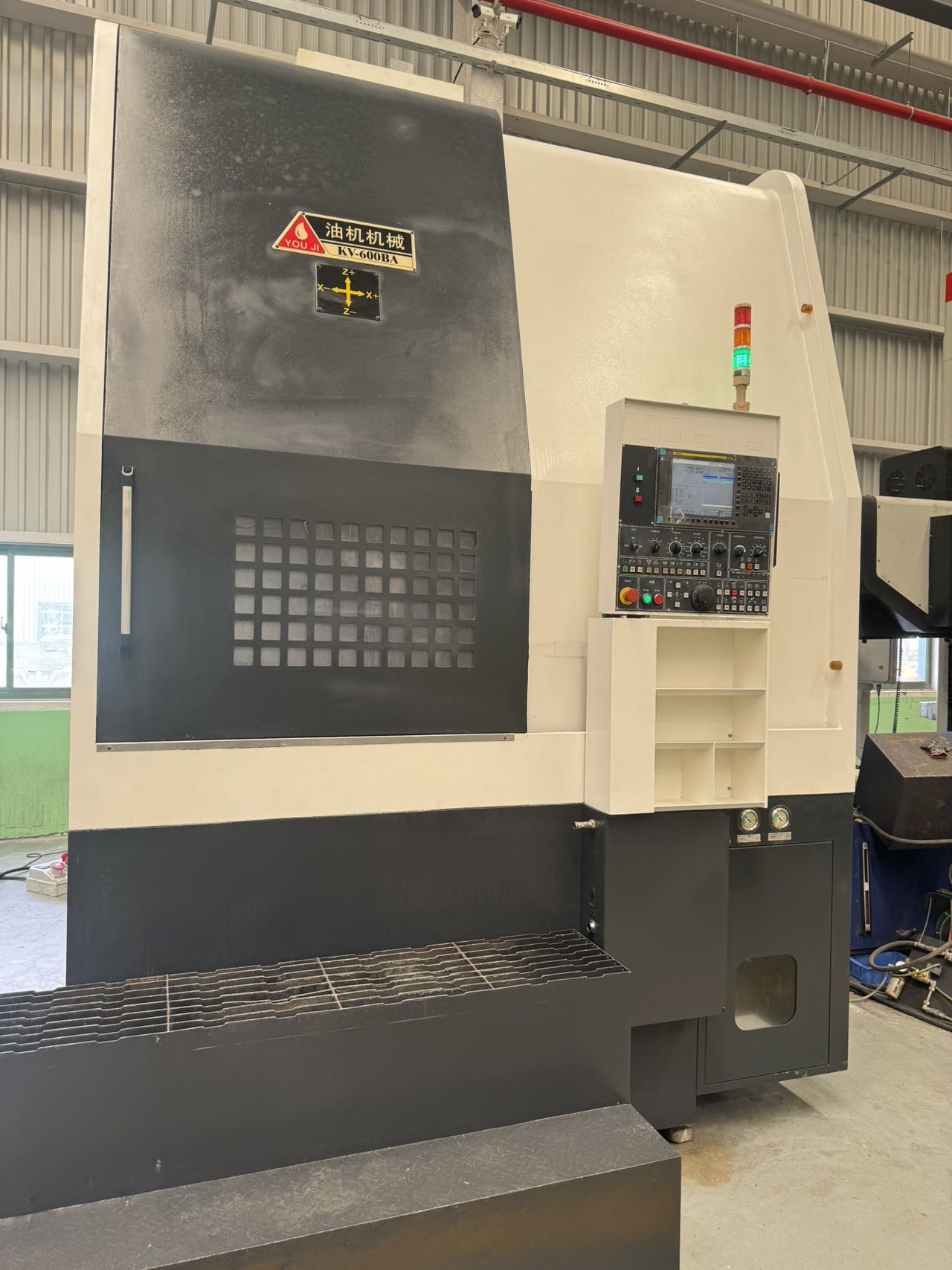

Used You Ji KV-600 BA Heavy Duty CNC Vertical Lathe
Used You Ji KV-600 BA heavy duty CNC vertical lathe. Equipped with FANUC TF control system, 6-station hydraulic turret, and 800 mm manual chuck. Suitable for turning large workpieces up to 1050 mm diameter and 750 mm height.
- Machine Code
- CL2608244
- Year
- On request
- Location
- China
- Usage Hours
- On request
Main Specifications

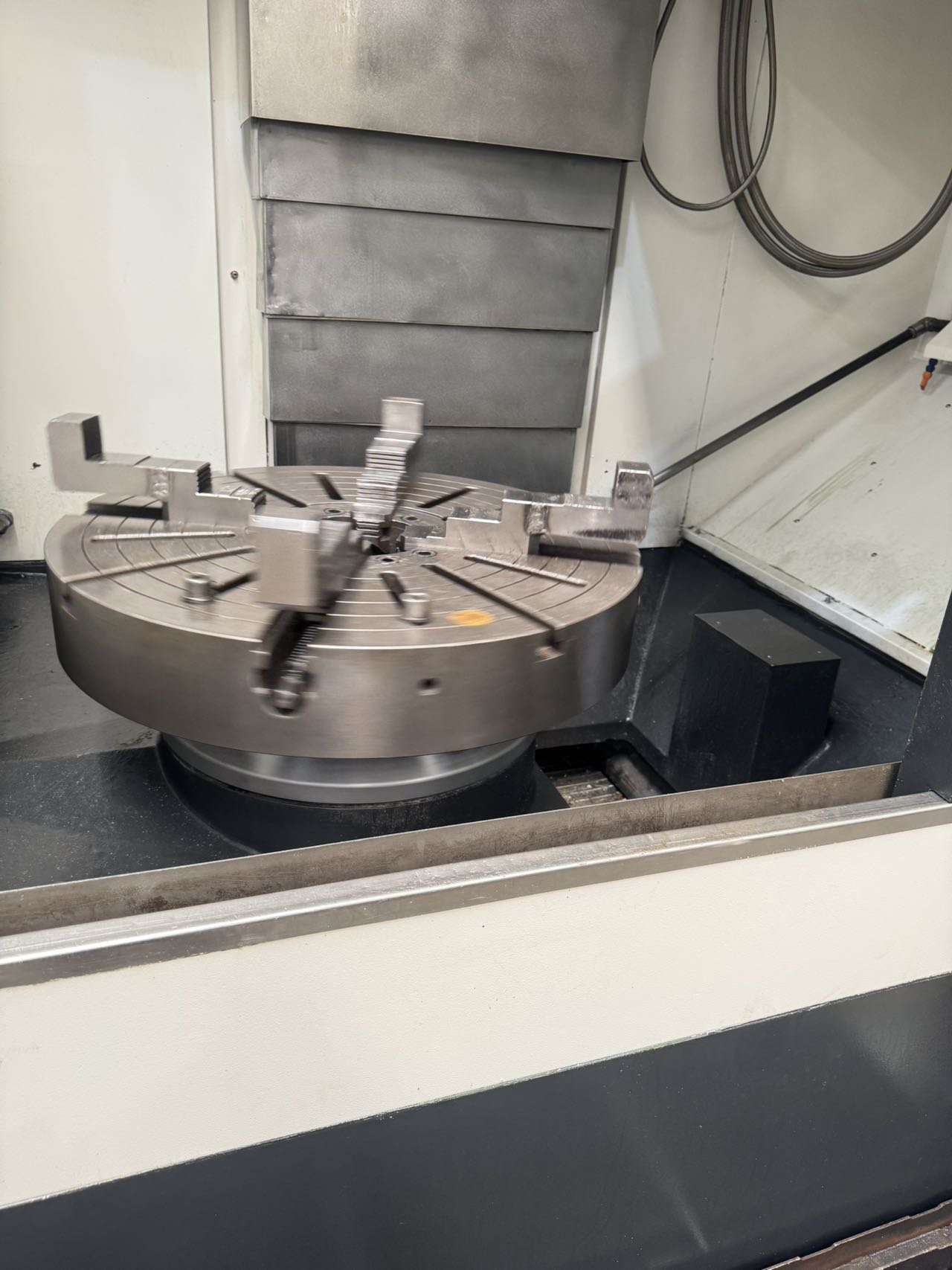

| Chuck diameter | 800 mm |
|---|---|

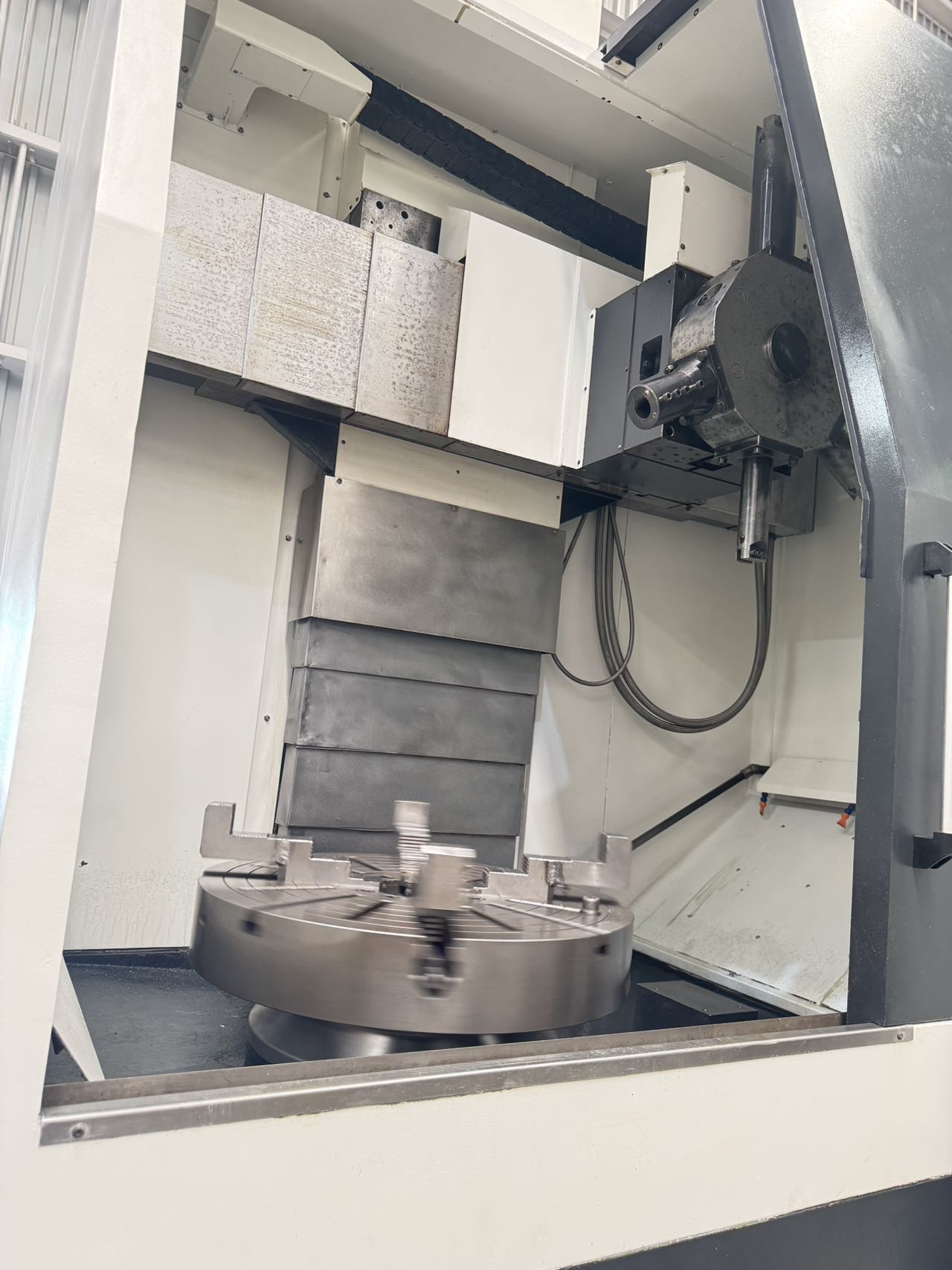

| Tool station | 6-station heavy-duty hydraulic turret |
| Max swing diameter | Ø1100 mm |
| Max cutting diameter | Ø1050 mm |
| Max cutting height | 750 mm |
| Max table load | 1800 kg |
| Spindle speed range | Low 20-340 rpm; High 340-1500 rpm |
| Spindle motor power | 18.5/22 kW |
| Spindle nose | A 2-11 |
| X-axis travel | -55 to +650 mm |
| X-axis rapid traverse | 12 m/min |
| Z-axis travel | 620 mm |
| Z-axis rapid traverse | 20 m/min |
| Servo motor X-axis | 3 kW |
| Servo motor Z-axis | 4 kW |
| Machine weight | 17,000 kg |
| Floor space | 4300 x 2650 mm |
| Machine height | 4300 mm |

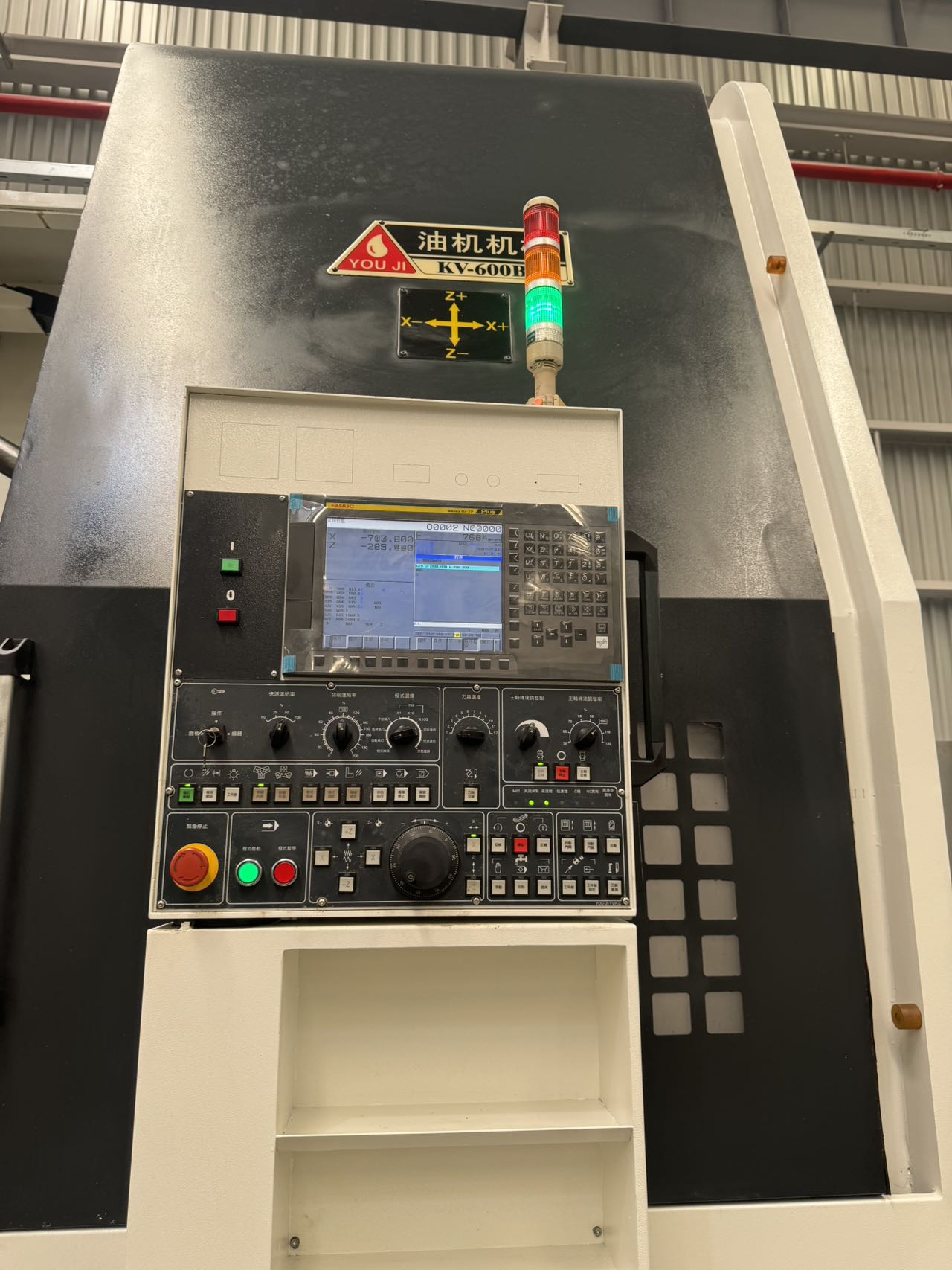

| Control system | FANUC TF |
| Model | KV-600 BA |
| Machine Type | Heavy-duty CNC Vertical Lathe |
| Chuck Type | Manual chuck |
| Brand | YOUJI |
| Spindle Speed Range (low) | 20-340 rpm |
| Spindle Speed Range (high) | 340-1500 rpm |
