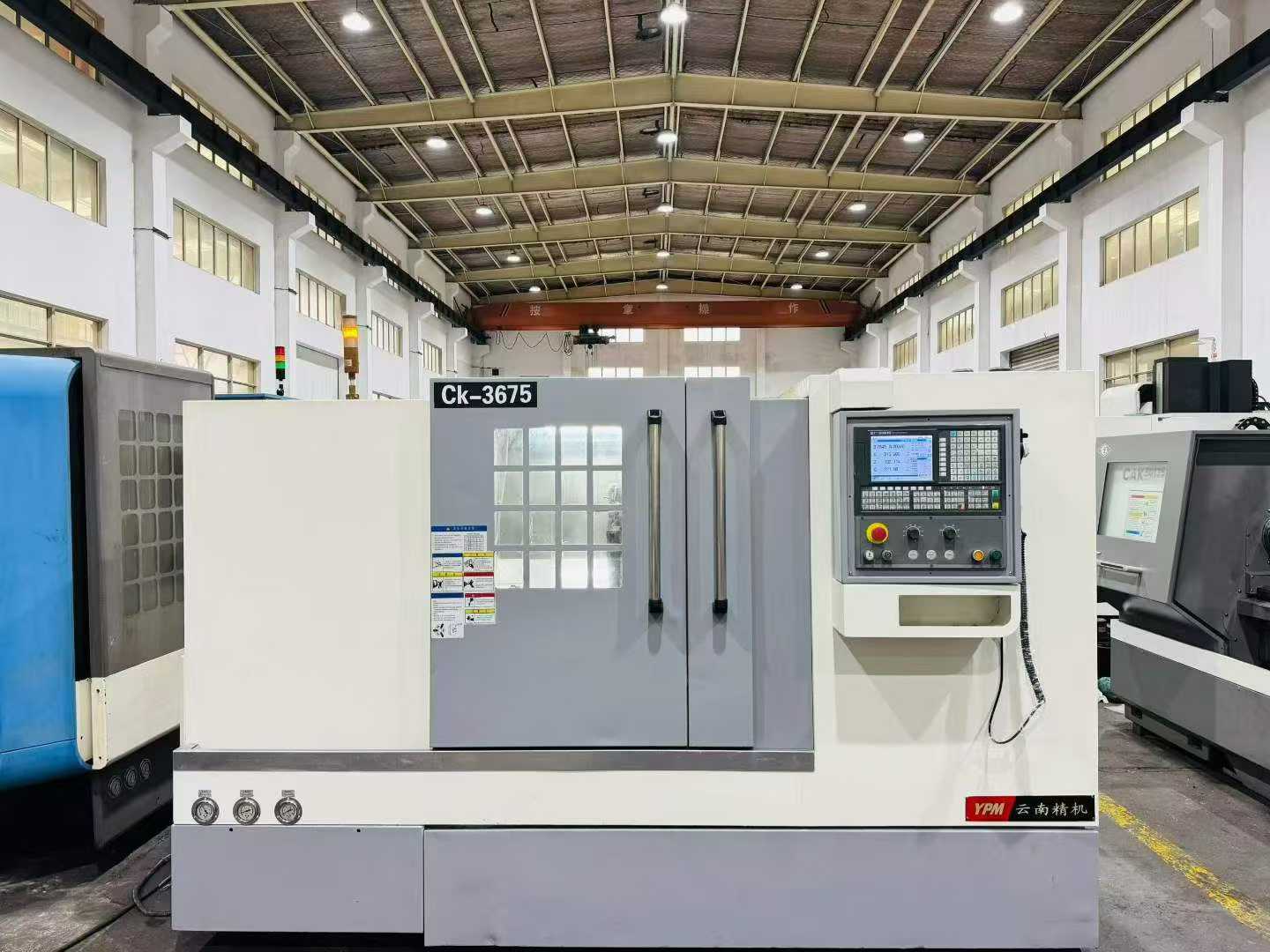

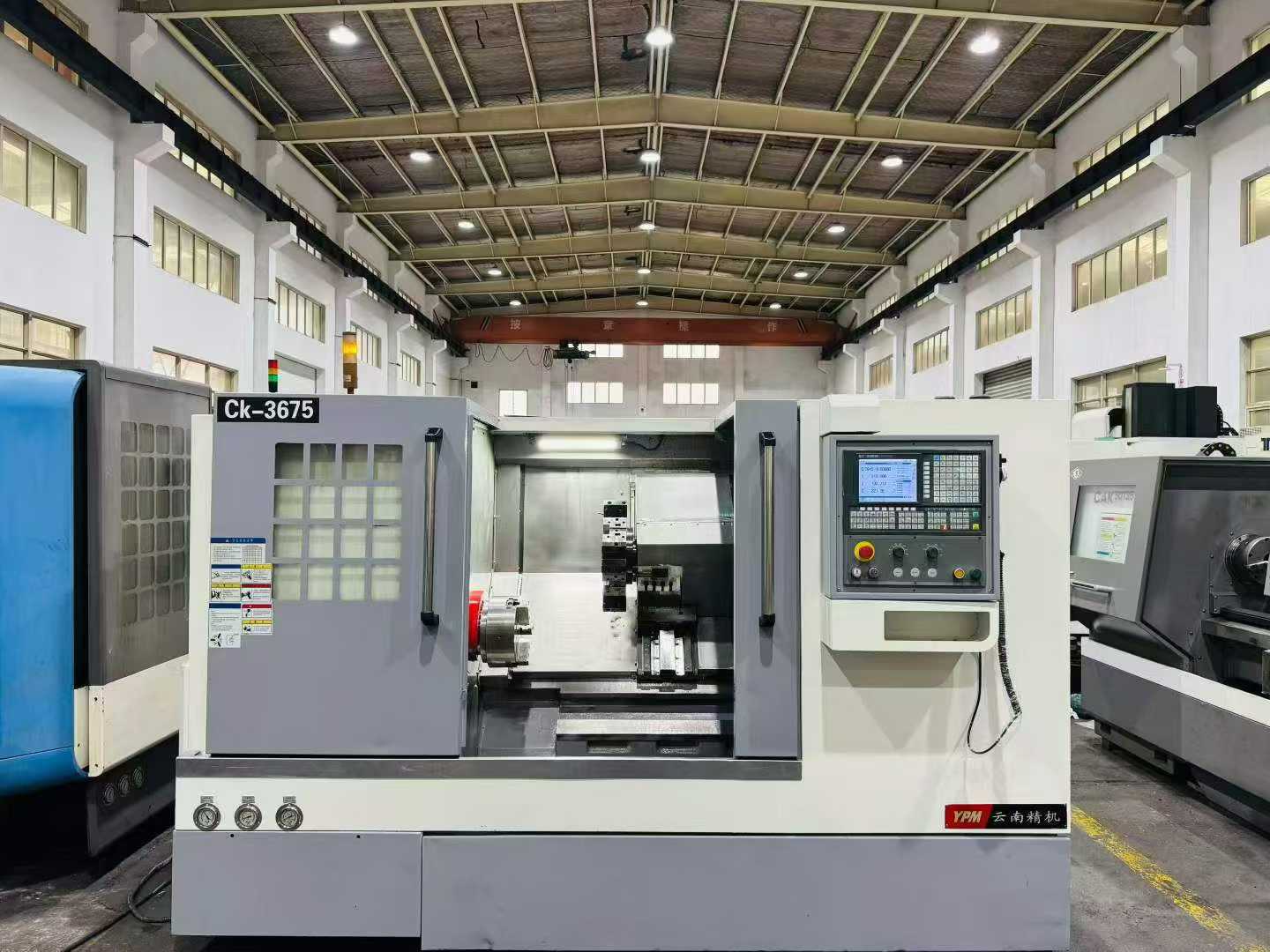

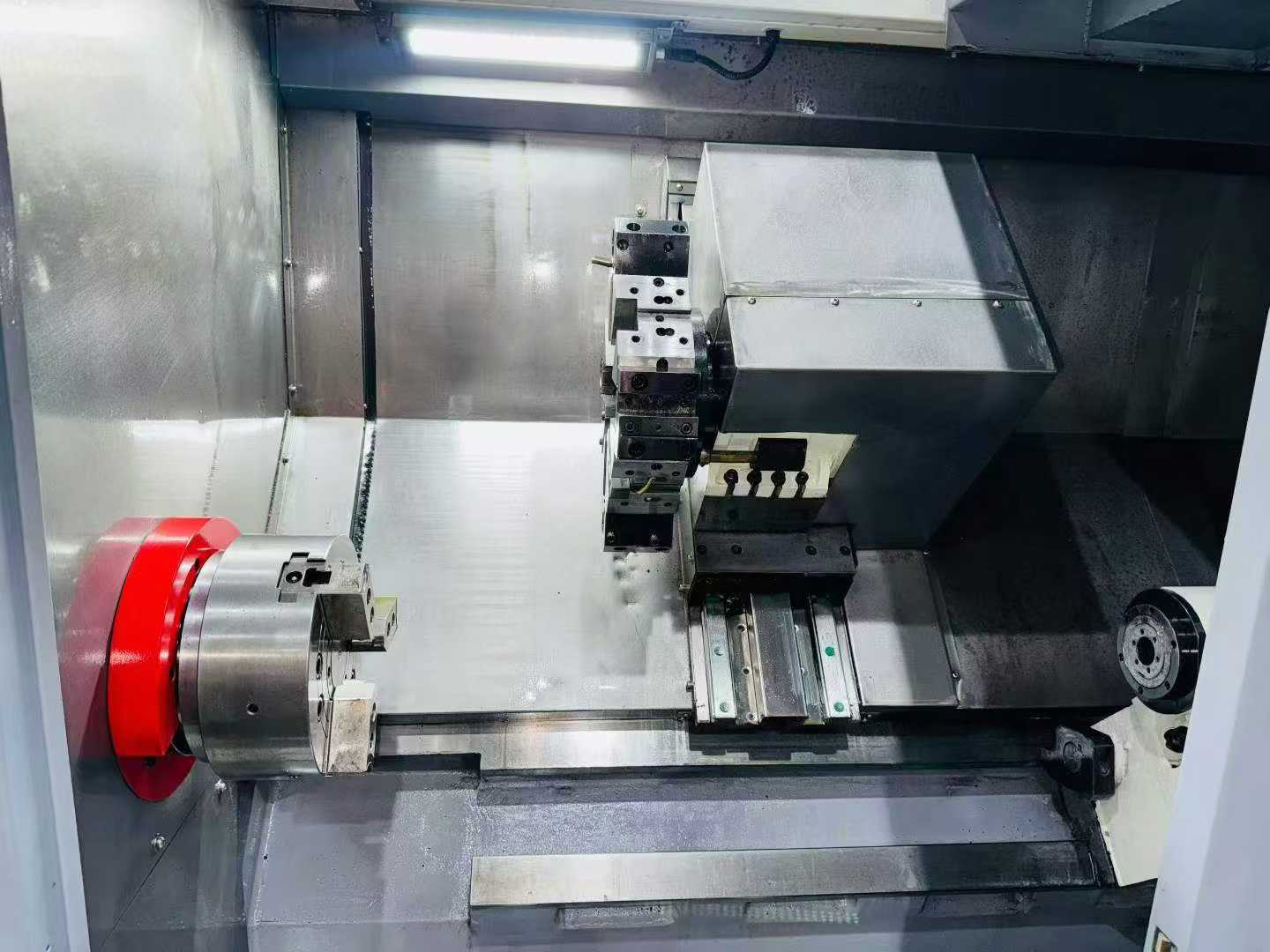

Yunnan Precision CK-3675 Slant-Bed Turret-Type CNC Lathe
Just arrived: a used Yunnan Precision Machine CK-3675 slant-bed turret-type CNC lathe in excellent condition. The machine features HIWIN precision linear guideways on both axes, a maximum swing over bed of Ø580 mm, a maximum machining diameter of Ø360 mm, and a maximum machining length of 750 mm. It is equipped with a 10-inch through-hole hydraulic chuck, a large-diameter 8-station hydraulic turret, an MT 5 hydraulic tailstock, and a GSK 988 TA absolute bus control system with an 11 kW spindle servo motor. This machine is in very good working condition and is available for inspection.
- Machine Code
- CL2608218
- Year
- On request
- Location
- China
- Usage Hours
- On request
Main Specifications
| Maximum swing over bed | Ø580 mm |
|---|---|
| Maximum machining diameter | Ø360 mm |
| Maximum machining length | 750 mm |
| Guideways | HIWIN precision linear guideways (X/Z) |

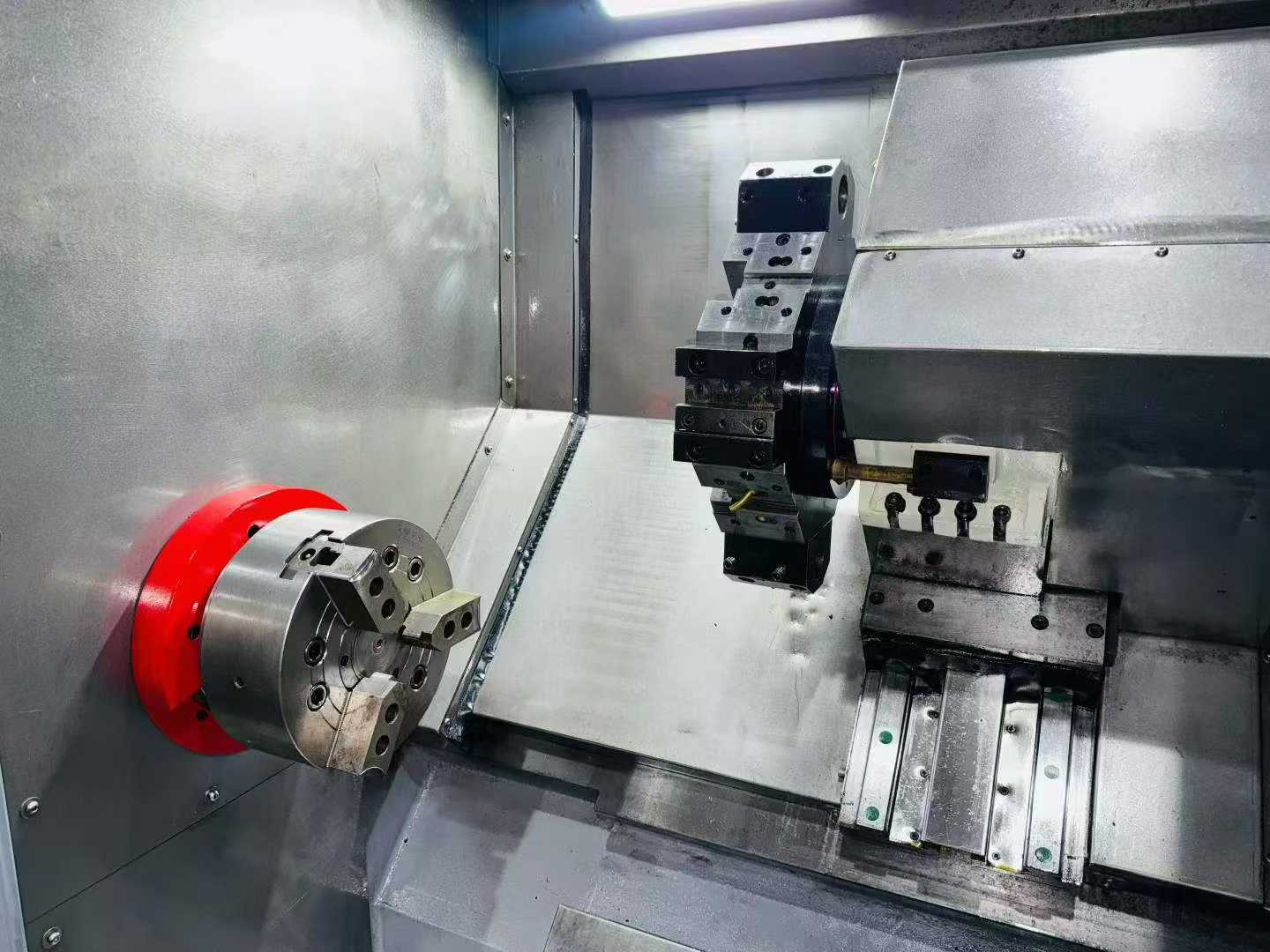

| Chuck | 10-inch through-hole hydraulic chuck |

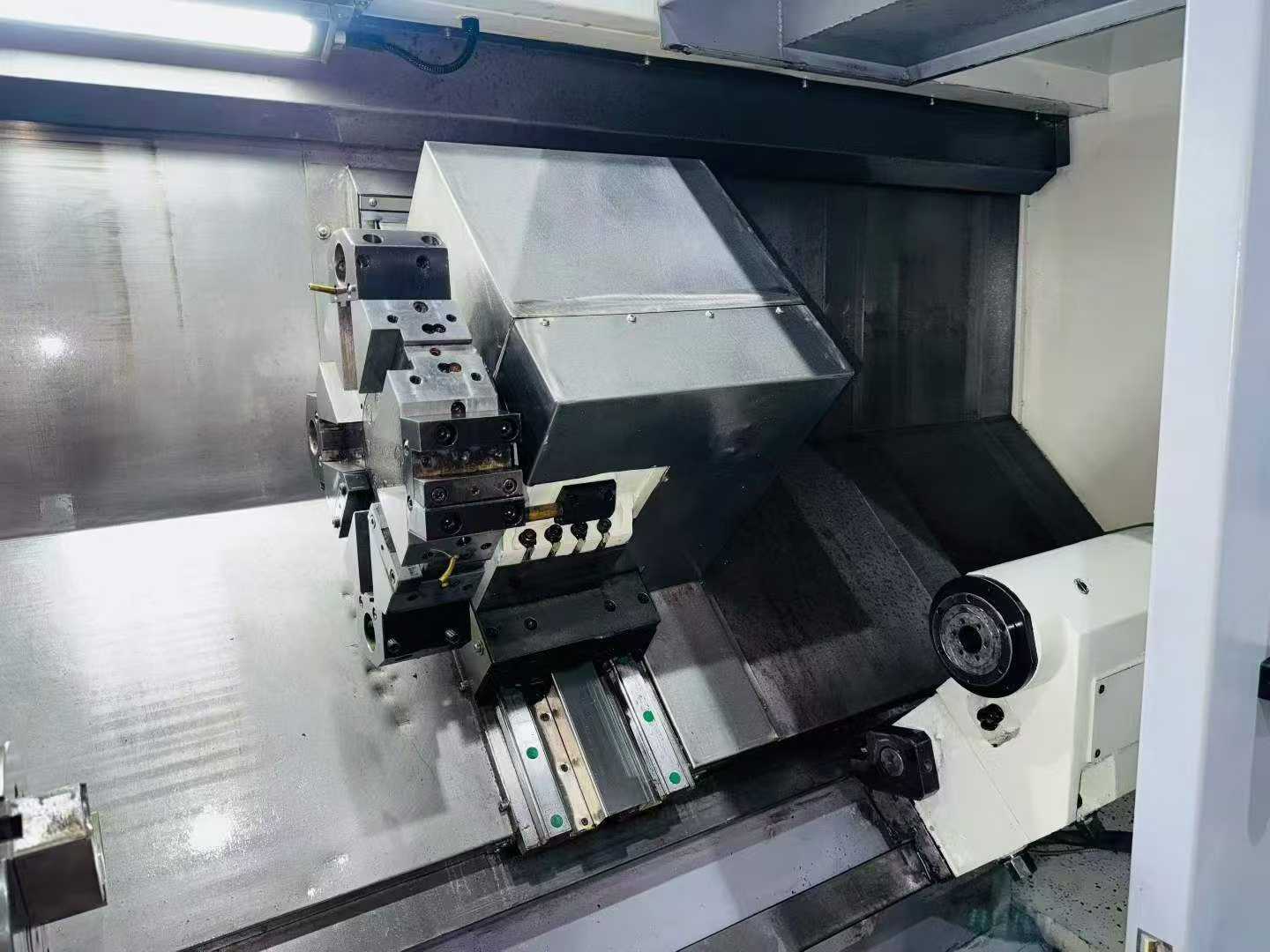

| Turret | 8-station hydraulic turret |
| Tailstock | MT 5 hydraulic tailstock |

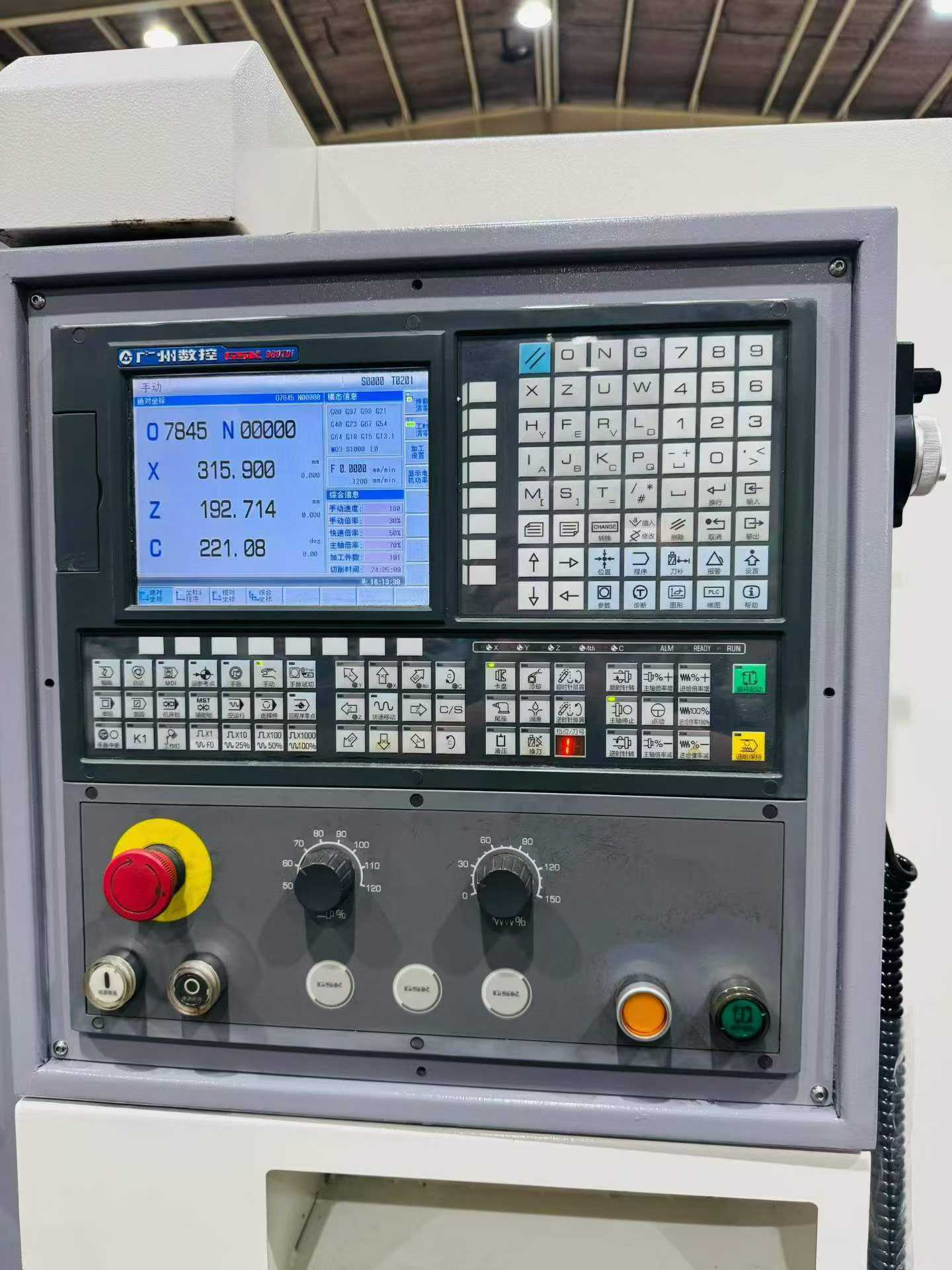

| Control system | GSK 988 TA absolute bus system |
| Spindle motor power | 11 kW |
| Machine Type | Slant-bed turret-type CNC lathe |
| Guideway Configuration | HIWIN precision linear guideways (X/Z) |
| Brand | Yunnan Precision |
| Model | CK-3675 |
