AvailableCNC Lathe

Used Zanbli CK 46 Gang-Type CNC Lathe with SYNTEC 6 TA-E Control

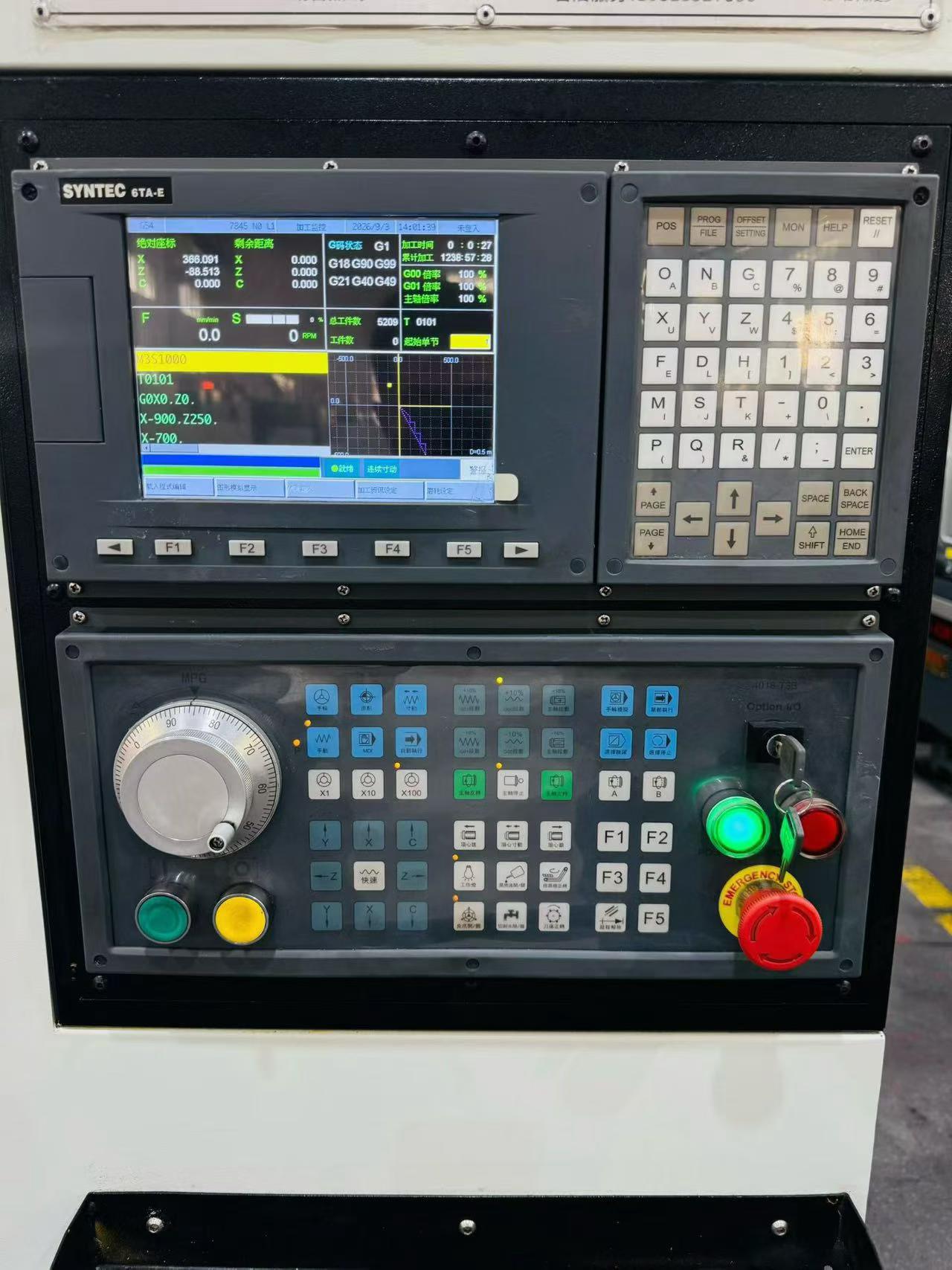

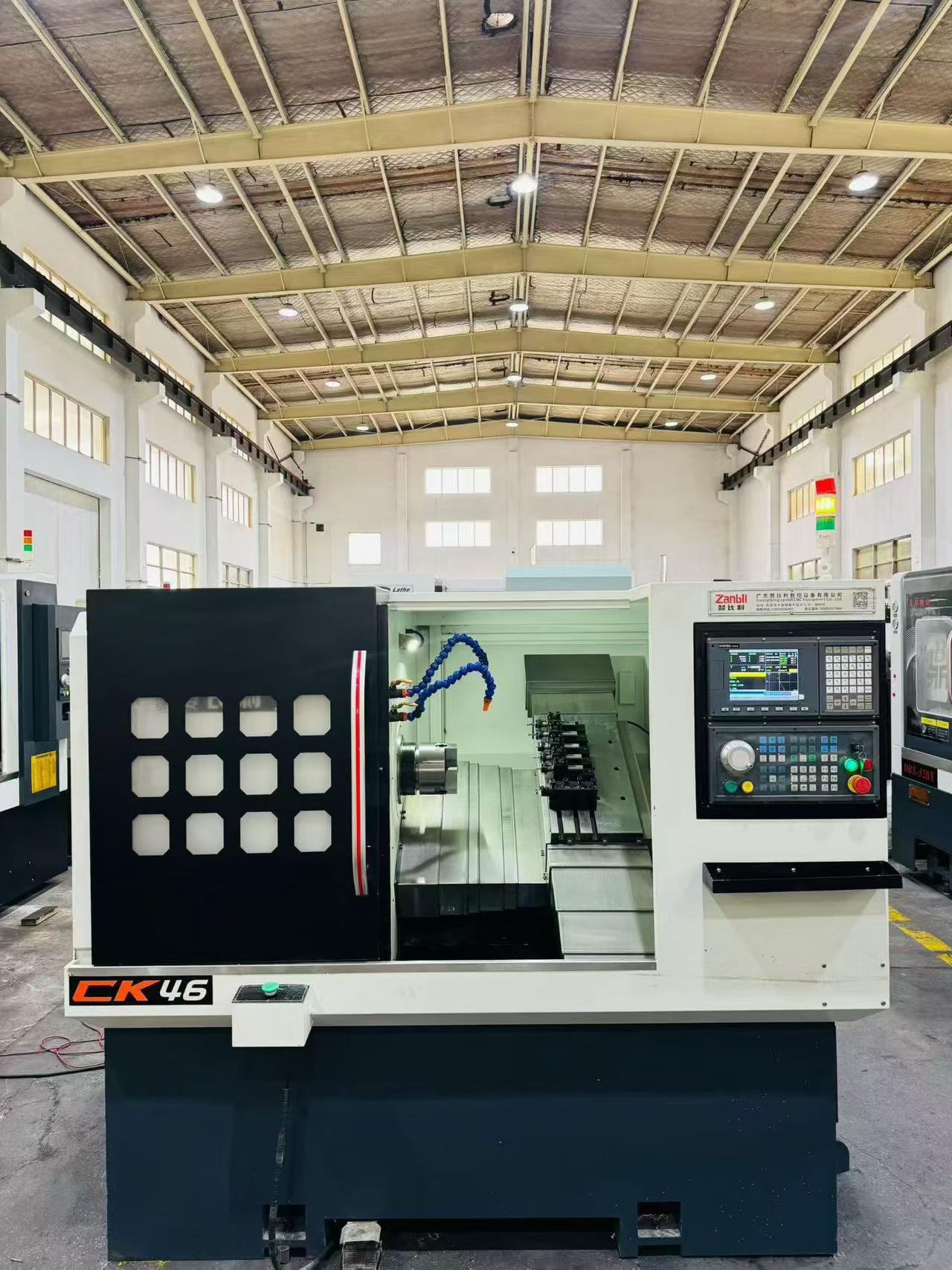

Used Zanbli CK 46 gang-type CNC lathe in approximately 95% new condition, manufactured in 2025. The machine is built on a high-speed linear guideway structure and is equipped with a SYNTEC 6 TA-E absolute bus CNC control system. Workholding is a Qiandao 6-inch hollow hydraulic chuck carried on an A 2-5 high-speed spindle unit, and the gang tooling arrangement supports fast, repeatable turning cycles. Travels are X 1000 mm and Z 450 mm, well beyond the usual range for a gang-type lathe, which gives the machine extended Z reach for longer workpieces and greater flexibility in tool layout. The unit remains in excellent, lightly used condition.

Machine Code: CL260976
Year: 2025
Location: China
Usage Hours: On request

Accessories

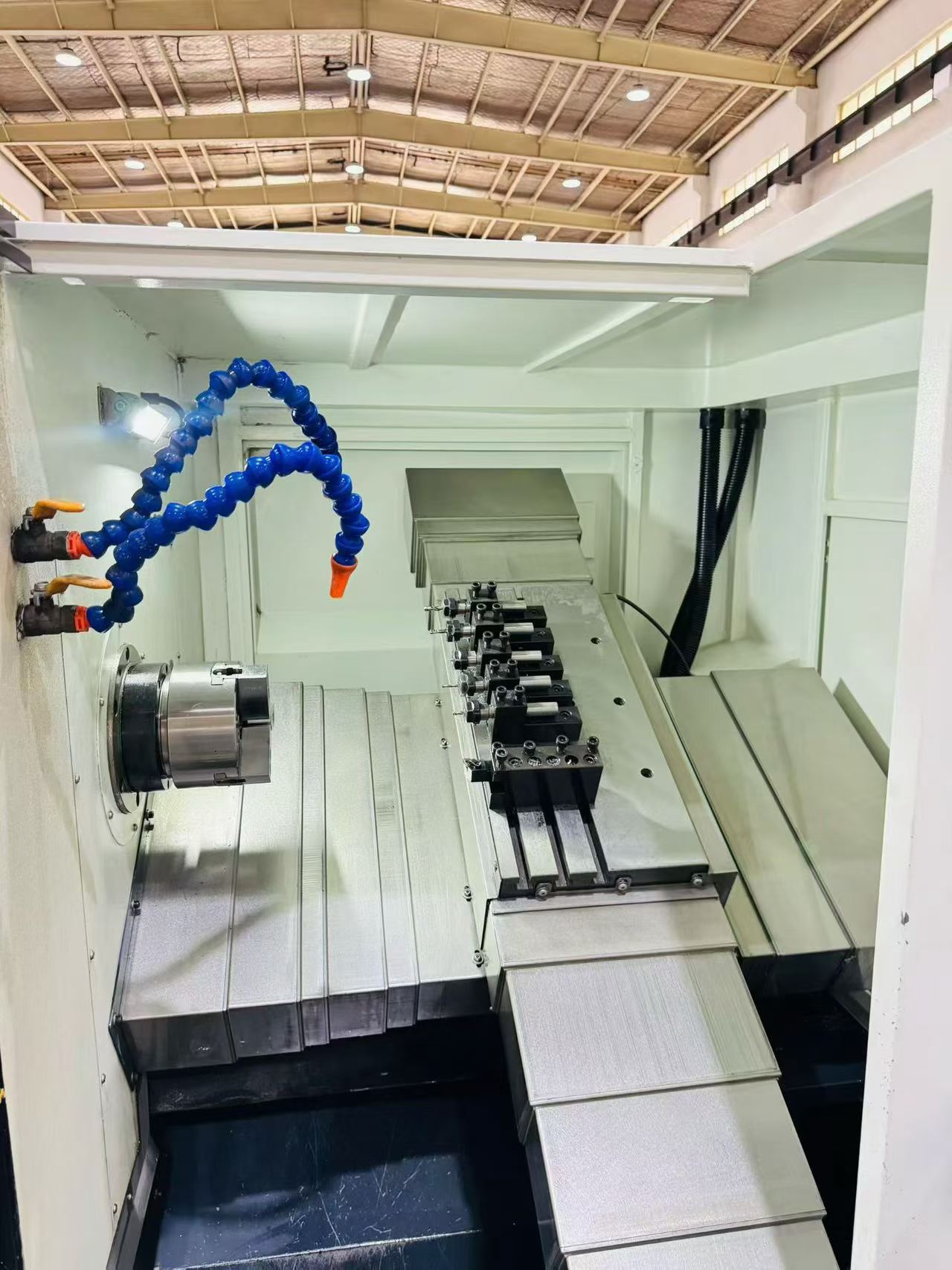

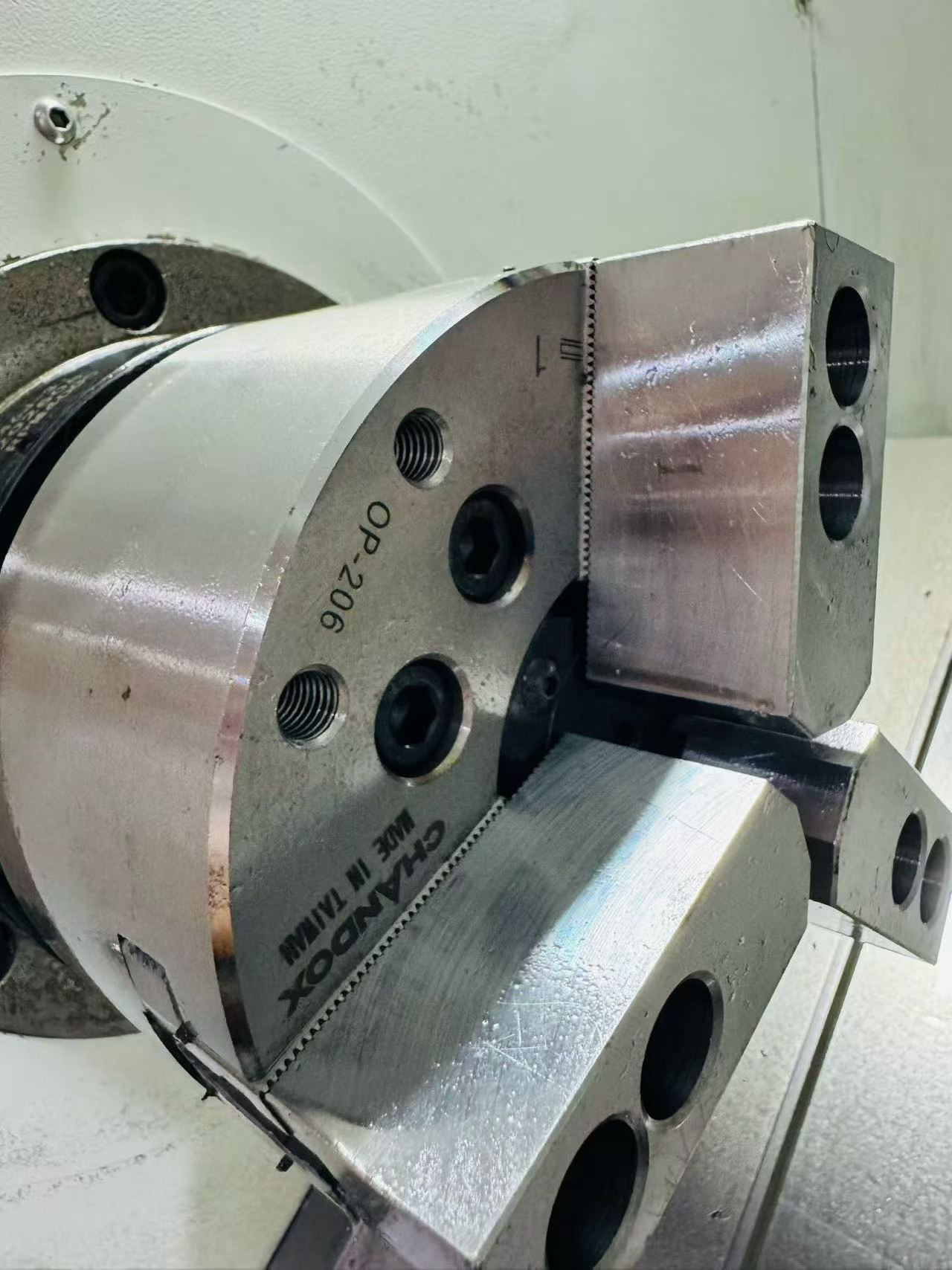

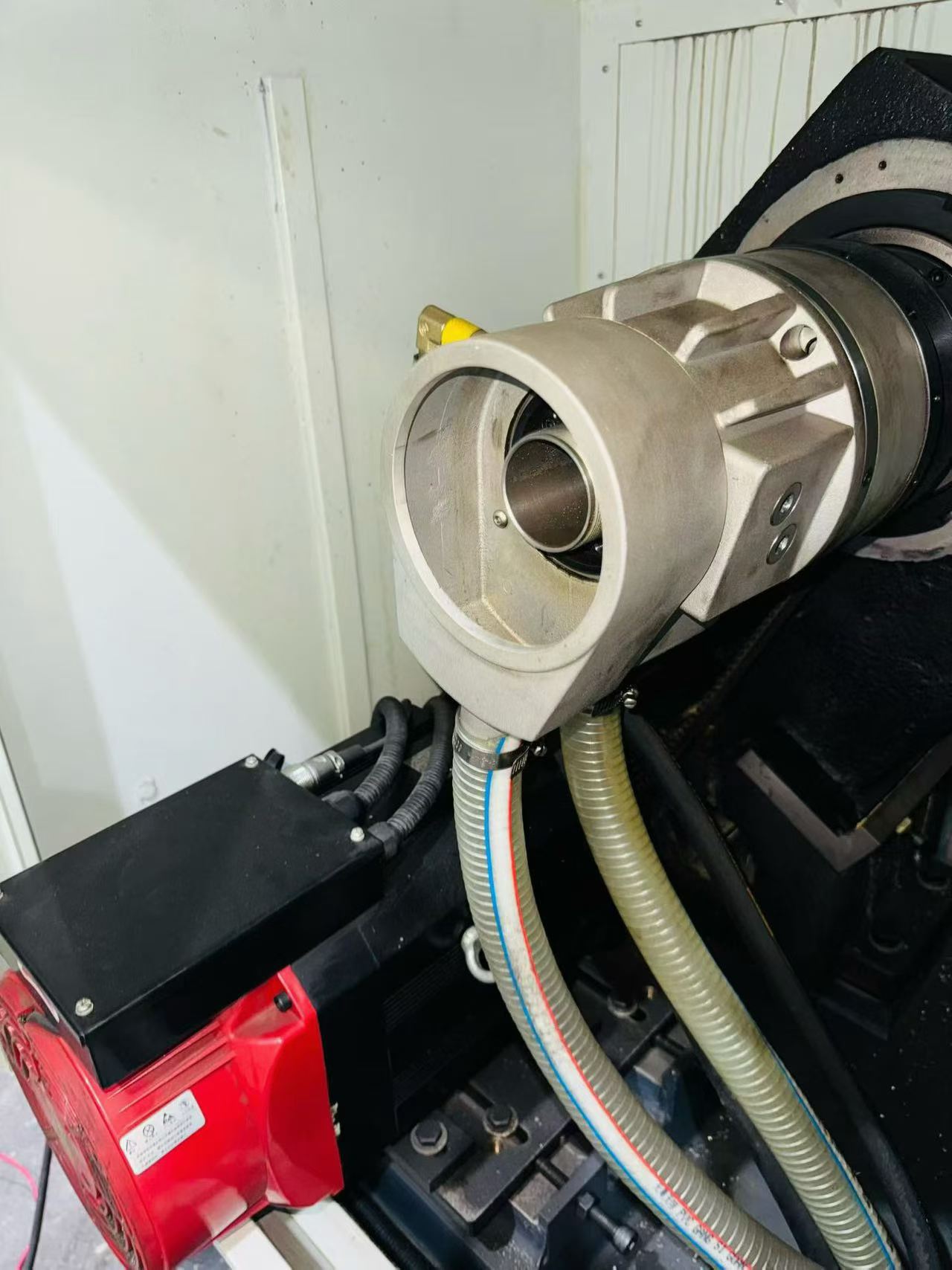

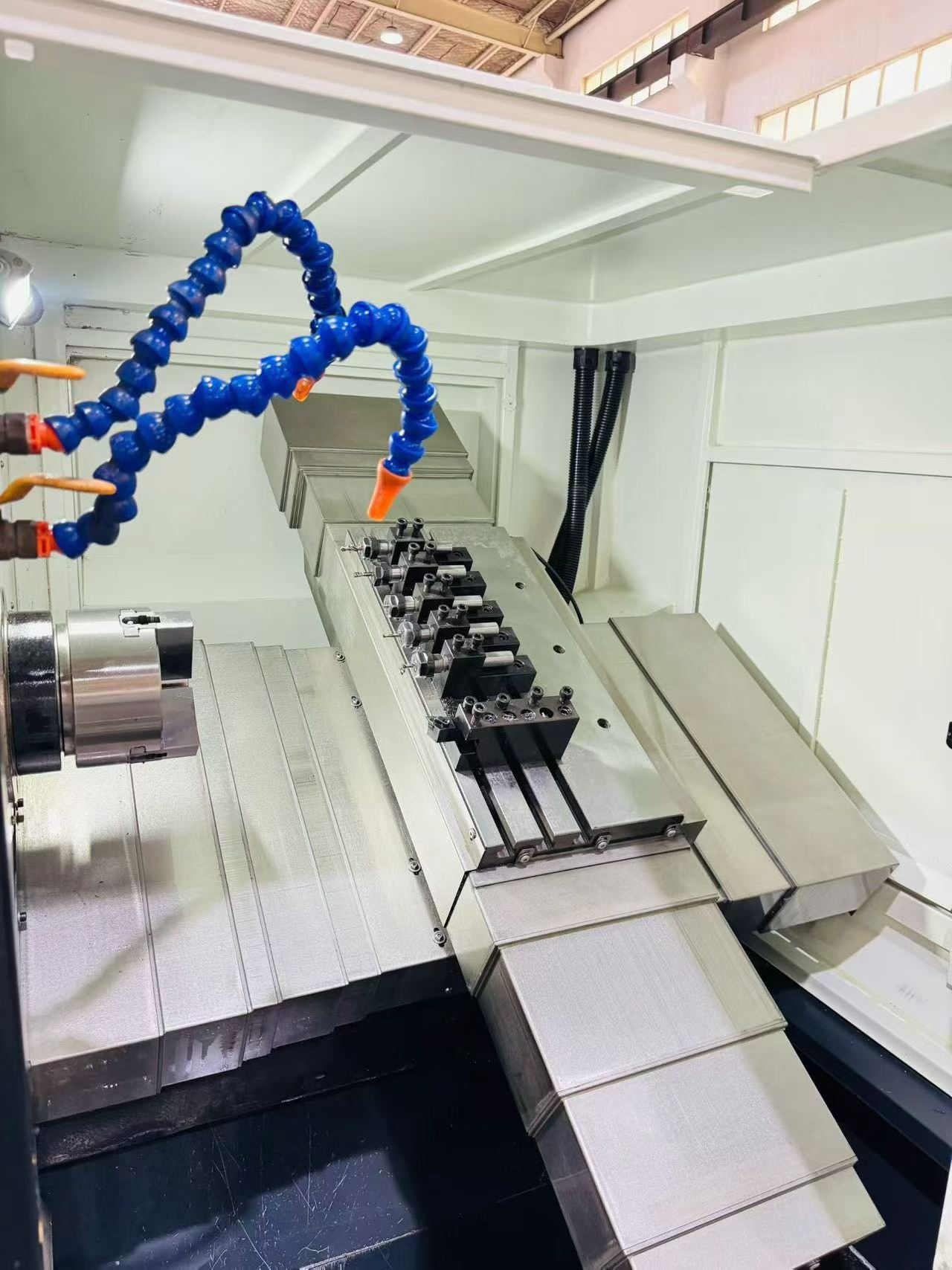

Qiandao 6-inch hollow hydraulic chuck; A 2-5 high-speed spindle unit; gang tooling

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Machine type	Gang-Type CNC Lathe
CNC control system	SYNTEC 6 TA-E absolute bus
Spindle nose	A 2-5
Spindle unit	High-speed spindle unit
Chuck	Qiandao 6-inch hollow hydraulic chuck
Tooling configuration	Gang tooling
Guideway type	High-speed linear guideway
X-axis travel	1000 mm
Z-axis travel	450 mm
Year of manufacture	2025
Brand	Zanbli
Control system	SYNTEC 6 TA-E
