AvailableTurn-Mill CNC Lathe

Used Anhui Zhuopu SHL 60 BC-500 Turn-Mill CNC Lathe with FANUC TF Plus, 12-Station BMT 55 Servo Live Tooling Turret

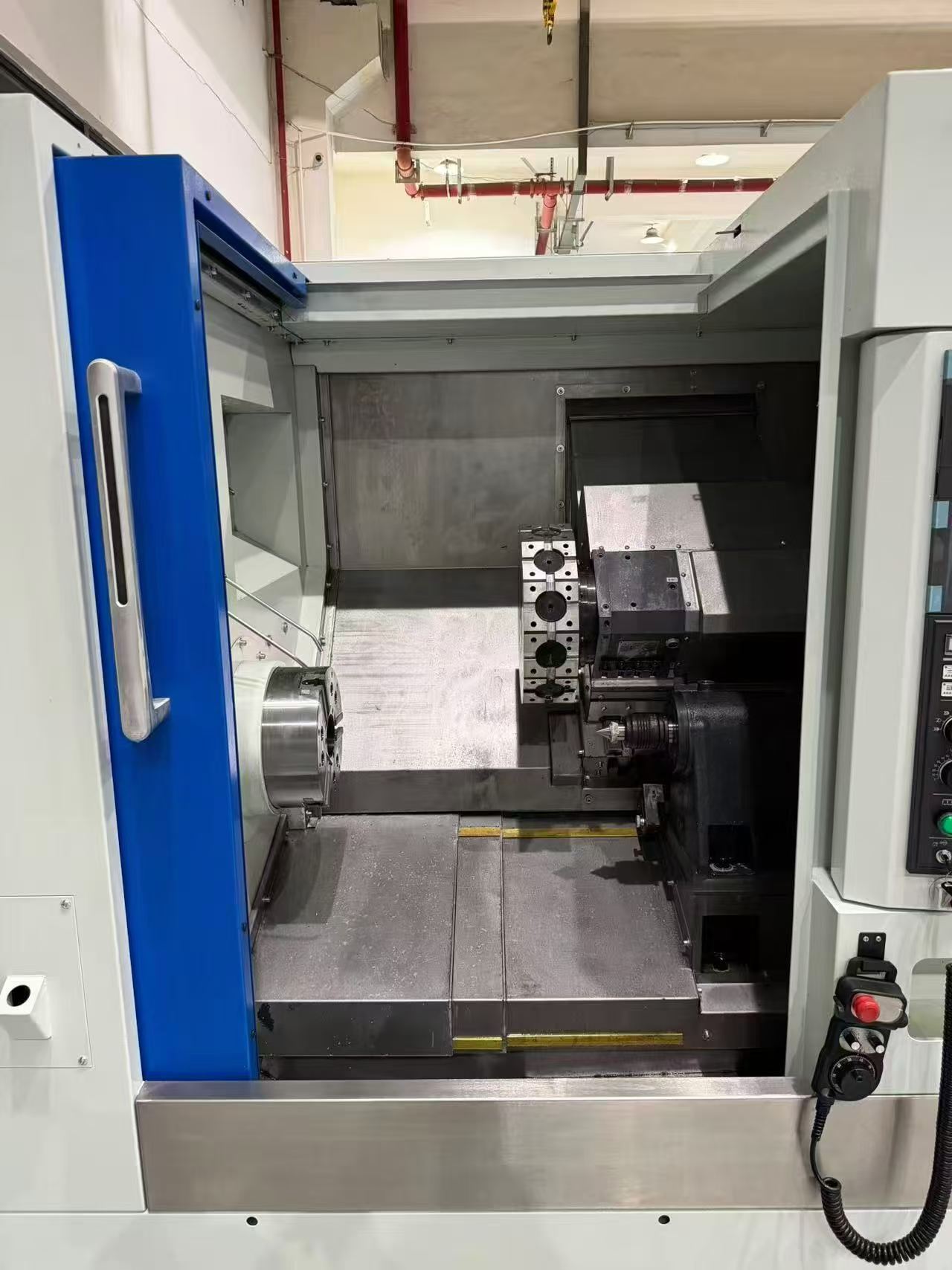

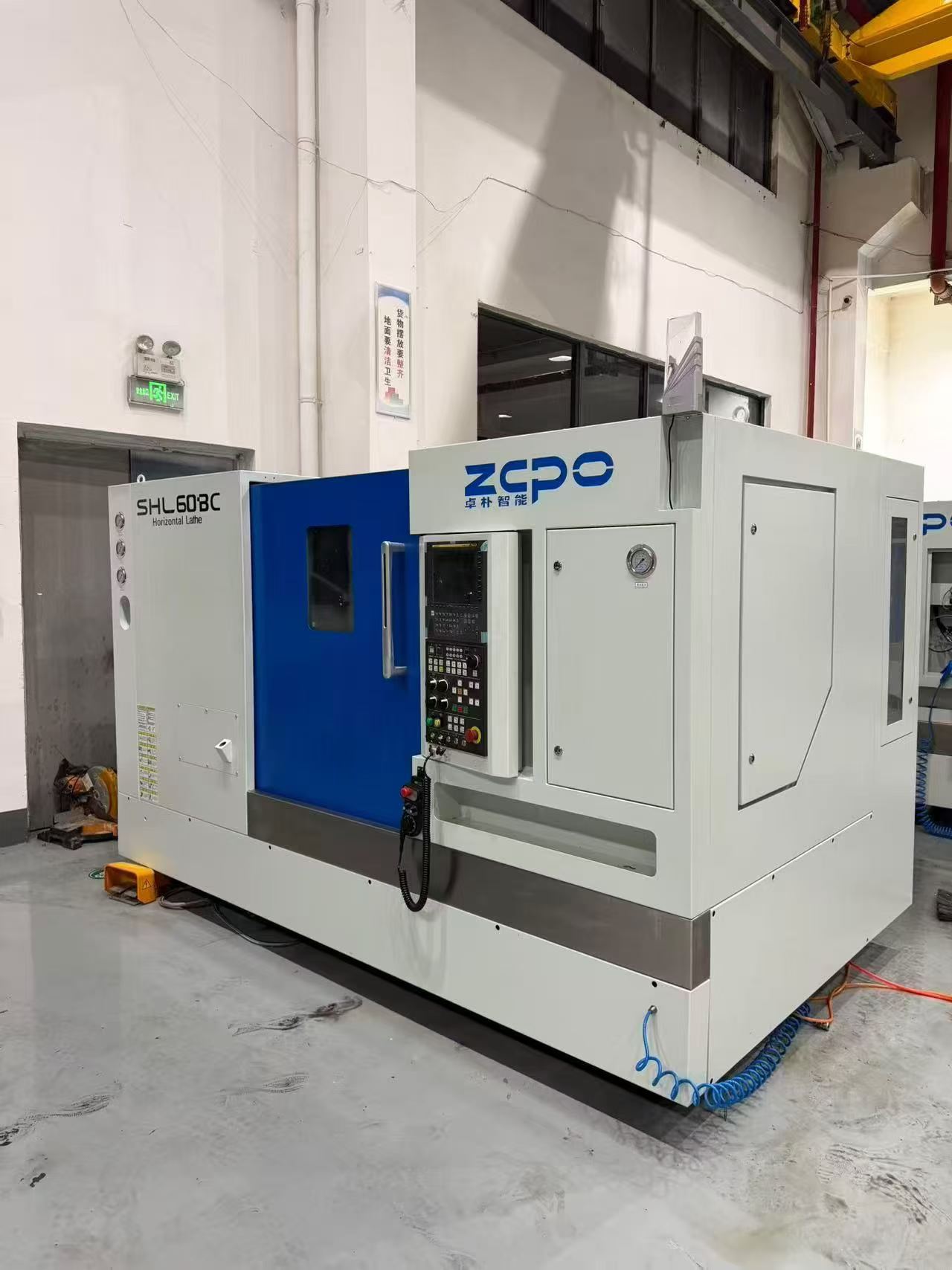

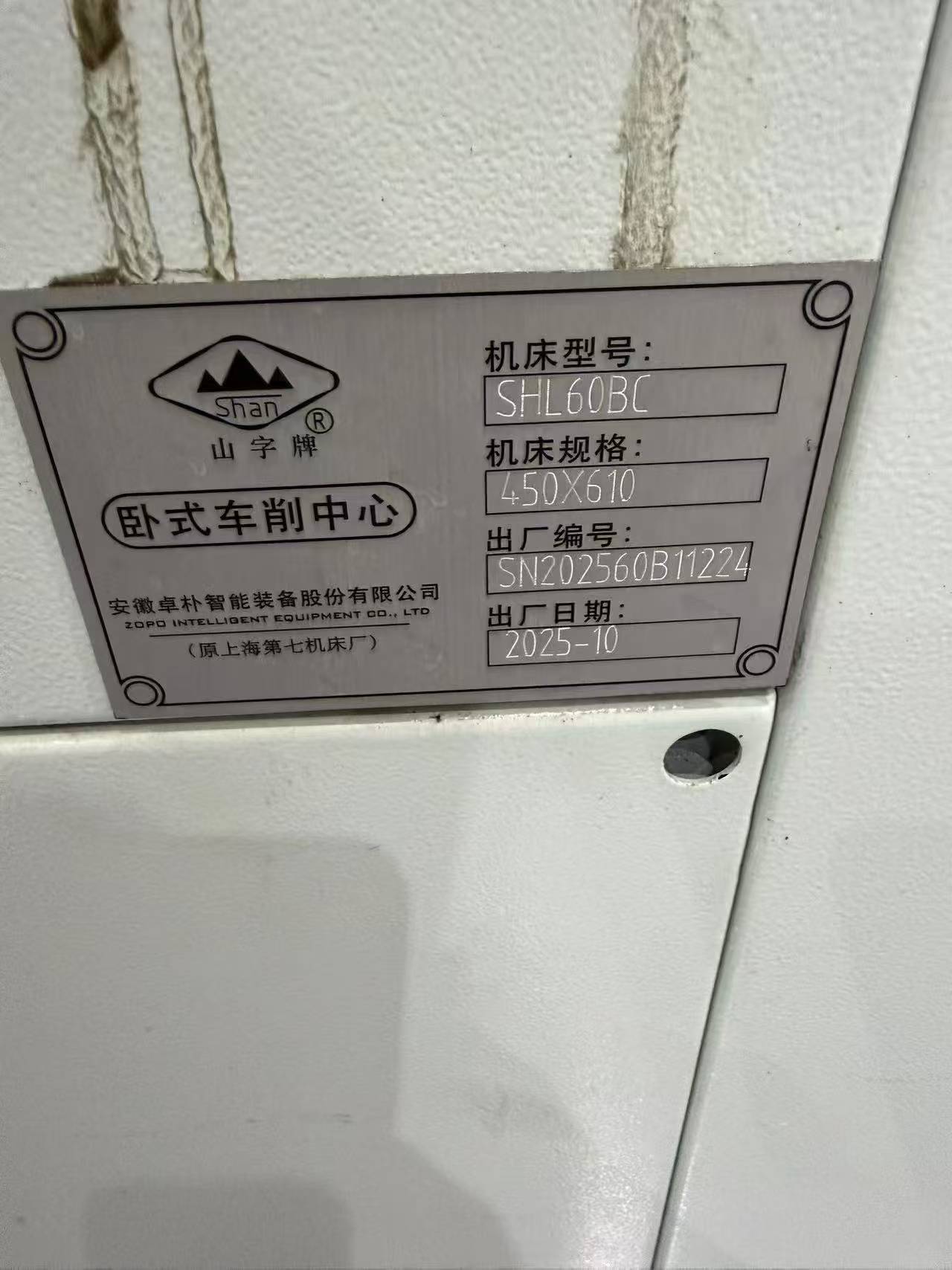

Near-new turn-mill center offered from a batch of 10 identical units, each with only a few hundred power-on hours. Model SHL 60 BC-500 horizontal turn-mill center with ∀610 mm swing diameter and 550 mm machining length. The machine is fitted with the high-specification FANUC TF Plus CNC system, an A 2-8 spindle nose and a 10-inch Qiandao hollow hydraulic chuck with a 92 mm bore. It carries a 12-station large-diameter BMT 55 servo live tooling turret from Taiwan Chengxin, THK precision linear guideways on both axes and a fully automatic MT 5 programmable heavy-duty hydraulic tailstock. A chain-type chip conveyor is included. The machine is built under the Shan brand mark, with design lineage from Shanghai No. 7 Machine Tool Factory, and its factory date is October 2025.

Machine Code: TML260911
Year: 2025
Location: China
Usage Hours: On request

Accessories

10-inch hollow hydraulic chuck with 92 mm bore; 12-station BMT 55 servo live tooling turret; fully automatic MT 5 programmable heavy-duty hydraulic tailstock; chain-type chip conveyor.

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Model	SHL 60 BC-500
Machine type	Horizontal turn-mill center
Swing diameter	∀610 mm
Machining length	550 mm

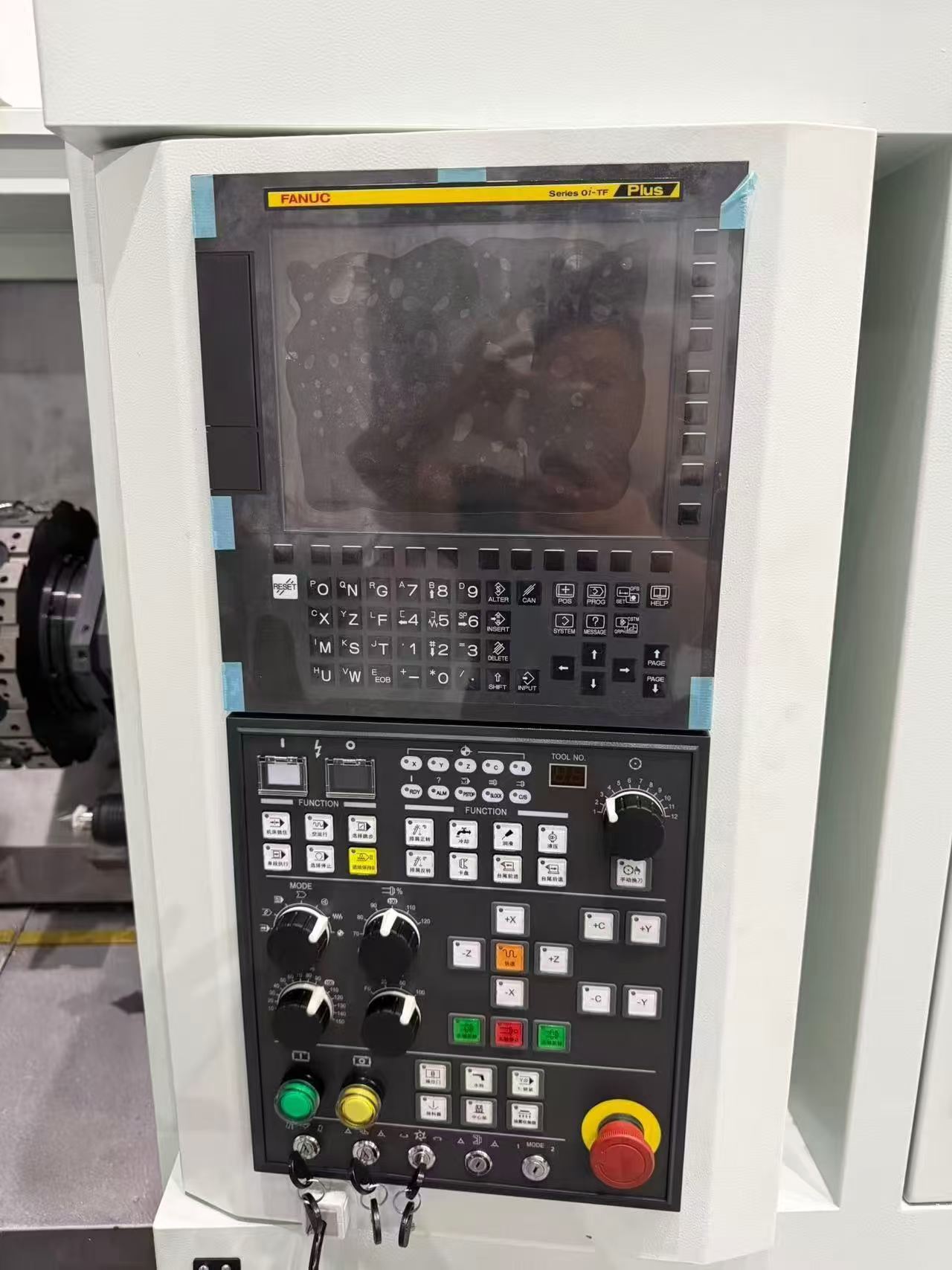

Control system	FANUC TF Plus
Spindle nose	A 2-8

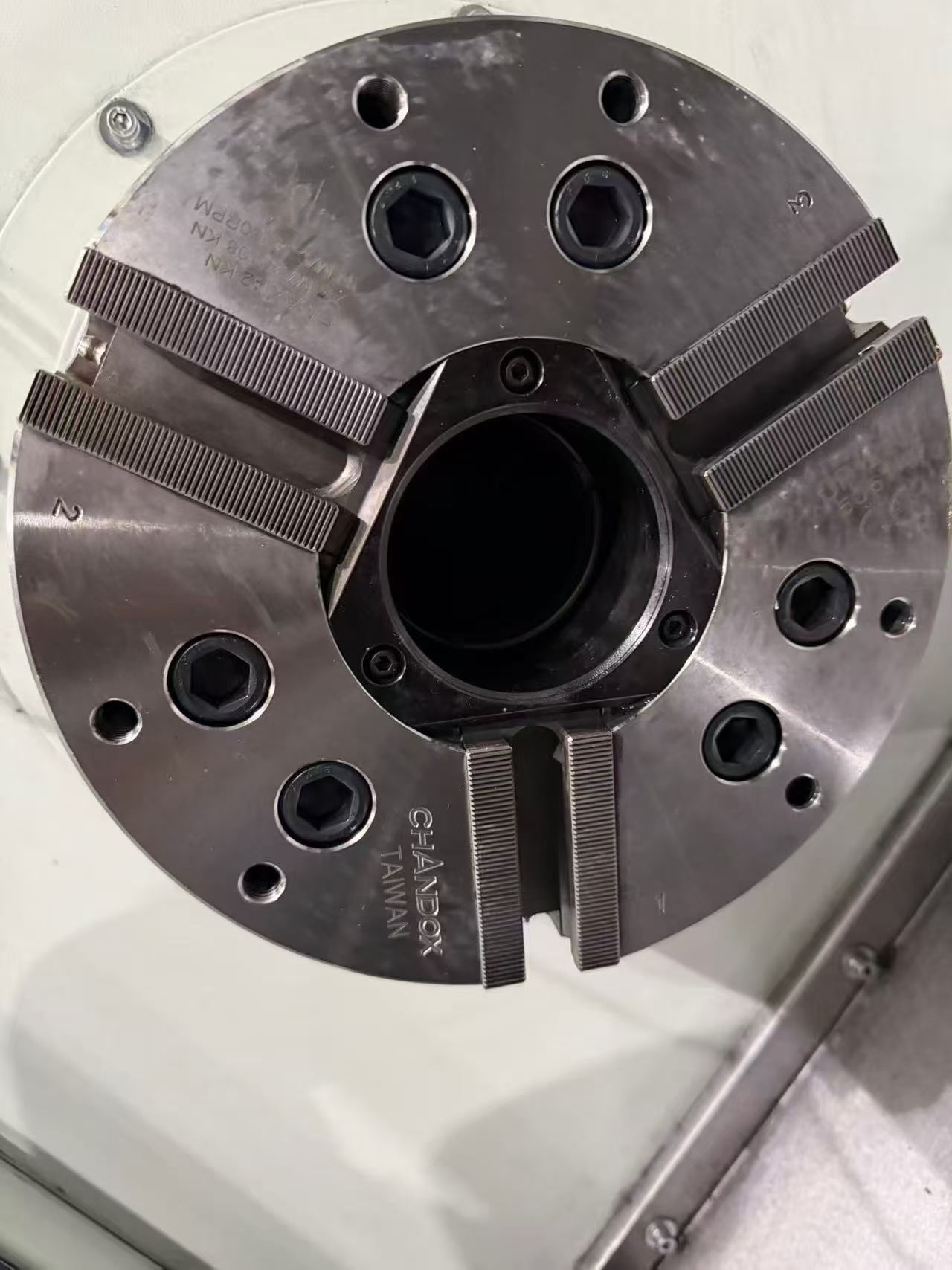

Chuck	10-inch hollow hydraulic chuck, 92 mm bore

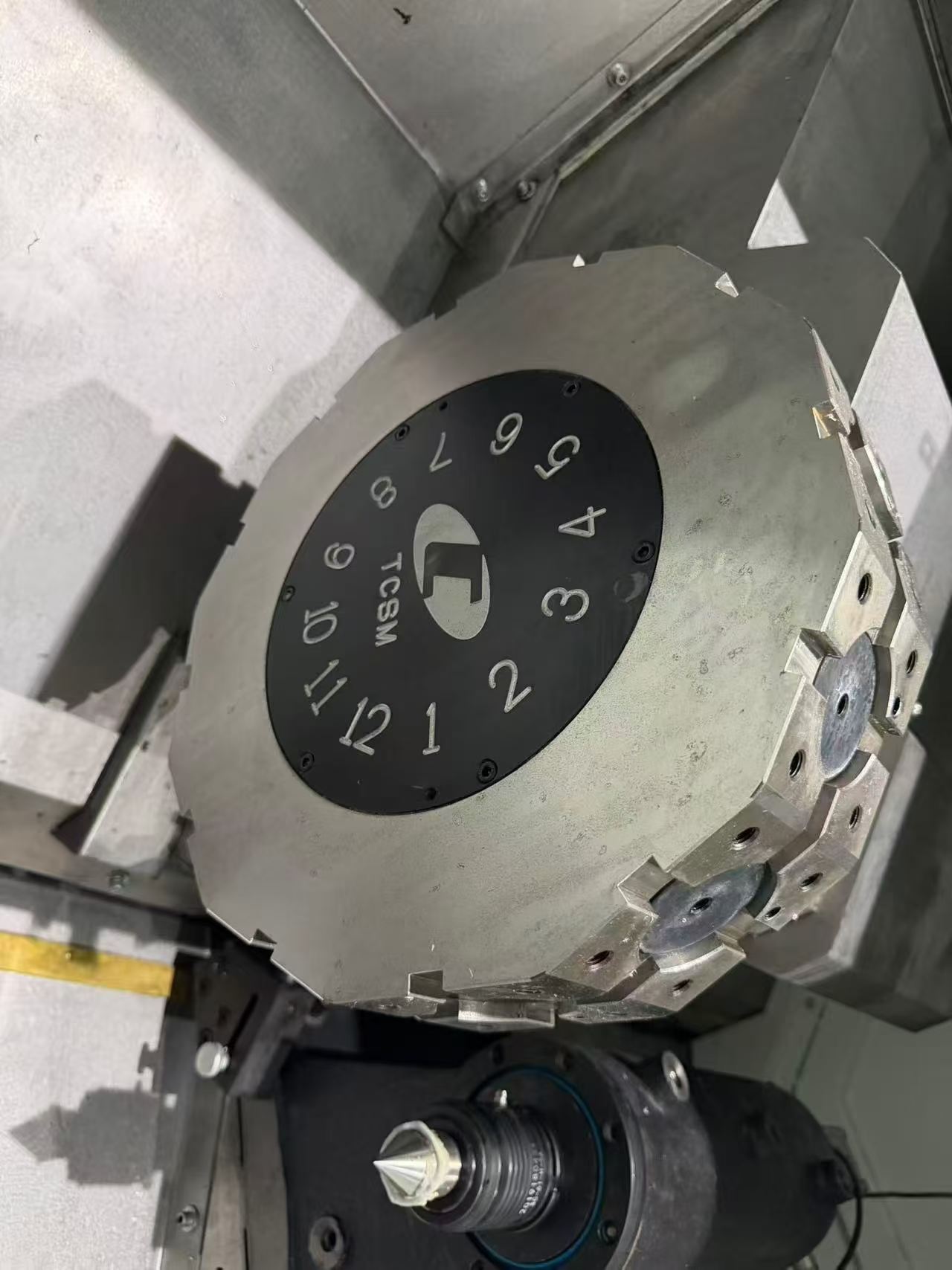

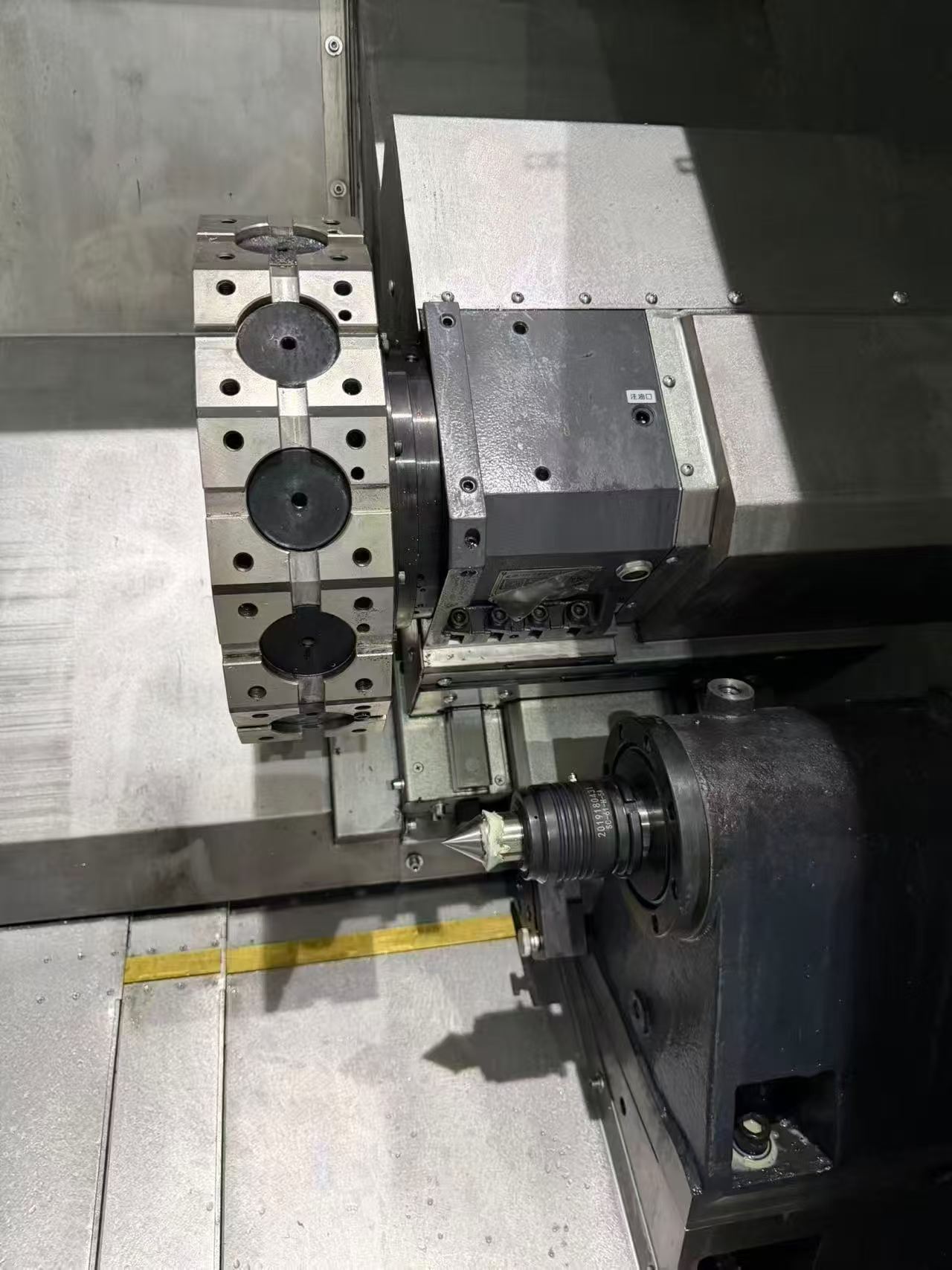

Tool turret	12-station large-diameter BMT 55 servo live tooling turret
Guideways	THK precision linear guideways (X/Z axes)
Tailstock	Fully automatic MT 5 programmable heavy-duty hydraulic tailstock

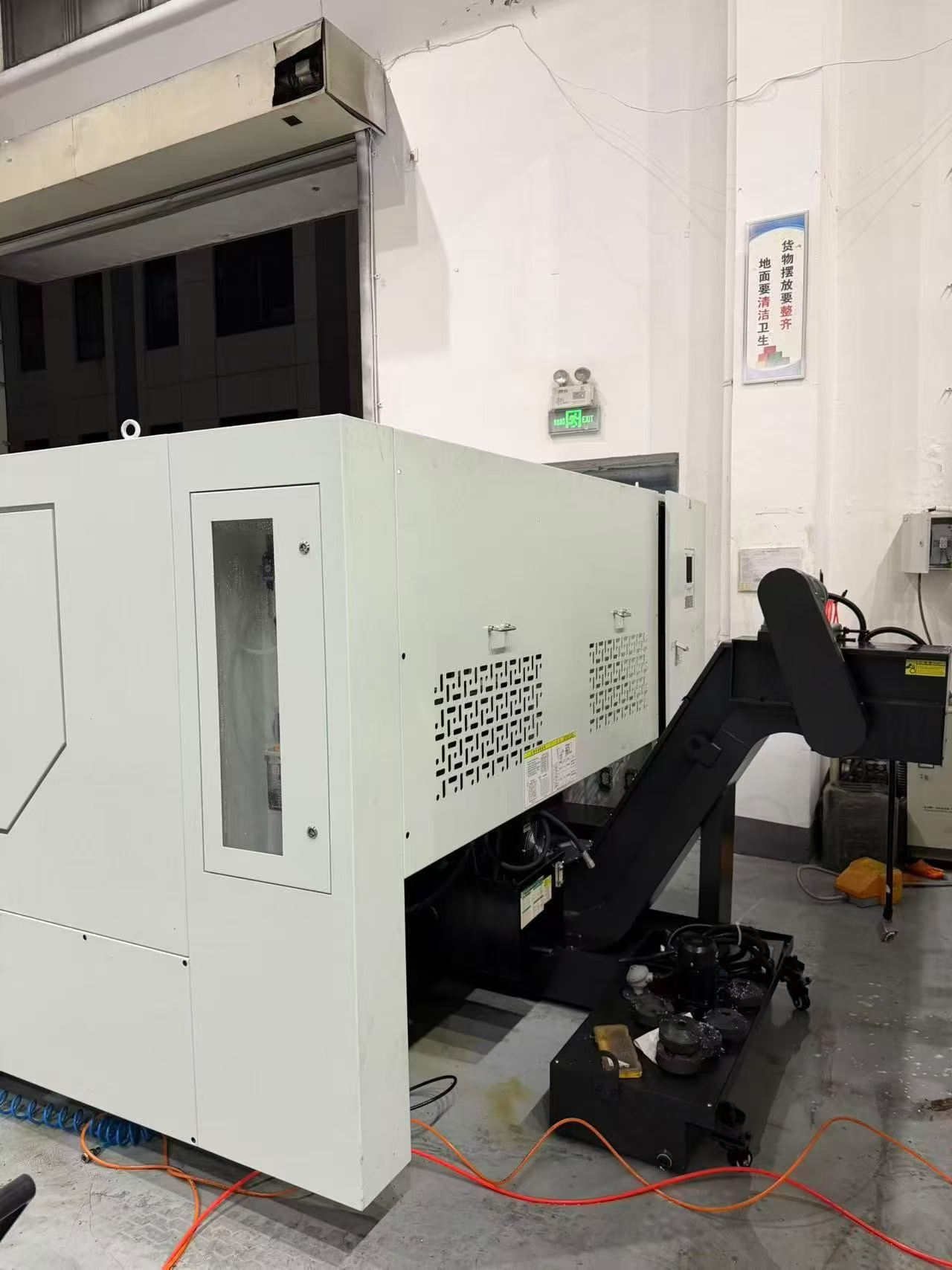

Chip conveyor	Chain type
Factory date	2025-10
Power-on hours	A few hundred hours
Quantity	10 units
Condition	99% new
Brand	Anhui Zhuopu (Wannan Xinnuo Precision)
Guideway Configuration	2-axis THK precision linear guideways
Year of manufacture	2025
