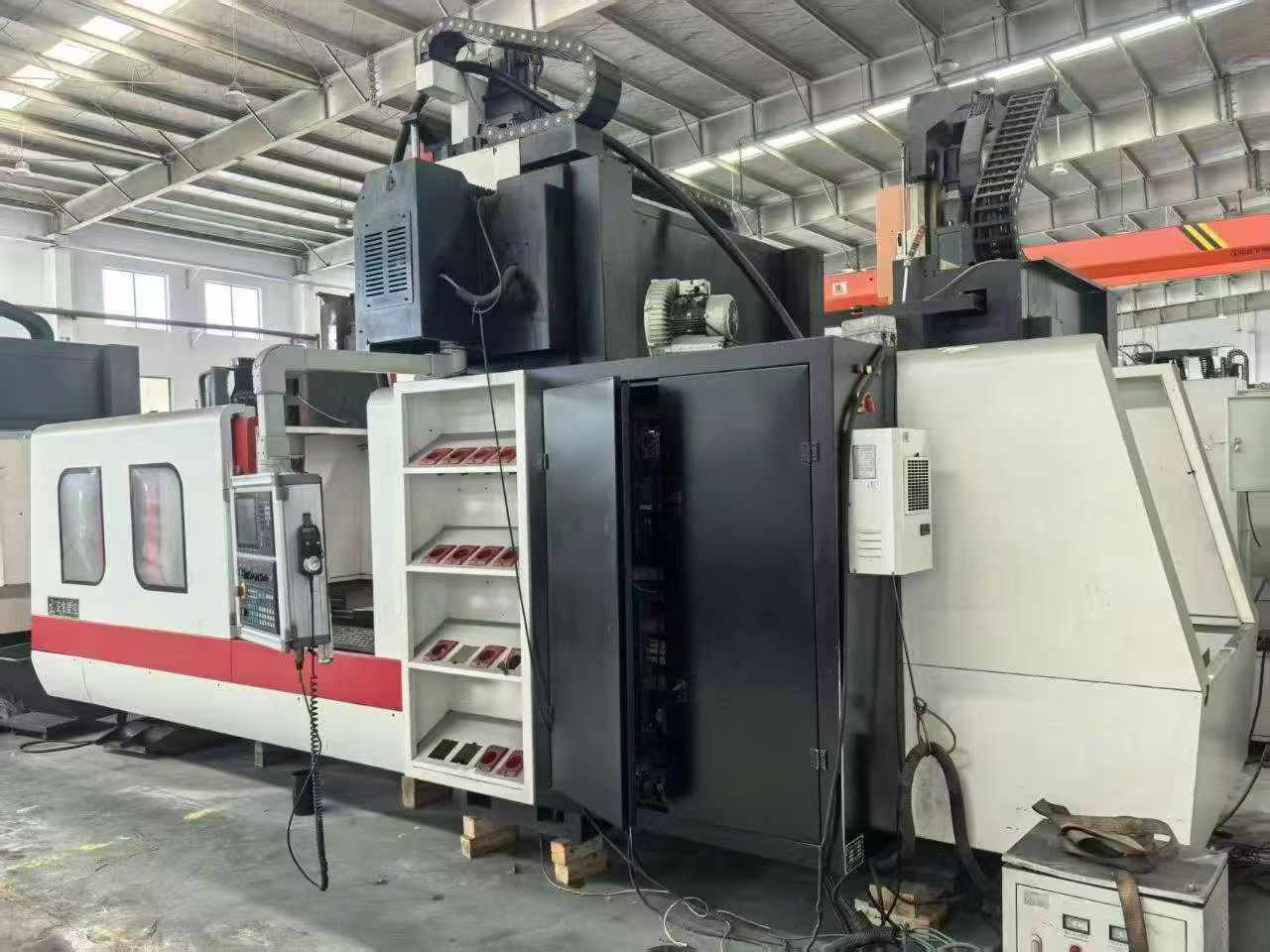

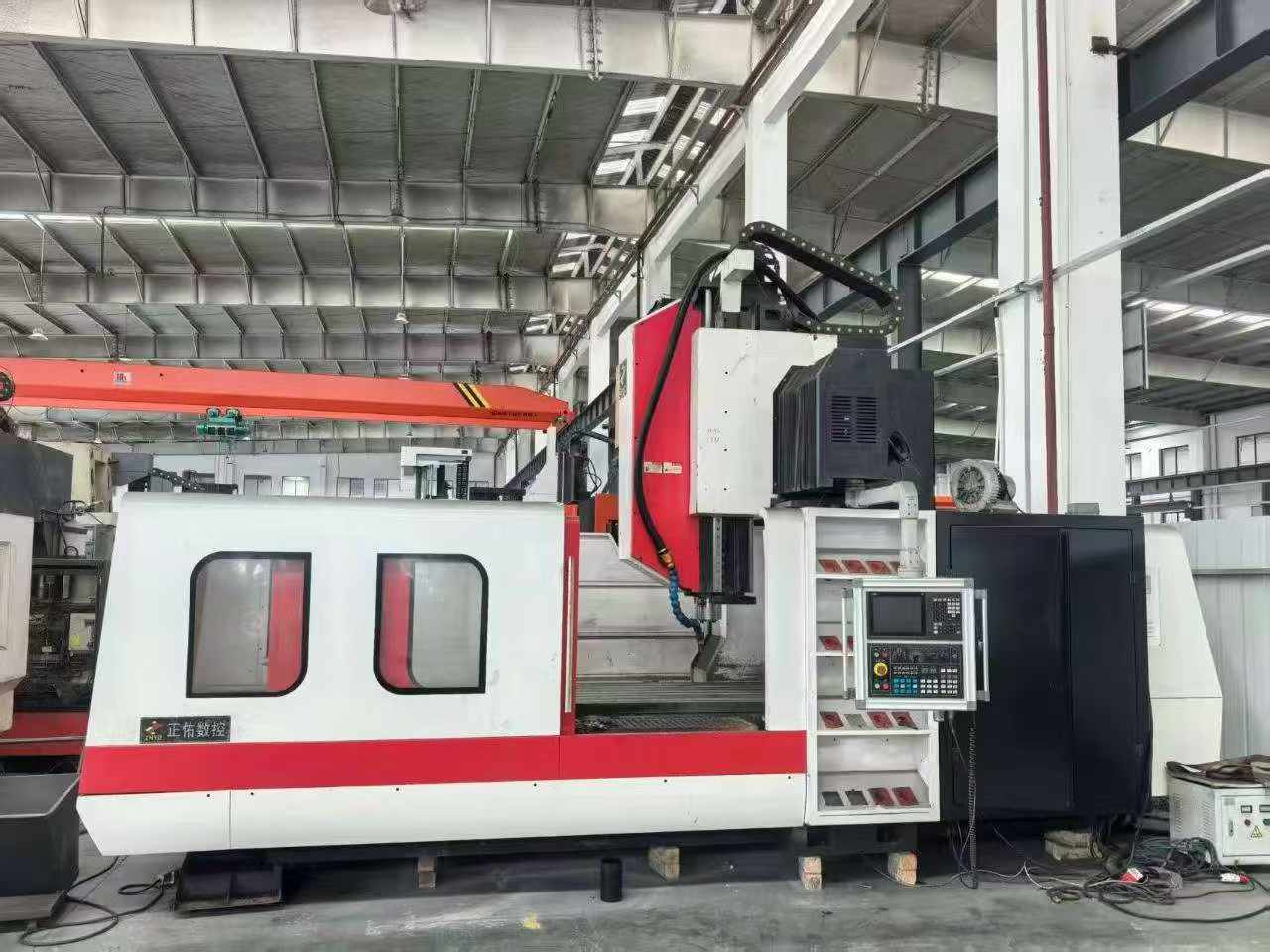

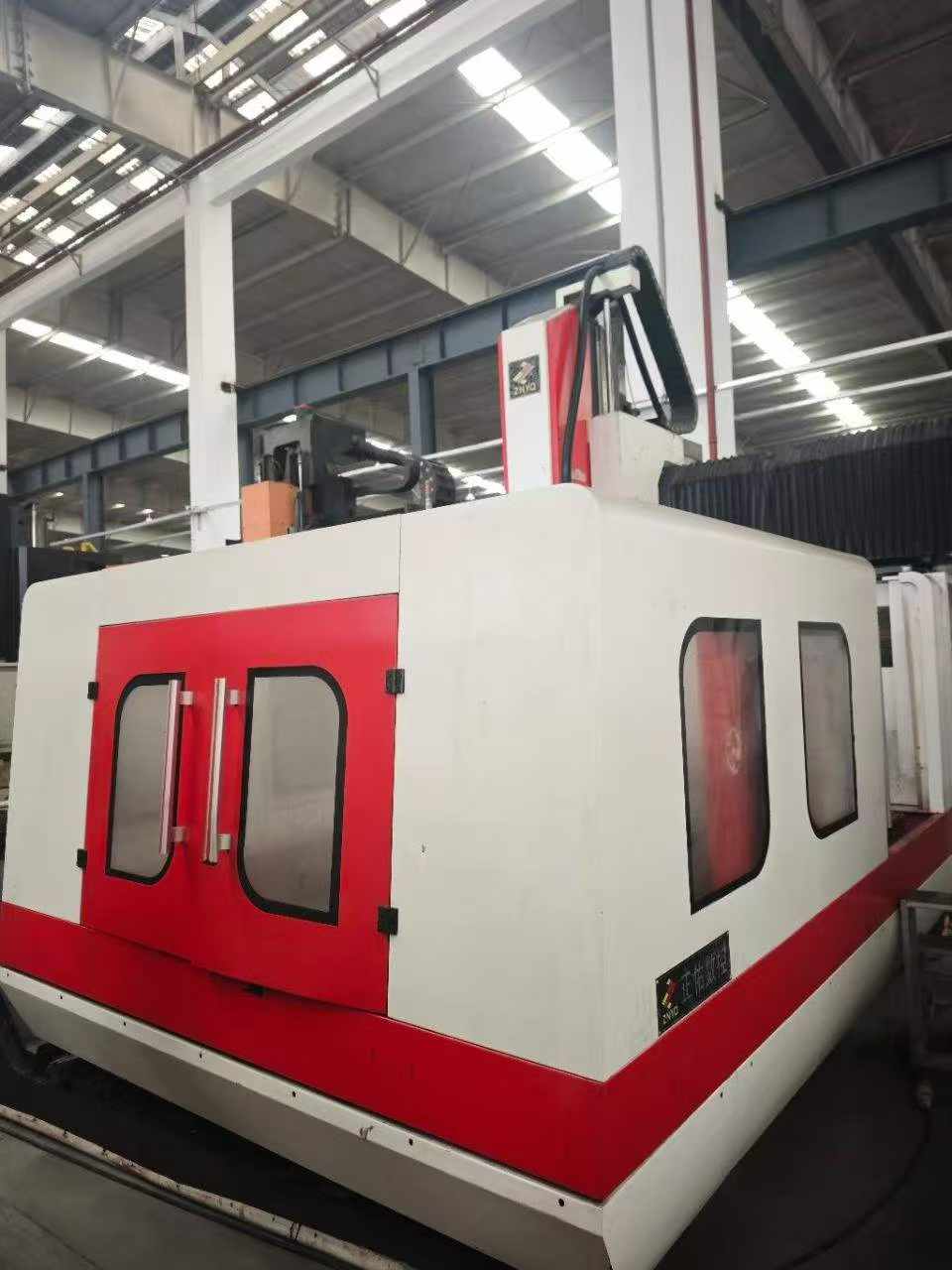

Zhengyou 2513 CNC Gantry Milling Machine with Mitsubishi M80

Used Zhengyou 2513 CNC Gantry Milling Machine with Mitsubishi M80 control, year 2021. The machine features a BT50 spindle with 6000 rpm, oil cooler, two linear guideways and one box guideway, Z axis with four linear guideways. Worktable size 2500 x 1100 mm, spindle nose to table 930 mm, travels: 2500/1900/900 mm (X/Y/Z) and gantry width 1300 mm, height 1150 mm. Also available X/Y/Z travel 2500/1500/750 mm. Equipped with built-in dual screw and chain chip conveyor. Available for inspection.

Machine Code: MIL260619
Year: 2021
Location: China
Usage Hours: On request

Accessories

Built-in dual screw and chain chip conveyor

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Spindle speed	6000 rpm
Spindle taper	BT50

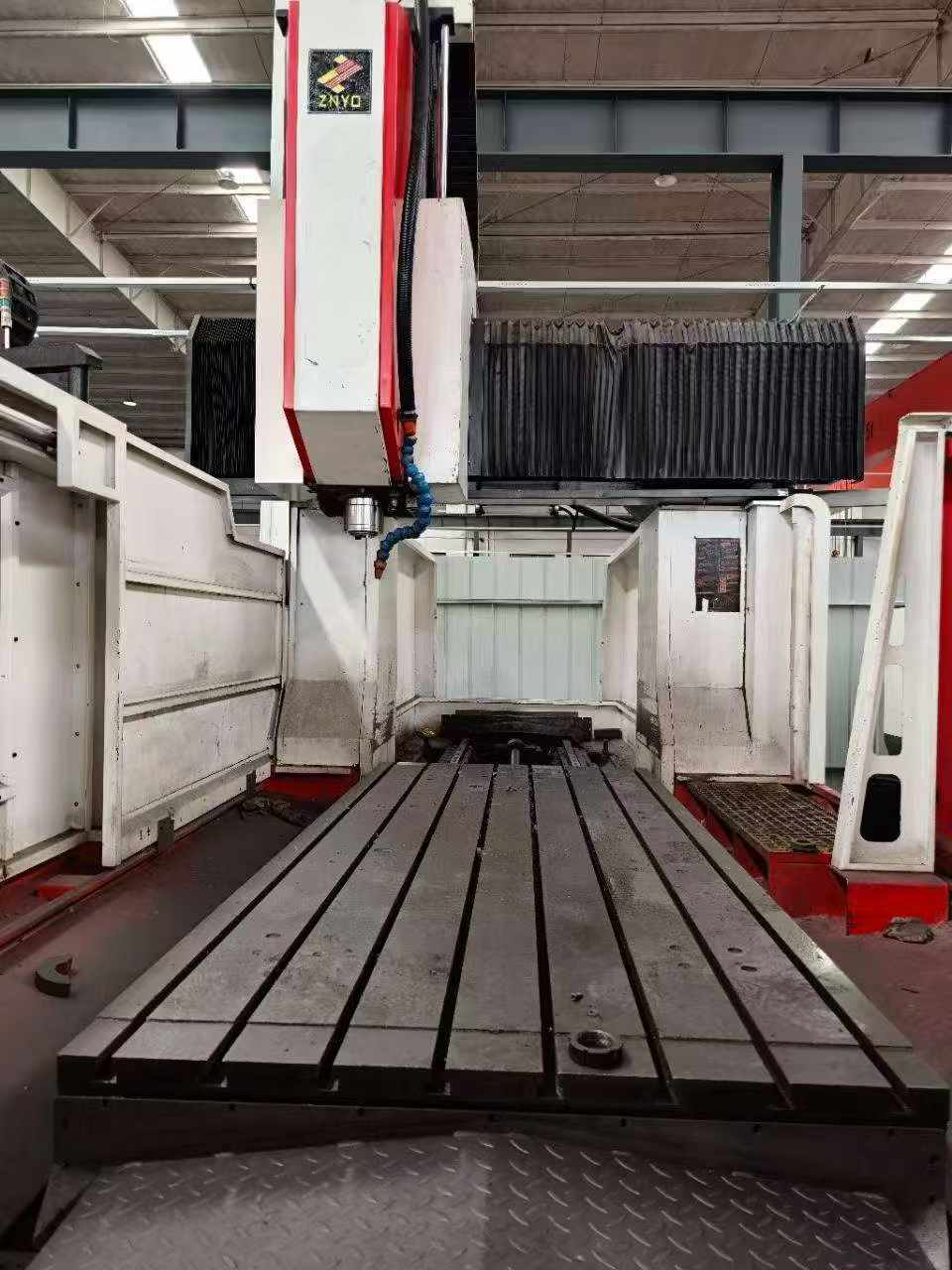

Worktable size	2500 x 1100 mm
Spindle nose to table	930 mm
X/Y/Z travel	2500/1900/900 mm
Gantry width	1300 mm
Gantry height	1150 mm
X/Y/Z travel (alternate)	2500/1500/750 mm
Guideway type	Two linear guideways and one box guideway (X/Y), Z axis four linear guideways
Chip conveyor	Built-in dual screw and chain chip conveyor

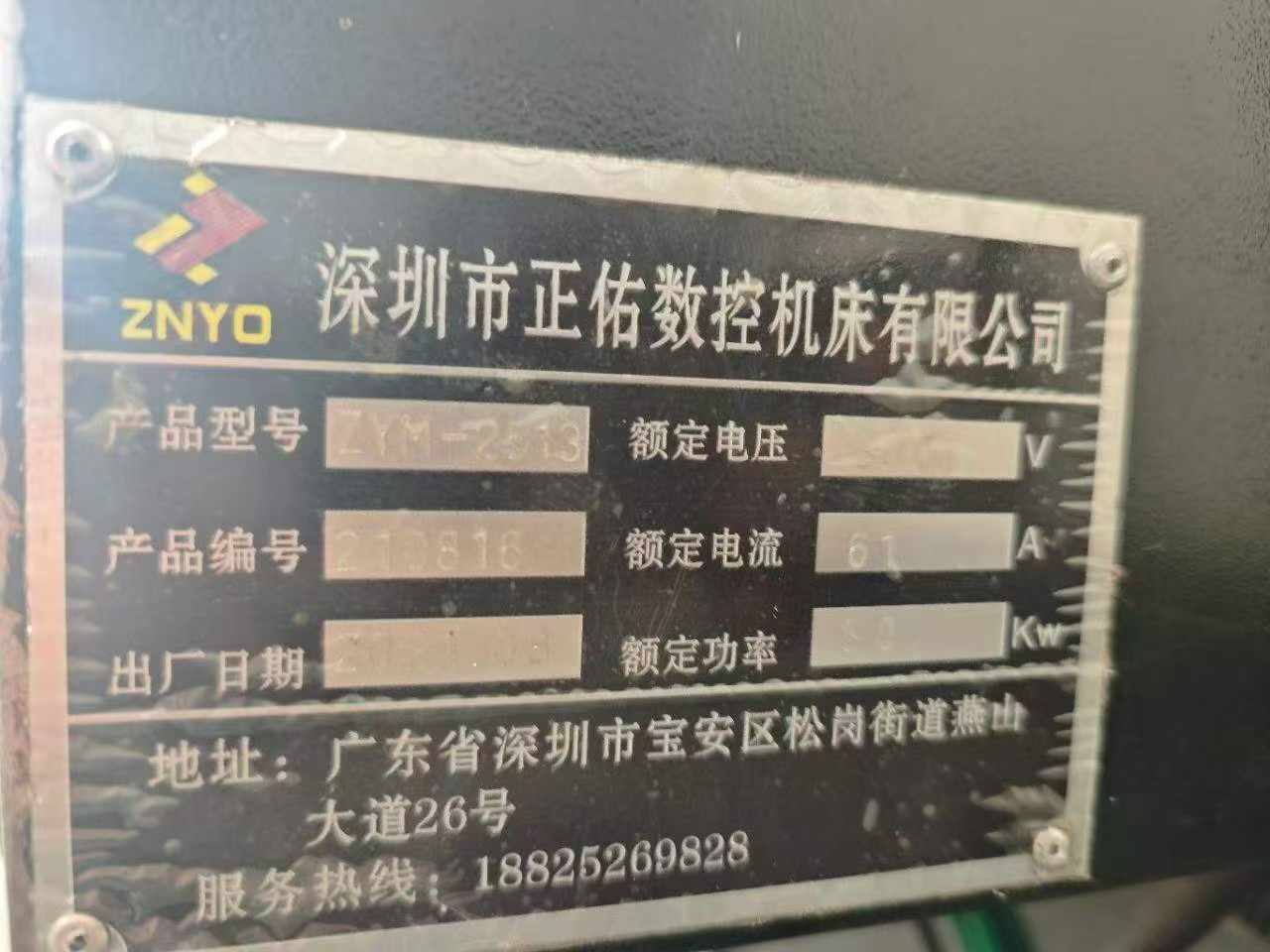

Machine Type	CNC Gantry Milling Machine (正佑-2513)

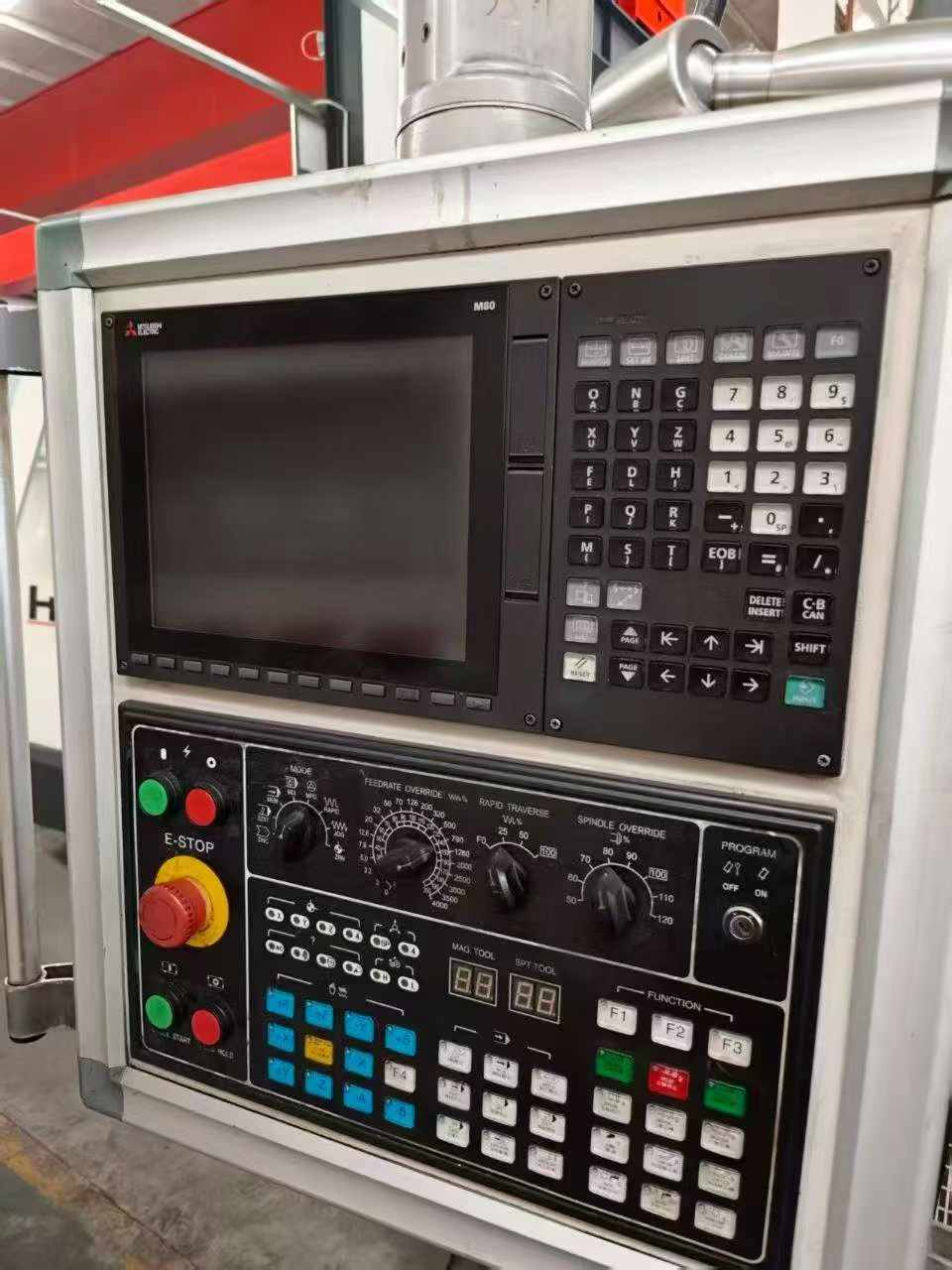

Controller	Mitsubishi M80
Manufacturing Year	2021
Guideway Configuration	Two linear guideways and one box guideway (X/Y axes)

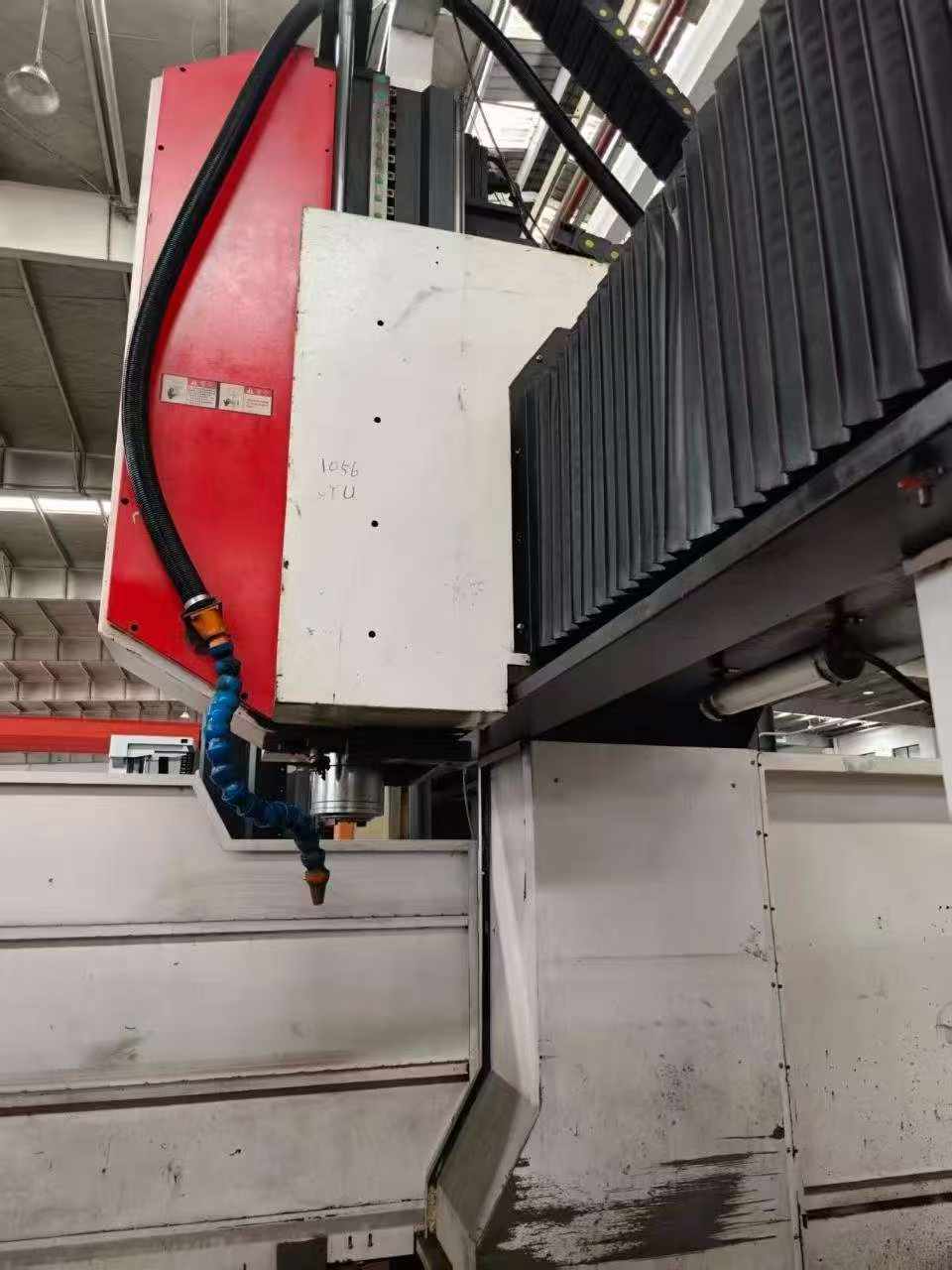

Spindle Specification	BT50 taper, 6000 rpm, with oil cooler
Z-axis Guideway	Four linear guideways on Z axis
Spindle Nose To Table Distance	930 mm
X/Y/Z Travel (first Set)	2500/1900/900 mm
X/Y/Z Travel (second Set)	2500/1500/750 mm
