AvailableCNC Lathe

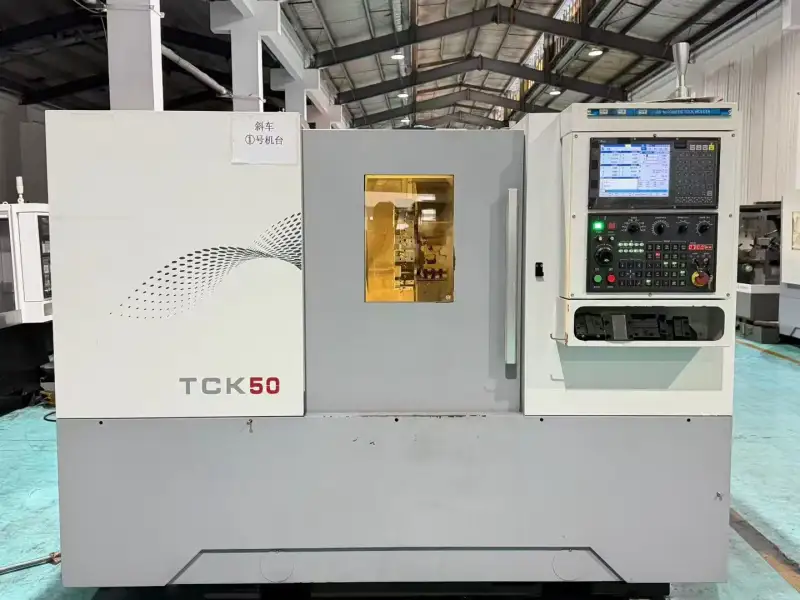

Used Zhongjie TCK 50 Slant-Bed Turret CNC Lathe

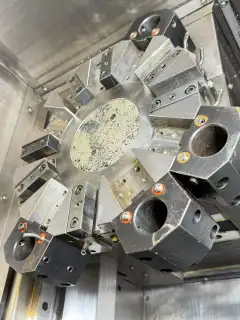

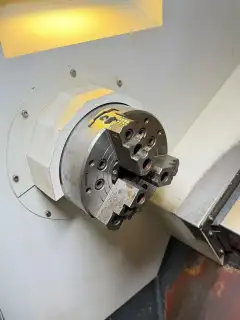

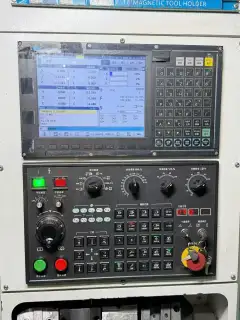

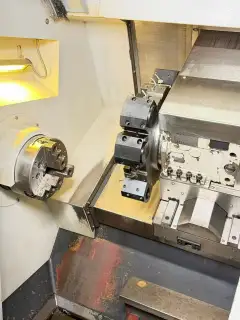

Zhongjie TCK 50 slant-bed turret CNC lathe, purchased at the end of 2023 and now in stock. The machine is equipped with the Huazhong HNC-818 CNC control system, which is operated in the same way as a GSK control. It offers a maximum swing diameter of Ø520 mm, a maximum machining diameter of Ø360 mm and a maximum machining length of 500 mm. Spindle power is 11/15 kW and machining accuracy is 0.01 mm. The machine is fitted with an 8-inch hollow chuck with a 52 mm through-hole, a 12-station servo turret and a hydraulic heavy-duty tailstock. Machine weight is 3.6 t.
- Machine Code
- CL261012
- Year
- 2023
- Location
- China
- Usage Hours
- On request
Accessories
8-inch hollow chuck with 52 mm through-hole, 12-station servo turret, hydraulic heavy-duty tailstock.
Main Specifications
| Swing diameter | Ø520 mm |
|---|---|
| Maximum machining diameter | Ø360 mm |
| Maximum machining length | 500 mm |
| Spindle power | 11/15 kW |
| Machining accuracy | 0.01 mm |
| Chuck | 8-inch hollow chuck, 52 mm through-hole |
| Turret | 12-station servo turret |
| Tailstock | Hydraulic heavy-duty tailstock |
| Machine weight | 3.6 t |
| Control system | Huazhong HNC-818 |
| Brand | Shenyang Zhongjie No.1 Machine Tool |
| Model | TCK 50 |
| Machine Type | Slant-Bed Turret CNC Lathe |
| Purchase Date | End of 2023 |
| Controller | Huazhong HNC-818 (same operation as GSK) |
