DMG MORI CTX 310 ecoline CNC Lathe with Siemens 840D, 8" Chuck, 12-Station Turret, 2013

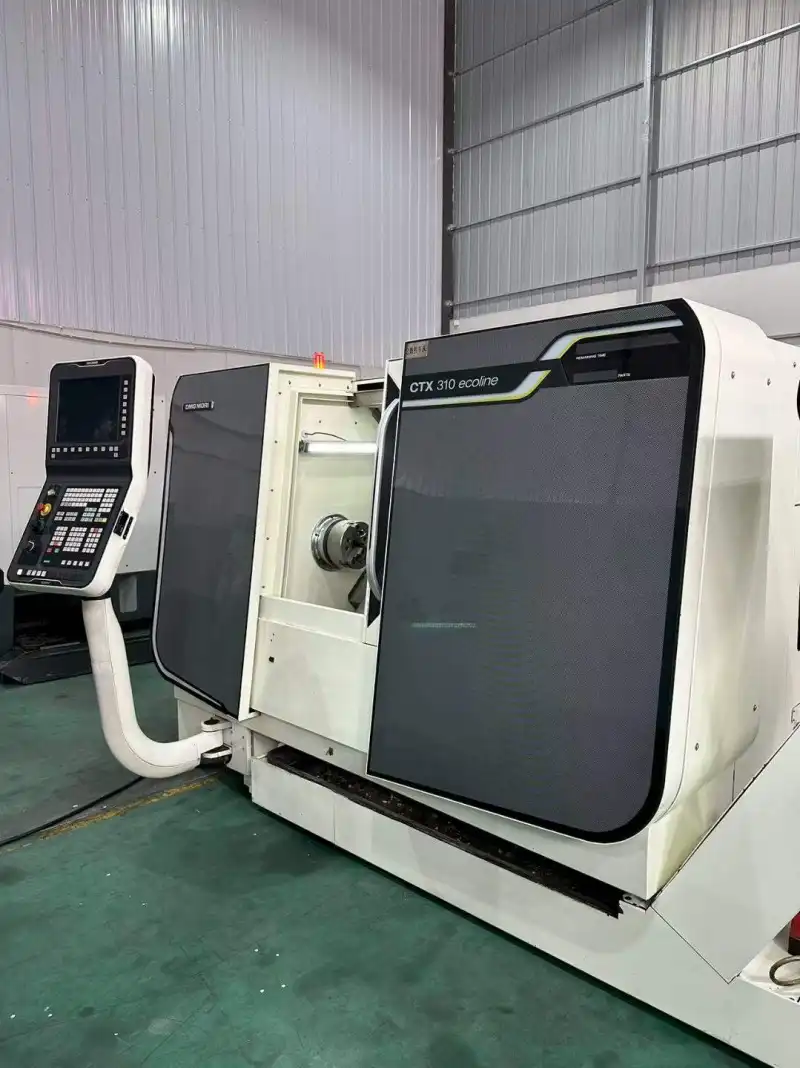

DMG MORI CTX 310 ecoline CNC Lathe, manufactured in 2013. Equipped with Siemens 840D control, 8-inch chuck, 12-station tool turret, tailstock, and chip conveyor. Features 15-inch TFT color monitor. Machine is in used condition and available for inspection.

Kode Mesin: CL260623
Tahun: 2013
Lokasi: China
Jam Penggunaan: Berdasarkan permintaan

Aksesori

Chip conveyor

Akses kontak

Kota dealer berbeda dari lokasi mesin. Konfirmasi ketersediaan dan harga kepada penjual.

Memuat…

Spesifikasi Utama

Spindle speed	5000 rpm
Spindle motor power	16.5 kW
X-axis travel	160 mm
Z-axis travel	450 mm
Max swing over bed	330 mm
Max turning diameter	200 mm
Bar capacity	51 mm
Machine Type	CNC Lathe
Brand	DMG MORI
Model	CTX 310 ecoline
Chuck Size	8 inch
Tool Turret Capacity	12 tools
Tailstock	Yes
Controller	Siemens 840D
Monitor Size	15 inch TFT color monitor
Max Swing Over Carriage	260 mm
Spindle Front Bearing Diameter	100 mm
Chip Conveyor	Yes
Manufacturing Year	2013
