DisponívelCNC Lathe

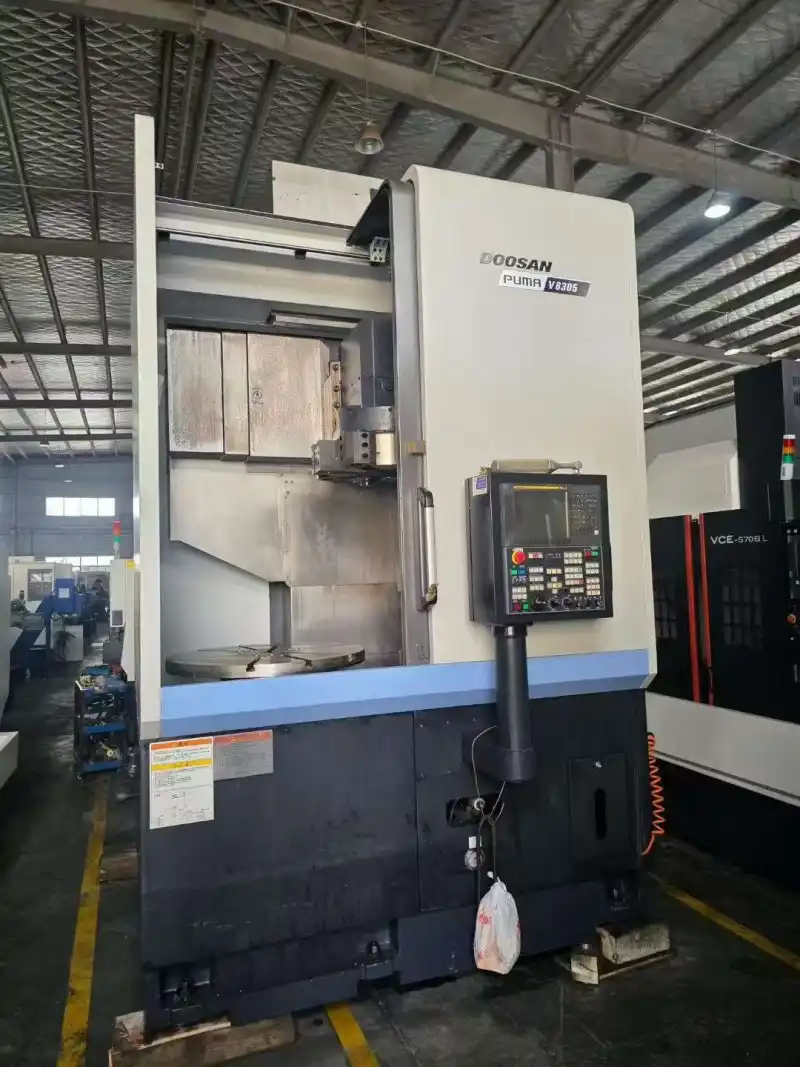

2020 Doosan PUMA V 8305 CNC Vertical Lathe

Used 2020 Doosan PUMA V 8305 CNC Vertical Lathe with only 300 power-on hours. Equipped with 8-station hydraulic turret and chip conveyor. Max swing 920 mm, cutting diameter 830 mm, turning length 750 mm. X-axis travel 495 mm, Z-axis 780 mm. Spindle speed 2000 rpm, torque 1344 Nm, motor power 30/22 kW. Available from China.

Código da Máquina: CL260710
Ano: 2020
Localização: China
Horas de Uso: Sob consulta

Acessórios

Chip conveyor

Consulta por E-mail

Principais Especificações

Maximum swing	920 mm
Cutting diameter	830 mm
Turning length	750 mm
X-axis travel	495 mm
Z-axis travel	780 mm
Spindle speed	2000 rpm
Maximum torque	1344 Nm
Spindle motor power	30/22 kW
Number of turret stations	8
Power-on hours	300
Quantity	4
Machine Type	CNC Vertical Lathe
Brand	Doosan
Model	PUMA V 8305
Year Of Manufacture	2020
Tool Turret Type	Hydraulic turret
Chip Conveyor	Yes
