DisponívelVertical Machining Center

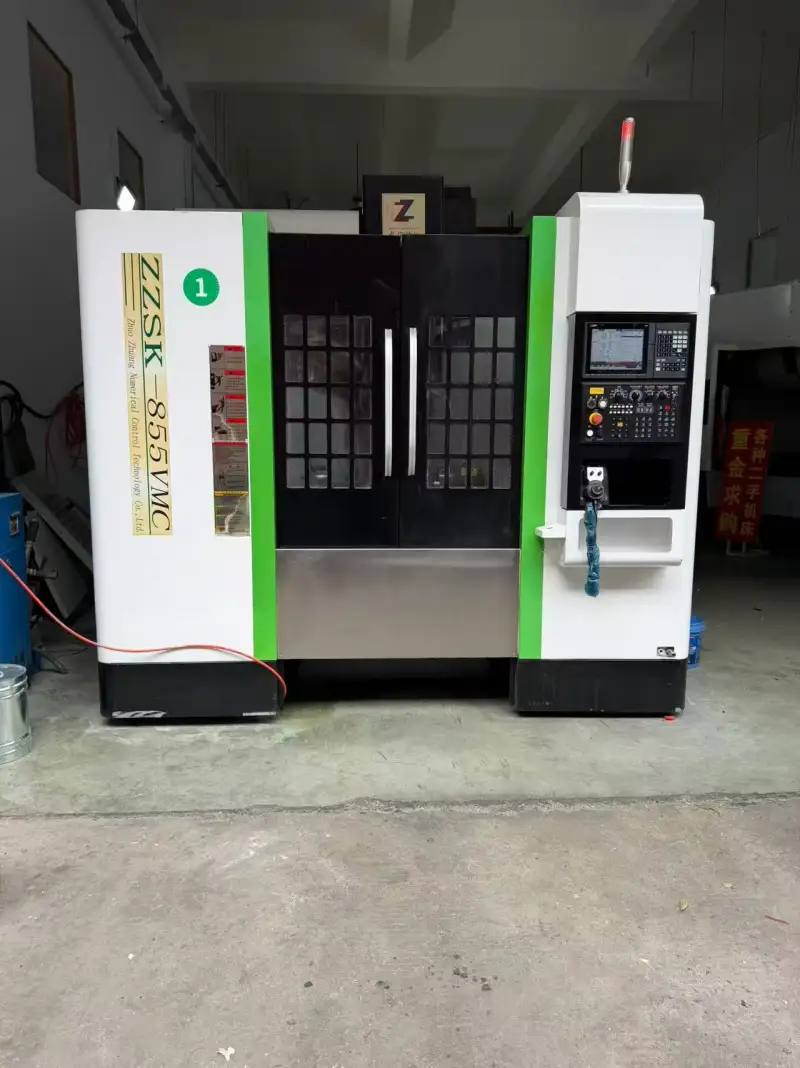

2024 Kunshan Zhuozhuang 855 Vertical Machining Center with Mitsubishi M80

2024 Kunshan Zhuozhuang 855 vertical machining center in excellent condition. Equipped with Mitsubishi M80 control, 12000 rpm direct drive spindle, 24-tool arm-type tool changer, and 4 th axis rotary table. Only 1000 hours of use. Accuracy comparable to new machine.

Código da Máquina: VMC2606135
Ano: 2024
Localização: Kunshan, China
Horas de Uso: Sob consulta

Acessórios

Mitsubishi M80 touch screen controller, HIWIN roller linear guideway, Taiwan Luoyi BT40 spindle, oil cooler, Taiwan Gangtian 24-tool arm-type tool changer, high pressure flushing dual water pump, rear chip removal, 4 th axis round table tailstock.

Consulta por E-mail

Principais Especificações

Spindle speed	12000 rpm
X travel	800 mm
Y travel	560 mm
Z travel	550 mm
Tool magazine capacity	24
Guideway type	45mm roller linear guideway
Spindle taper	BT40
Control system	Mitsubishi M80
Usage hours	Approx. 1000 hours
Machine Type	Machining Center
Spindle	BT40, direct drive, 12000 rpm
Oil Cooler	Yes
Tool Magazine	24-tool arm-type, OKADA
X/Y/Z Travel	800 x 560 x 550 mm
Year	2024
Guideway Brand	HIWIN
Spindle Brand	Luoyi (Taiwan)
Tool Magazine Brand	Okada (Taiwan)
Travel Range	800 x 560 x 550 mm
Working Hours	Approx. 1000 hours
