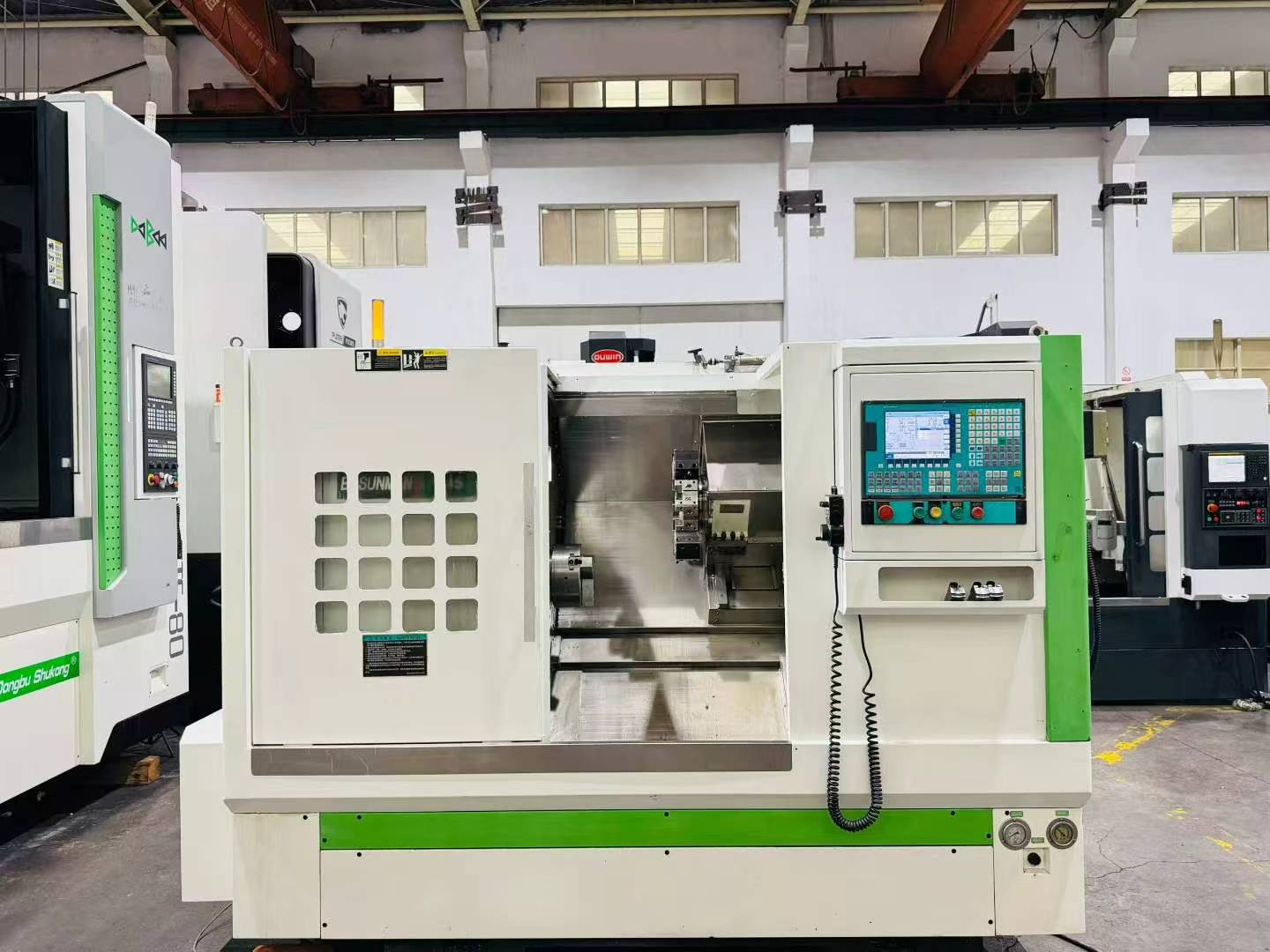

Used BOSUNMAN T 45 Slant-Bed Turret-Type CNC Lathe

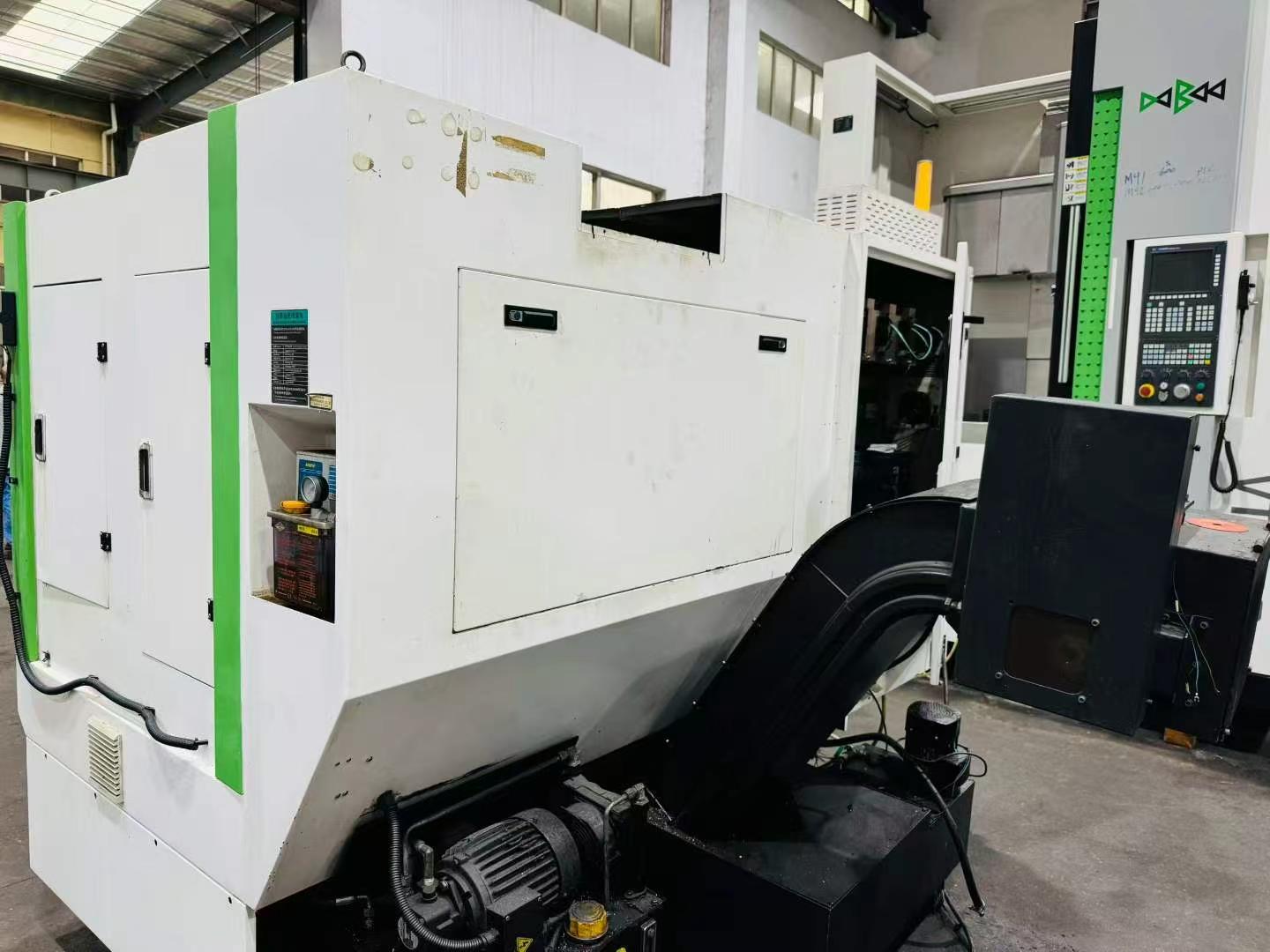

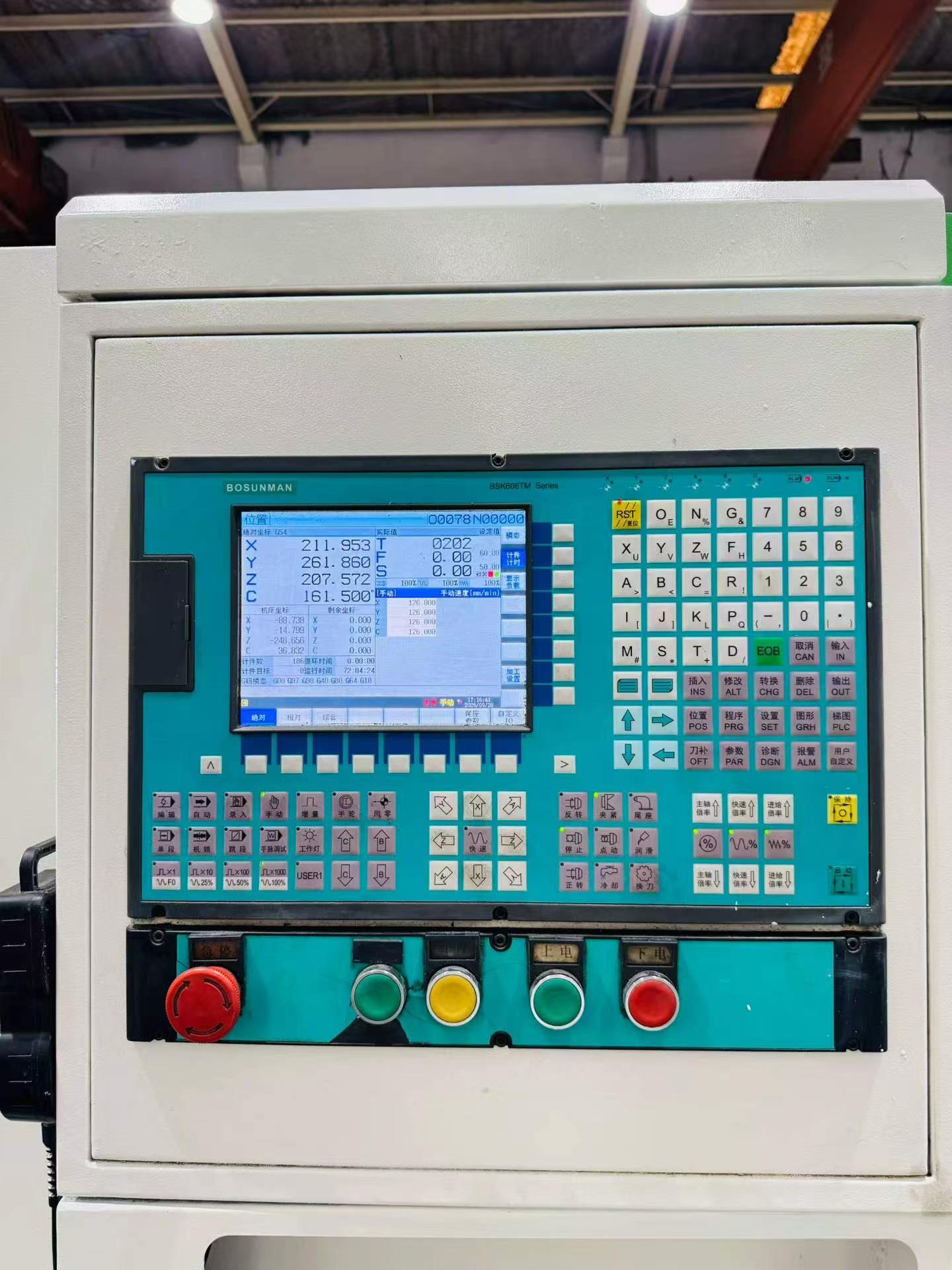

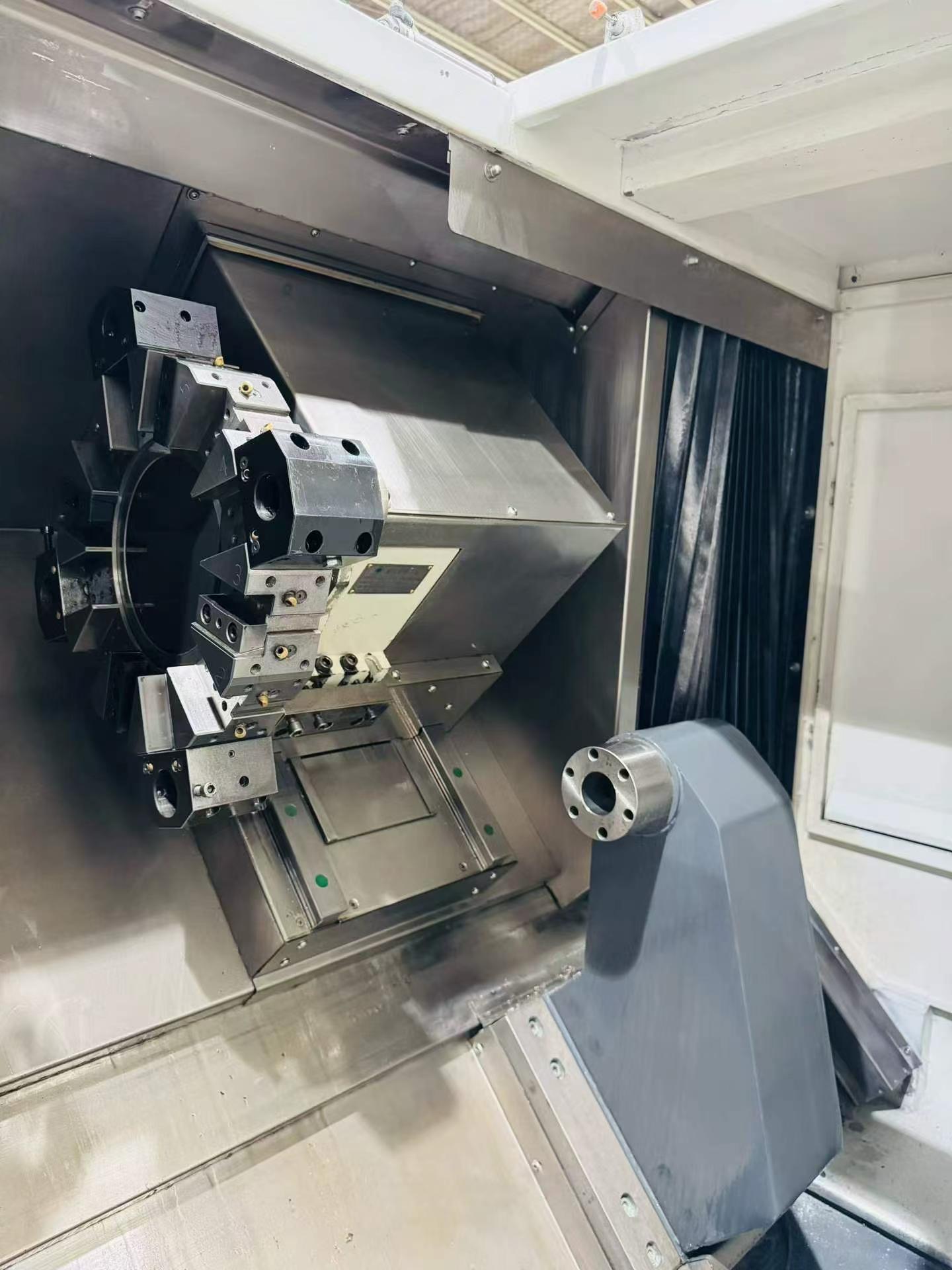

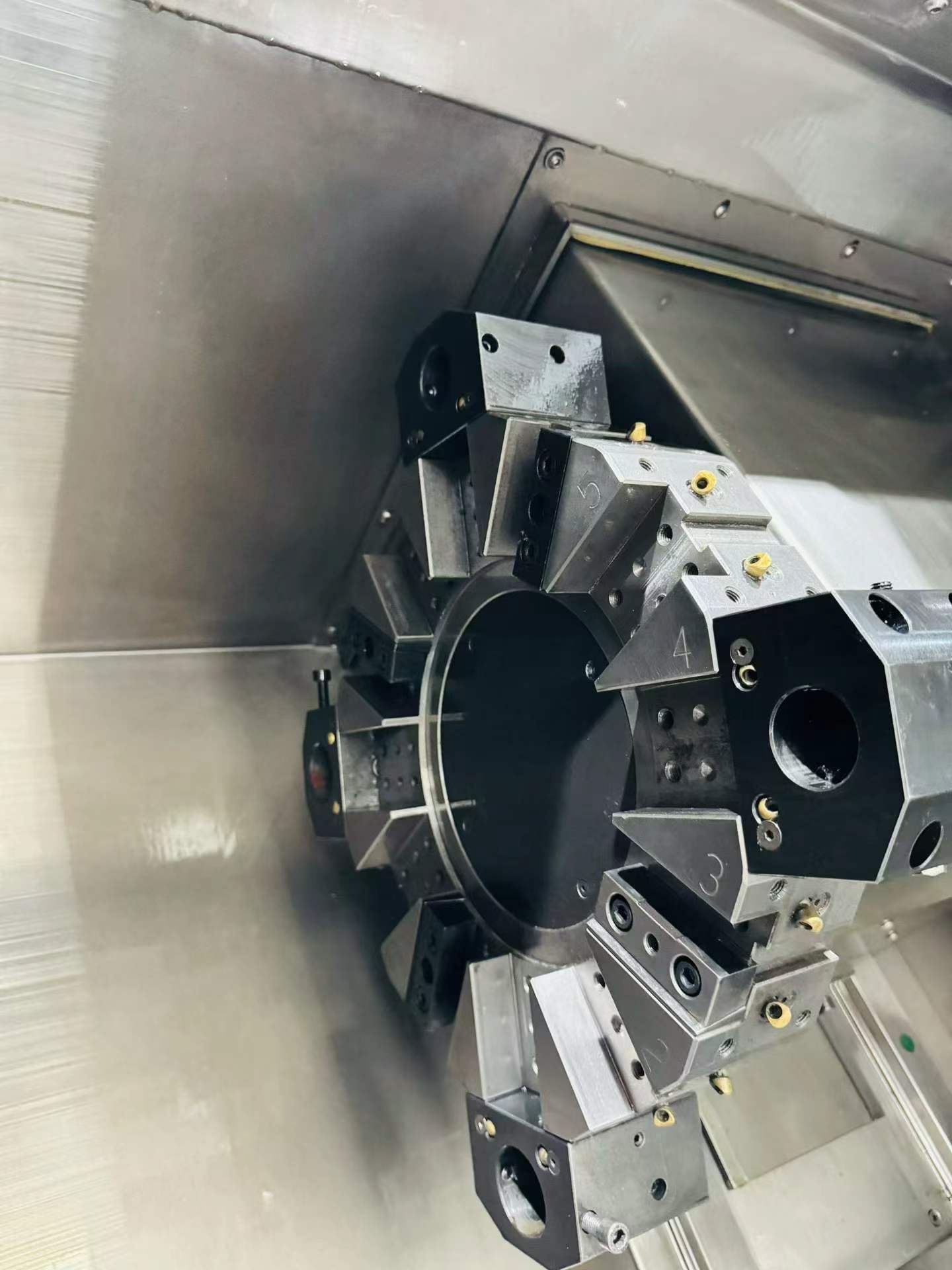

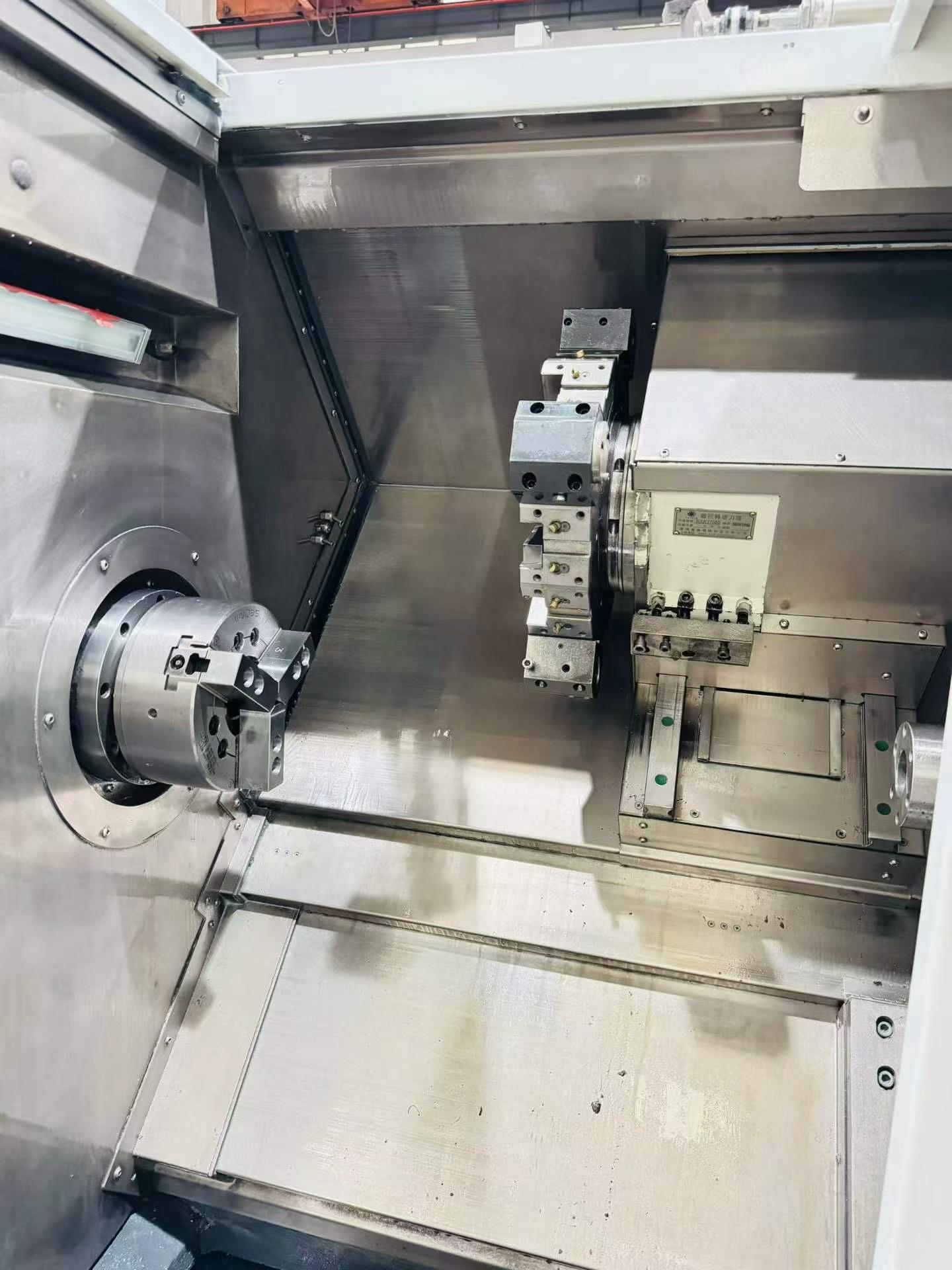

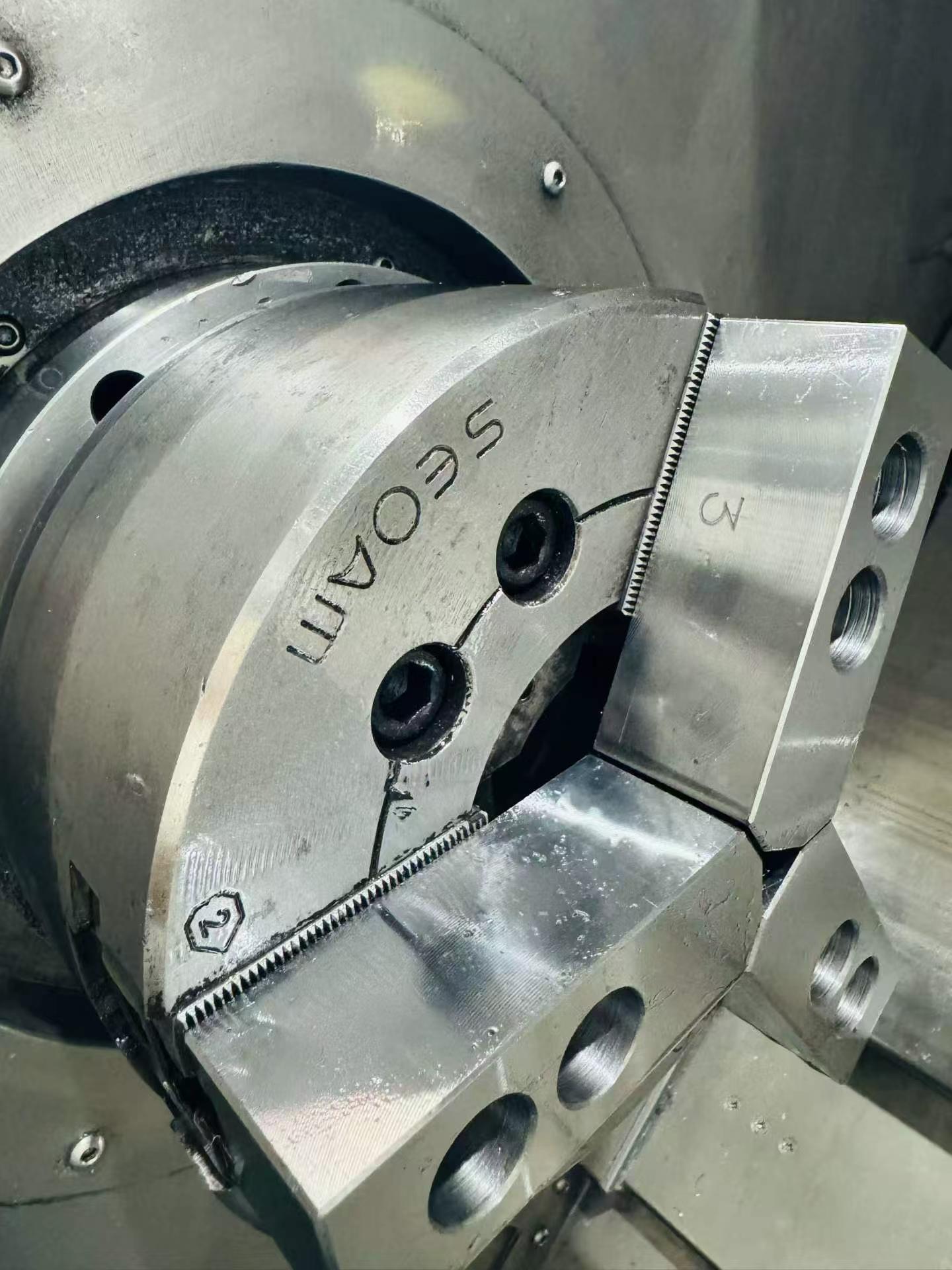

This BOSUNMAN T 45 is a slant-bed turret-type CNC lathe built in 2021 and has seen only limited use. It swings ∅550 mm over the bed and accepts work up to 550 mm in machining length. The A 2-6 high-speed spindle unit carries a Korean-made 8-inch hollow hydraulic chuck, and a large-diameter 12-station servo turret indexes turning tools quickly for mixed-part production. Shaft work is supported by a fully automatic programmable servo tailstock with Y-axis motion. All three axes travel on HIWIN heavy-duty roller linear guideways for rigidity and long-term accuracy. The machine runs the BOSUNMAN bus-type absolute-value CNC system, identified as the BSK 600 TM Series, with an 11 kW servo spindle motor. A rear chain-type chip conveyor and full enclosure keep the work area clean and the operation safe. Machining accuracy is held to 0.01 mm. The machine is available for inspection.

Código da Máquina

CL2609123

Ano

2021

Localização

China

Horas de Uso

Sob consulta
