DisponívelCNC Drilling Machine

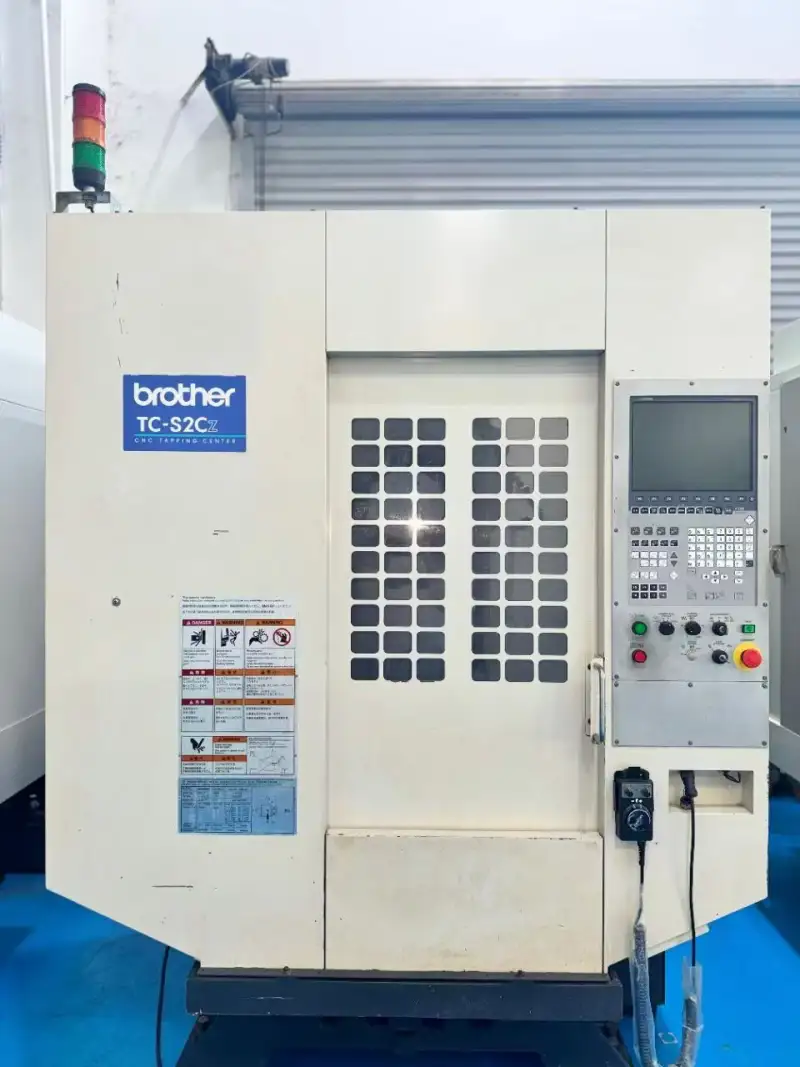

Brother TC-S 2 Cz Drilling and Tapping Center

Brother TC-S 2 Cz drilling and tapping center with B 00 control, BT30 spindle at 10000 rpm, spindle motor power 6.7 kW, X/Y/Z travel 500 x 400 x 300 mm, rapid traverse 36 x 36 x 50 m/min, worktable 600 x 320 mm, 14-tool magazine, linear guideways. Inspected accuracy: spindle runout 0.01 mm, positive busbar 0.01 mm, side busbar 0.01 mm, repeatability 0.005 mm. Year 2010.

Código da Máquina: DR260615
Ano: 2010
Localização: China
Horas de Uso: Sob consulta

Acessórios

14-tool magazine

Consulta por E-mail

Principais Especificações

Spindle taper	BT30
Spindle speed	10000 rpm
Spindle motor power	6.7 kW
X/Y/Z travel	500 x 400 x 300 mm
Rapid traverse	36 x 36 x 50 m/min
Worktable size	600 x 320 mm
Tool magazine capacity	14
Repeatability	0.005 mm
Spindle runout	0.01 mm
Positive busbar	0.01 mm
Side busbar	0.01 mm
Machine Type	Drilling and Tapping Center
Controller	Brother B00
Guideway Configuration	X/Y/Z linear guideways
Year Of Manufacture	2010
