DisponívelVertical Machining Center

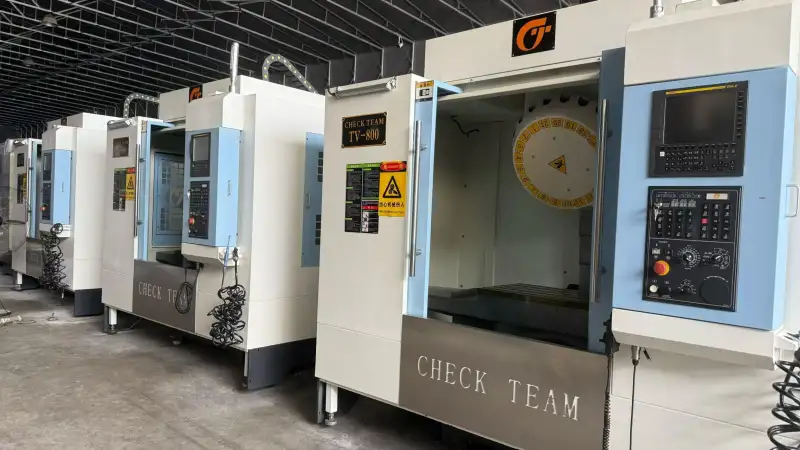

Used Chaoqun TV-800 Vertical Machining Center (Drilling/Tapping Center) with FANUC 0i-MF Plus

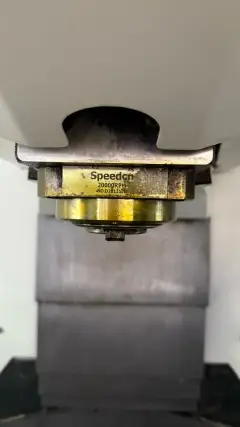

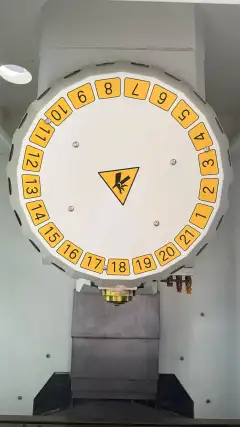

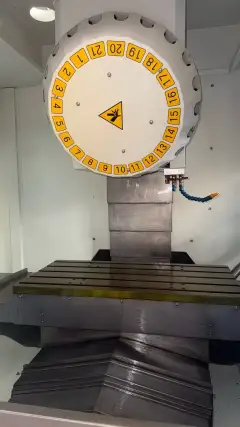

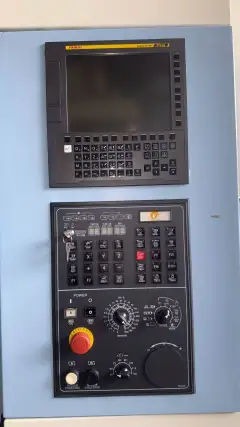

3 units just arrived. Chaoqun TV-800 drilling and tapping center with FANUC 0i-MF Plus control. BT30 direct-drive spindle, 20,000 rpm, 3.7 kW spindle motor. 21-station servo tool magazine. 3 axes with 35 mm linear guideways. X/Y/Z travel 800 x 500 x 330 mm, rapid traverse 48 m/min. Worktable 1000 x 500 mm, spindle nose to table 480 mm. Accuracy tested: spindle runout 0.008 mm, spindle axis perpendicularity (vertical plane) 0.01 mm, spindle axis perpendicularity (lateral plane) 0.01 mm, 3-axis repeat positioning accuracy 0.002 mm. Year of manufacture 2024.
- Código da Máquina
- VMC2608281
- Ano
- 2024
- Localização
- China
- Horas de Uso
- Sob consulta
Principais Especificações
| Control system | FANUC 0i-MF Plus |
|---|---|
| Spindle taper | BT30 |
| Spindle drive | Direct drive |
| Spindle speed | 20,000 rpm |
| Spindle motor power | 3.7 kW |
| X/Y/Z travel | 800 x 500 x 330 mm |
| Rapid traverse | 48 m/min |
| Worktable size | 1000 x 500 mm |
| Spindle nose to table top | 480 mm |
| Guideway type | 35 mm linear guideways (3 axes) |
| Tool magazine capacity | 21 stations (servo) |
| Spindle runout | 0.008 mm |
| Spindle axis perpendicularity (vertical plane) | 0.01 mm |
| Spindle axis perpendicularity (lateral plane) | 0.01 mm |
| Repeatability (X/Y/Z) | 0.002 mm |
| Year of manufacture | 2024 |
| Brand | Chaoqun |
