DisponívelPlaner Milling Machine

Deyang GL 4032 Z CNC Gantry Milling Machine

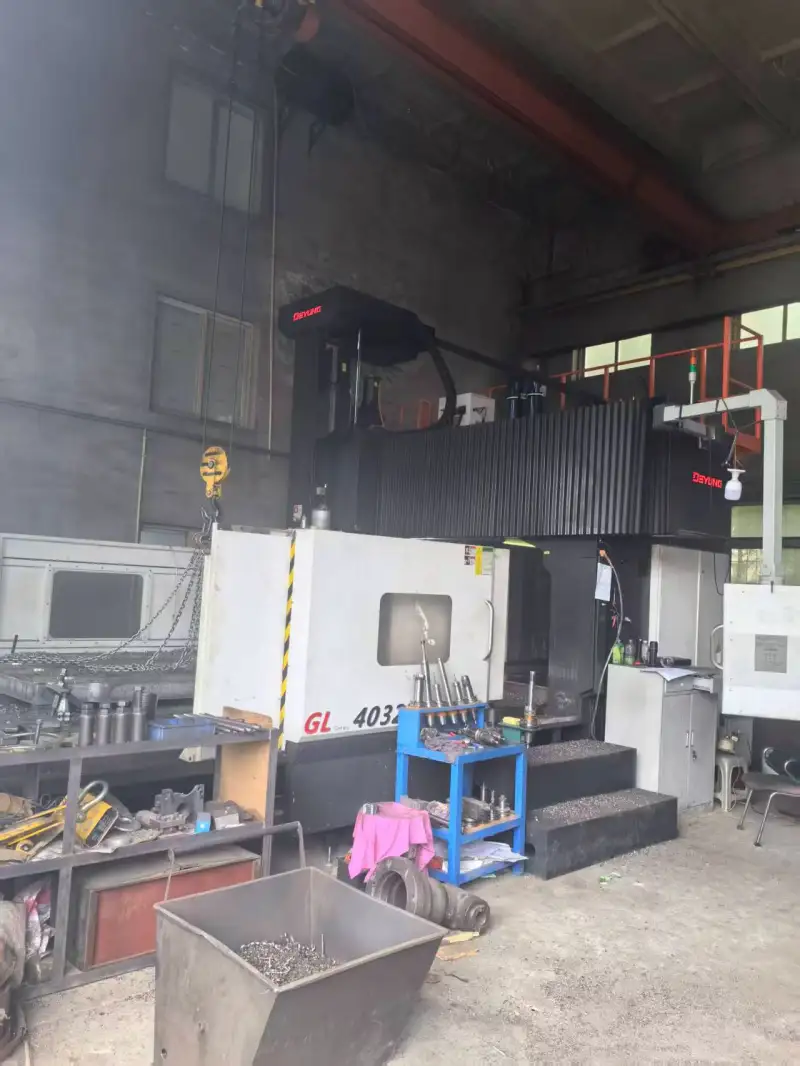

Used Deyang GL 4032 Z CNC gantry milling machine with FANUC control. Equipped with a BT50 gear head spindle, three-axis heavy-duty roller linear guideways, manual side milling head, and through-spindle coolant. Worktable size 4020 x 2410 mm, door width 2700 mm, door height 1350 mm. Travels: X=4000 mm, Y=3200 mm, Z=1000 mm. Complete documentation available. Machine located in Shenyang, China, available for inspection.

Código da Máquina: PM260623
Ano: Sob consulta
Localização: Shenyang, China
Horas de Uso: Sob consulta

Acessórios

Manual side milling head, through-spindle coolant, spindle oil cooling, complete documentation.

Consulta por E-mail

Principais Especificações

Worktable	4020 x 2410 mm
Door Width	2700 mm
Door Height	1350 mm
X/Y/Z Travel	4000/3200/1000 mm
Guideway configuration	3-axis heavy-duty roller linear guideway
Spindle	BT50 gear head
Spindle	oil cooling
Machine Type	Gantry Machining Center (DeYang GL 4032 Z)
Worktable Size	4020 x 2410 mm
Axis Designation	X/Y/Z
Controller	FANUC control system
