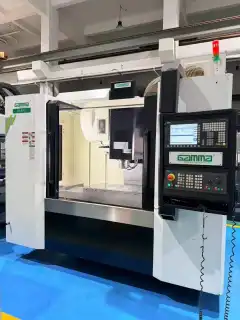

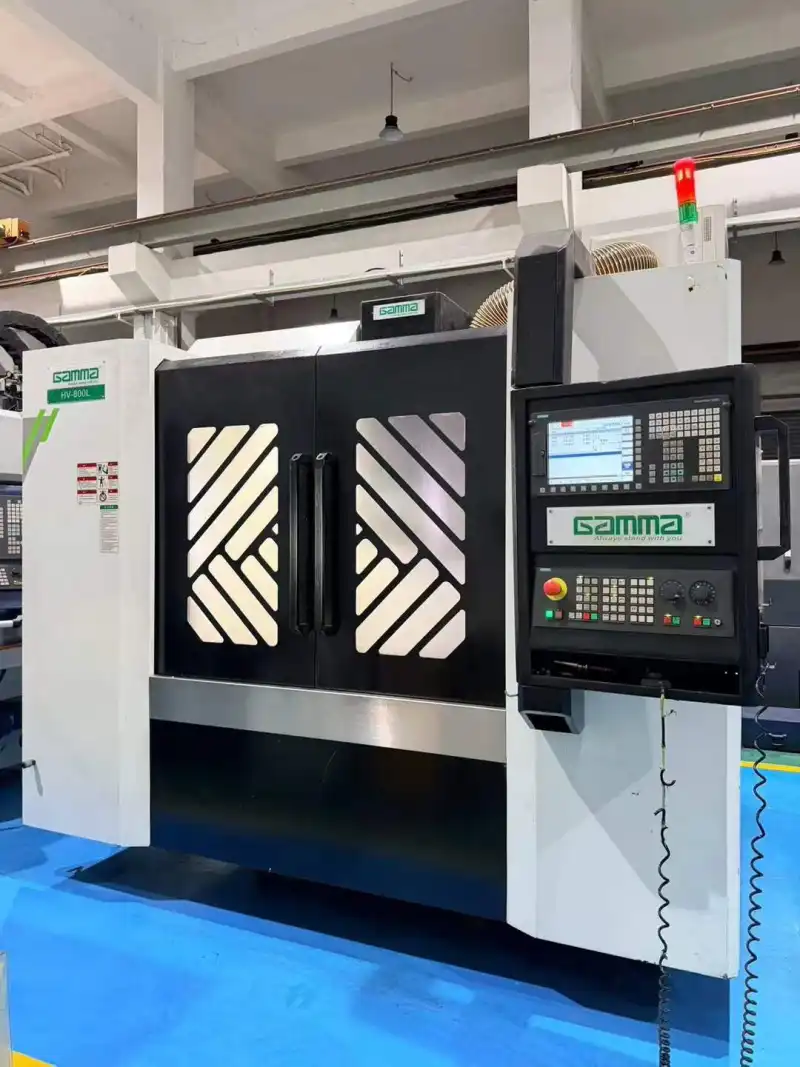

Used Gamma HV-800 L Vertical Machining Center with Siemens 828 D Control

Gamma HV-800 L vertical machining center, three units available. Each machine is equipped with the Siemens Sinumerik 828 D CNC control system in a high configuration that includes the mold package. The BT40 spindle runs up to 15,000 rpm and is driven by an 11 kW spindle motor. All three axes travel on German Schneeberger 45 linear guideways, with X/Y/Z travels of 800 / 500 / 500 mm and axis motor power of 2.75 / 2.75 / 3.25 kW. Machine net weight is 5,200 kg. Manufactured July 2021. Machines are available for inspection.

Código da Máquina: VMC2609163
Ano: 2021
Localização: China
Horas de Uso: Sob consulta

Acessórios

Siemens 828 D high-configuration package with mold package German Schneeberger 45 linear guideways on all three axes

Consulta por E-mail

Principais Especificações

Machine type	Vertical machining center
Model	HV-800 L

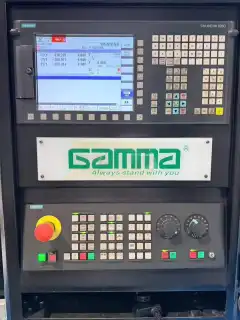

Control system	Siemens Sinumerik 828 D

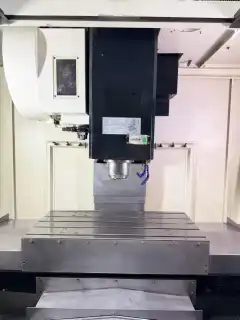

Spindle taper	BT40
Spindle speed	15,000 rpm
Spindle motor power	11 kW
X/Y/Z travel	800 / 500 / 500 mm
X/Y/Z axis motor power	2.75 / 2.75 / 3.25 kW
Guideway type	German Schneeberger 45 linear guideways on all three axes
Machine net weight	5,200 kg
Manufacturing date	2021/07/25
Units available	3
Brand	Gamma
Year of manufacture	2021
