DisponívelShearing & Bending Machine

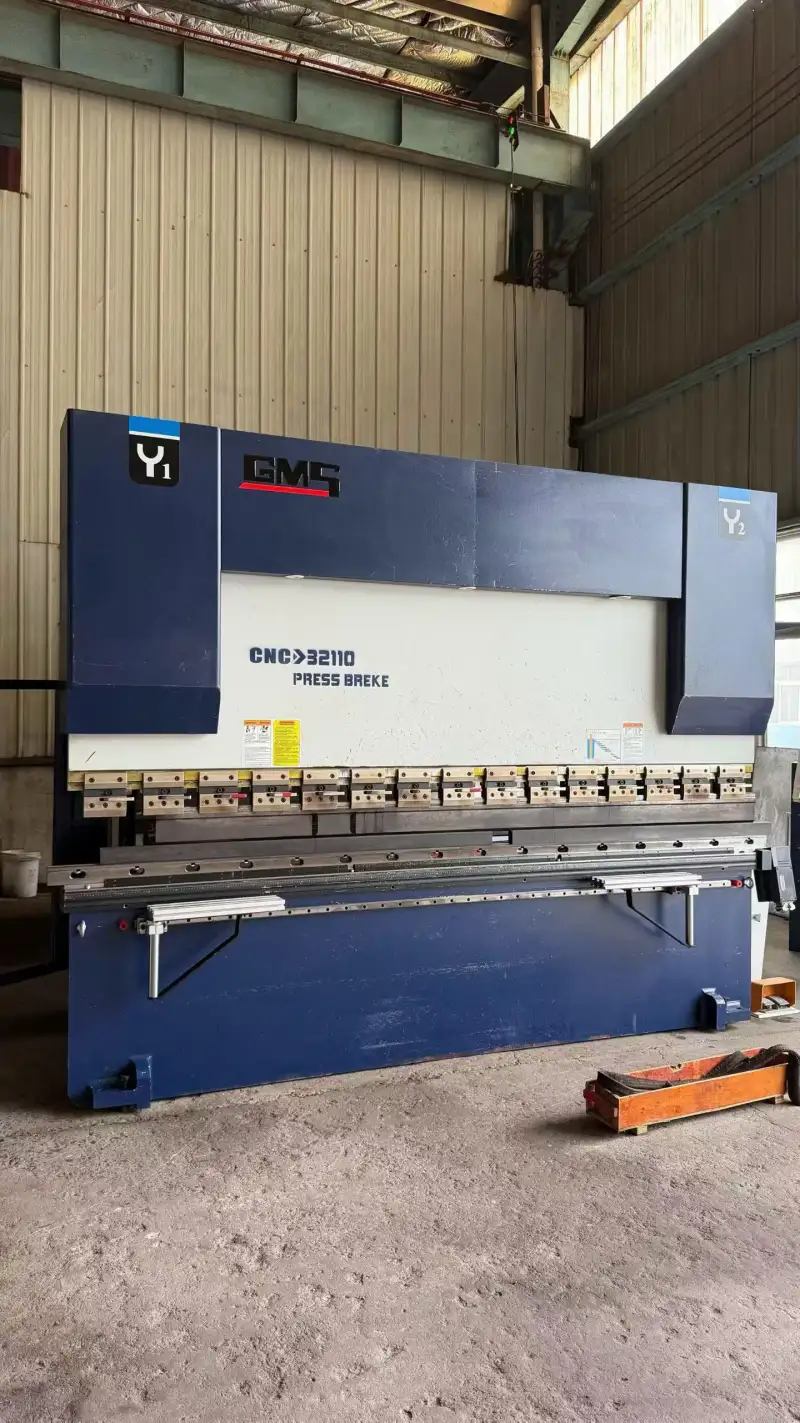

Used GMS 32110 Electro-Hydraulic 4+1 Axis CNC Press Brake

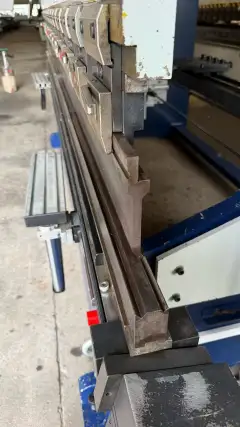

GMS 32110 electro-hydraulic CNC press brake with a 110 t x 3200 mm capacity, built in 2023 and lightly used since installation. The machine is a 4+1 axis press brake equipped with the Cybelec CybTouch 8 CNC control system. The back gauge is driven on ball screws and uses a dual linear guideway structure, with R-axis rise and fall. Upper tooling is held by quick clamps and runs CNC concentric dies. The worktable is fitted with motorized deflection compensation, keeping bend angle consistent across the full 3200 mm length.

Código da Máquina: SB261001
Ano: 2023
Localização: China
Horas de Uso: Sob consulta

Acessórios

Back gauge with ball screws and dual linear guideways and R-axis; quick clamping system; CNC concentric die set; motorized worktable deflection compensation.

Consulta por E-mail

Principais Especificações

Machine type	Electro-hydraulic CNC press brake
Model	32110
Capacity	110 t
Bending length	3200 mm
Number of axes	4+1

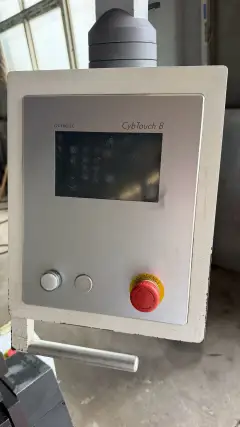

CNC control	Cybelec CybTouch 8

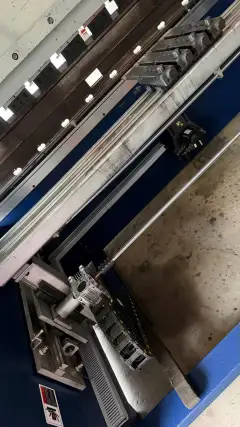

Back gauge	Ball screws with dual linear guideways, R-axis rise and fall
Crowning	Motorized worktable deflection compensation
Brand	GMS
Control system	Cybelec CybTouch 8
Year of manufacture	2023
