DisponívelCNC Lathe

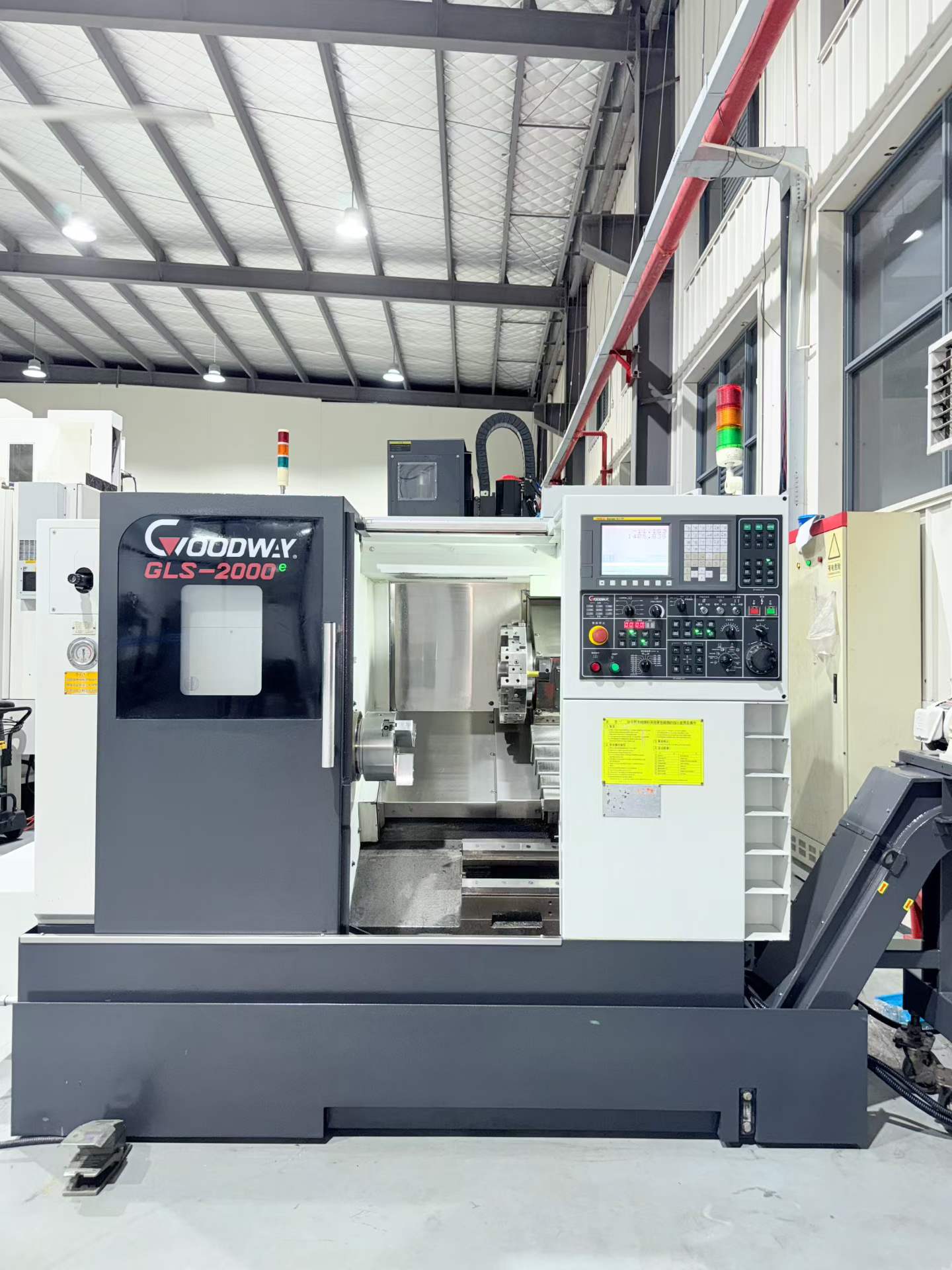

Used Goodway GLS-2000 CNC Horizontal Lathe

The Goodway GLS-2000 is a CNC horizontal lathe built in 2020 and equipped with the FANUC 0i-TF CNC control system with FANUC drives in the electrical cabinet. It handles a maximum swing diameter of 560 mm, a maximum cutting diameter of 390 mm and a maximum machining length of 360 mm. The spindle runs at speeds up to 4,200 rpm on an A 2-6 spindle nose, with a Φ52 mm through bore and 15 kW of spindle power. Workholding is an 8-inch AUTO STRONG chuck, and the machine is fitted with a 10-station hydraulic tool turret, a tailstock and an automatic chip conveyor.

Código da Máquina: CL260987
Ano: 2020
Localização: China
Horas de Uso: Sob consulta

Acessórios

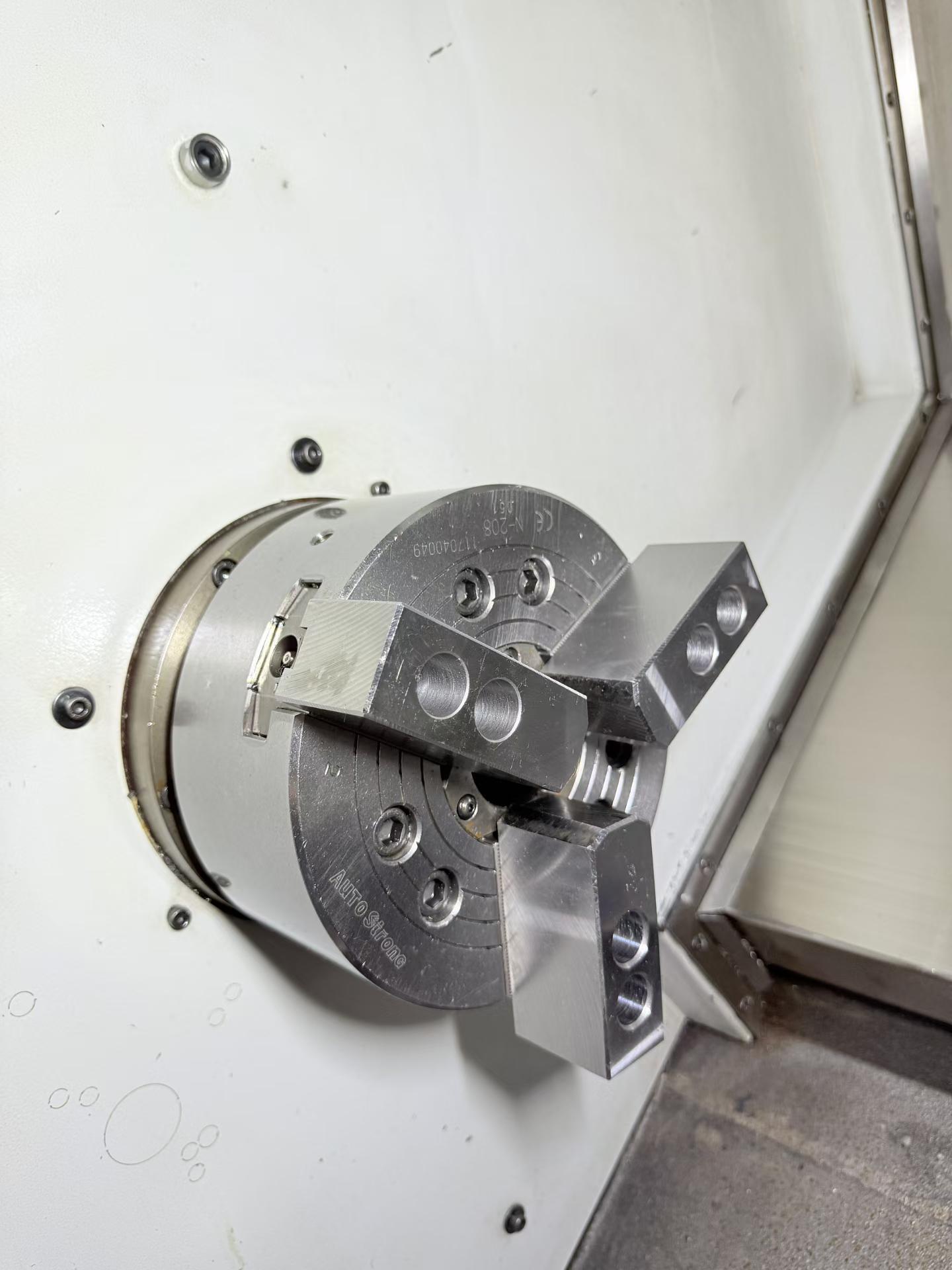

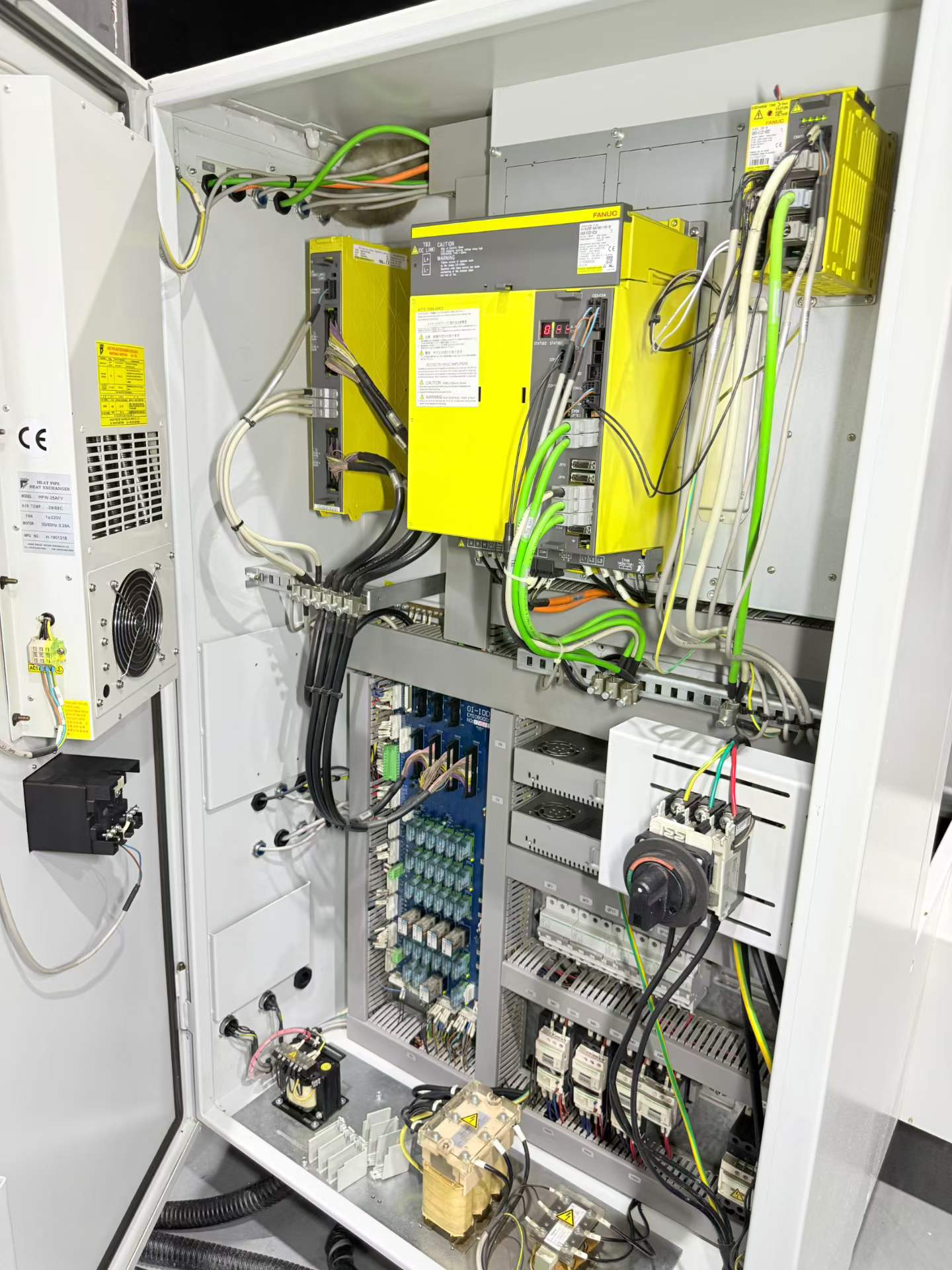

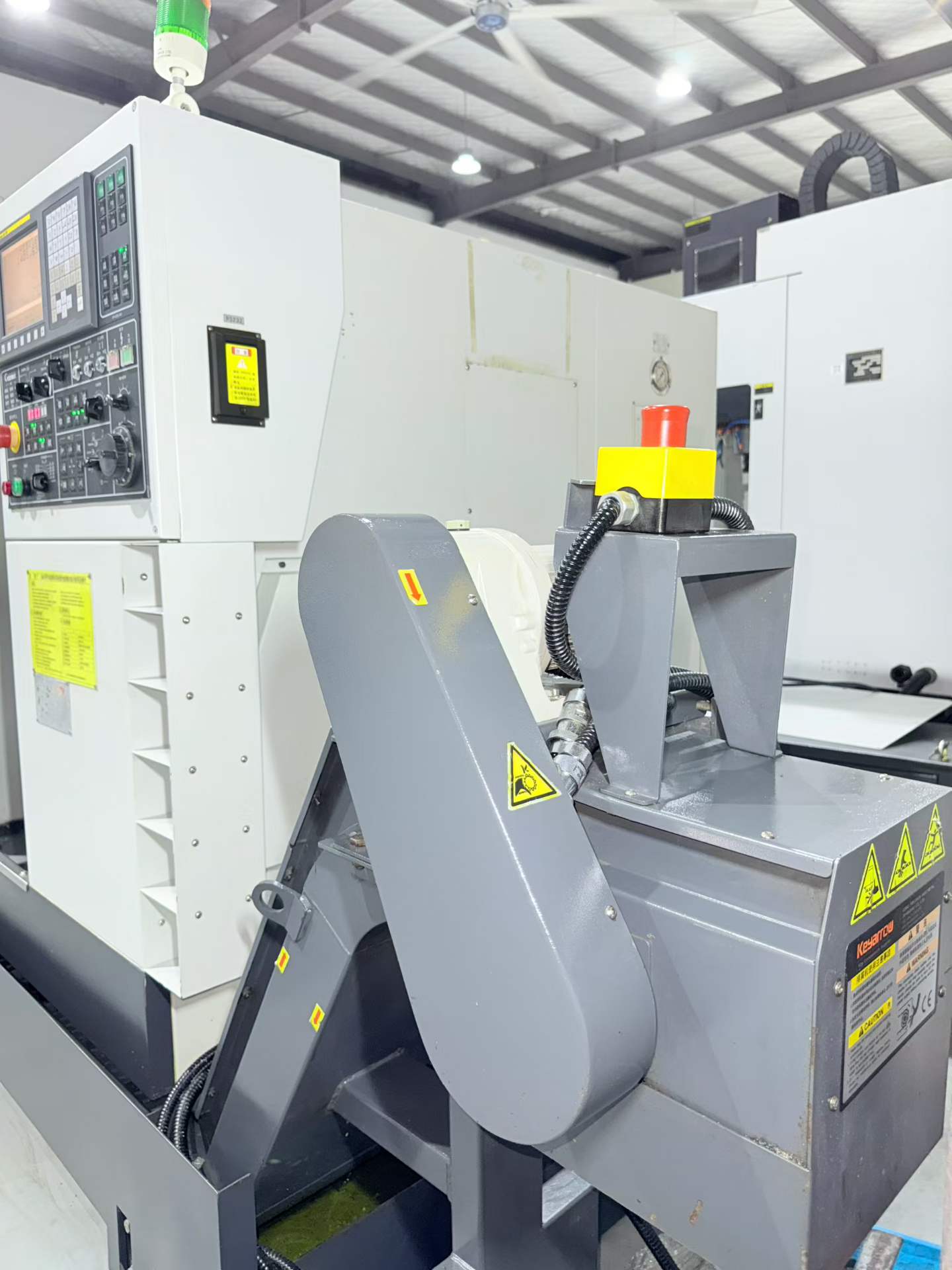

8-inch AUTO STRONG chuck 10-station hydraulic tool turret Tailstock Automatic chip conveyor FANUC drives in electrical cabinet

Consulta por E-mail

Principais Especificações

Maximum swing diameter	560 mm
Maximum cutting diameter	390 mm
Maximum machining length	360 mm
Maximum spindle speed	4,200 rpm
Spindle nose	A 2-6
Spindle through bore	Φ52 mm
Spindle power	15 kW
Chuck size	8inch

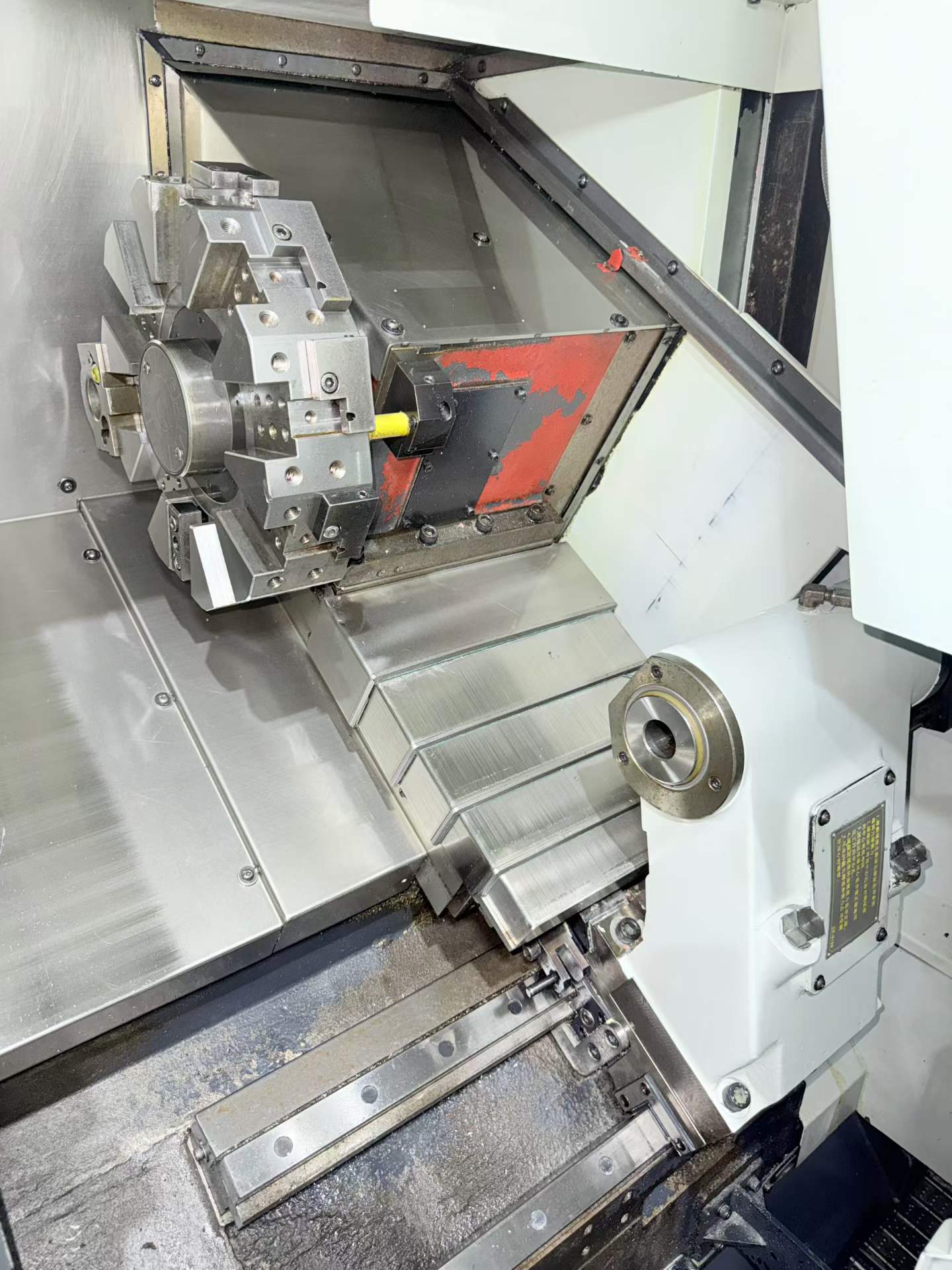

Tool turret	10-station hydraulic

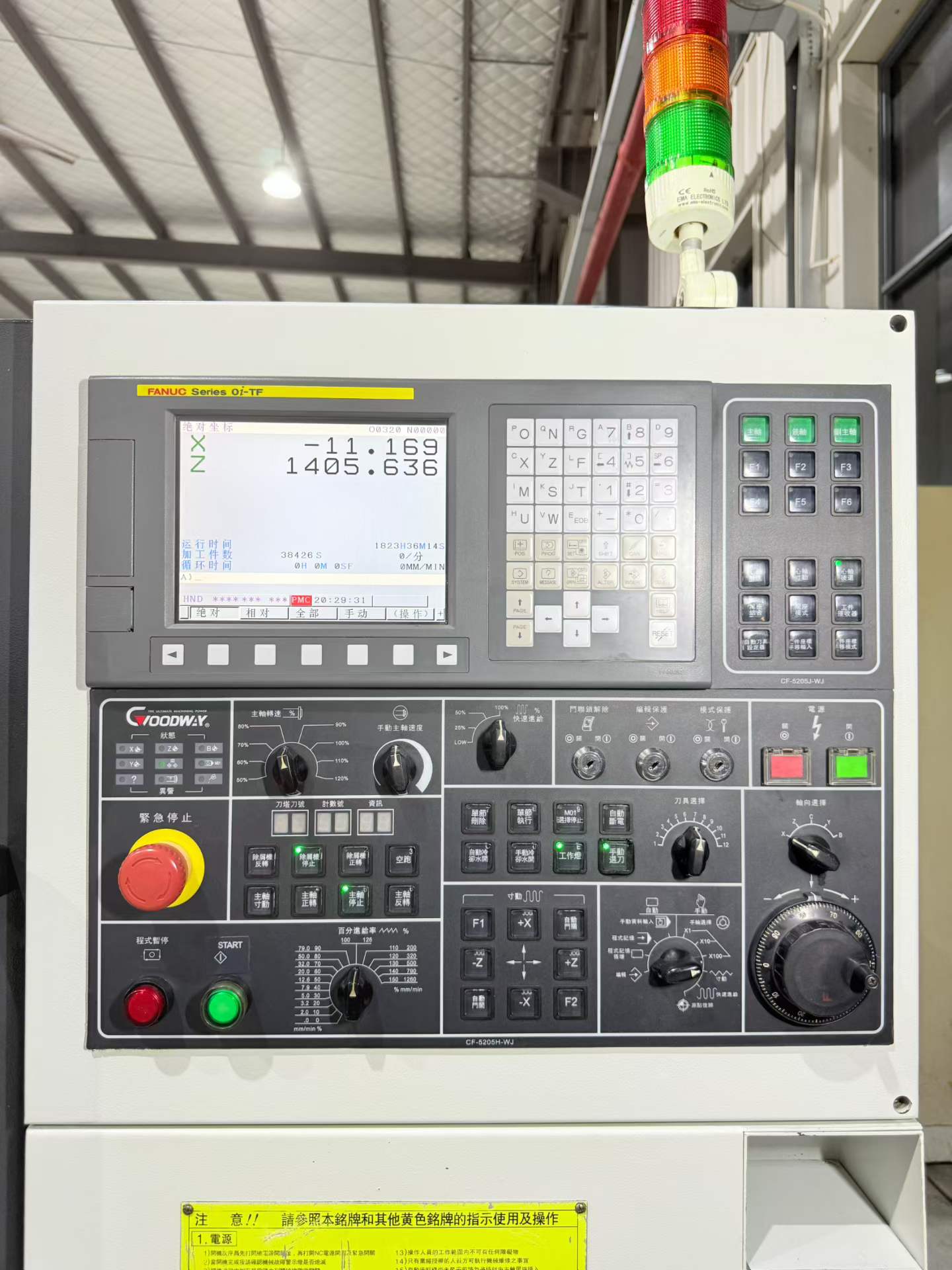

Control system	FANUC 0i-TF
Year of manufacture	2020
Brand	Goodway
