DisponívelMachining Center

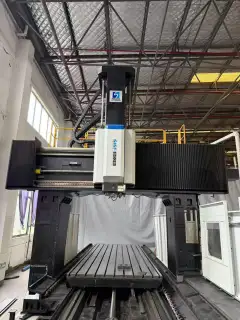

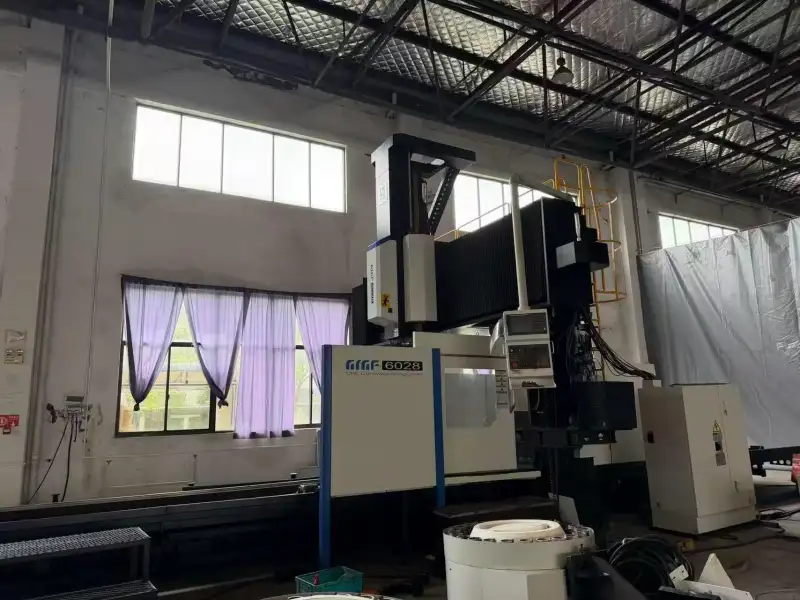

Used Guosheng GMP 6028 T Gantry Machining Center
Guosheng GMP 6028 T gantry machining center, manufactured in November 2023 by Nantong Guosheng Intelligent Technology Group Co., Ltd., serial number 23109909, available from stock. The machine carries a 6000 x 2000 mm worktable rated for a 25 T load, with a door width of 2800 mm. X/Y/Z travels are 6500 x 3300 x 1000 mm, and the spindle nose to table distance ranges from 160 to 1600 mm. The gearhead spindle accepts BT50 tooling and reaches a maximum speed of 6000 rpm. A 24-tool magazine is fitted, together with a semi-automatic head. The guideway configuration is two linear guideways and one box guideway. Control is provided by a FANUC 0i-MF Plus CNC system. The machine is a complete gantry machining center, available for inspection.
- Código da Máquina
- MC260993
- Ano
- 2024
- Localização
- China
- Horas de Uso
- Sob consulta
Acessórios
Semi-automatic head 24-tool magazine FANUC 0i-MF Plus CNC control system
Principais Especificações
| Worktable size | 6000 x 2000 mm |
|---|---|
| X/Y/Z travel | 6500 x 3300 x 1000 mm |
| Door width | 2800 mm |
| Table load capacity | 25 T |
| Spindle nose to table distance | 160-1600 mm |
| Spindle type | Gearhead, BT50 |
| Maximum spindle speed | 6000 rpm |
| Tool magazine capacity | 24 tools |
| Guideways | Two linear guideways and one box guideway |
| Controller | FANUC 0i-MF Plus |
| Model | GMP 6028 T |
| Serial number | 23109909 |
| Factory date | November 2023 |
| Brand | Guosheng |
| Control system | FANUC 0i-MF Plus |
| Year of manufacture | 2023 |
