DisponívelPlaner Milling Machine

Haitian 6028 Gantry Machining Center

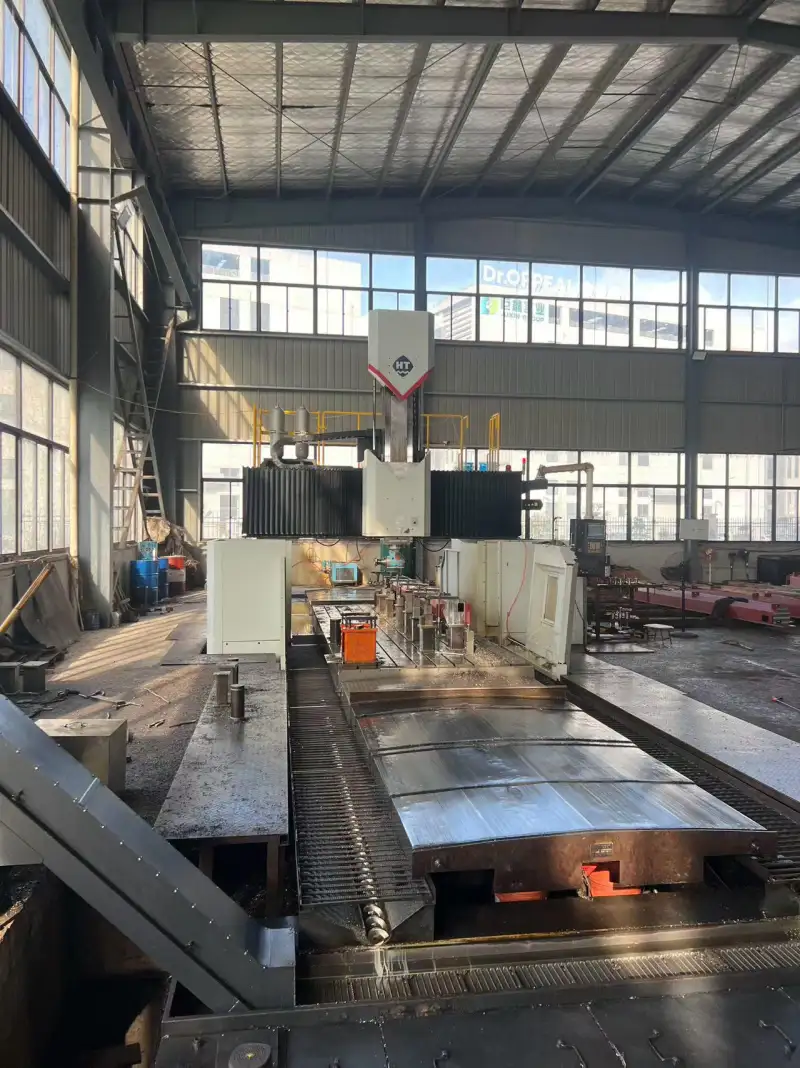

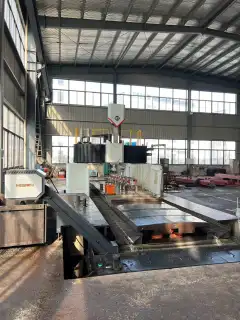

Used Haitian 6028 Gantry Machining Center available from China stock. The machine features a worktable size of 6000 x 2000 mm, door width 2800 mm, door height 1200 mm, X/Y/Z travel 6500/2800/1000 mm, X/Y linear guideway, Z-axis anti-skid ram 450 x 450 mm, BT50 gear head spindle, and FANUC MF control. Includes a manual measuring milling head.

Código da Máquina: MC260745
Ano: 2000
Localização: China
Horas de Uso: Sob consulta

Acessórios

Manual measuring milling head

Consulta por E-mail

Principais Especificações

Worktable size	6000 x 2000 mm
Door width	2800 mm
Door height	1200 mm
X/Y/Z travel	6500 / 2800 / 1000 mm
X/Y guideway	Linear guideway
Z-axis ram	450 x 450 mm (anti-skid)
Spindle taper	BT50
Spindle type	Gear head
Controller	FANUC MF
Accessories	Manual measuring milling head
Machine Type	Gantry Machining Center
X/Y/Z Travel Dimensions	6500 / 2800 / 1000 mm
Spindle	BT50 gear head
