DisponívelVertical Machining Center

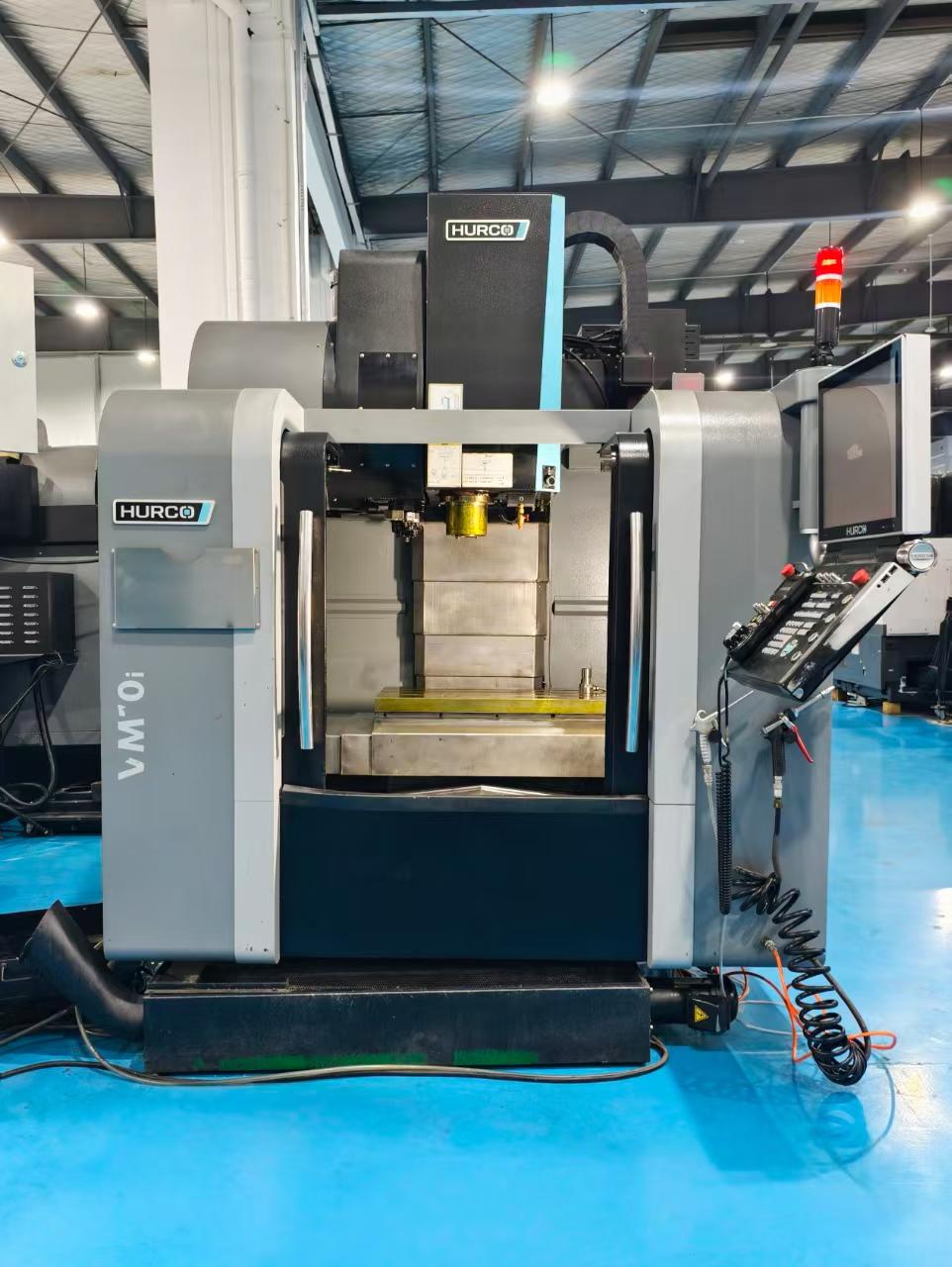

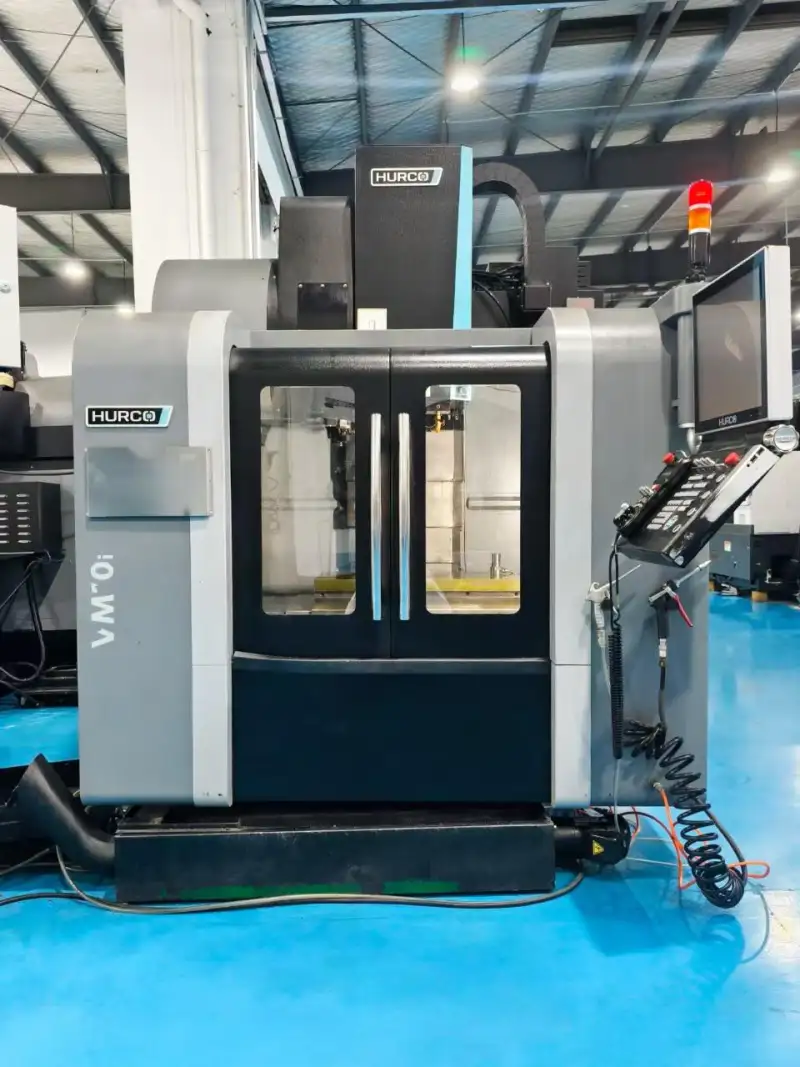

Used HURCO VM 10 i Vertical Machining Center

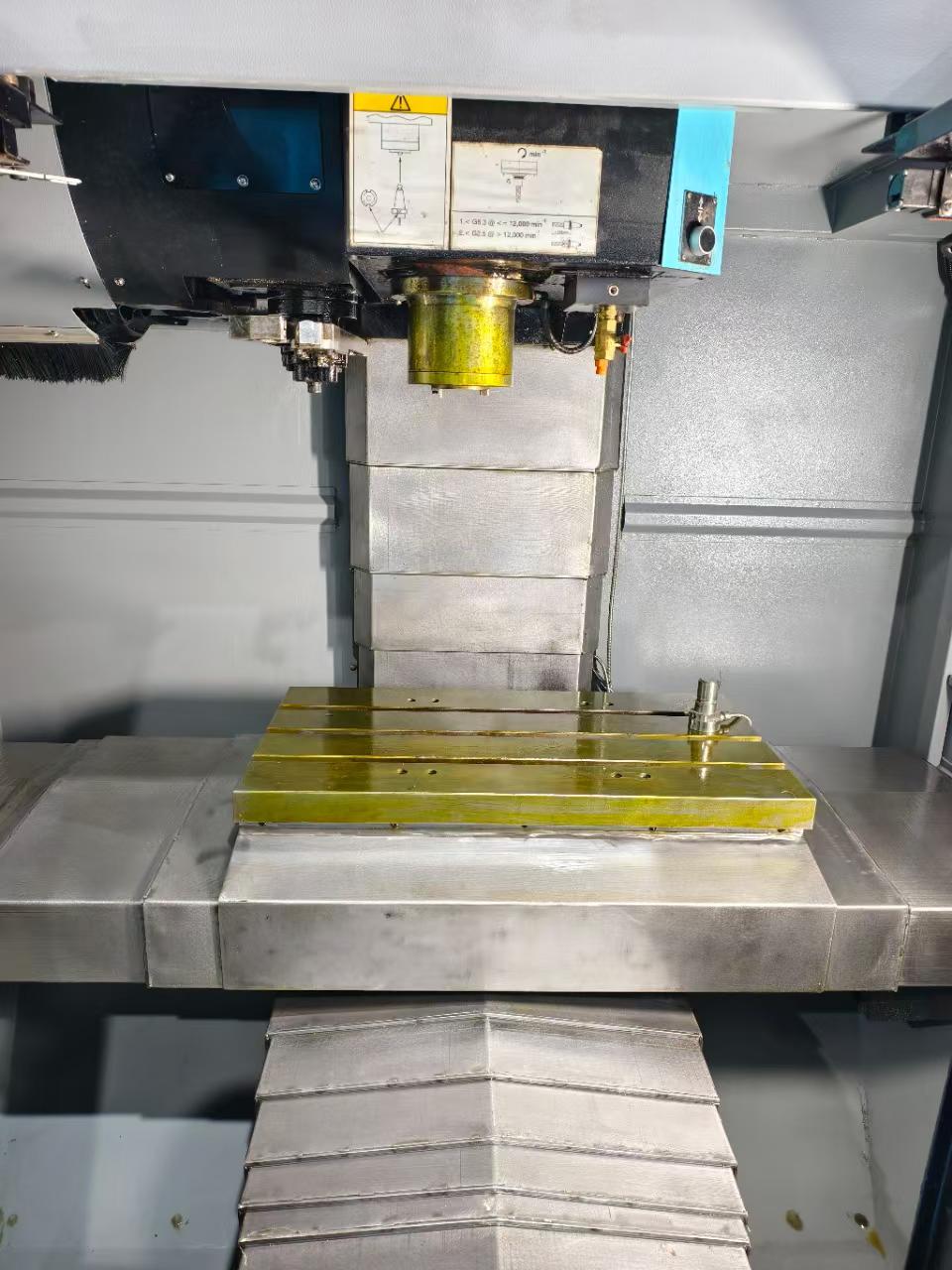

HURCO VM 10 i vertical machining center with HURCO self-developed WinMax control system. Equipped with BBT 40 belt-driven spindle at 10000 rpm, spindle motor power 11 kW, 20-tool magazine, three-axis linear guideways, X/Y/Z travel 660 x 406 x 508 mm, worktable size 760 x 405 mm, and spindle nose to table distance 102-610 mm. Accuracy inspection results: spindle runout 0.01 mm, side generatrix 0.012 mm, front generatrix 0.01 mm, three-axis repeatability 0.003 mm. Manufactured in 2017/2018.

Código da Máquina: VMC2608295
Ano: 2017
Localização: China
Horas de Uso: Sob consulta

Consulta por E-mail

Principais Especificações

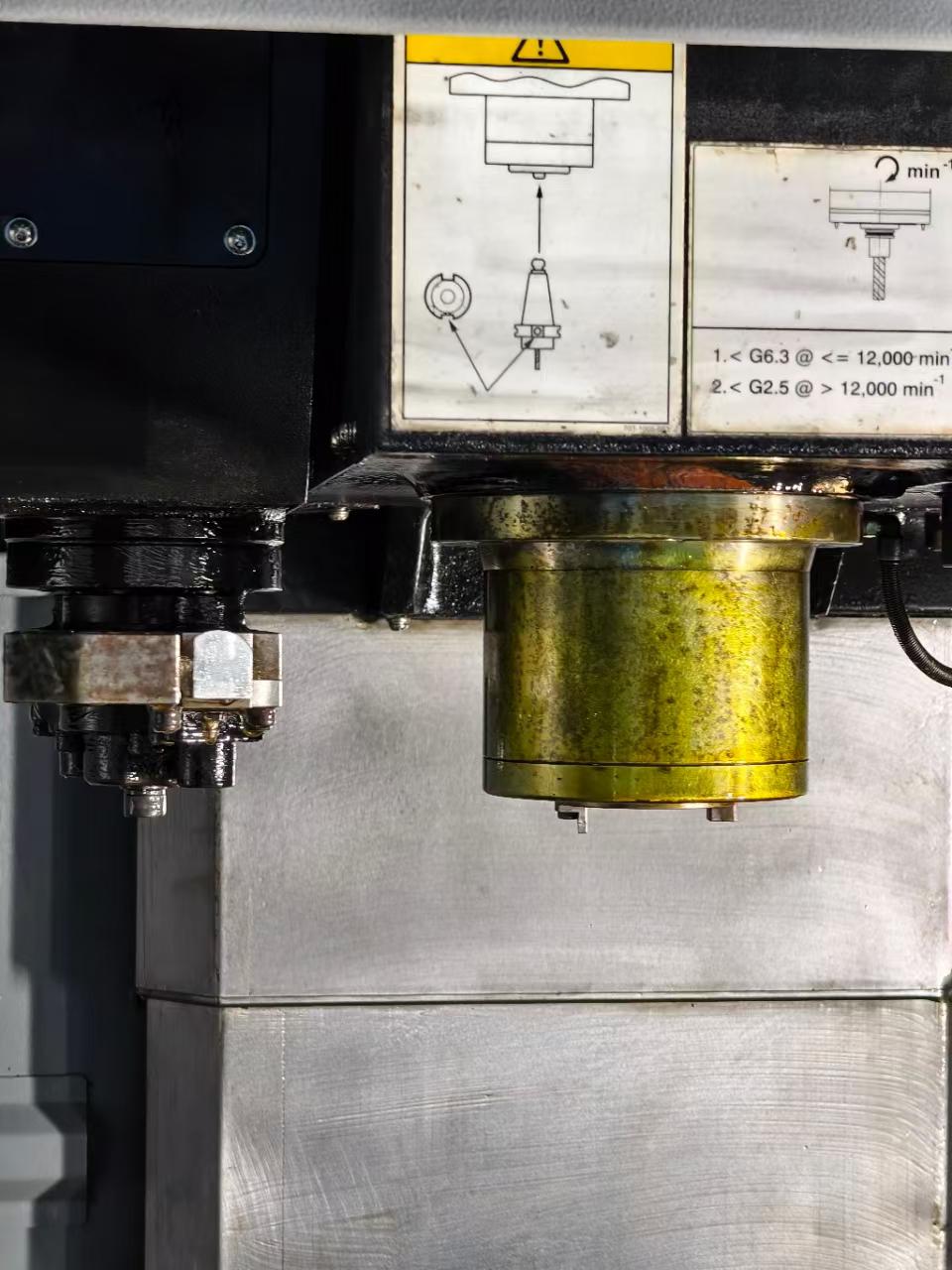

Spindle taper	BBT 40
Spindle speed	10000 rpm
Spindle motor power	11 kW

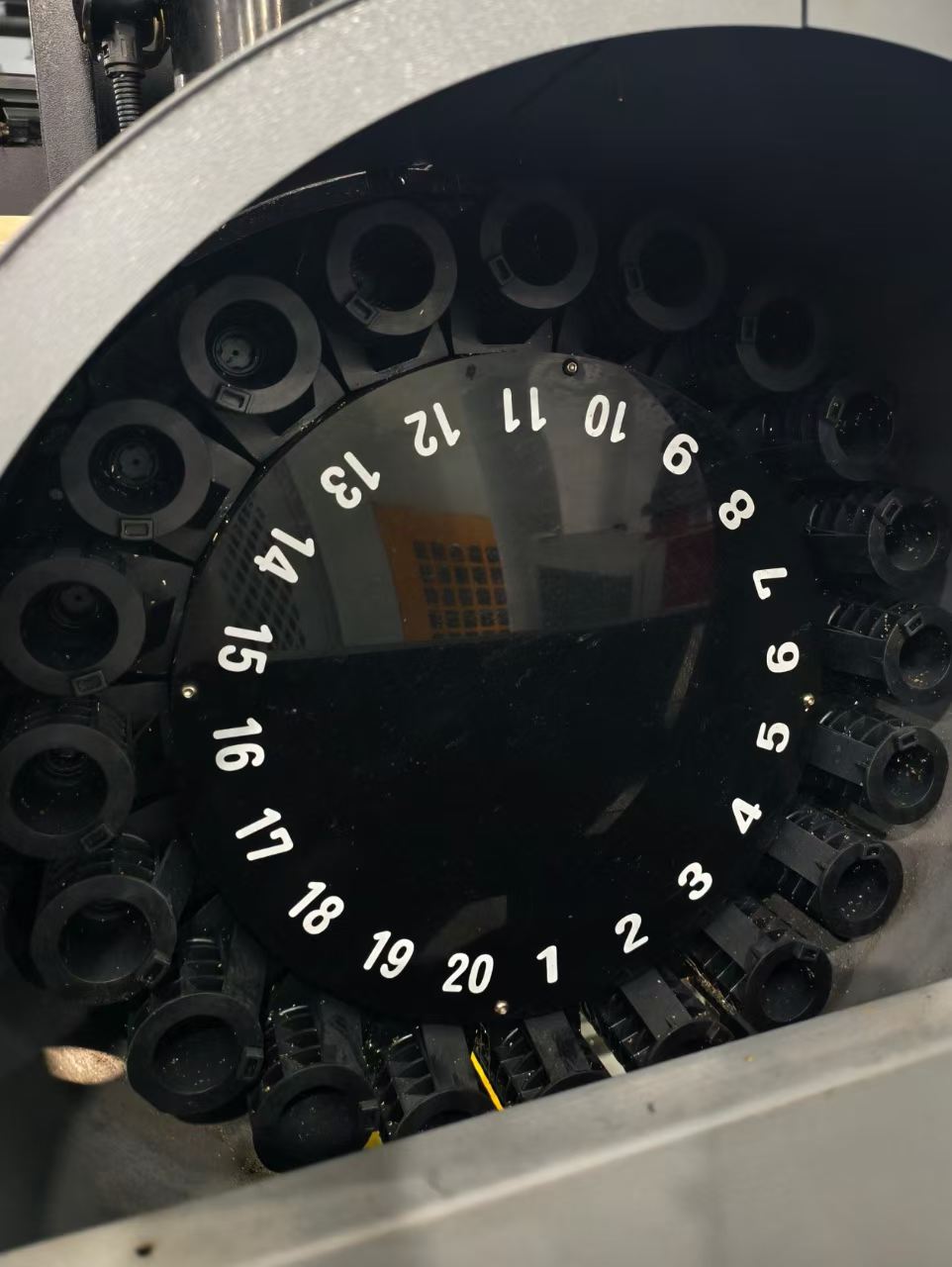

Tool magazine capacity	20 tools
Guideway type	Three-axis linear guideways
X/Y/Z travel	660 x 406 x 508 mm

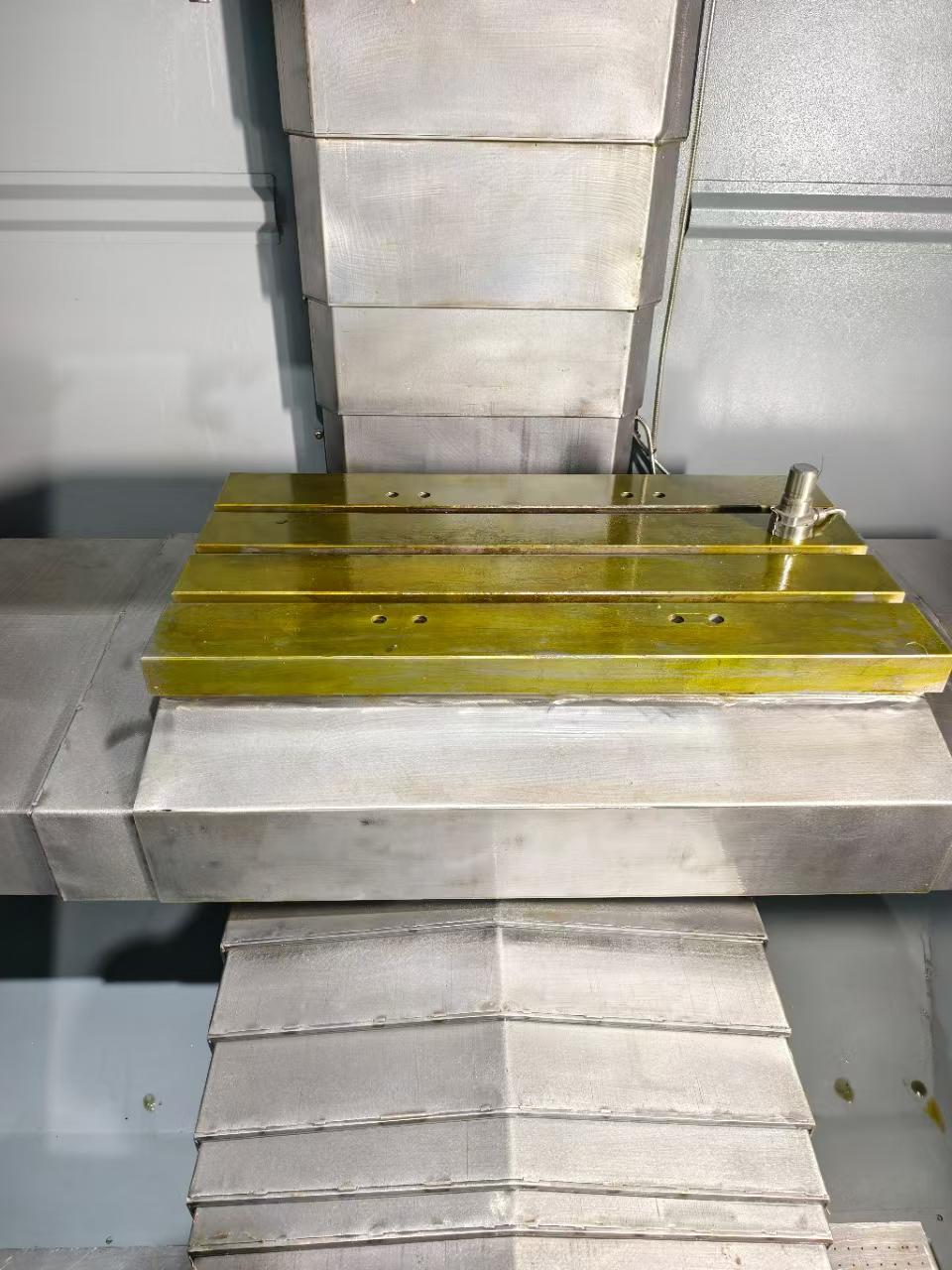

Worktable size	760 x 405 mm
Spindle nose to table distance	102-610 mm
Spindle runout	0.01 mm
Side generatrix	0.012 mm
Front generatrix	0.01 mm
Three-axis repeatability	0.003 mm
Brand	HURCO

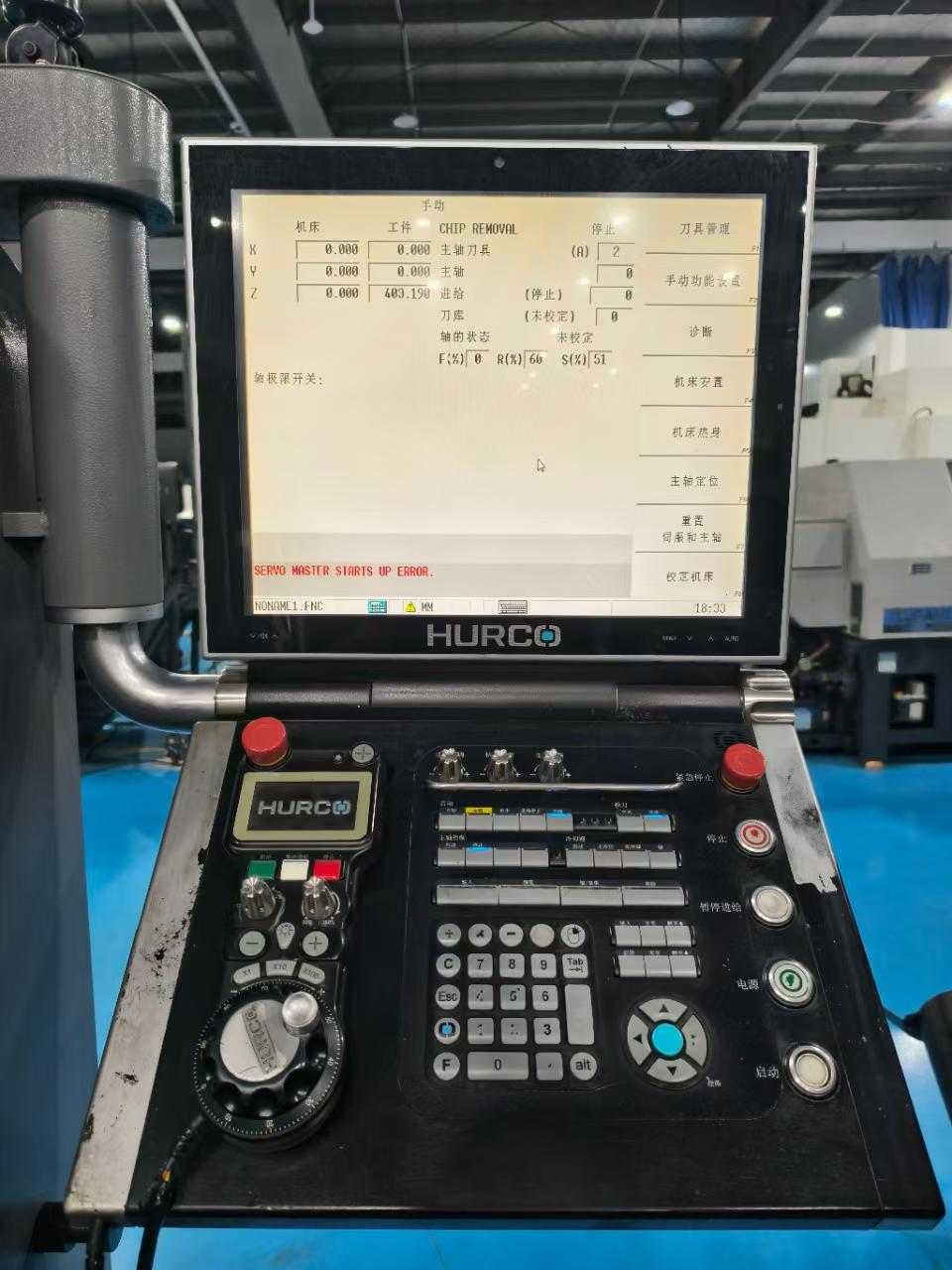

Control system	WinMax
Year of manufacture	2017
