DisponívelVertical Machining Center

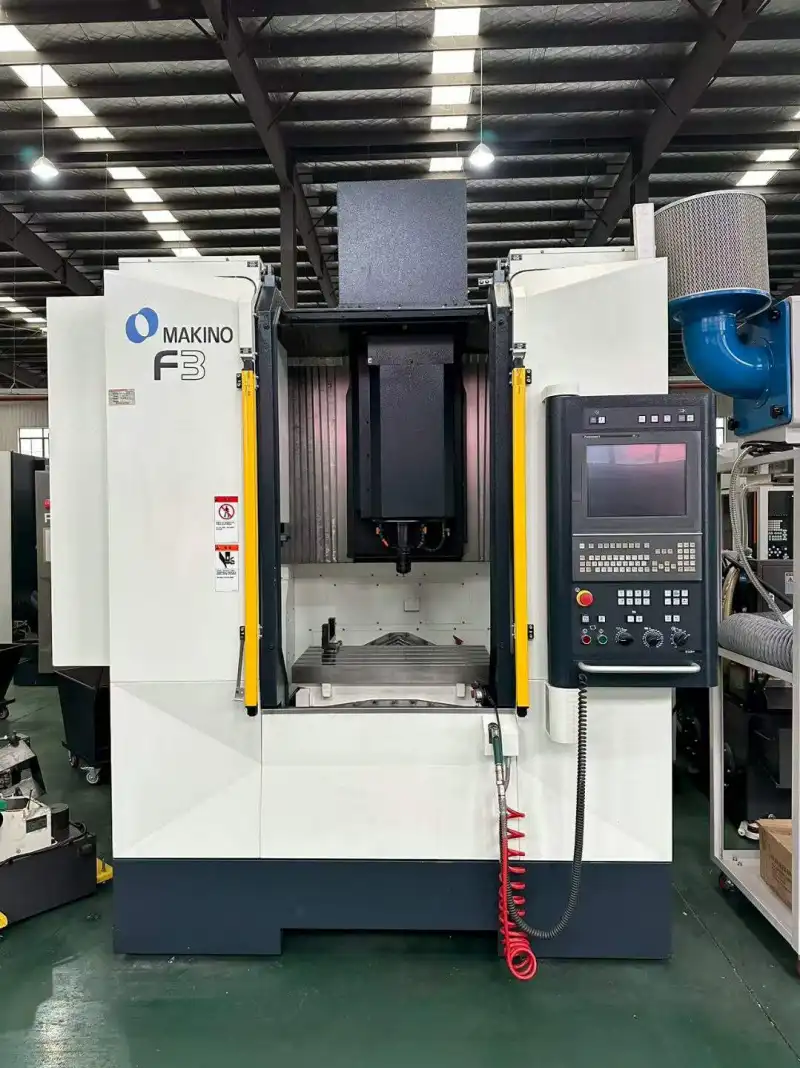

Makino F 3 Vertical Machining Center

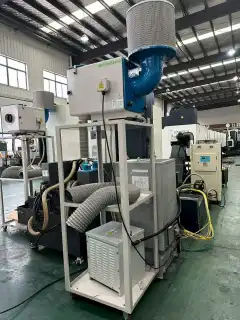

Makino F 3 Vertical Machining Center. Equipped with FANUC Professional 6 control system. Features: 30-tool ATC, HSK63 spindle with 20,000 rpm, automatic door, chip conveyor, coolant constant temperature cooling device, oil-water separator (optional), electrical cabinet AC, 3-axis linear scales, internal coolant spray system, oil mist collector, high-pressure coolant unit, and electrical cabinet with Fanuc servo drive modules. Machine is from 2021.

Código da Máquina: VMC260770
Ano: 2021
Localização: China
Horas de Uso: Sob consulta

Acessórios

Optional: German Blum laser tool setter, Keyence safety light curtain, automatic door, coolant constant temperature cooling device, chip conveyor, oil-water separator, electrical cabinet air conditioner, 3-axis linear scales, internal coolant spray system, oil mist collector, high-pressure coolant unit

Consulta por E-mail

Principais Especificações

Spindle speed	20000 rpm
X/Y/Z travel	650 x 450 x 460 mm
Worktable size	700 x 450 mm
Tool magazine capacity	30 tools
Machine Type	Vertical Machining Center
Brand	Makino
Model	F 3
Tool Setter	Blum laser tool setter (Germany)
Safety Light Curtain	Keyence safety light curtain (Japan)
Automatic Door	Yes
Chip Conveyor	Yes
Oil-water Separator	Optional
Electrical Cabinet Air Conditioner	Yes
Linear Scale	Yes (3-axis)
Controller	FANUC Professional 6
Spindle Taper	HSK63
Spindle Speed (incomplete)	20 (incomplete fragment)
Year Of Manufacture	2021
Coolant System	Coolant spray system
Chip Removal And Splash Protection	Effective
Oil Mist Collector	Yes
Performance Feature	Improved efficiency and environmental friendliness
Servo Drive Module	FANUC servo drive
