Used Nanjing Hualu D 13200 100-Ton 3.2 m Dual-Servo CNC Press Brake

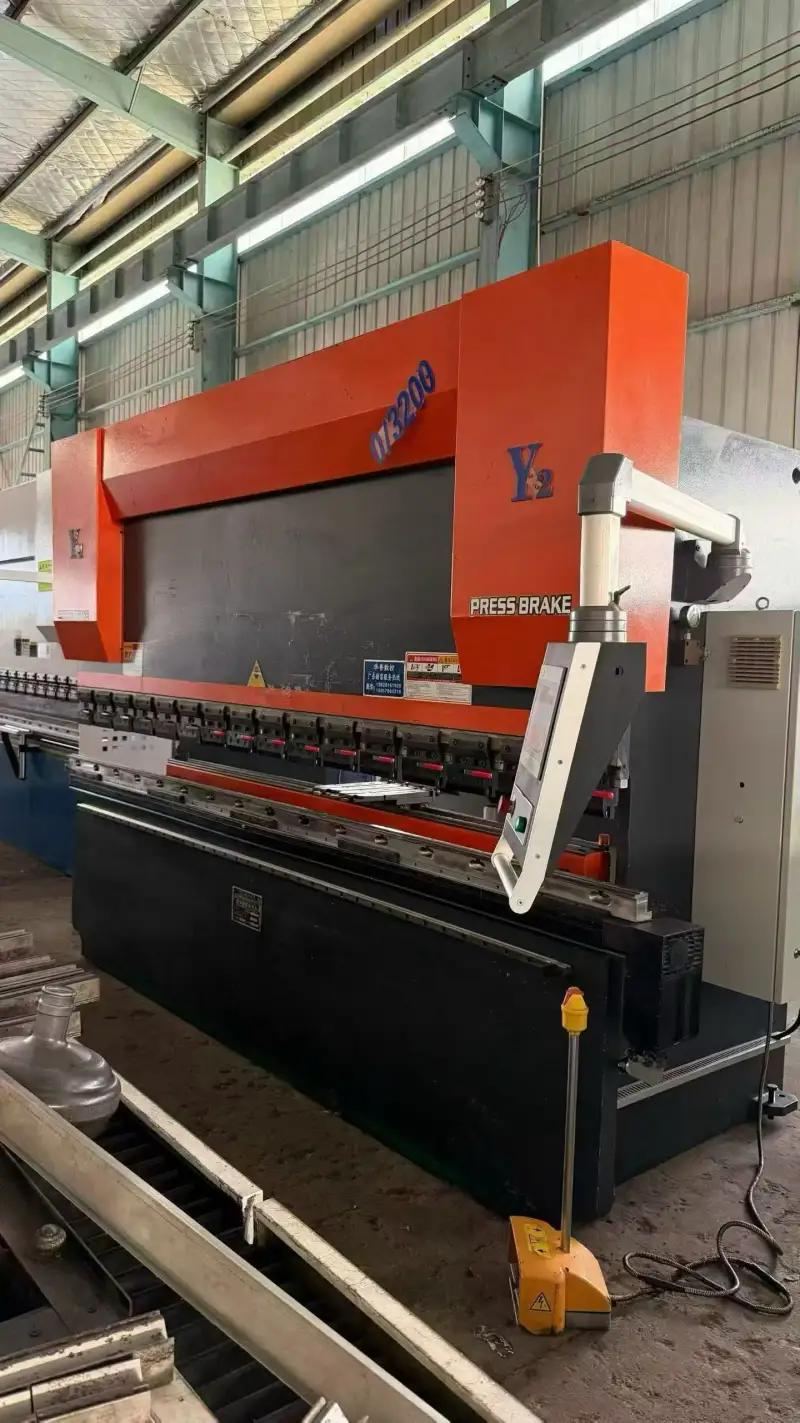

Nanjing Hualu D 13200 dual-servo CNC press brake with a 100-ton bending force and a 3.2 m bending length. The machine carries the Y 2 and PRESS BRAKE markings on the frame and is equipped with the SNC-53 operator panel featuring a touchscreen control system. Bending is driven by a dual-servo arrangement, with THINKVO servo drives installed in the electrical cabinet. The machine is supplied with CNC concentric die tooling and a worktable crowning compensation system for consistent bend angles across the full bending length. Suited to general sheet metal bending work in fabrication shops.

Código da Máquina: SB261010
Ano: Sob consulta
Localização: China
Horas de Uso: Sob consulta

Acessórios

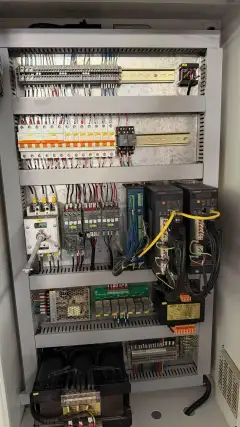

CNC concentric die set; SNC-53 touchscreen control panel; THINKVO servo drive package in electrical cabinet; worktable crowning compensation system

Consulta por E-mail

Principais Especificações

Machine type	Dual-servo CNC press brake
Nominal bending force	100 t
Bending length	3.2 m (3200 mm)
Model	D 13200

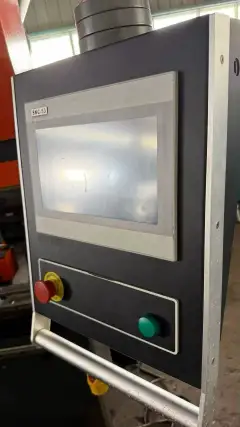

Control panel	SNC-53 with touchscreen system
Servo drive	THINKVO

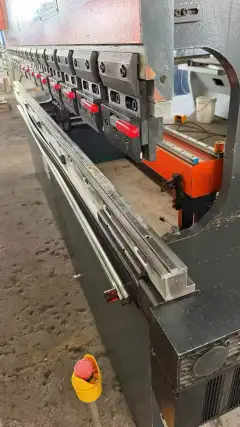

Tooling	CNC concentric die
Worktable compensation	Crowning compensation
Bending axes	Y 1 / Y 2 dual-servo
Brand	Nanjing Hualu
Control system	SNC-53 CNC control system
